IP coaxial cable extender - < 2 W
Regular price
€246,73
Final price
Regular price
-9%
€270,00
Sale price
€246,73
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

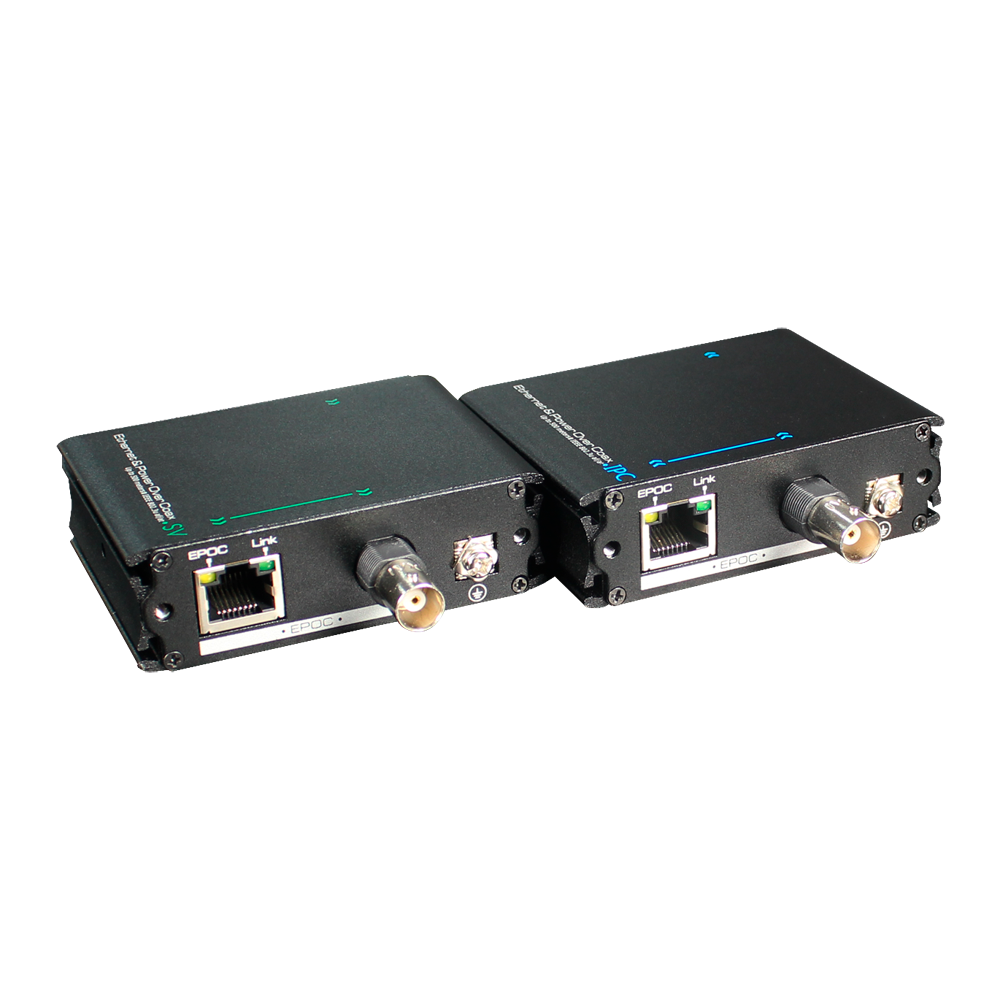

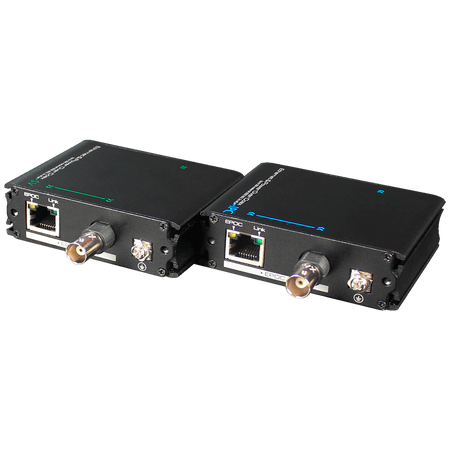

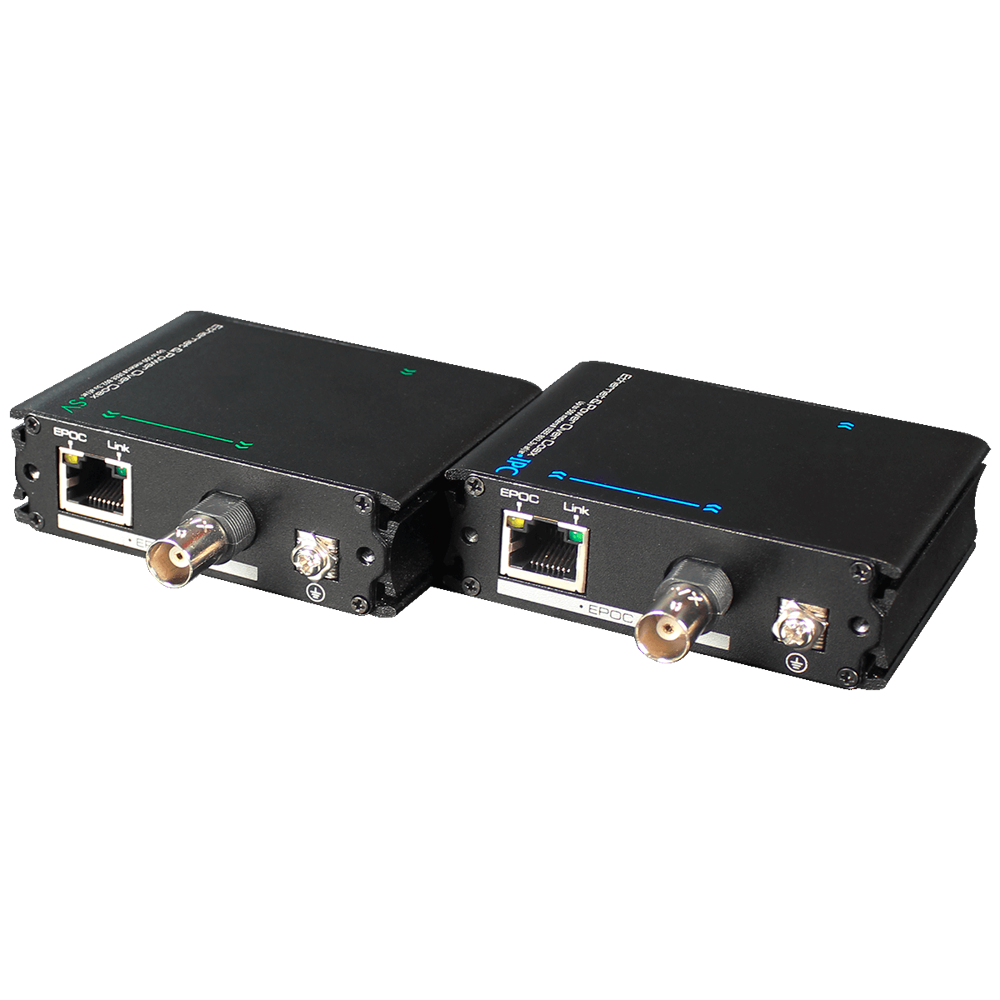

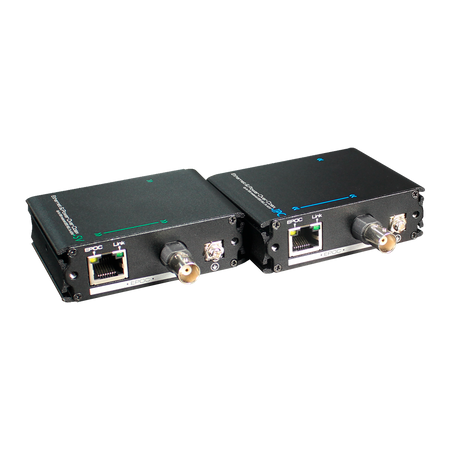

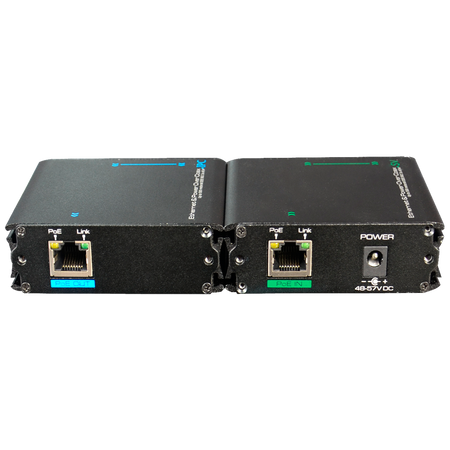

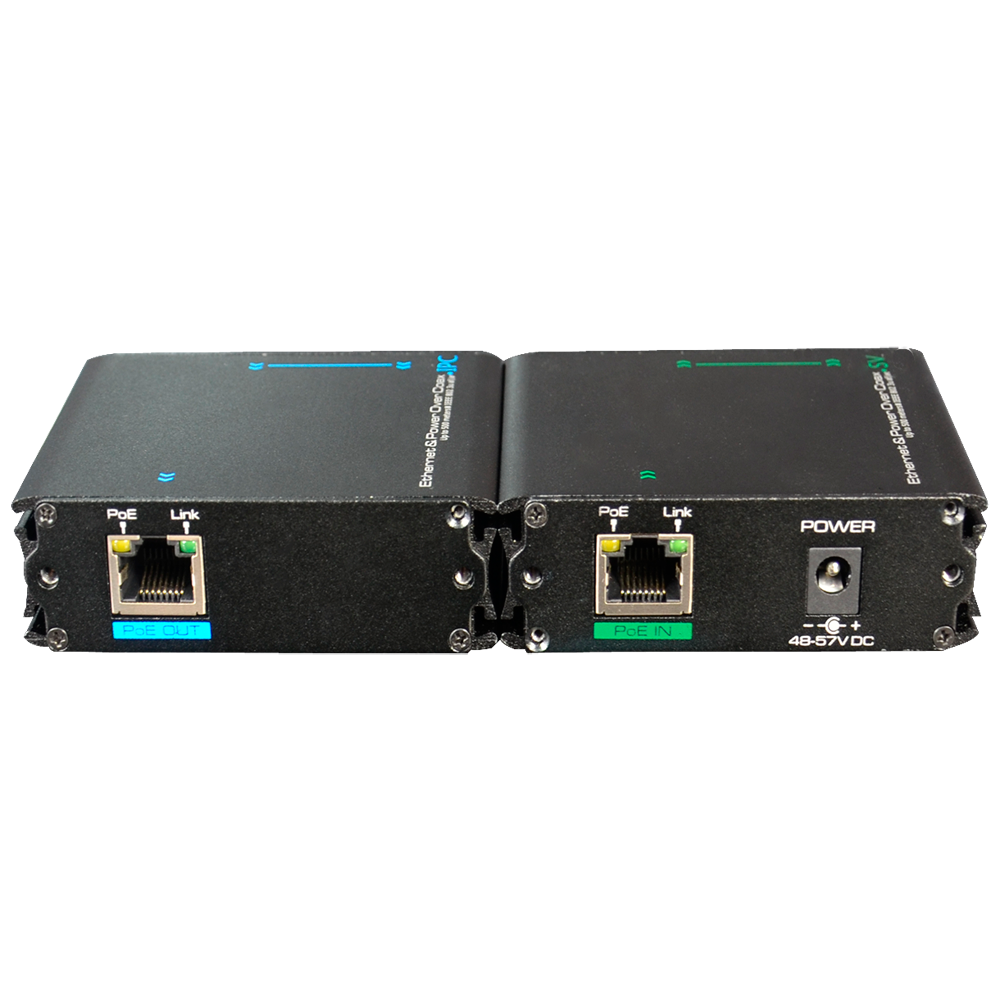

IP | PoE coaxial extender - Passive - Transmitter and receiver - Allows transmission of 1 IP channel - Maximum distance 500 m - Bandwidth up to 100 Mbps
📋 SPECIFICATIONS:
• Power supply: PoE or power adapter
• PoE: IEEE802.3u, IEEE 802.3af, 802.3at standard;
• Supply voltage: 48~57 VDC
• Power consumption: < 2 W
• Transmission speed: 10/100 Mbps with DIP switch
• Distance over coax: 500 m via coaxial cable and 400 m via Ethernet cable
• Ethernet connection: RJ45 port
• Ethernet signal: 10/100 Mbps Base T
• Status indicators: Yellow: power OK | Green: Ethernet signal transmission OK | Green/yellow: signal transmission OK
• Transmitted PoE power: 4.5 W at 500 meters of coaxial cable, 5 W at 400 meters of coaxial cable
• Protection: IEC61000-4-5 Level 3
• Operating conditions: Temperature -40℃~75℃ | Humidity 95%
• Dimensions: 63.2 x 82 x 25 mm
• Weight: IPC: 153 g ; SV: 154 g
📦 INCLUDED:
• Pair of extenders• Manual
| Power supply | PoE or power adapter |
|---|---|
| PoE | IEEE802.3u, IEEE 802.3af, 802.3at standard; |
| Supply voltage | 48~57 VDC |
| Power consumption | < 2 W |
| Transmission speed | 10/100 Mbps with DIP switch |
| Distance over coaxial | 500 m via coaxial cable and 400 m via Ethernet cable |
| Ethernet connection | RJ45 port |
| Ethernet signal | 10/100 Mbps Base T |
| Status indicators | Yellow: power OK | Green: Ethernet signal transmission OK | Green/yellow, signal transmission OK |
| PoE power transmitted | 4.5 W at 500 meters of coaxial cable, 5 W at 400 meters of coaxial cable |
| Protection | IEC61000-4-5 Level 3 |
| Operating conditions | Temperature -40℃~75℃ | Humidity 95% |
| Dimensions | 63.2 x 82 x 25 mm |
| Weight | IPC: 153 g; SV: 154 g |
