IP extender coaxial cable - 10/100 Mbps
Regular price
€246,73
Final price
Regular price
-9%
€270,00
Sale price
€246,73
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

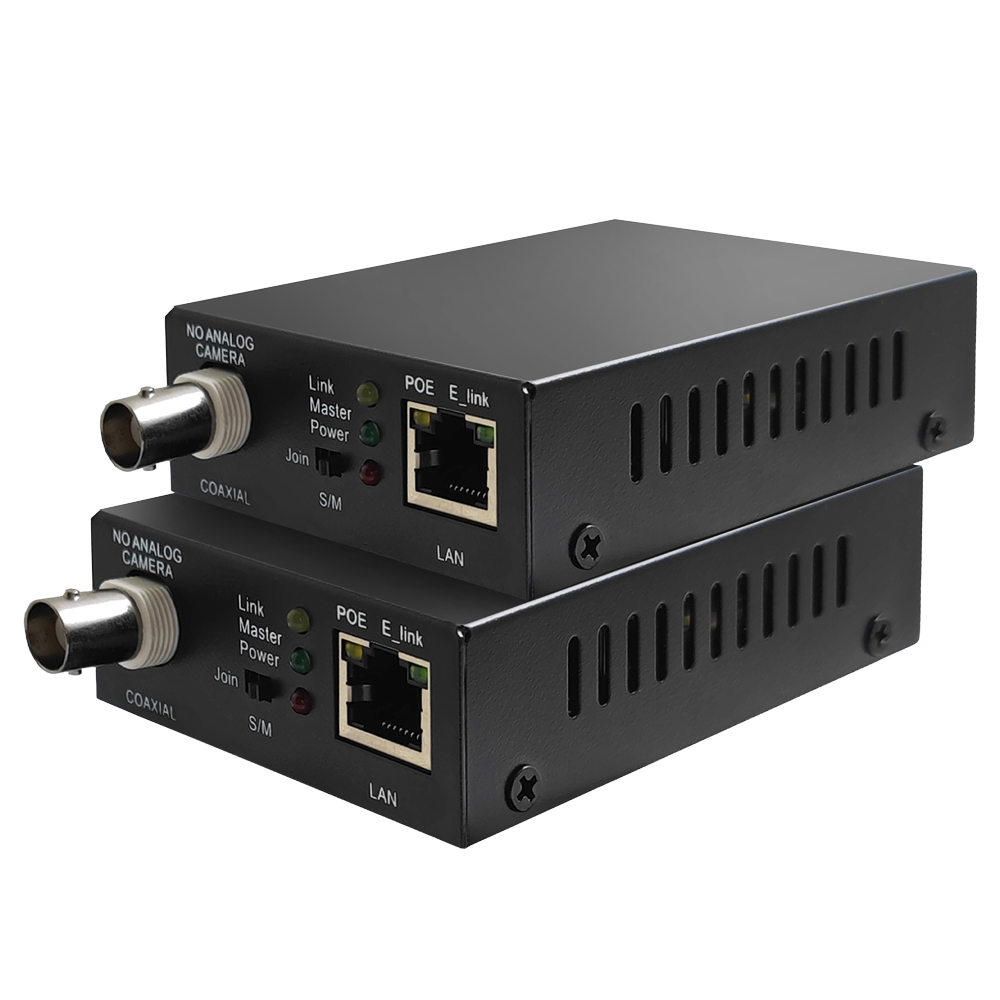

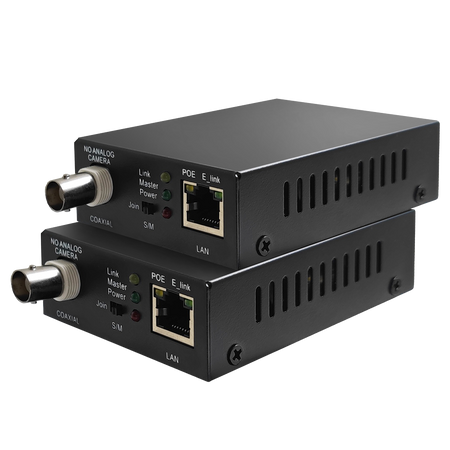

Coaxial IP extender cable | PoE - Passive - Transmitter and receiver - Allows transmission of 1 IP channel - Maximum distance 500m - Bandwidth up to 100 Mbps
📋 SPECIFICATIONS:

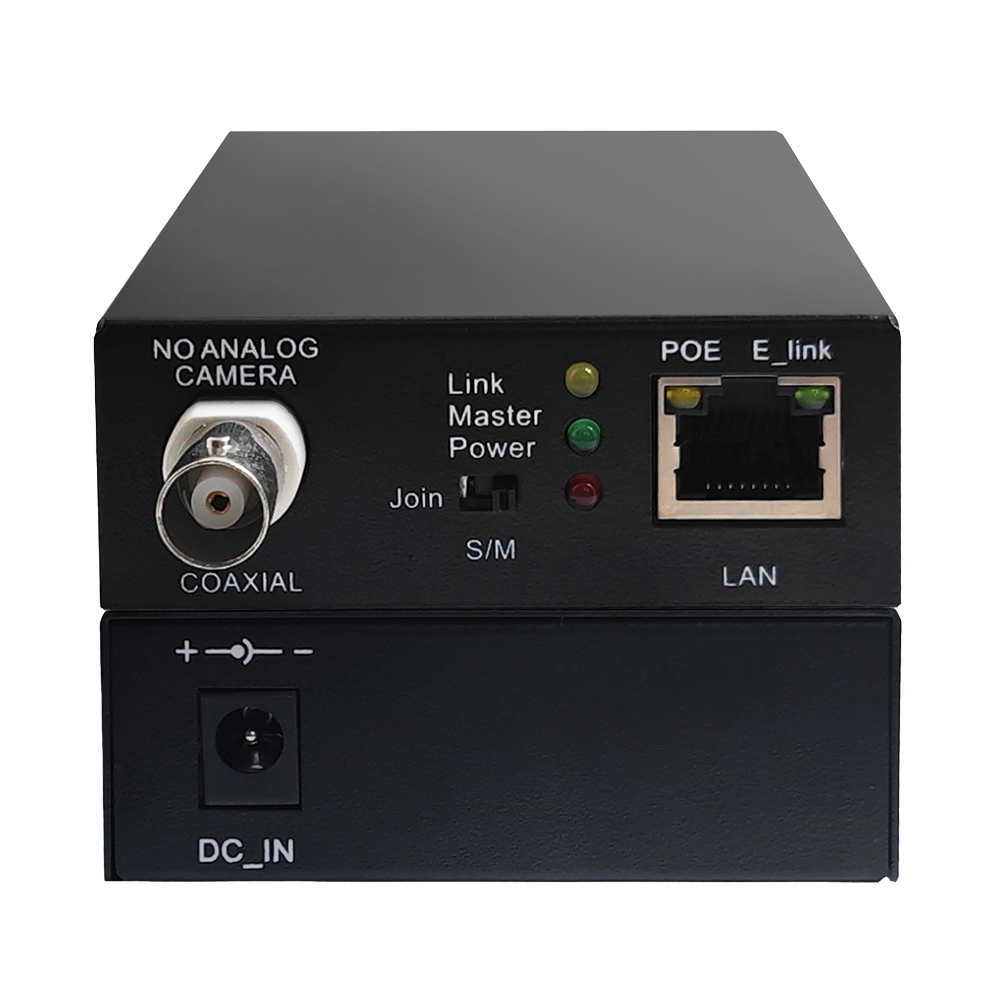

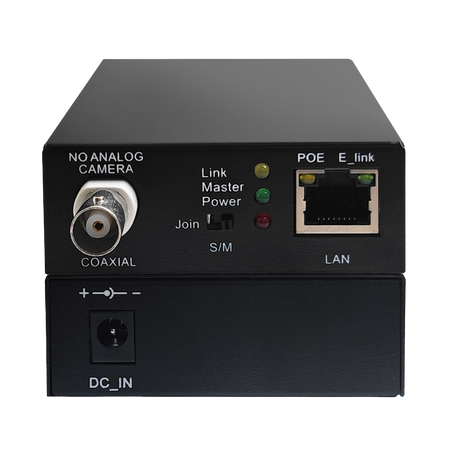

• Power supply: POE or power adapter
• PoE: IEEE802.3u, IEEE 802.3af, 802.3at standard;
• Supply voltage: 48~57 VDC
• Transmission speed: 10/100 Mbps
• Ethernet connection: RJ45 port
• Distance over coax: 500 m via coaxial cable
• Ethernet signal: 10/100 Mbps Base T

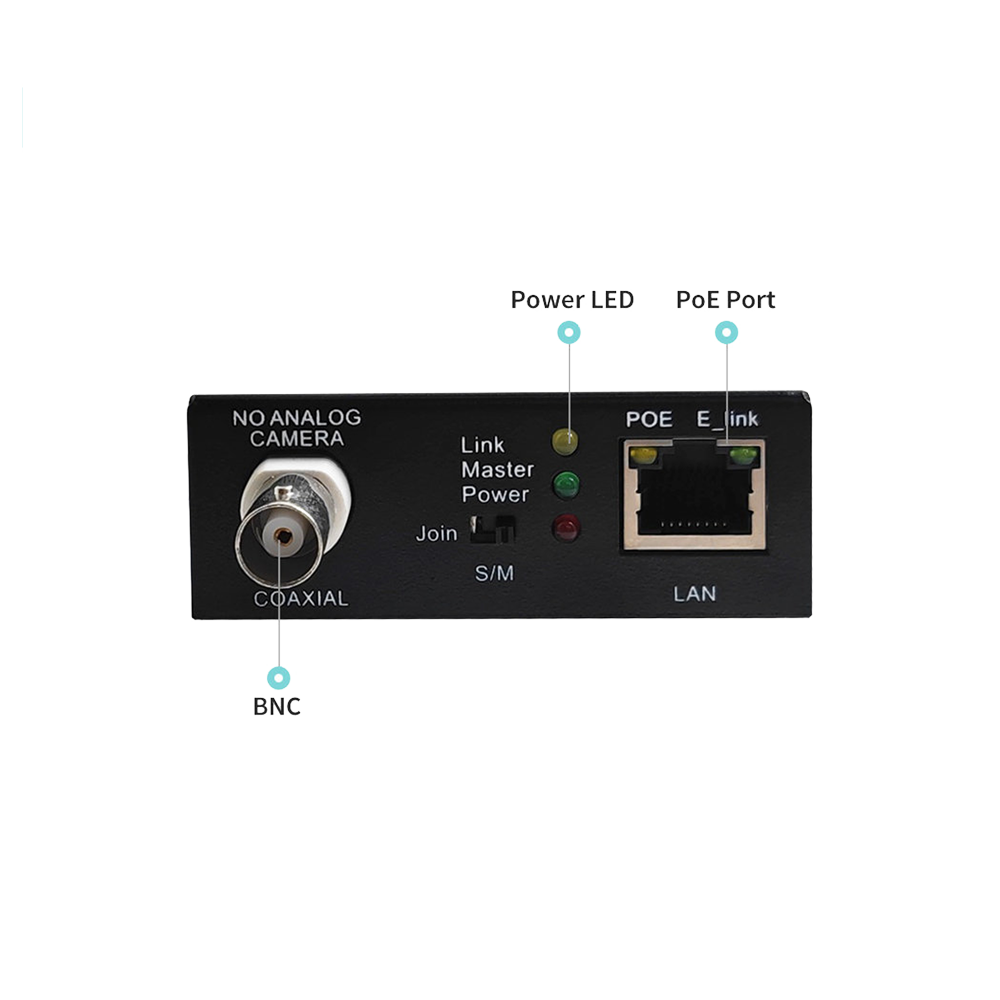

• Status indicators: Master: Light turns on when the switch is turned to the M position and turns off when the switch is turned to the S position (select the switch position before powering on).; Link: Signal connection light is on when the TP signal is connected and off when it is not.; Power: Power light stays on after the device starts up.; RJ45 Green: Network communication light flashes during communication.; RJ45 Yellow: POE indicator, on when POE is active, flashing in case of overload or undervoltage.
• Operating conditions: Temperature -20℃~70℃ | Humidity 95%

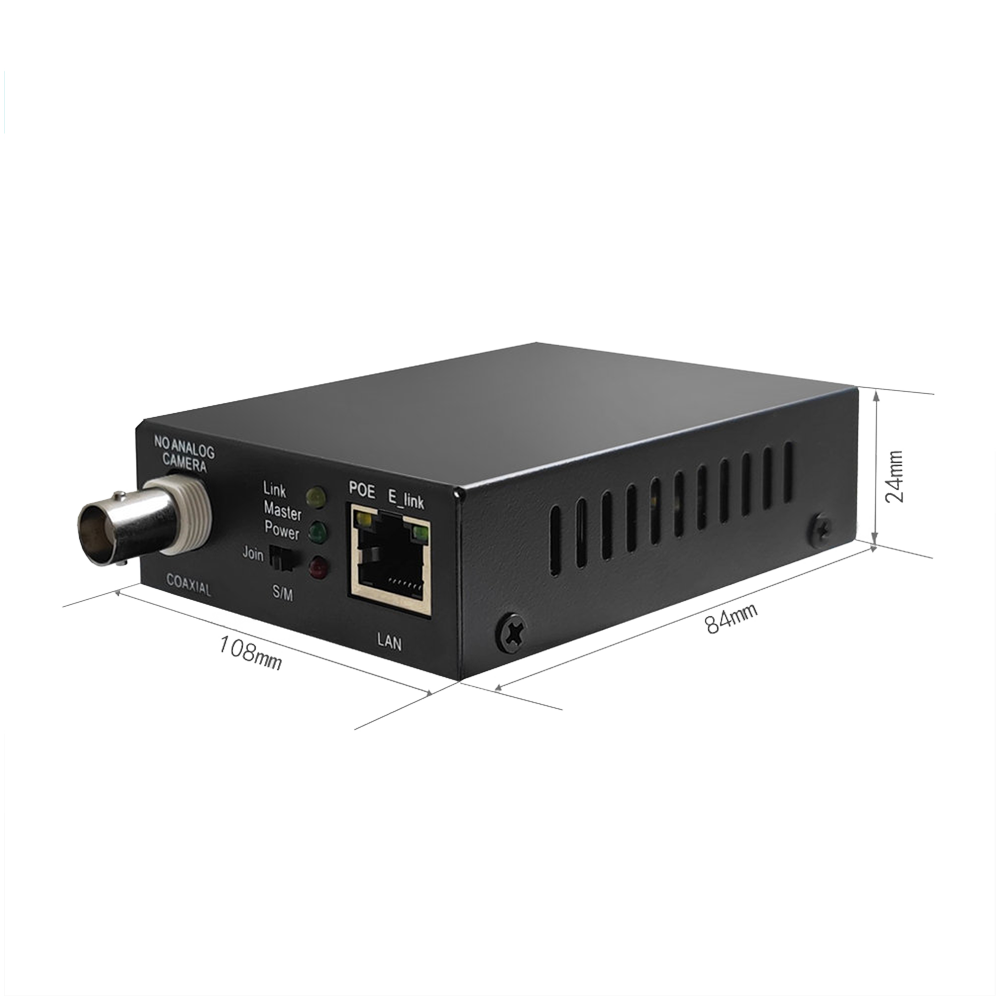

• Dimensions: 105mm×95mm×24mm
• Weight: 190g
📦 INCLUDED:
• Pair of extenders• Manual
| Power supply | PoE or power adapter |
|---|---|
| PoE | IEEE802.3u, IEEE 802.3af, 802.3at standards; |
| Supply voltage | 48~57 VDC |
| Transmission speed | 10/100 Mbps |
| Ethernet connection | RJ45 port |
| Distance over coaxial | 500 m via coaxial cable |
| Ethernet signal | 10/100 Mbps Base T |
| Status indicators | Master: The light turns on when the switch is set to the M position and turns off when the switch is set to the S position (select the switch position before powering on). Link: The signal connection light is on when the TP signal is connected and off when it is not. Power: The power light remains on after the device starts up. RJ45 Green: The network communication light flashes during communication. RJ45 Yellow: PoE indicator, on when PoE is active, flashing in case of overload or undervoltage. |
| Operating conditions | Temperature -20℃~70℃ | Humidity 95% |
| Dimensions | 105mm×95mm×24mm |
| Weight | 190g |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
