EBS2L-40A-2P
EBS2L-40A-2P

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

Elettricity

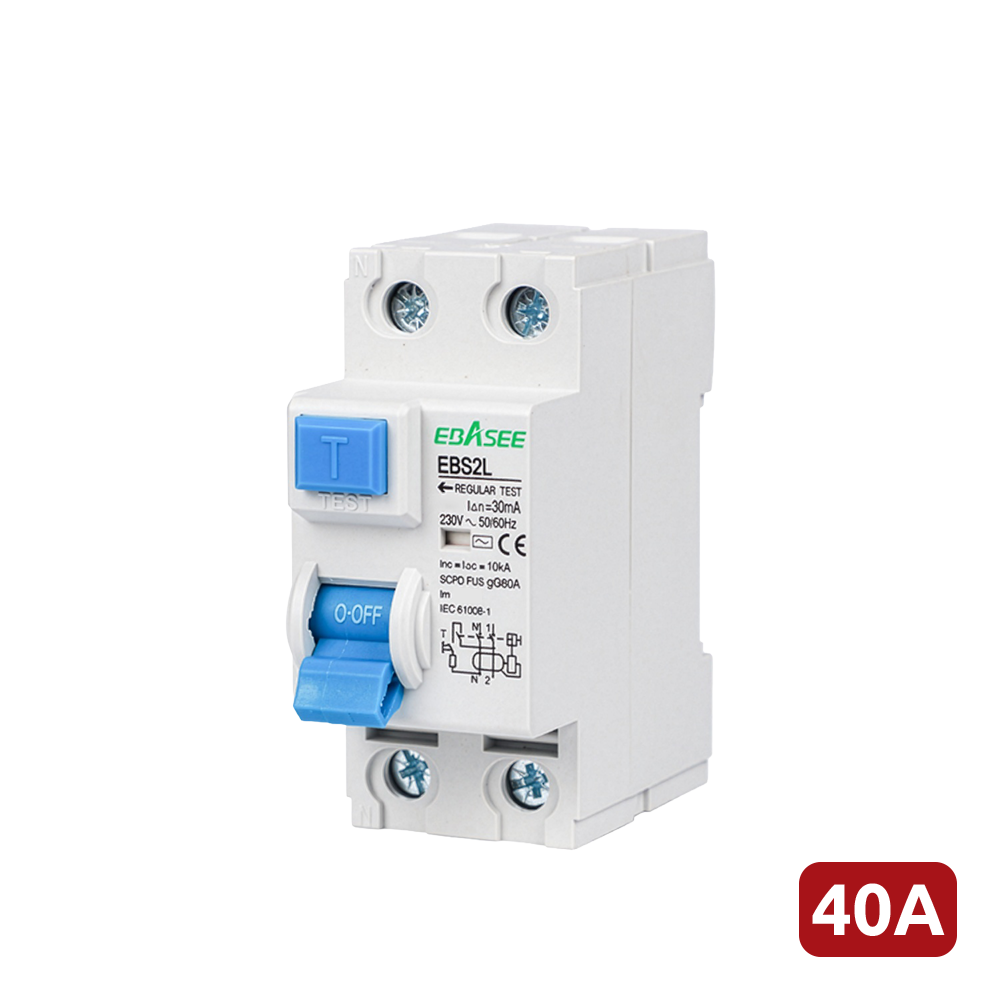

Residual current circuit breaker - Rated current 40A - 2-pole (single-phase installations)

SKU: EBS2L-40A-2P
(0)
In stock
Usually shipped within 24 hours
€11,99 Final price
-8% €13,00 €11,99 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Residual current circuit breaker - Rated current 40A - 2 poles (single-phase installations) - Sensitivity 30mA - Tripping type A - For DIN rail

📋 SPECIFICATIONS:
• Range: Residual current circuit breaker
• Mounting: 35mm DIN rail (EN 60175)
• Terminal type: Cable / Pin-type busbar / U-type busbar
• Connection: Top / bottom
• Top connection cross-section: 35mm AWG 18/1
• Bottom connection cross-section: 35mm AWG 18/1
• Tightening torque: 2.5Nm
• Recommended conductor cross-section: 10mm2 (rated current of 42-50A)
• Dimensions: 35.9 (H) x 81.7 (W) x 74.0 (D) mm
• Leakage type: Electromagnetic
• Input rated current: 40A
• Tripping type: A
• Number of poles: 2P (Single-phase)
• Rated voltage: 240V
• Insulation voltage: 500V
• Rated frequency: 50/60Hz
• Rated making and breaking capacity: 6000A
• Short-circuit protection fuse: 6000A
• Peak voltage: 6000V
• Dielectric power frequency test voltage (1 min): 2.5kV
• Rated sensitivity: 30mA
• Maximum interrupting current: 630A
• Pollution degree: 2
• Electrical lifespan: 4000 operations
• Mechanical lifespan: 8000 cycles
• Protection degree: IP20
• Operating temperature: -5 - 40ºC
• Storage temperature: -25 - 70ºC

📦 INCLUDED:
• Residual current circuit breaker
Range Residual Current Circuit Breaker
Mounting 35mm DIN rail (EN 60175)
Terminal type Cable / Pin-type busbar / U-type busbar
Connection Top / bottom
Top connection cross-section 35mm AWG 18/1
Bottom connection cross-section 35mm AWG 18/1
Tightening torque 2.5Nm
Recommended conductor cross-section 10mm2 (rated current 42-50A)
Dimensions 35.9 (H) x 81.7 (W) x 74.0 (D) mm
Leakage type Electromagnetic
Rated input current 40A
Tripping type A
Number of poles 2P (Single-phase)
Rated voltage 240V
Insulation voltage 500V
Rated frequency 50/60Hz
Rated breaking capacity 6000A
Short-circuit protection fuse 6000A
Peak voltage 6000V
Dielectric test voltage at industrial frequency (1 min) 2.5kV
Rated sensitivity 30mA
Maximum breaking current 630A
Pollution degree 2
Electrical life 4000 operations
Mechanical life 8000 cycles
Protection degree IP20
Operating temperature -5 - 40ºC
Storage temperature -25 - 70ºC
