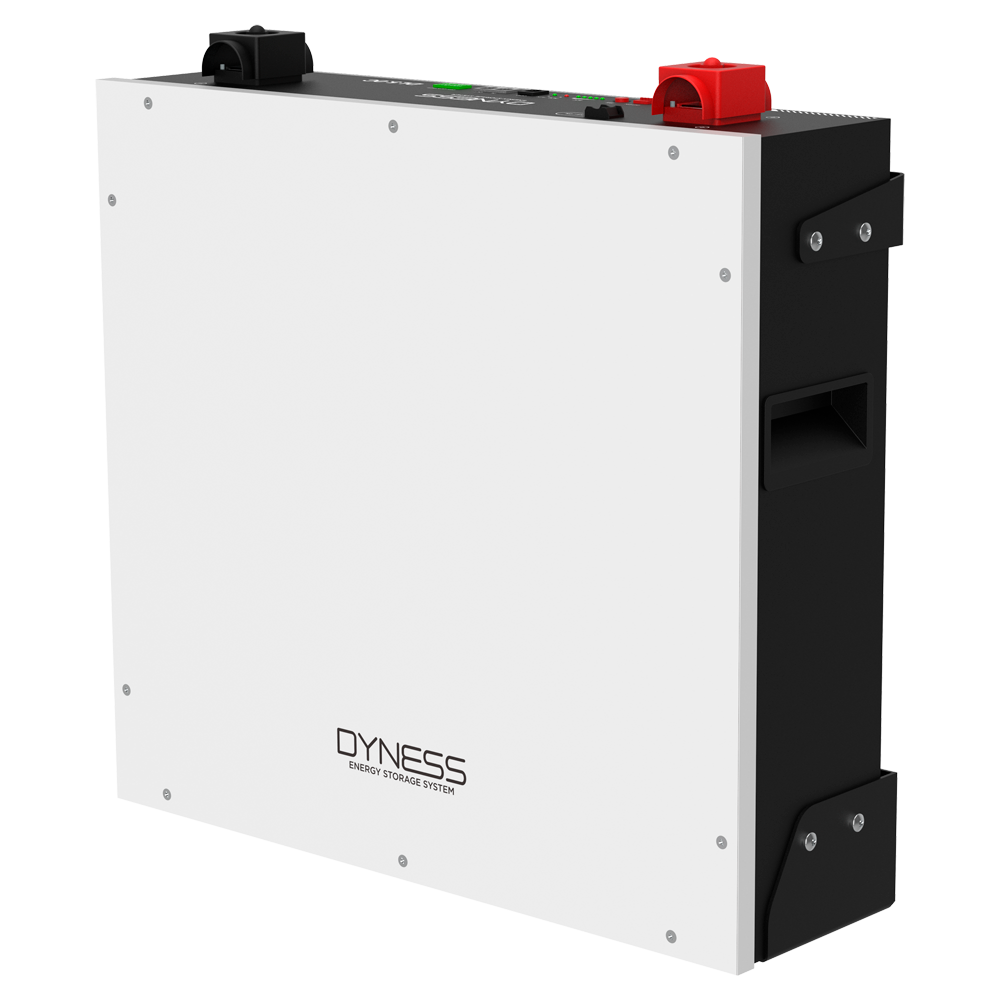

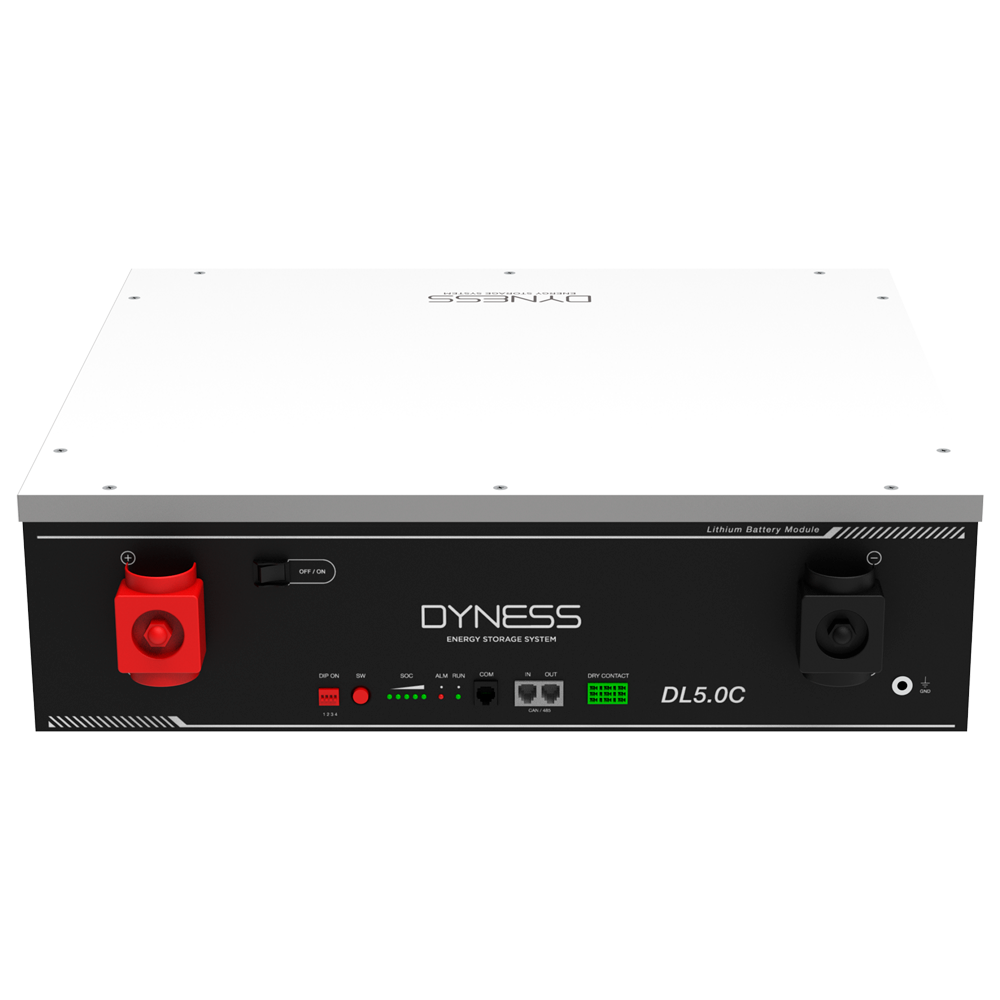

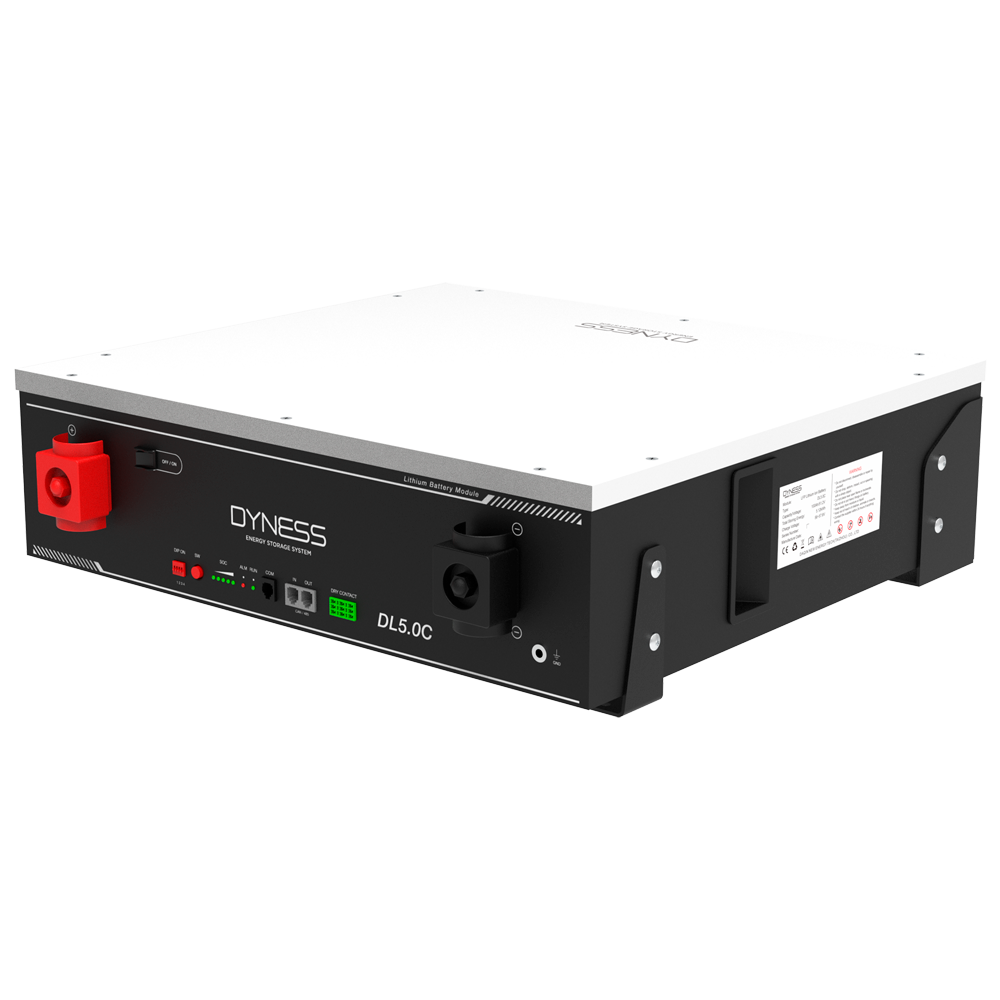

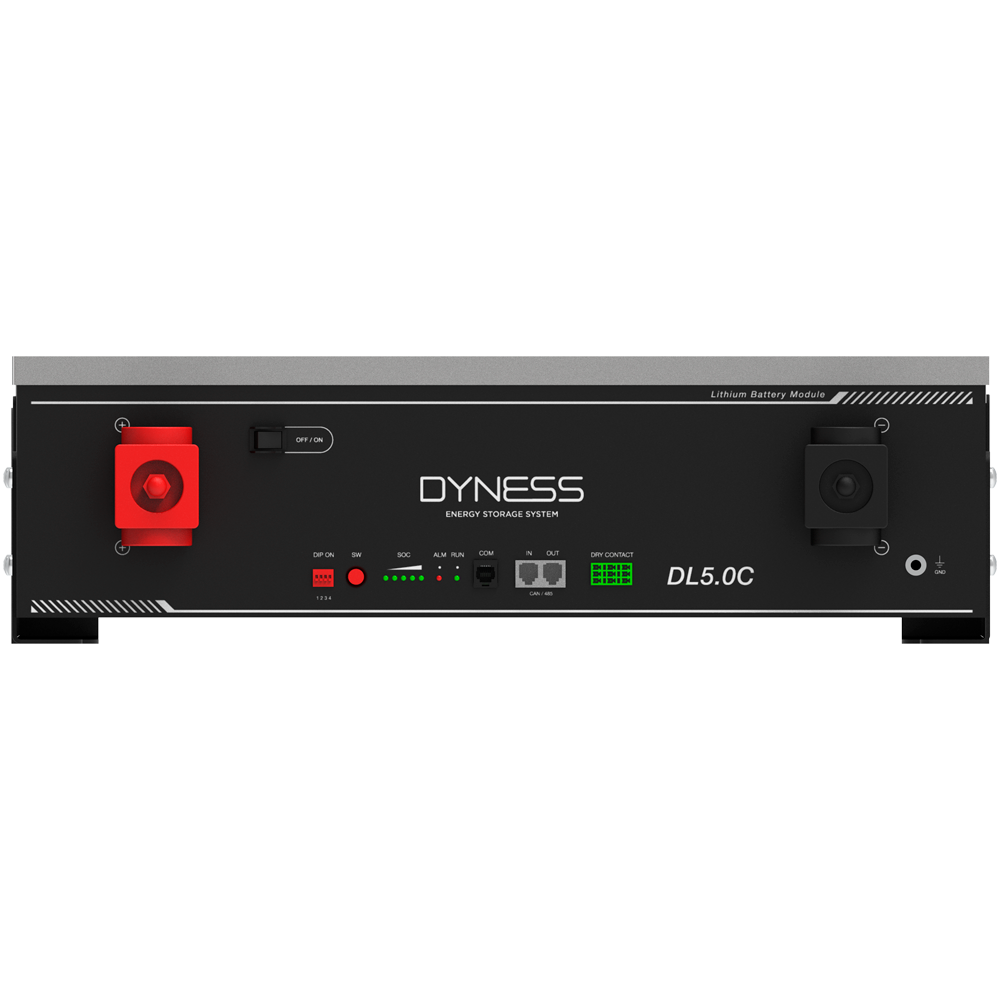

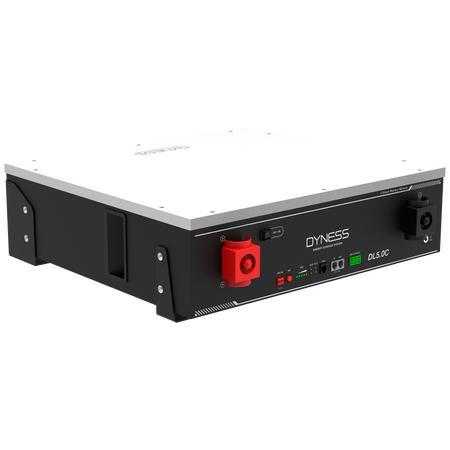

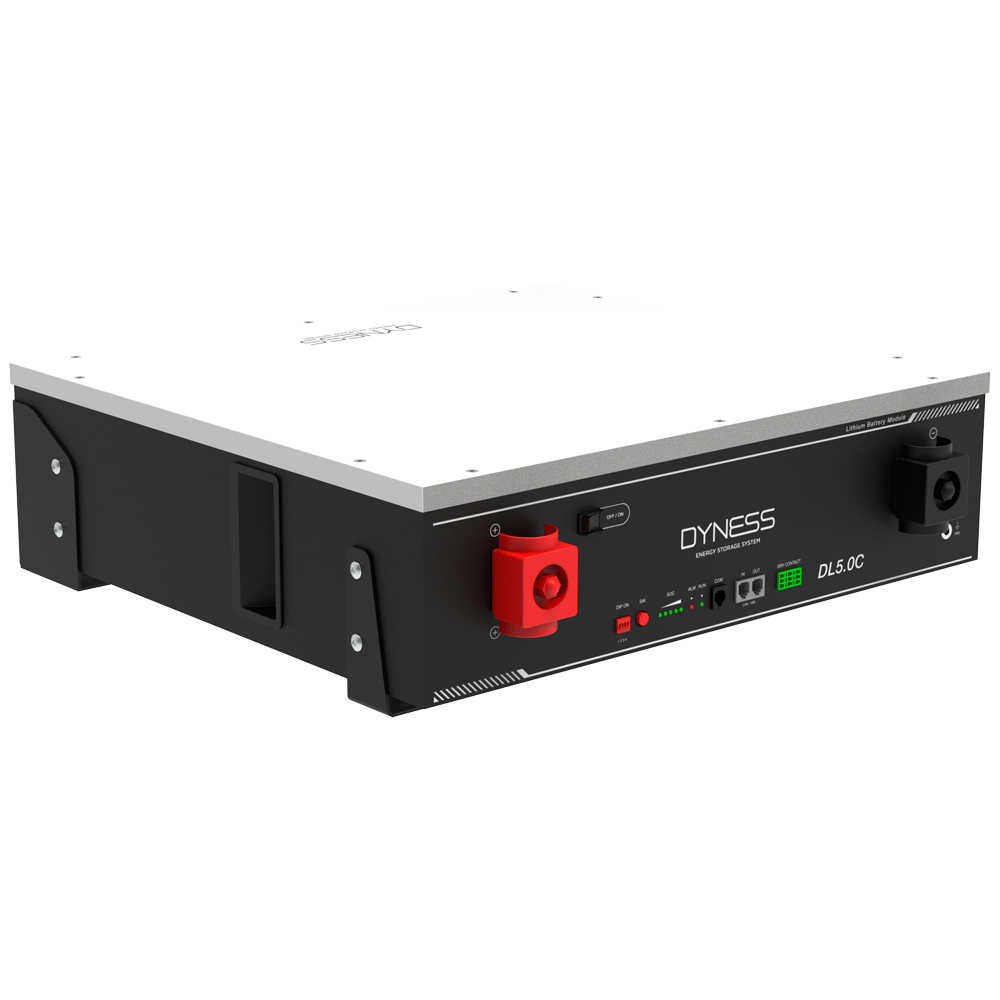

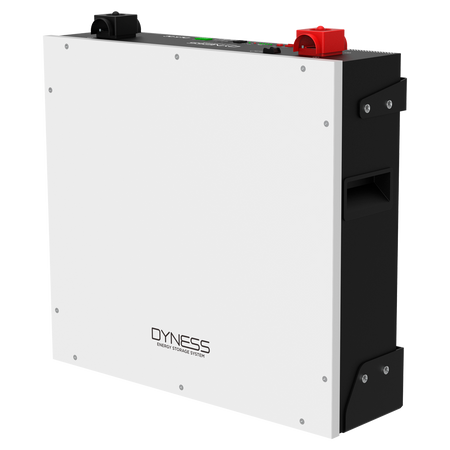

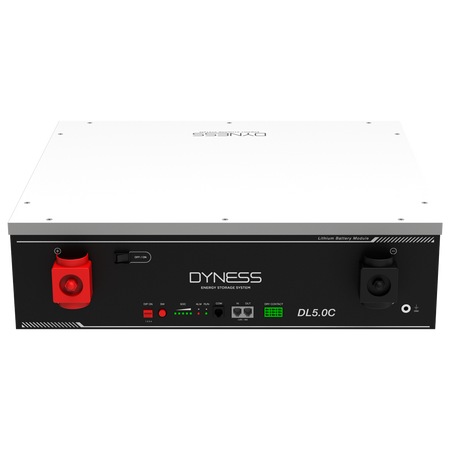

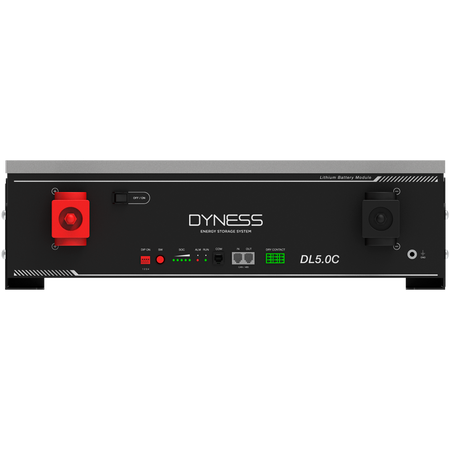

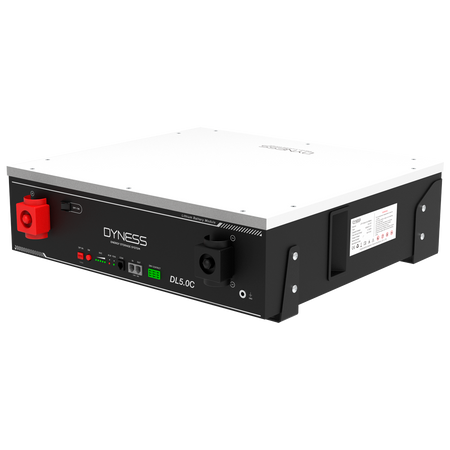

Dyness rack-mountable battery
Regular price
€1.821,58
Final price
Regular price
-5%
€1.920,00
Sale price
€1.821,58
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Rack-mountable battery - 5120Wh capacity - LiFePO4 51.2V / 100Ah - 6000 life cycles - Up to 50 units in parallel - Compatible with TBB and most inverters
📋 SPECIFICATIONS:
• Brand: Dyness
• Capacity: 5120Wh
• Nominal capacity: 100 Ah
• Battery type: LiFePO4 51.2V / 100Ah
• Nominal voltage: 51.2 V
• Operating voltage: 44.8 ~ 57.6 V
• Recommended charge/discharge current: 50 A
• Maximum power charge current: 75 A
• Maximum power discharge current: 100 A
• Maximum power charge/discharge current: 110 A (15 s)
• Life cycle: +6000
• Nominal power: 2560 W
• Maximum power: 4320 W
• Maximum peak power: 5760 W (15 s)
• Depth of discharge (DOD): 90%
• Recommended charge and discharge: 0.5C
• Maximum discharge: 1C
• Operating temp. (charging): 0 - 55 ℃
• Operating temp. (discharging): -20 - 55 ℃
• Dimensions: 558 (H) x 545 (D) x 150 (W) mm
• Weight: 54 Kg
• Protection: IP20
• Communication: CAN / RS485 / RS232
• Expansion: Up to 50 units in parallel
• Compatibility: SMA / Victron / Ingeteam / Delios / Goodwe / Solis / Deye / SAJ / Voltronic / Sungrow / TBB ...
📦 INCLUDED:
• Dyness battery • Positive and negative power cables • Communication cables for inverter and parallel connection • Grounding cable • User manual • Installation hardware
| Capacity | 5120Wh |
|---|---|
| Rated capacity | 100 Ah |
| Battery type | LiFePO4 51.2V / 100Ah |
| Nominal voltage | 51.2 V |
| Operating voltage | 44.8 ~ 57.6 V |
| Recommended charge/discharge current | 50 A |
| Maximum charge current | 75 A |
| Maximum discharge current | 100 A |
| Maximum charge/discharge current | 110 A (15 s) |
| Cycle life | +6000 |
| Rated power | 2560 W |
| Maximum power | 4320 W |
| Peak power | 5760 W (15 s) |
| Depth of discharge (DOD) | 90% |
| Recommended charge and discharge | 0.5C |
| Maximum discharge | 1C |
| Operating temp. (charge) | 0 - 55 ℃ |
| Operating temp. (discharge) | -20 - 55 ℃ |
| Dimensions | 558 (H) x 545 (D) x 150 (W) mm |
| Weight | 54 kg |
| Protection | IP20 |
| Communication | CAN / RS485 / RS232 |
| Expansion | Up to 50 units in parallel |
| Compatibility | SMA / Victron / Ingeteam / Delios / Goodwe / Solis / Deye / SAJ / Voltronic / Sungrow / TBB ... |
- User manual Link
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
