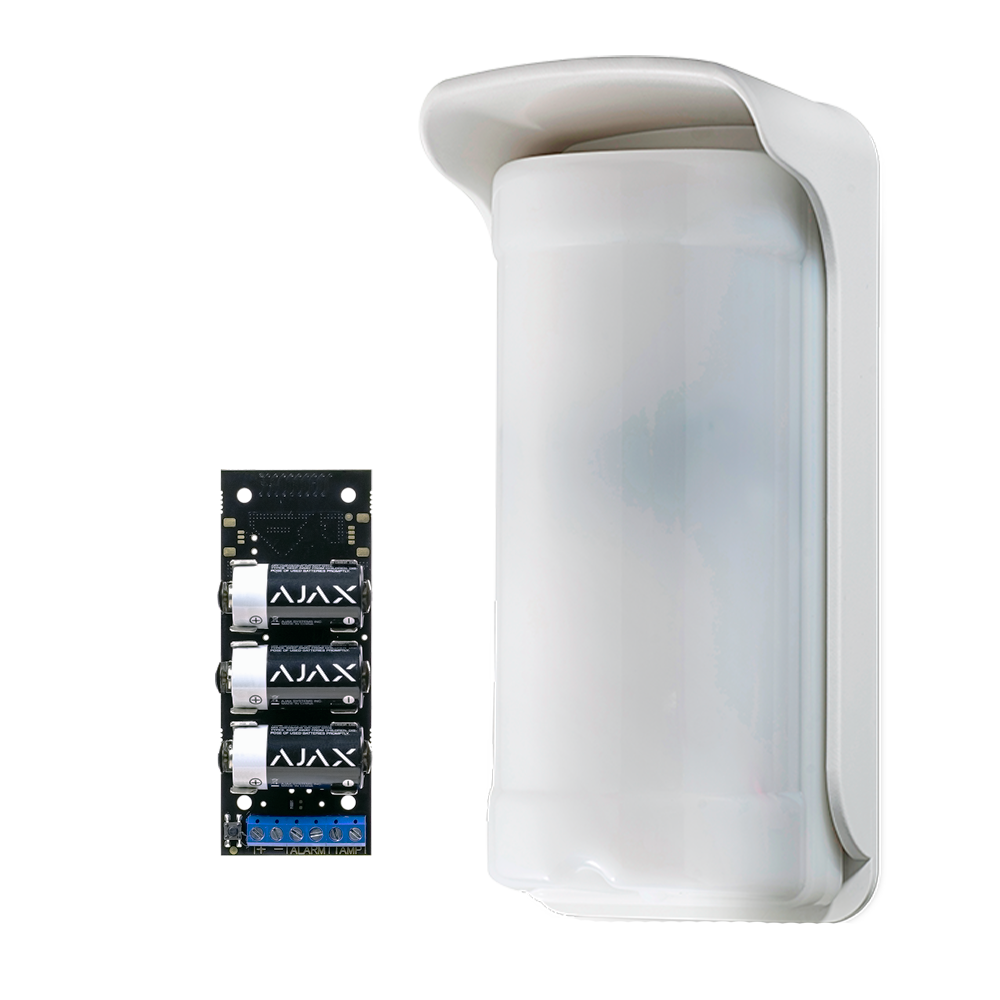

Duevi low-consumption outdoor detector - Integrated with Ajax Transmitter - Dual PIR on each side and dual front PIR - 180º total coverage / Antimasking - Power supply provided by Transmitter - Outdoor use IP54 / Vandal-proof IK10
📋 SPECIFICATIONS:
• Brand: Duevi
• Model: Moskito K

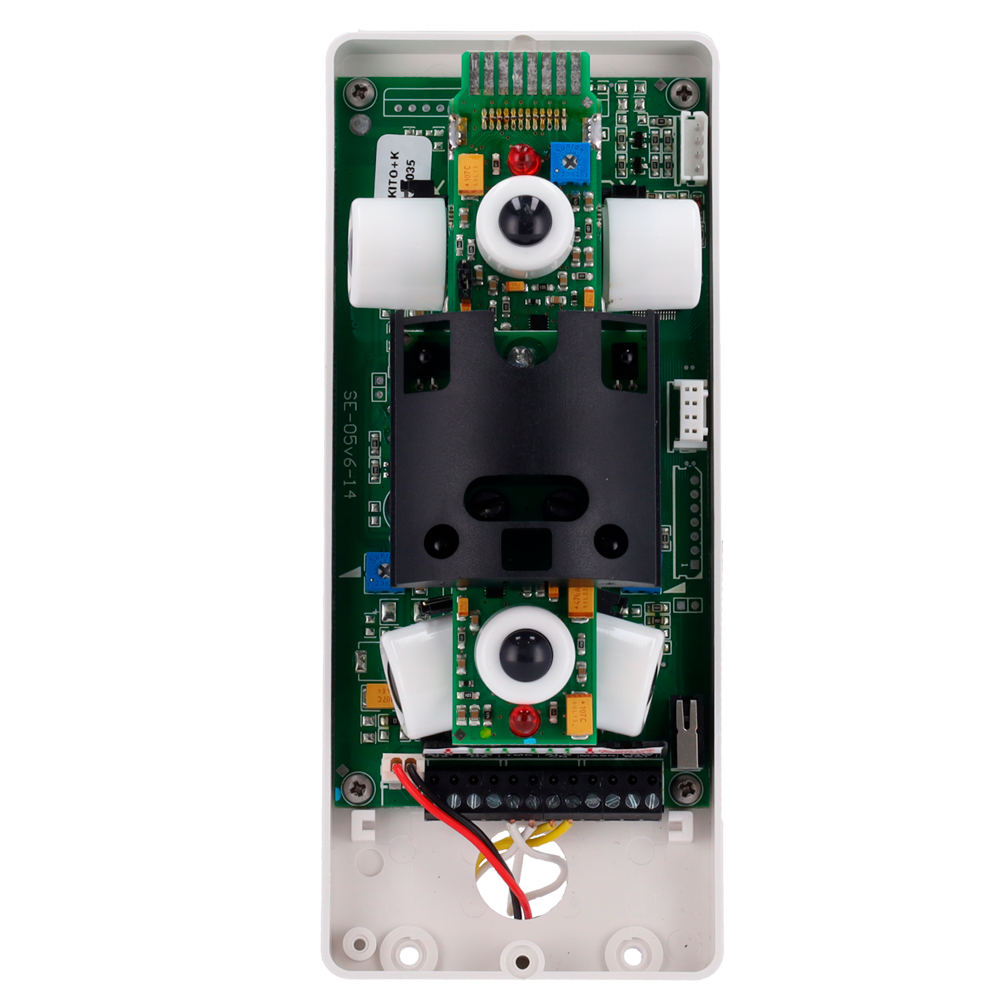

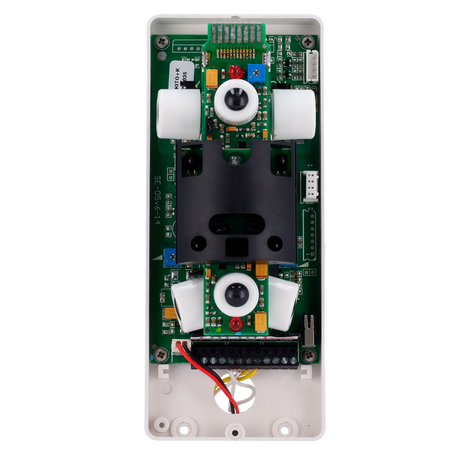

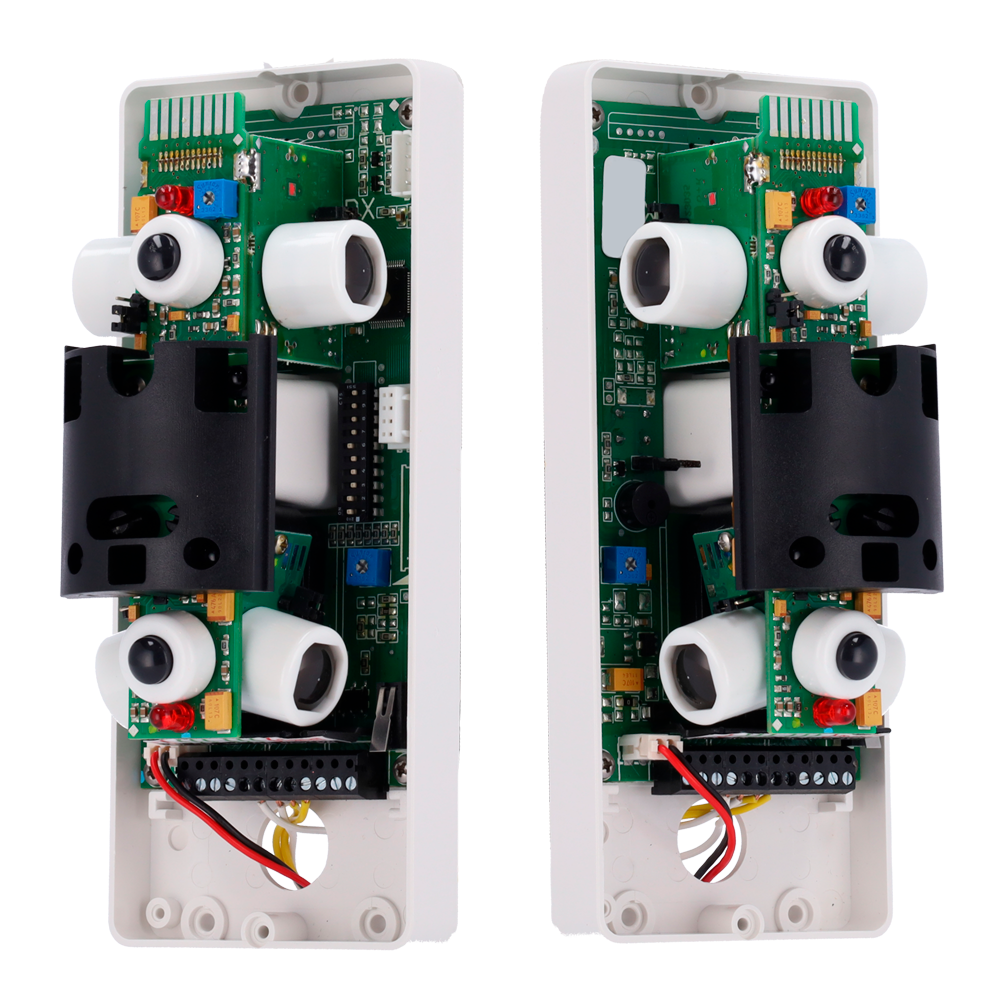

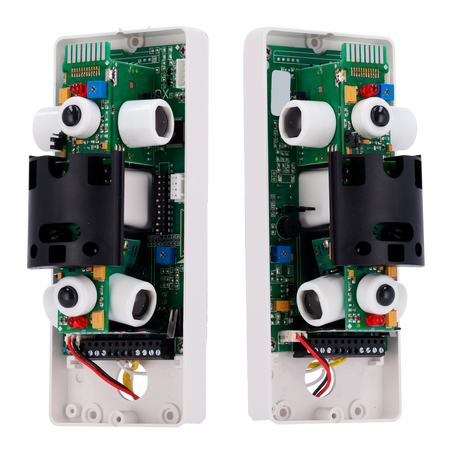

• Technology: Dual side PIR (both sides) and dual front PIR
• PIR lens: Optics adjustable in 3 positions

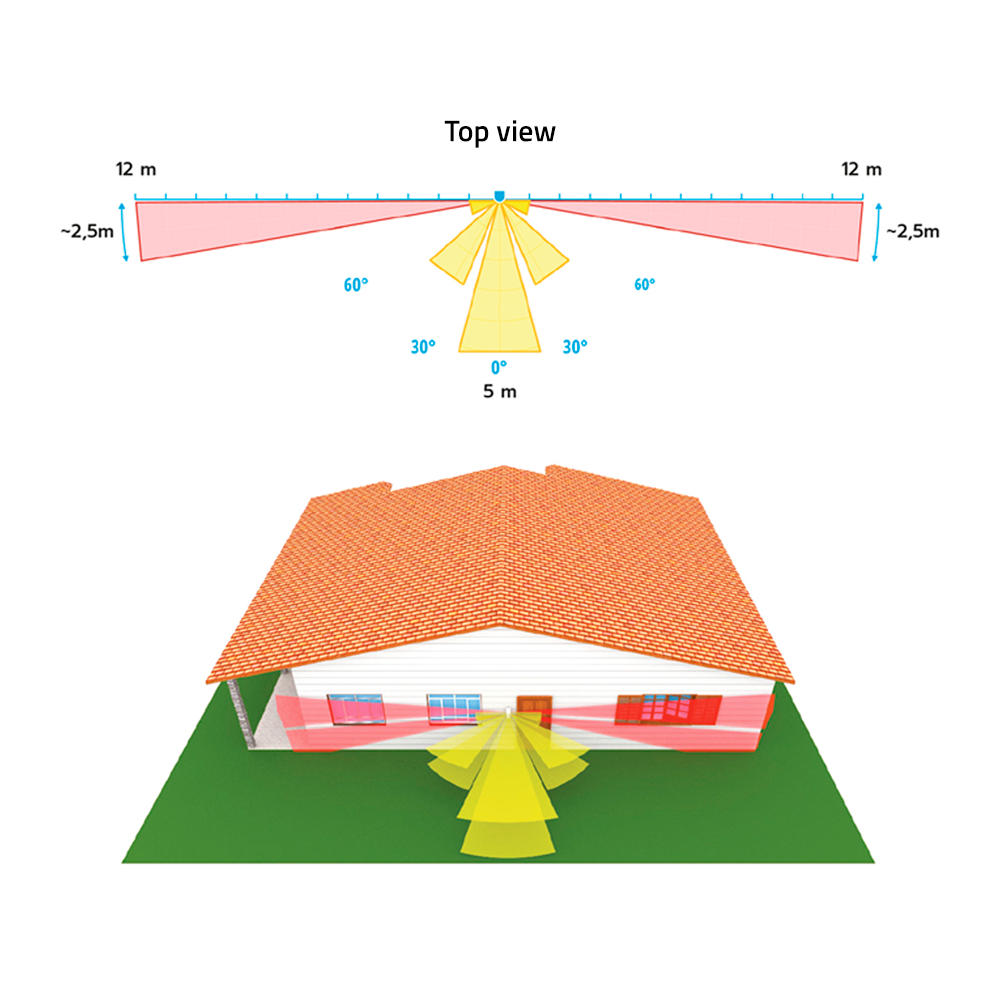

• Side detection range: Configurable on each side: from 3 m to 12 m (in 3 levels) / 10º
• Front detection range: Configurable: from 2 m to 5 m (in 3 levels) / 180º
• Frequency: 868 MHz Jeweller (Ajax transmitter included)
• Installation height: Recommended 2.2 m (from 1 to 1.4 meters)
• Masking: Available: from 0ºC, always active (App) or disabled
• Sensitivity: Adjustable on each side and on the front (potentiometer and jumper)
• Anti-opening tamper: Available
• Anti-sabotage tamper: Available (movement accelerometer)
• LED indication: Alarm (blue) and Walk test (6 red LEDs: one for each PIR / blue: alarm confirmation)
• Audible indication: Integrated buzzer for easy installation: alarm, tampering, antimasking

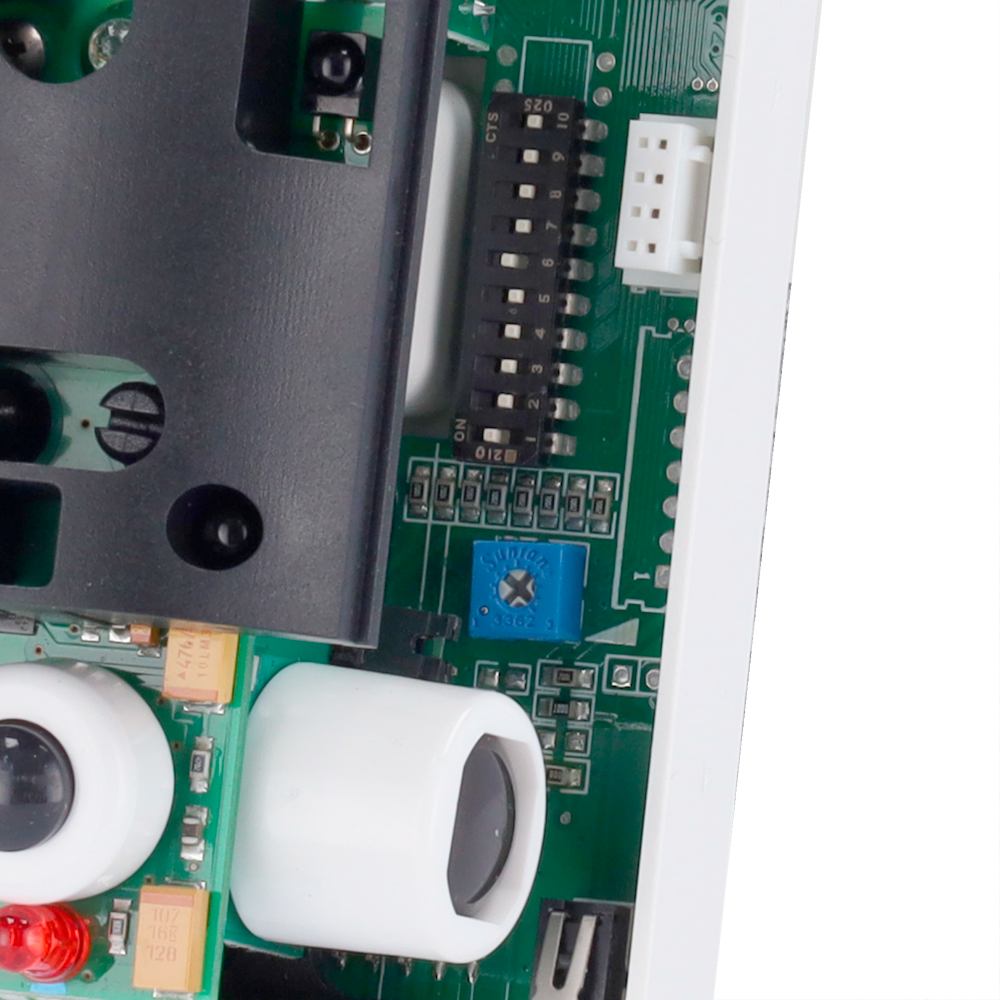

• DIP Switch configuration: 1 - Antimasking (On/Off); 2 - Front pre-alarm (On/Off); 3 - Front walk-test (On/Off); 4 - Right walk-test (On/Off); 5 - Left walk-test (On/Off); 6 - Alarm LED (On/Off); 7 - Programming via App (On/Off); 8 and 9 - Side configuration (all sides active / left, right or front excluded); 10 - Alarm unification on one output (On/Off)
• Additional configuration on the App: Antimasking (from 0ºC, always active or disabled) / Independent sensitivity adjustment for each side / Standby time (On/Off/Up to 60 s)
• Configuration via App: DV-BTLINK module required and downloading the View Sensor App (Android)

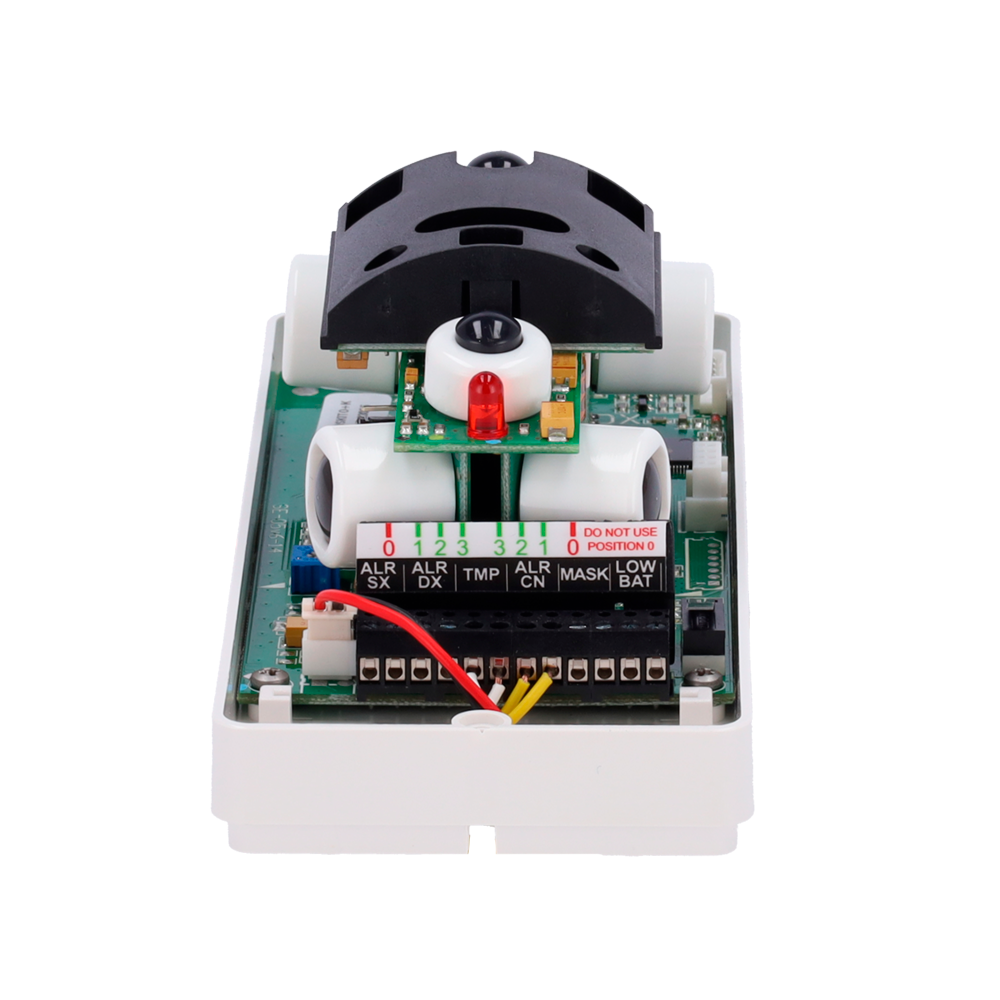

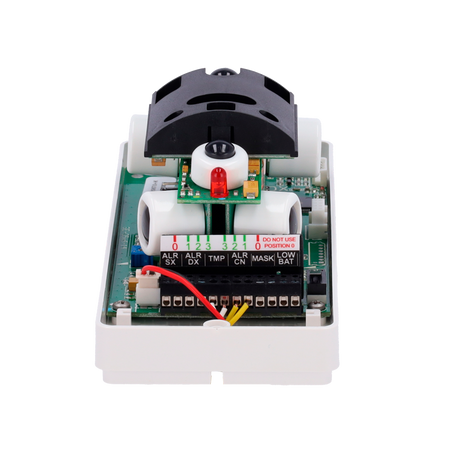

• Wired outputs: Alarm and fault (tampering and antimasking)
• Low battery warning: Signal sent by the Ajax transmitter
• Power supply: Provided by the Ajax Transmitter (do not insert additional batteries)
• Consumption: Minimum consumption (idle): 26 uA / Maximum: 6 mA
• Operating temp.: -40 ºC ~ +70 ºC
• Protection rating: IP54, Vandal-proof IK10
• Dimensions: 190 (H) x 85 (W) x 113 (D) mm (distance between transmitters)
📦 INCLUDED:

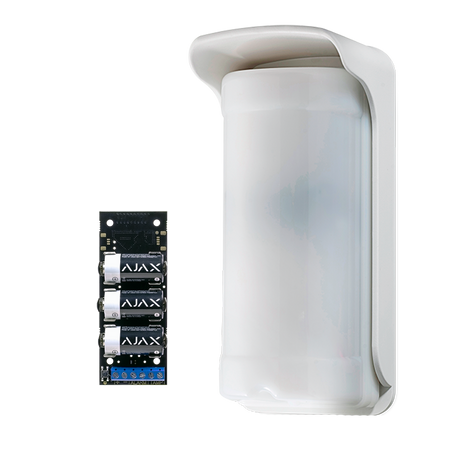

• Duevi outdoor detector• AJ-TRANSMITTER: Ajax radio transmitter• Mounting material
| Model | Moskito K |
|---|---|
| Technology | Dual side PIR (both sides) and dual front PIR |
| PIR Lens | Optics adjustable in 3 positions |
| Side detection range | Configurable on each side: from 3 m to 12 m (in 3 levels) / 10º |
| Front detection range | Configurable: from 2 m to 5 m (in 3 levels) / 180º |
| Frequency | 868 MHz Jeweller (Ajax transmitter included) |
| Installation height | Recommended 2.2 m (from 1 to 1.4 meters) |
| Masking | Available: from 0ºC, always active (App) or disabled |
| Sensitivity | Adjustable on each side and on the front (potentiometer and jumper) |
| Anti-opening tamper | Available |
| Anti-sabotage tamper | Available (movement accelerometer) |
| LED indication | Alarm (blue) and Walk test (6 red LEDs: one for each PIR / blue: alarm confirmation) |
| Sound indication | Integrated buzzer for easy installation: alarm, sabotage, anti-masking |
| DIP Switch configuration | 1 - Anti-masking (On/Off) 2- Front pre-alarm (On/Off) 3- Front walk-test (On/Off) 4- Right walk-test (On/Off) 5- Left walk-test (On/Off) 6- Alarm LED (On/Off) 7- Programming via App (On/Off) 8 and 9 - Side configuration (all sides active / left, right or front excluded) 10- Alarm unification on one output (On/Off) |
| Additional configuration on the App | Anti-masking (from 0ºC, always active or disabled) / Independent sensitivity adjustment for each side / Standby time (On/Off/Up to 60 s) |
| Configuration via App | Requires the DV-BTLINK module and downloading the View Sensor App (Android) |
| Wired outputs | Alarm and fault (tamper and anti-masking) |
| Low battery warning | Signal sent by the Ajax transmitter |
| Power supply | Provided by the Ajax Transmitter (do not insert additional batteries) |
| Consumption | Minimum consumption (quiescent): 26 uA / Maximum: 6 mA) |
| Operating temp. | -40 ºC ~ +70 ºC |
| Protection rating | IP54, Vandal-proof IK10 |
| Dimensions | 190 (H) x 85 (W) x 113 (D) mm (distance between transmitters) |
