Duevi low-power outdoor detector - Dual PIR / 15 m detection
Duevi low-power outdoor detector - Dual PIR / 15 m detection
Regular price
€230,58
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

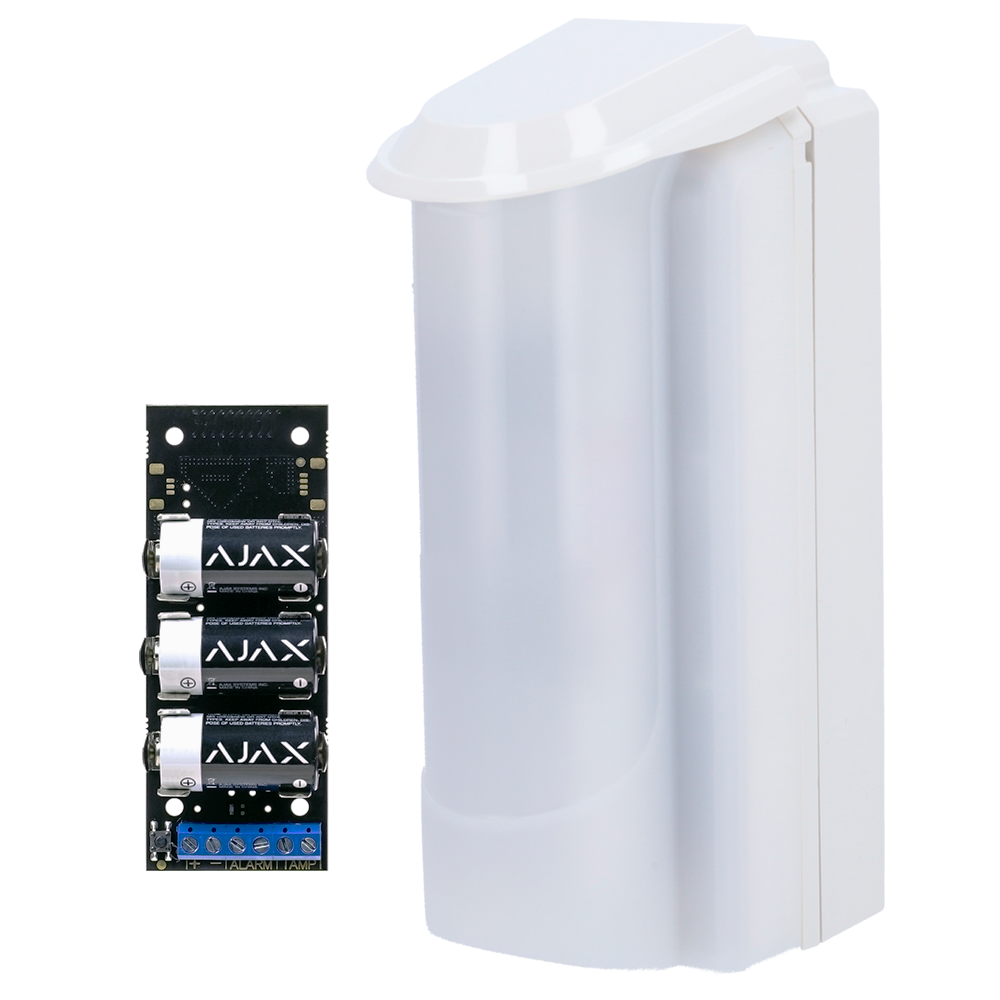

Duevi low-consumption outdoor detector - Compatible with Ajax Transmitter (included) - Dual PIR / 15 m detection - Antimasking / Pet-immune - Powered by Transmitter - Outdoor use IP54 / Vandal-proof IK10
📋 SPECIFICATIONS:
• Brand: Duevi
• Model: Monolith K
• Technology: Dual volumetric PIR
• PIR lens: Both optics are horizontally adjustable up to 55°
• Detection range: Configurable: from 3 m to 15 m (6 levels) / 90°
• Frequency: 868 MHz Jeweller (Ajax transmitter included)

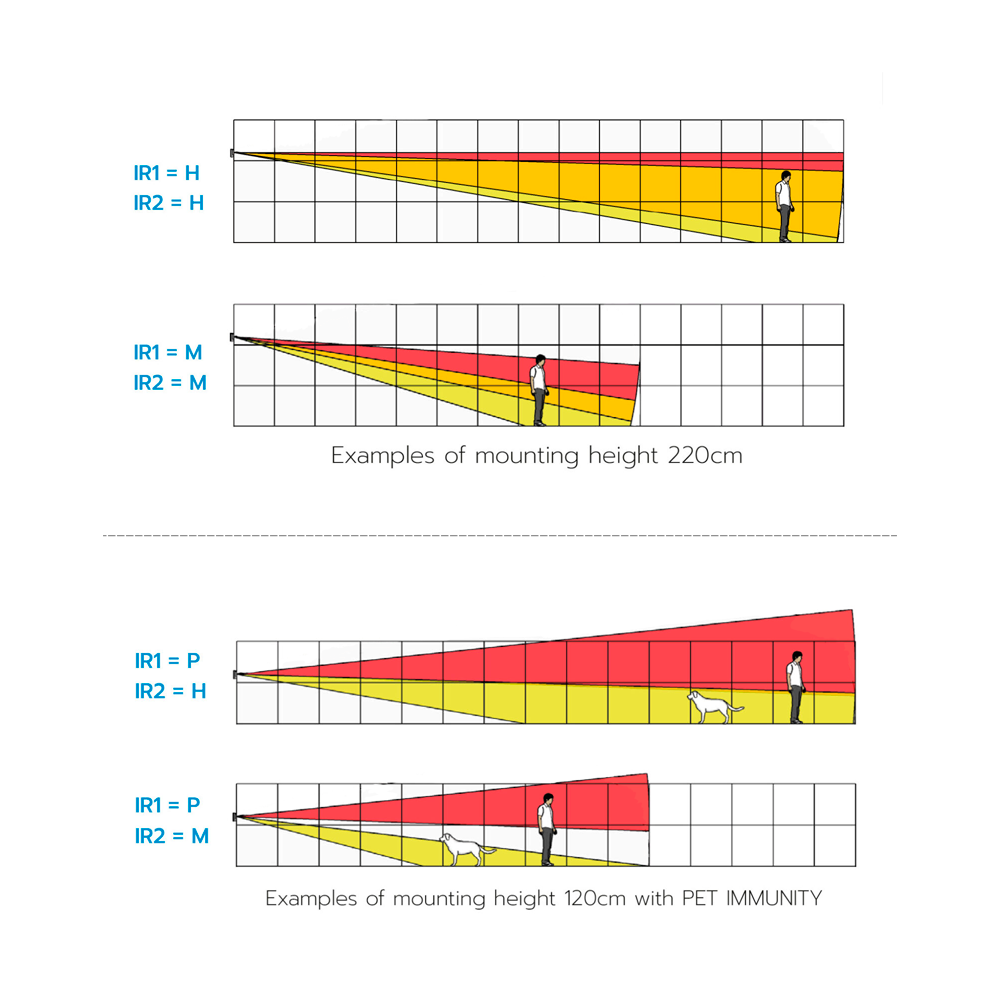

• Pet immunity: Available (installation height 1.2 ~ 1.3 m)
• Installation height: From 1.2 m to 2.2 m
• Masking: Available: from 0ºC, always active (App), or disabled
• Sensitivity: Adjustable (3 levels)
• Anti-tamper (cover): Available
• Anti-sabotage (tamper): Available (motion accelerometer)
• LED indication: Alarm (blue) and Walk test (red: upper IR / green: lower IR / blue: alarm confirmation)
• DIP Switch configuration: 1; Walk-test (On/Off); 2; Alarm unification on one output (On/Off)

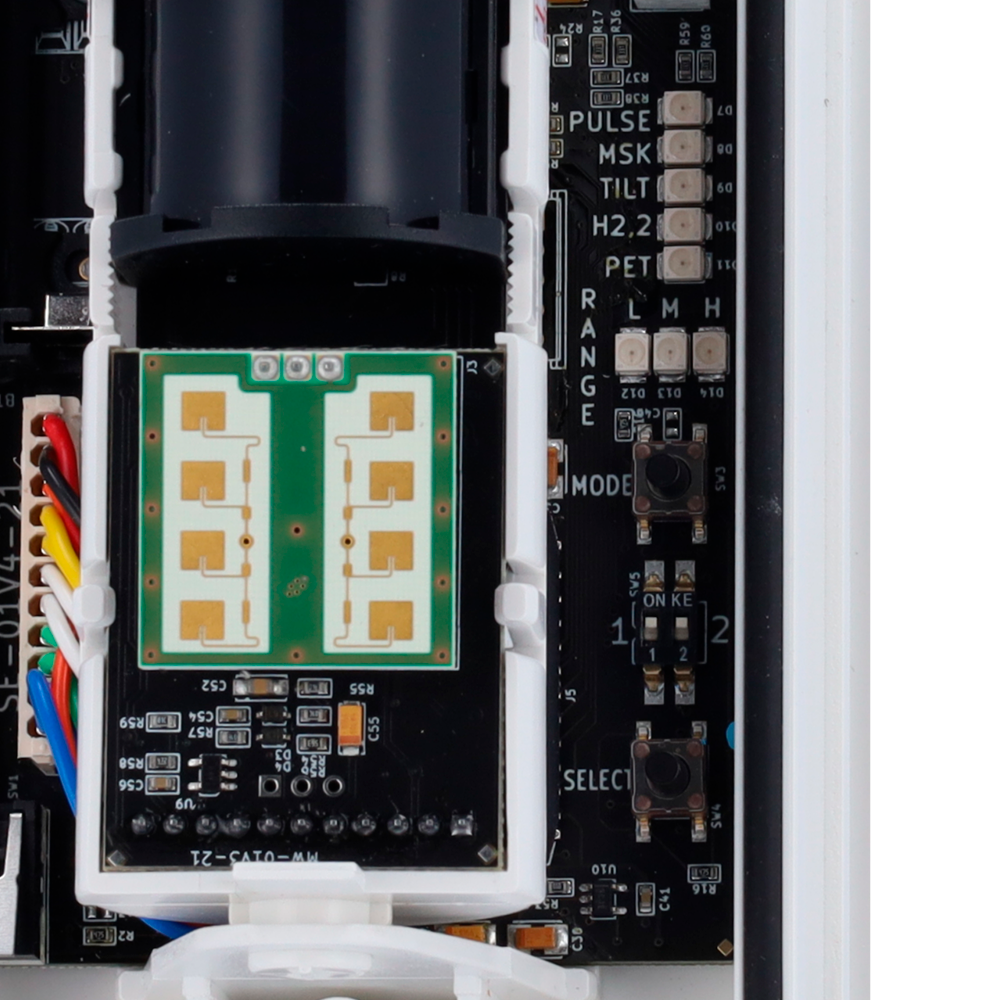

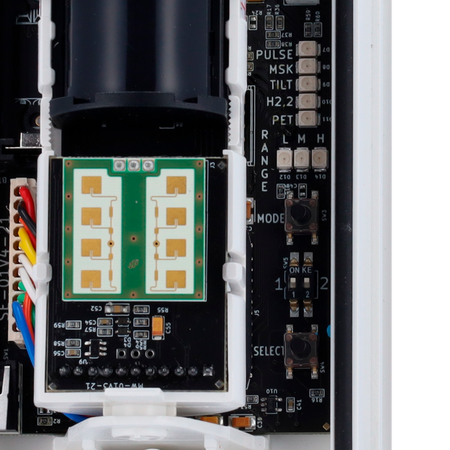

• Configuration on detector (LED and buttons): Sensitivity / Antimasking / Anti-sabotage tamper / Mounting height / Pet Immunity / Detection range (more information on page 9 of the manual in the download section)
• Additional configuration on App: Antimasking (from 0ºC, always active, or disabled) / Antimasking sensitivity / Standby time (On/Off/Up to 60 s)
• Configuration via App: Requires the DV-BTLINK module and to download the View Sensor App (Android)
• Wired outputs: Alarm and fault (tamper and antimasking)
• Low battery warning: Signal sent by the Ajax transmitter
• Power supply: Provided by Ajax Transmitter (do not insert additional batteries)
• Consumption: Minimum consumption (standby): 8 uA / Maximum: 5 mA)
• Operating temp.: -40 ºC ~ +70 ºC
• Protection rating: IP54, Vandal-proof IK10
• Dimensions: 201 (H) x 79 (W) x 106 (D) mm (distance between transmitters)
📦 INCLUDED:

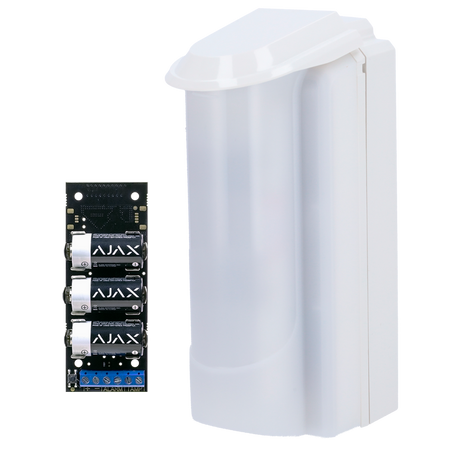

• Duevi outdoor detector• Rain cover• AJ-TRANSMITTER: Ajax radio transmitter• Mounting material
| Model | Monolith K |
|---|---|
| Technology | Dual volumetric PIR |
| PIR lens | Both optics are horizontally adjustable up to 55º |
| Detection range | Configurable: from 3 m to 15 m (in 6 levels) / 90º |
| Frequency | 868 MHz Jeweller (Ajax transmitter included) |
| Pet immunity | Available (installation height 1.2 ~ 1.3 m) |
| Installation height | From 1.2 m to 2.2 m |
| Masking | Available: from 0ºC, always active (App) or disabled |
| Sensitivity | Adjustable (3 levels) |
| Anti-opening tamper | Available |
| Anti-sabotage tamper | Available (movement accelerometer) |
| LED indication | Alarm (blue) and Walk test (red: upper IR / green: lower IR / blue: alarm confirmation) |
| DIP Switch configuration | 1- Walk-test (On/Off) 2- Alarm unification on one output (On/Off) |
| Configuration on the detector (LED and buttons) | Sensitivity / Anti-masking / Anti-sabotage tamper / Mounting height / Pet Immunity / Detection range (more information on page 9 of the manual in the download section) |
| Additional configuration on the App | Anti-masking (from 0ºC, always active or disabled) / Anti-masking sensitivity / Standby time (On/Off/Up to 60 s) |
| Configuration via App | DV-BTLINK module required and download View Sensor App (Android) |
| Wired outputs | Alarm and fault (tamper and anti-masking) |
| Low battery warning | Signal sent by the Ajax transmitter |
| Power supply | Supplied by the Ajax Transmitter (do not insert additional batteries) |
| Consumption | Minimum consumption (standby): 8 uA / Maximum: 5 mA |
| Operating temp. | -40 ºC ~ +70 ºC |
| Protection rating | IP54, Vandal-proof IK10 |
| Dimensions | 201 (H) x 79 (W) x 106 (D) mm (distance between transmitters) |
