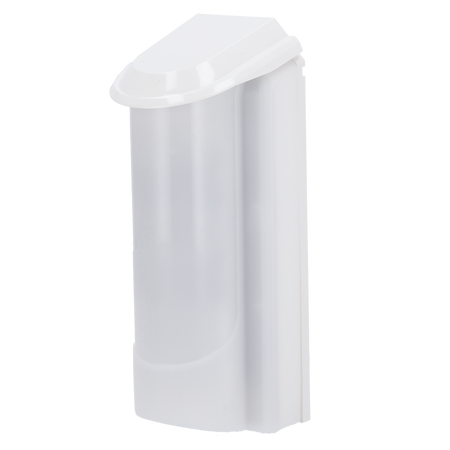

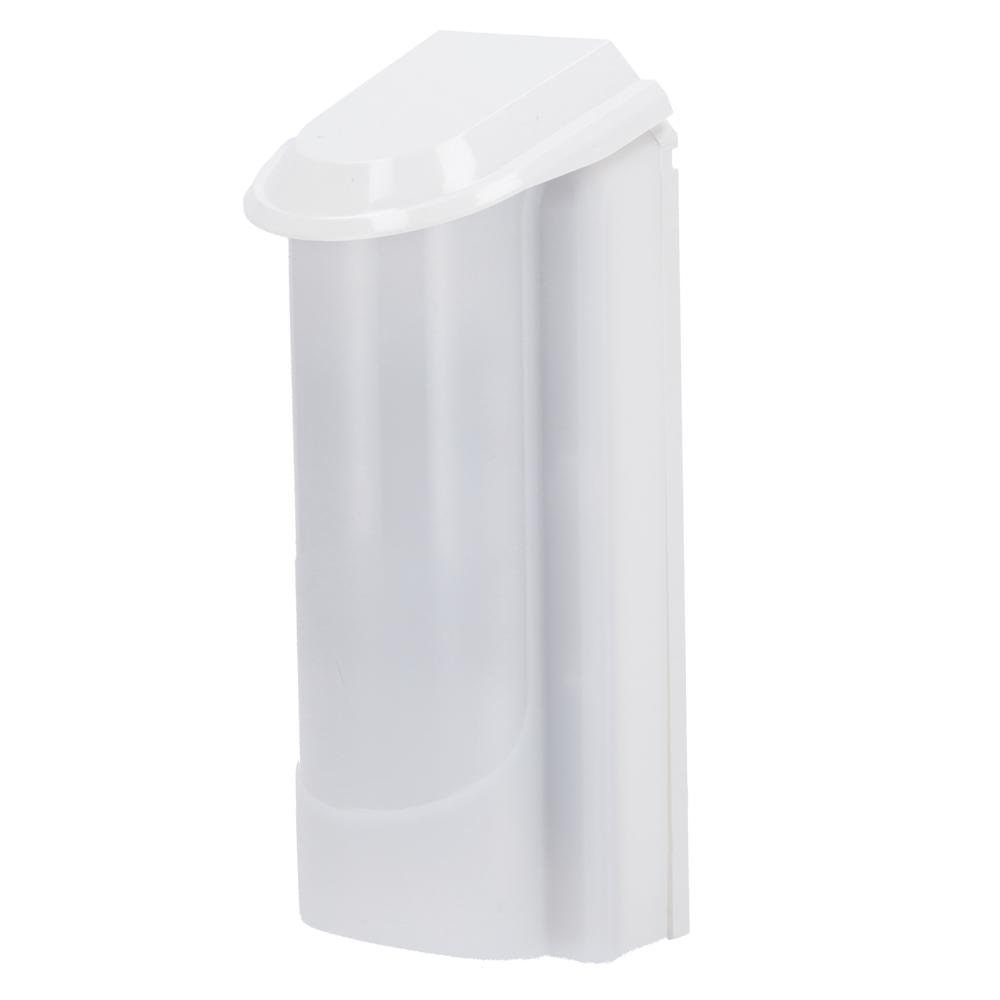

Duevi wired outdoor detector - Dual PIR / 15 m detection
Duevi wired outdoor detector - Dual PIR / 15 m detection
Regular price
€145,26
Final price
Regular price
-9%
€160,00
Sale price
€145,26
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Duevi wired outdoor detector - Dual PIR / 15 m detection - Antimasking / Pet immune - Power supply 9.6 ~ 14.5 VDC - Compatible with wired alarm systems - IP54 outdoor use / IK10 vandal-proof
📋 SPECIFICATIONS:
• Brand: Duevi
• Model: Monolith F
• Technology: Volumetric dual PIR
• PIR lens: Both optics are horizontally adjustable up to 55°

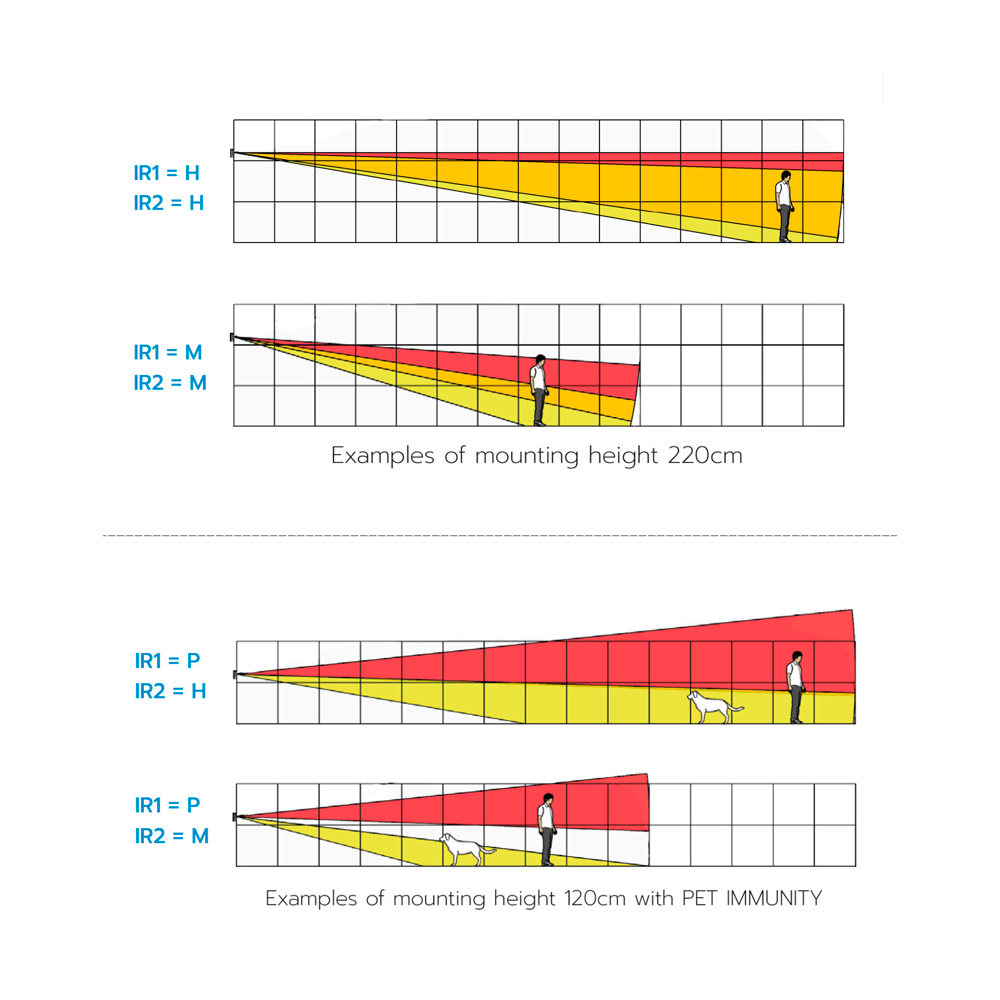

• Detection range: Configurable: from 3 m to 15 m (across 6 levels) / 90°
• Pet immunity: Available (installation height 1.2 ~ 1.3 m)
• Installation height: From 1.2 m to 2.2 m
• Masking: Available: from 0ºC, always active (App) or disabled
• Sensitivity: Adjustable (3 levels)
• Anti-opening tamper: Available
• Anti-sabotage tamper: Available (movement accelerometer)
• LED indication: Alarm (blue) and Walk test (red: upper IR / green: lower IR / blue: alarm confirmation)

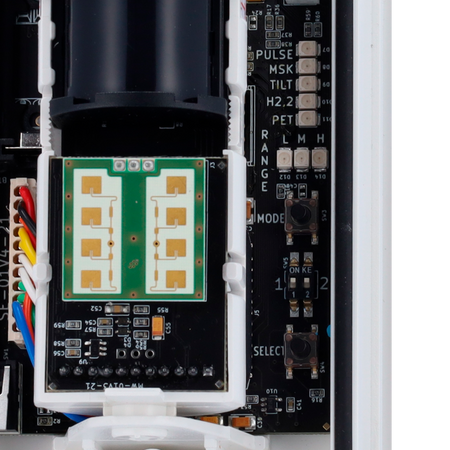

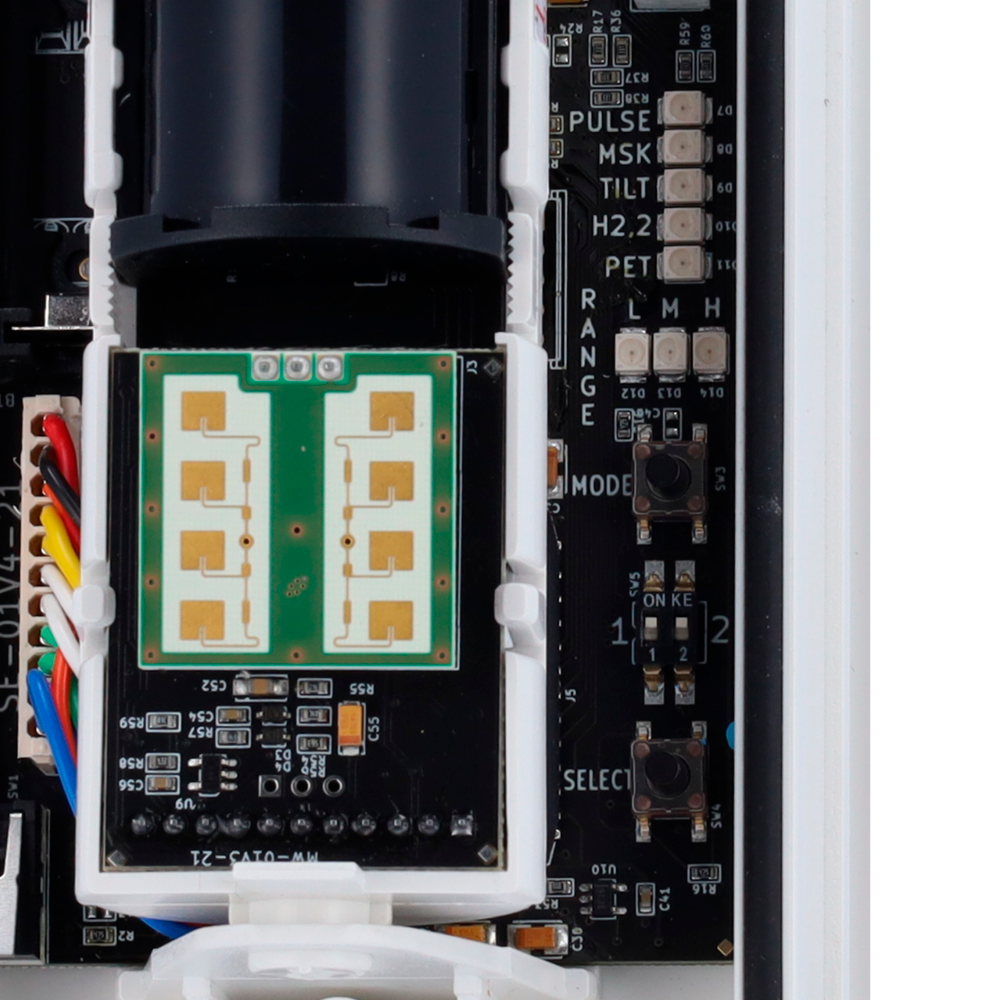

• DIP Switch configuration: 1; Walk-test (On/Off); 2; Alarm unification on one output (On/Off)
• Detector configuration (LED and buttons): Sensitivity / Antimasking / Anti-sabotage tamper / Mounting height / Pet Immunity / Detection range (more information on page 9 of the manual in the download section)
• Additional App configuration: Antimasking (from 0ºC, always active or disabled) / Antimasking sensitivity / Standby time (On/Off/Up to 60 s)
• Configuration via App: DV-BTLINK module required and download the View Sensor App (Android)

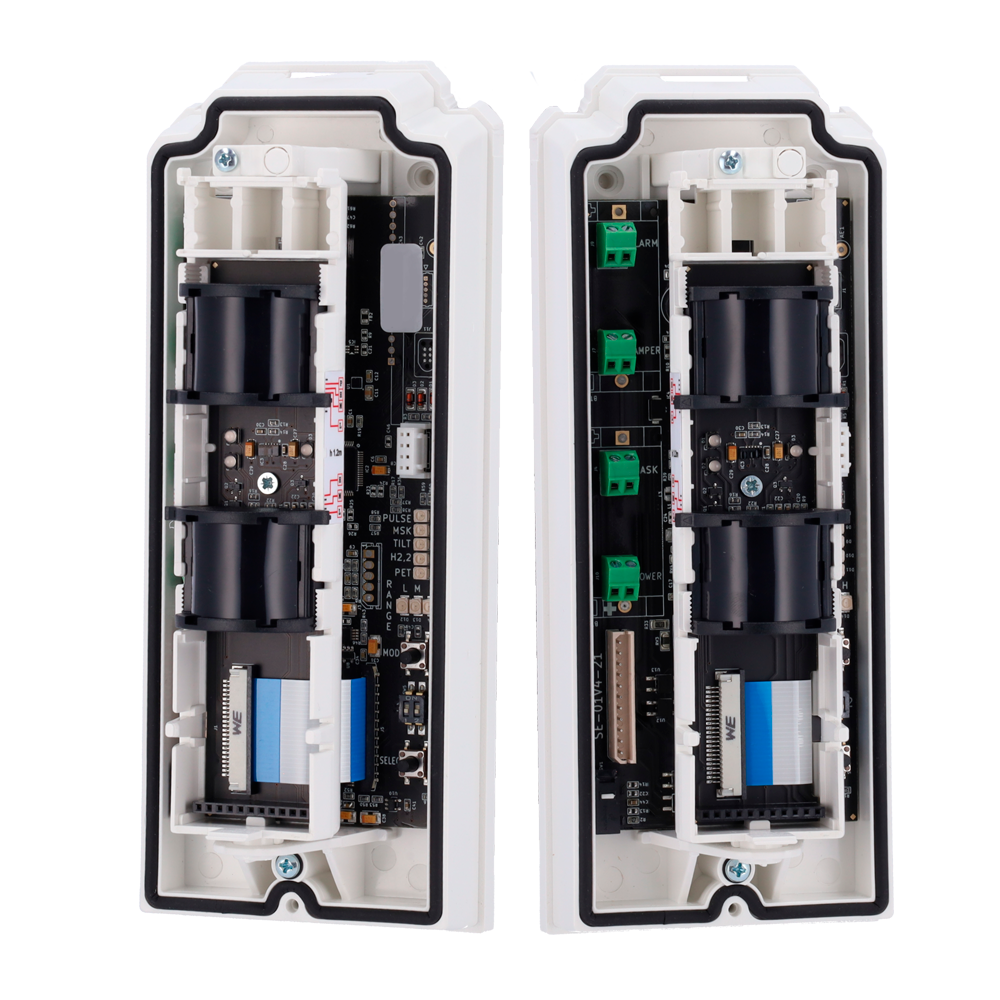

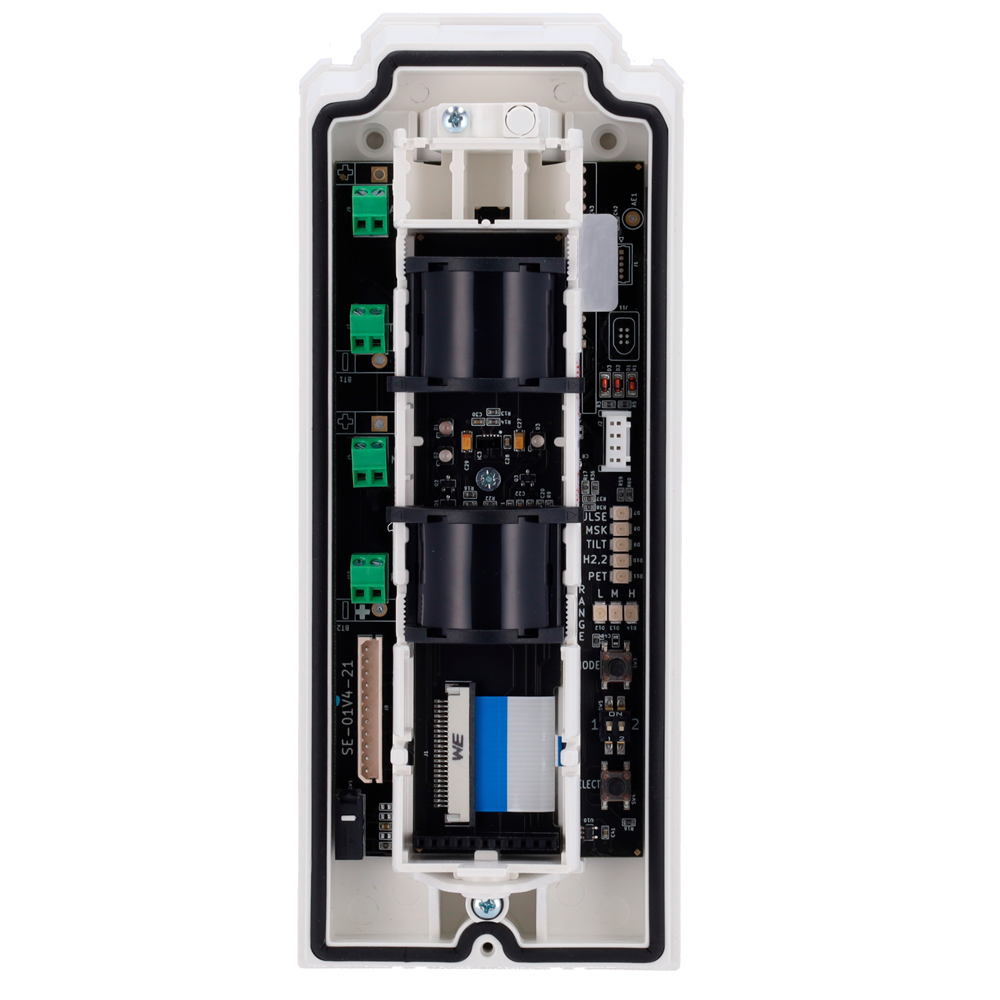

• Wired outputs: Alarm, Tamper and Antimasking
• Power supply: From 9.6 to 14.5 VDC
• Operating temp.: -40 ºC ~ +70 ºC
• Protection rating: IP54, IK10 vandal-proof
• Dimensions: 201 (H) x 79 (W) x 81 (D) mm
📦 INCLUDED:
• Duevi outdoor detector• Rain cover• Mounting hardware
| Model | Monolith F |
|---|---|
| Technology | Dual volumetric PIR |
| PIR lens | Both optics are horizontally adjustable up to 55º |
| Detection range | Configurable: from 3 m to 15 m (in 6 levels) / 90º |
| Pet immunity | Available (installation height 1.2 ~ 1.3 m) |
| Installation height | From 1.2 m to 2.2 m |
| Masking | Available: from 0ºC, always active (App) or disabled |
| Sensitivity | Adjustable (3 levels) |
| Anti-opening tamper | Available |
| Anti-sabotage tamper | Available (motion accelerometer) |
| LED indication | Alarm (blue) and Walk test (red: upper IR / green: lower IR / blue: alarm confirmation) |
| DIP Switch configuration | 1- Walk-test (On/Off) 2- Alarm unification on one output (On/Off) |
| Configuration on the detector (LEDs and buttons) | Sensitivity / Anti-masking / Anti-sabotage tamper / Mounting height / Pet Immunity / Detection range (more information on page 9 of the manual in the download section) |
| Additional configuration on the App | Anti-masking (from 0ºC, always active or disabled) / Anti-masking sensitivity / Standby time (On/Off/Up to 60 s) |
| Configuration via App | DV-BTLINK module required and download the View Sensor App (Android) |
| Wired outputs | Alarm, Tamper and Anti-masking |
| Power supply | 9.6 to 14.5 VDC |
| Operating temp. | -40 ºC ~ +70 ºC |
| Protection rating | IP54, IK10 vandal-proof |
| Dimensions | 201 (H) x 79 (W) x 81 (D) mm |
