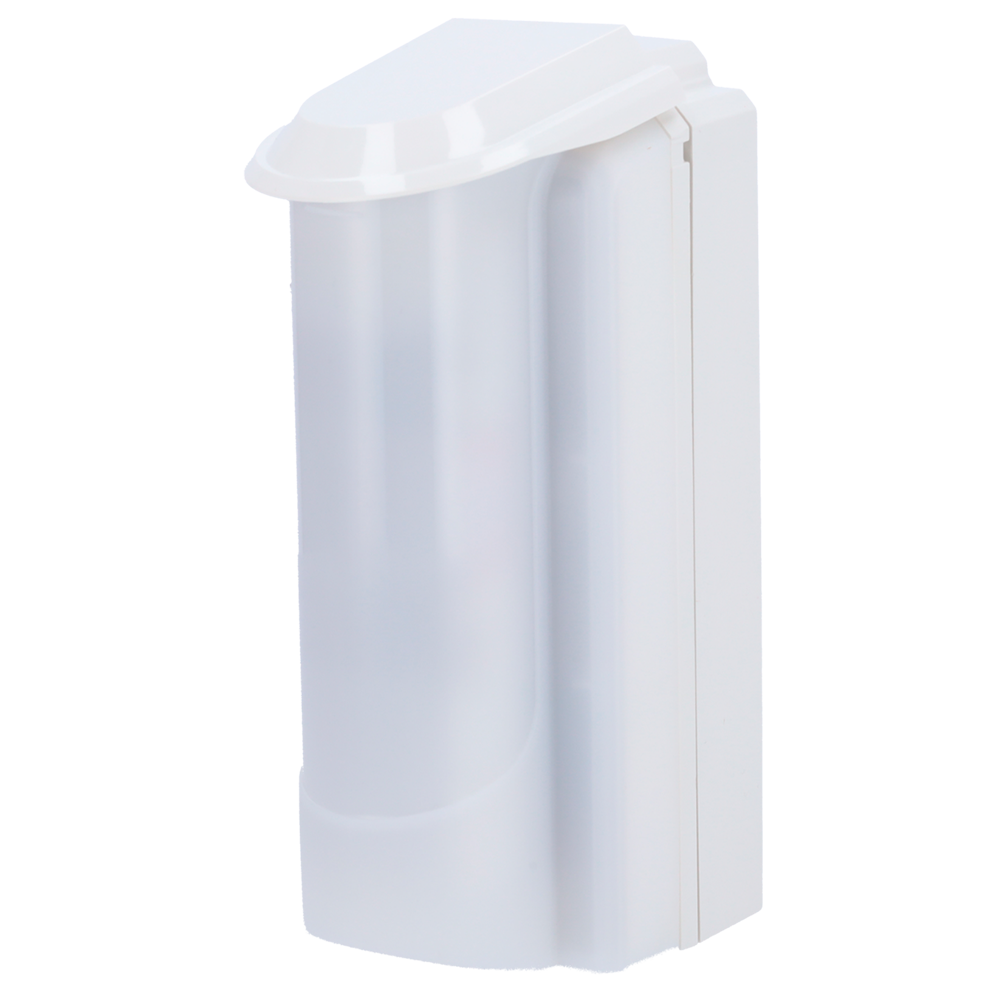

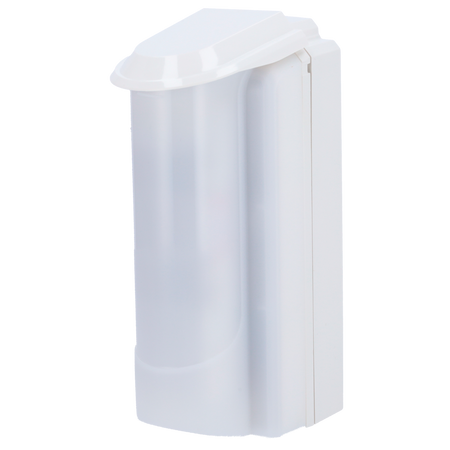

Duevi low-consumption outdoor detector - NOLITH DT
Duevi low-consumption outdoor detector - NOLITH DT
Regular price
€207,68
Final price
Regular price
-9%
€227,26
Sale price
€207,68
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Duevi low-consumption outdoor detector - Ready for integration of third-party transmitters - Dual PIR and microwave (24 GHz) - 15 m detection / Antimasking / Pet immunity - Powered by 2 CR123A batteries - Outdoor use IP54 / Anti-vandal IK10
📋 SPECIFICATIONS:
• Brand: Duevi
• Model: Monolith DT K
• Integration type: Universal
• Technology: Dual technology: microwave (24 GHz) and dual volumetric PIR
• PIR lens: Both optics are horizontally adjustable up to 55°

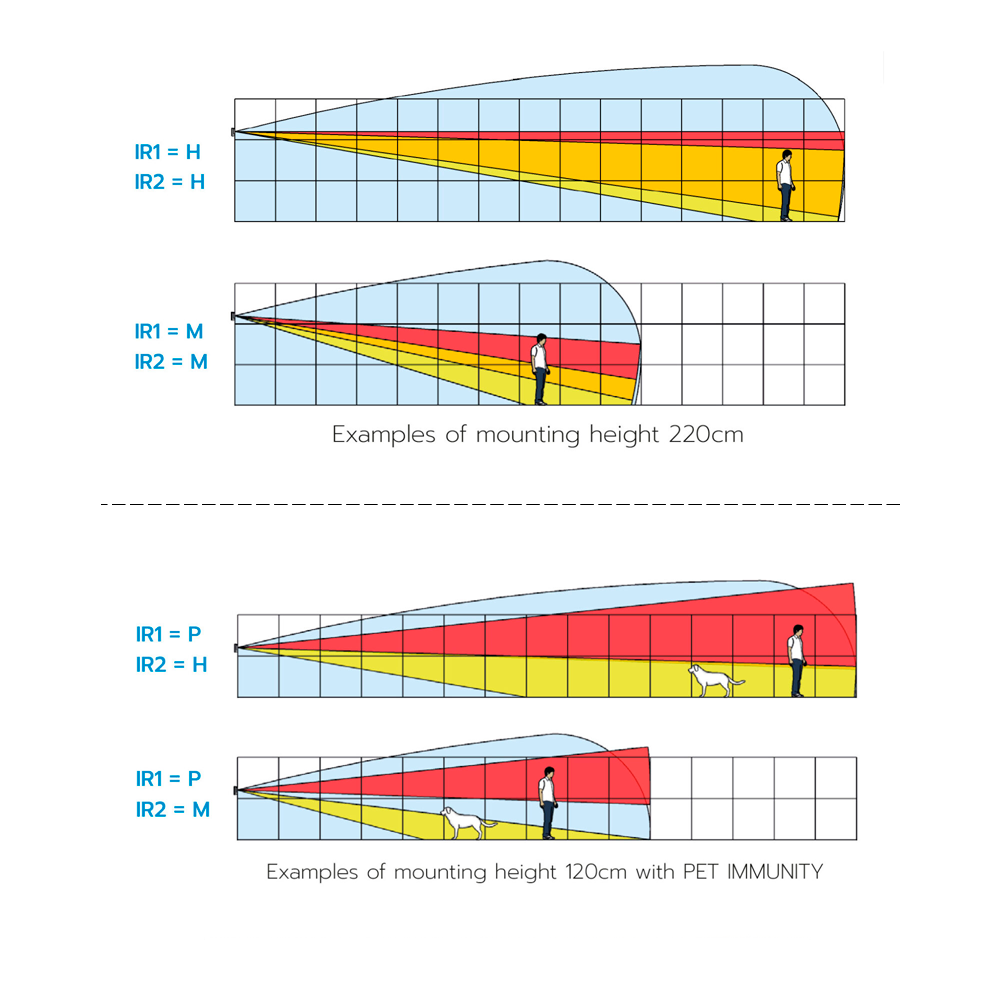

• Detection range: Configurable: from 3 m to 15 m (6 levels) / 90°
• Pet immunity: Available (installation height 1.2 ~ 1.3 m)
• Installation height: From 1.2 m to 2.2 m
• Masking: Available: from 0ºC, always active (App), or disabled
• Sensitivity: Adjustable (3 levels)
• Opening tamper: Available
• Anti-sabotage tamper: Available (movement accelerometer)
• LED indication: Alarm (blue) and Walk test (red: upper IR / green: lower IR / blue: microwave and alarm confirmation)
• DIP Switch configuration: 1; Walk-test (On/Off); 2; Alarm unification on one output (On/Off)
• Configuration on detector (LED and buttons): Sensitivity / Antimasking / Anti-sabotage tamper / Mounting height / Pet Immunity / Detection range (more information on page 9 of the manual in the download section)
• Additional App configuration: Antimasking (from 0ºC, always active, or disabled) / Antimasking sensitivity / Standby time (On/Off/Up to 60 s)
• Configuration via App: Requires DV-BTLINK module and downloading the View Sensor App (Android)
• Wired outputs: Alarm and fault (tamper and antimasking)
• Power supply: 2 x 3V CR123A lithium batteries (included)
• Consumption: Minimum consumption (standby): 11 uA / Maximum: 5 mA)
• Operating temp.: -40 ºC ~ +70 ºC
• Protection rating: IP54, Anti-vandal IK10
• Dimensions: 201 (H) x 79 (W) x 106 (D) mm (distance between transmitters)
📦 INCLUDED:
• Duevi outdoor detector• Rain cover• Mounting material
| Model | Monolith DT K |
|---|---|
| Integration type | Universal |
| Technology | Dual technology: microwave (24 GHz) and dual volumetric PIR |
| PIR lens | Both optics are horizontally adjustable up to 55º |
| Detection range | Configurable: from 3 m to 15 m (in 6 levels) / 90º |
| Pet immunity | Available (installation height 1.2 ~ 1.3 m) |
| Installation height | From 1.2 m to 2.2 m |
| Masking | Available: from 0ºC, always active (App) or disabled |
| Sensitivity | Adjustable (3 levels) |
| Anti-opening tamper | Available |
| Anti-sabotage tamper | Available (motion accelerometer) |
| LED indication | Alarm (blue) and Walk test (red: upper IR / green: lower IR / blue: microwave and alarm confirmation) |
| DIP Switch configuration | 1- Walk-test (On/Off) 2- Alarm unification on one output (On/Off) |
| Configuration on the detector (LED and buttons) | Sensitivity / Anti-masking / Anti-sabotage tamper / Mounting height / Pet Immunity / Detection range (more information on page 9 of the manual in the download section) |
| Additional configuration on the App | Anti-masking (from 0ºC, always active or disabled) / Anti-masking sensitivity / Standby time (On/Off/Up to 60 s) |
| Configuration via App | DV-BTLINK module required and download the View Sensor App (Android) |
| Wired outputs | Alarm and fault (tamper and anti-masking) |
| Power supply | 2 x 3V CR123A lithium batteries (included) |
| Consumption | Minimum consumption (idle): 11 uA / Maximum: 5 mA |
| Operating temp. | -40 ºC ~ +70 ºC |
| Protection rating | IP54, Vandal-proof IK10 |
| Dimensions | 201 (H) x 79 (W) x 106 (D) mm (distance between transmitters) |
