Duevi outdoor low-power detector - Dual PIR and microwave (24 GHz)
Duevi outdoor low-power detector - Dual PIR and microwave (24 GHz)
Regular price
€274,39
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Duevi low-consumption outdoor detector - Compatible with Ajax Transmitter (included) - Dual PIR and microwave (24 GHz) - 15 m detection / Antimasking / Pet immunity - Power supplied by Transmitter - Outdoor use IP54 / Vandal-proof IK10
📋 SPECIFICATIONS:
• Brand: Duevi
• Model: Monolith DT K

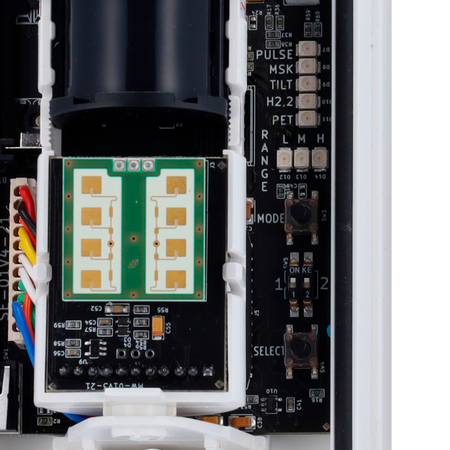

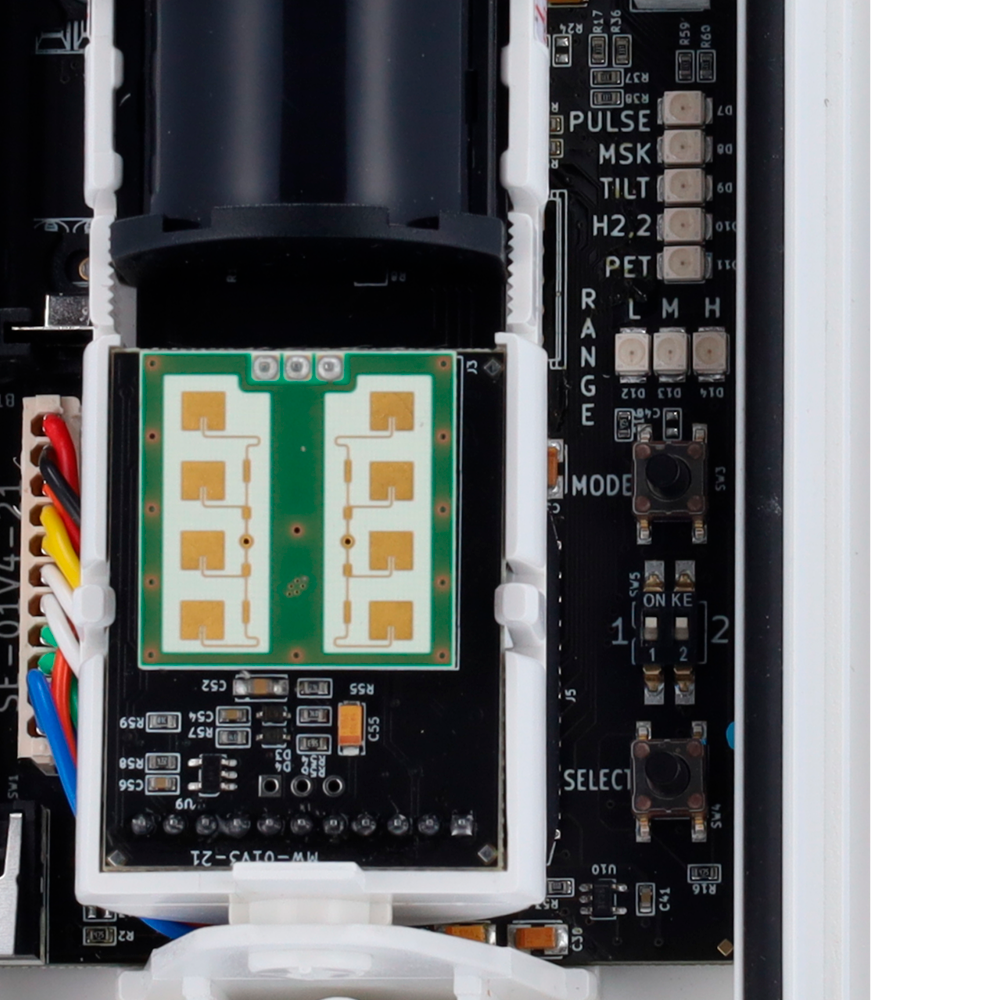

• Technology: Dual technology: microwave (24 GHz) and dual volumetric PIR
• PIR lens: Both optics are horizontally adjustable up to 55°

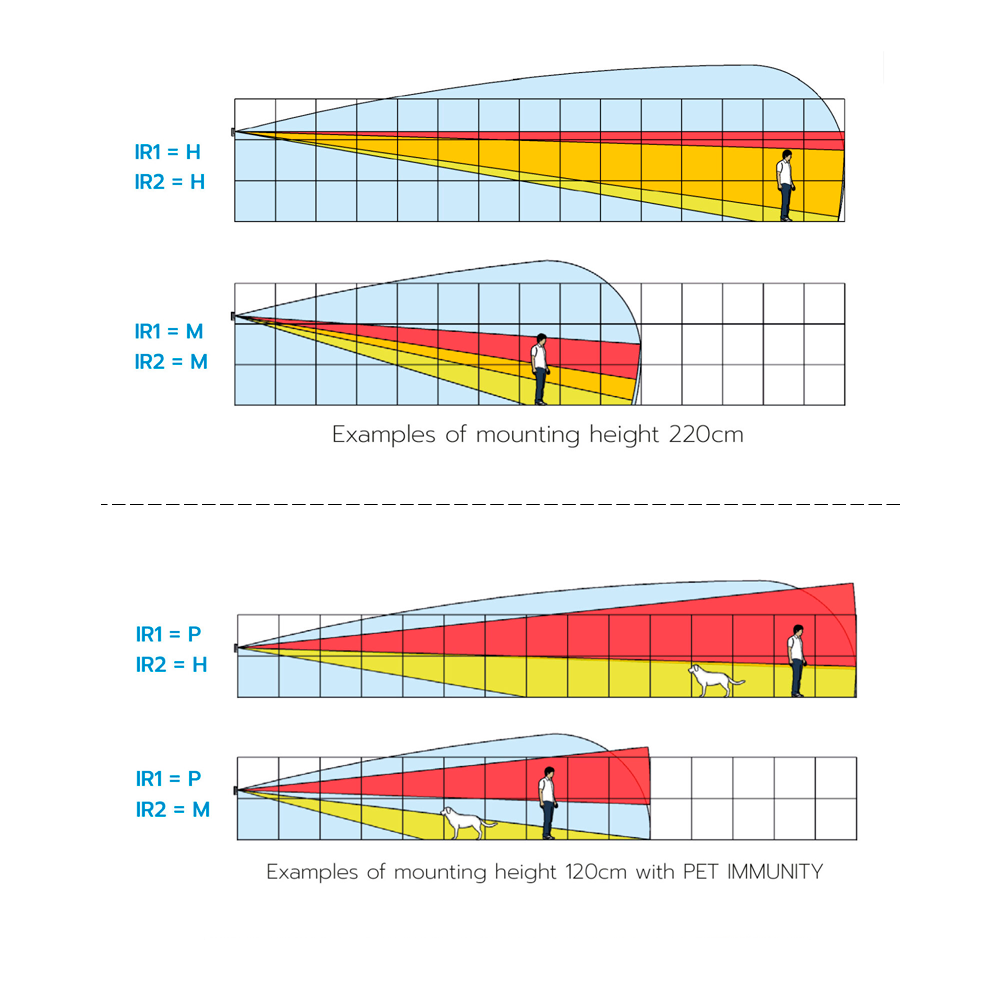

• Detection range: Configurable: from 3 m to 15 m (6 levels) / 90°
• Frequency: 868 MHz Jeweller (Ajax transmitter included)
• Pet immunity: Available (installation height 1.2 ~ 1.3 m)
• Installation height: From 1.2 m to 2.2 m
• Masking: Available: from 0ºC, always active (App) or disabled
• Sensitivity: Adjustable (3 levels)
• Opening tamper: Available
• Anti-sabotage tamper: Available (movement accelerometer)
• LED indication: Alarm (blue) and Walk test (red: upper IR / green: lower IR / blue: microwave and alarm confirmation)
• DIP Switch configuration: 1; Walk-test (On/Off); 2; Alarm unification on one output (On/Off)
• Configuration on detector (LED and buttons): Sensitivity / Antimasking / Anti-sabotage tamper / Mounting height / Pet Immunity / Detection range (more information on page 9 of manual in the download section)
• Additional configuration on App: Antimasking (from 0ºC, always active or deactivated) / Antimasking sensitivity / Standby time (On/Off/Up to 60 s)
• Configuration via App: Requires DV-BTLINK module and downloading the View Sensor App (Android)
• Wired outputs: Alarm and fault (tamper and antimasking)
• Low battery warning: Signal sent by Ajax transmitter
• Power supply: Supplied by Ajax Transmitter (do not insert additional batteries)
• Consumption: Minimum consumption (standby): 11 uA / Maximum: 5 mA)
• Operating temp.: -40 ºC ~ +70 ºC
• Protection rating: IP54, Vandal-proof IK10
• Dimensions: 201 (H) x 79 (W) x 106 (D) mm (distance between transmitters)
📦 INCLUDED:

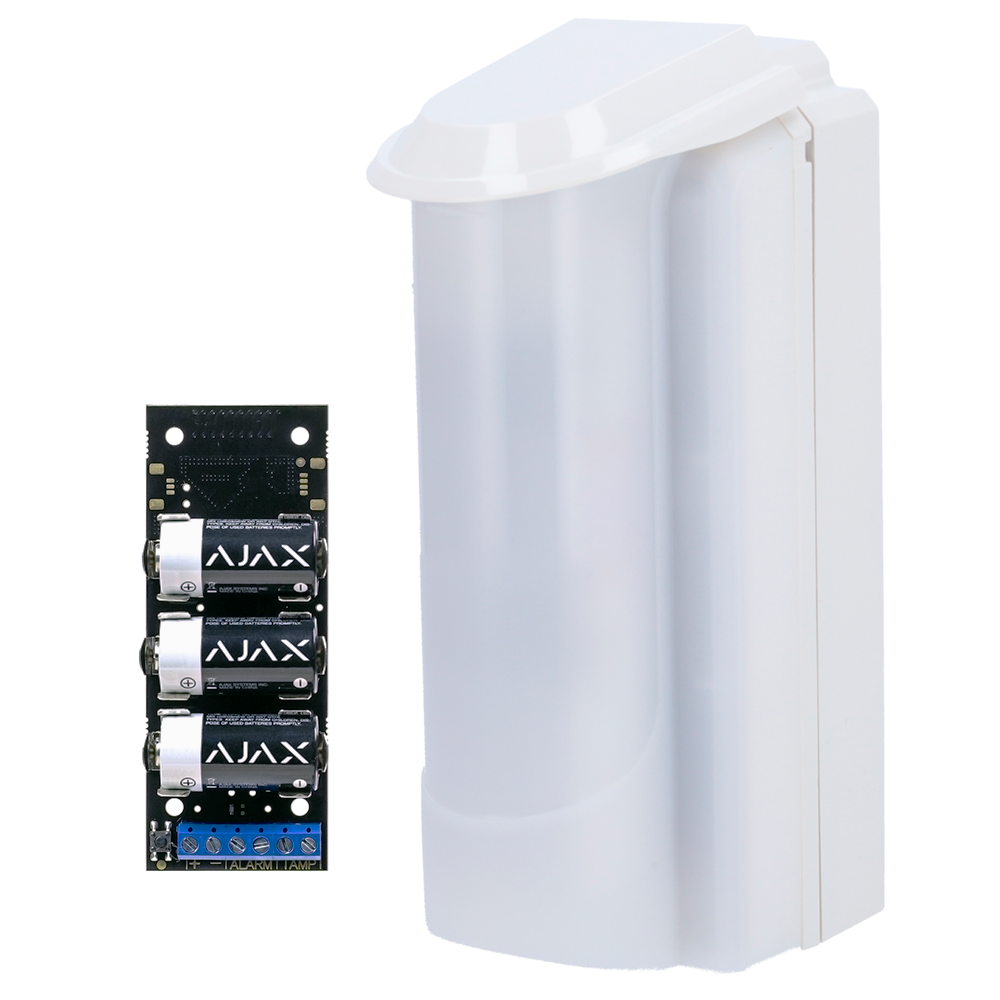

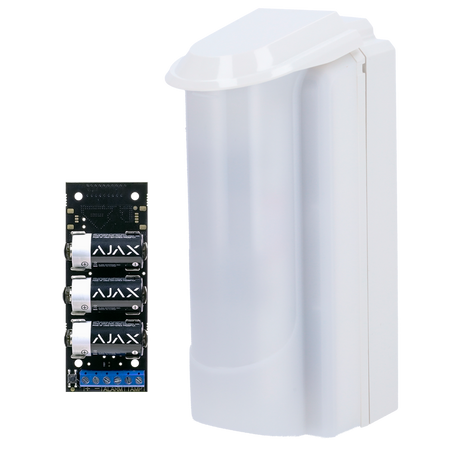

• Duevi outdoor detector• Rain cover• AJ-TRANSMITTER: Ajax radio transmitter• Mounting material
| Model | Monolith DT K |
|---|---|
| Technology | Dual technology: microwave (24 GHz) and dual volumetric PIR |
| PIR lens | Both optics are horizontally adjustable up to 55º |
| Detection range | Configurable: from 3 m to 15 m (in 6 levels) / 90º |
| Frequency | 868 MHz Jeweller (Ajax transmitter included) |
| Pet immunity | Available (installation height 1.2 ~ 1.3 m) |
| Installation height | From 1.2 m to 2.2 m |
| Masking | Available: from 0ºC, always active (App) or disabled |
| Sensitivity | Adjustable (3 levels) |
| Anti-opening tamper | Available |
| Anti-sabotage tamper | Available (movement accelerometer) |
| LED indication | Alarm (blue) and Walk test (red: upper IR / green: lower IR / blue: microwave and alarm confirmation) |
| DIP Switch configuration | 1- Walk-test (On/Off) 2- Alarm unification on one output (On/Off) |
| Detector configuration (LED and buttons) | Sensitivity / Anti-masking / Anti-sabotage tamper / Mounting height / Pet Immunity / Detection range (more information on page 9 of the manual in the download section) |
| Additional App configuration | Anti-masking (from 0ºC, always active or disabled) / Anti-masking sensitivity / Standby time (On/Off/Up to 60 s) |
| Configuration via App | Requires DV-BTLINK module and downloading the View Sensor App (Android) |
| Wired outputs | Alarm and fault (tamper and anti-masking) |
| Low battery warning | Signal sent by the Ajax transmitter |
| Power supply | Provided by the Ajax Transmitter (do not insert additional batteries) |
| Consumption | Minimum consumption (standby): 11 uA / Maximum: 5 mA) |
| Operating temp. | -40 ºC ~ +70 ºC |
| Protection degree | IP54, IK10 vandal-proof |
| Dimensions | 201 (H) x 79 (W) x 106 (D) mm (distance between transmitters) |
