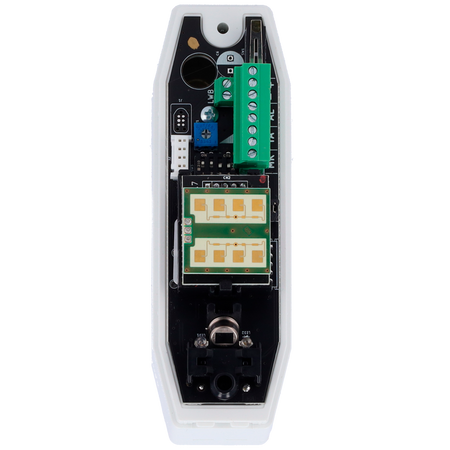

Duevi low-consumption outdoor detector - Ready for integration with third-party transmitters - Curtain PIR and microwave (24 GHz) - Detection range 12 m / Antimasking - Power supply 2 x 3.0 V CR2 batteries - Outdoor IP54
📋 SPECIFICATIONS:
• Brand: Duevi
• Model: Kapture K
• Integration type: Universal
• Technology: Dual technology: microwave (24 GHz) and curtain PIR

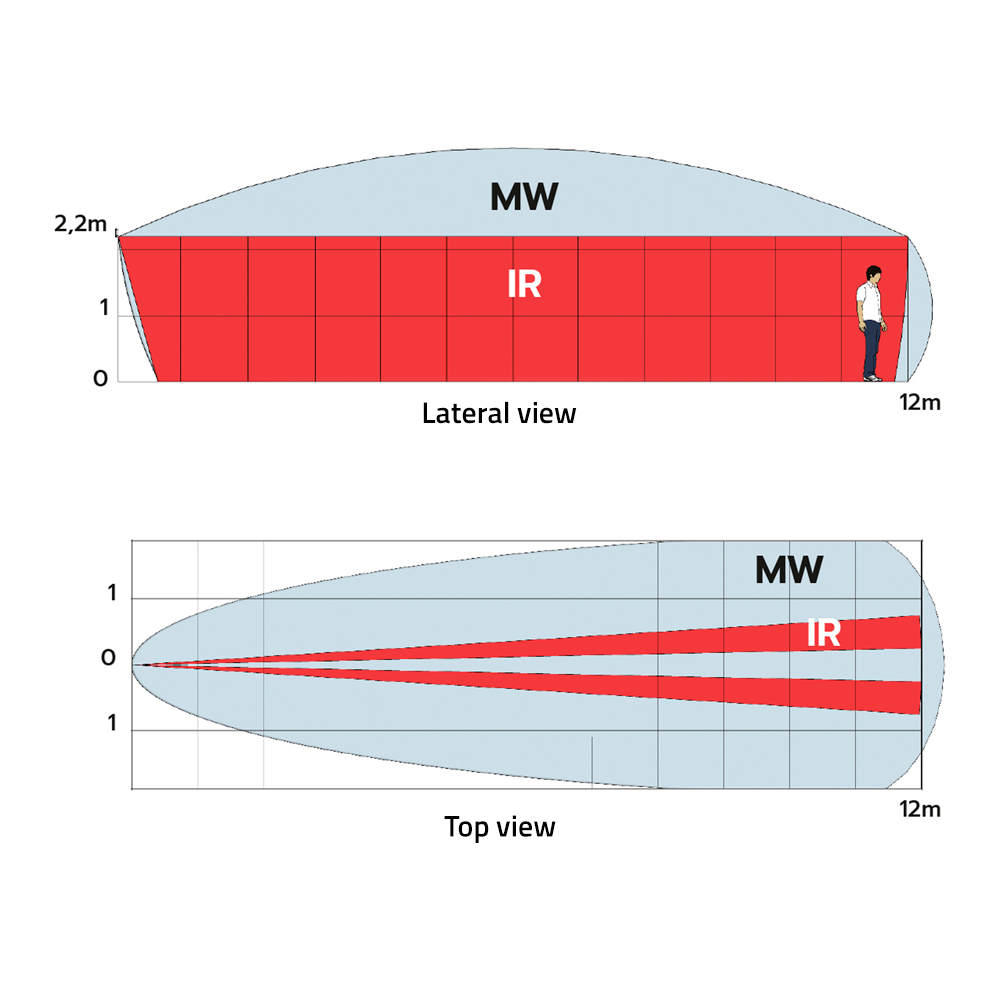

• Detection range: Configurable: from 3 m to 12 m (depending on installation) / PIR 7.5º / Microwave 30º
• Pet immunity: Not available
• Installation height: Recommended 2.2 m (from 2 to 4 meters)
• Masking: Available
• Sensitivity: Adjustable (potentiometer from 30% to 100% or via App)
• Anti-tamper opening: Available
• Anti-sabotage tamper: Available (movement accelerometer)
• LED indication: Alarm (blue). IR detection (red) and Walk test (red: IR / blue: alarm confirmation)
• DIP Switch configuration: Walk-test (On/Off), Antimasking (On/Off), Programming via App (On/Off), Unification of alarms on a single output (On/Off)
• Additional configuration via App: Anti-shadow function to avoid false alarms (4 levels) / Independent IR and microwave sensitivity adjustment / Standby time (On/Off/Up to 60 s)
• Configuration via App: Requires DV-BTLINK module and downloading the View Sensor App (Android)
• Wired outputs: Alarm, tamper and antimasking
• Power supply: 2 x 3.0 V CR123A batteries (included)
• Consumption: Minimum consumption (standby): 13 uA / Maximum: 4 mA)
• Operating temp.: -20 ºC ~ +60 ºC
• Protection rating: IP54
• Bracket: Includes wall bracket and L-bracket
• Dimensions: 128 (W) x 41 (H) x 48 (D) mm
📦 INCLUDED:
• Duevi outdoor detector• Mounting material
| Model | Kapture K |
|---|---|
| Integration type | Universal |
| Technology | Dual technology: microwave (24 GHz) and curtain PIR |
| Detection range | Configurable: from 3 m to 12 m (depending on installation) / PIR 7.5º / Microwave 30º |
| Pet immunity | Not available |
| Installation height | Recommended 2.2 m (from 2 to 4 meters) |
| Masking | Available |
| Sensitivity | Adjustable (potentiometer from 30% to 100% or via App) |
| Anti-opening tamper | Available |
| Anti-sabotage tamper | Available (motion accelerometer) |
| LED indication | Alarm (blue). IR detection (red) and Walk test (red: IR / blue: alarm confirmation) |
| DIP Switch configuration | Walk-test (On/Off), Antimasking (On/Off), Programming via App (On/Off), Alarm unification on a single output (On/Off) |
| Additional App configuration | Anti-shadow function to avoid false alarms (4 levels) / Independent IR and microwave sensitivity adjustment / Standby time (On/Off/Up to 60 s) |
| Configuration via App | Requires DV-BTLINK module and download of the View Sensor App (Android) |
| Wired outputs | Alarm, tamper, and antimasking |
| Power supply | 2 CR123A 3.0 V batteries (included) |
| Consumption | Minimum consumption (standby): 13 uA / Maximum: 4 mA |
| Operating temp. | -20 ºC ~ +60 ºC |
| Protection rating | IP54 |
| Bracket | Includes wall bracket and L-bracket |
| Dimensions | 128 (W) x 41 (H) x 48 (D) mm |
