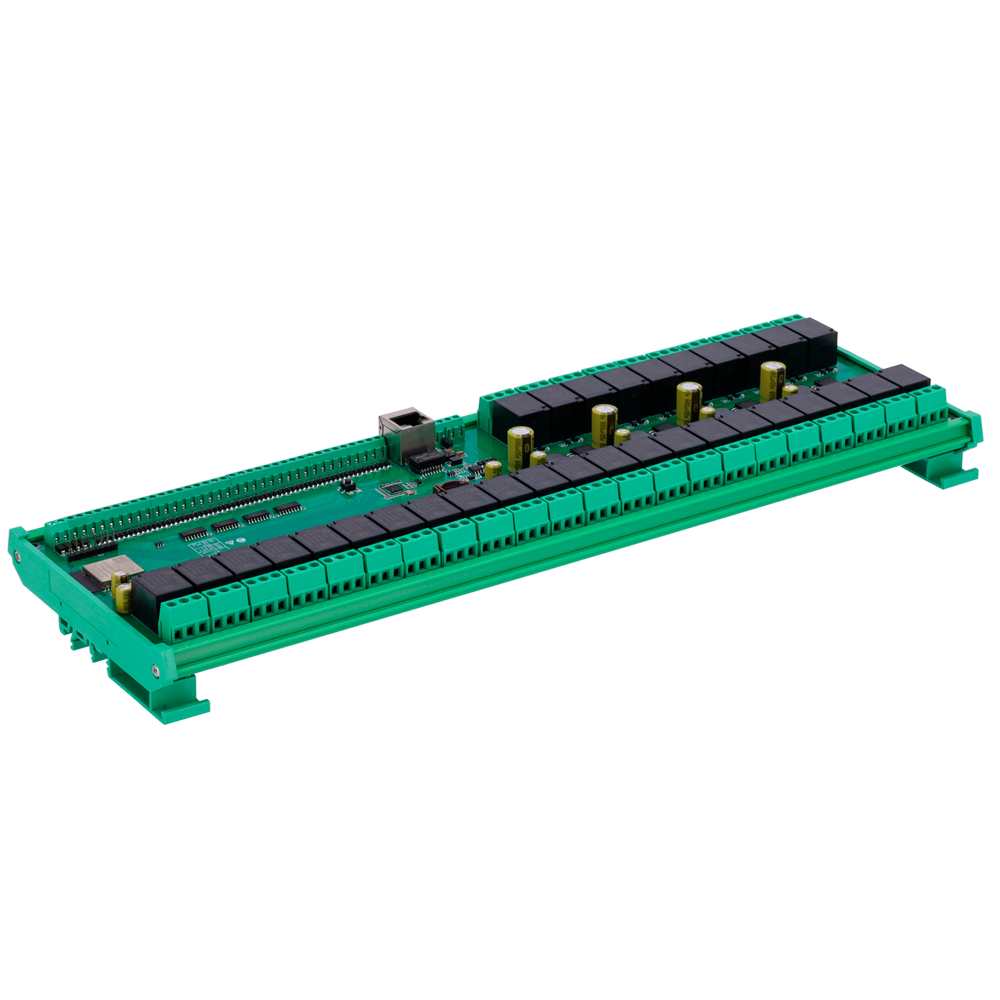

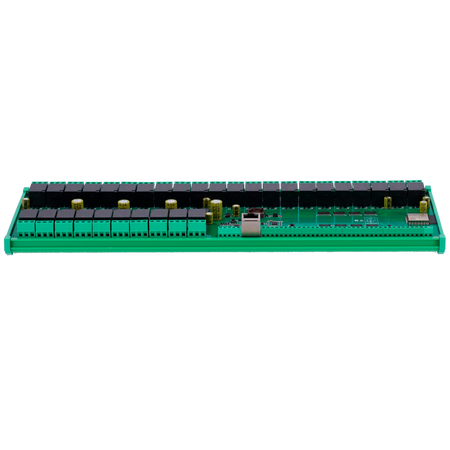

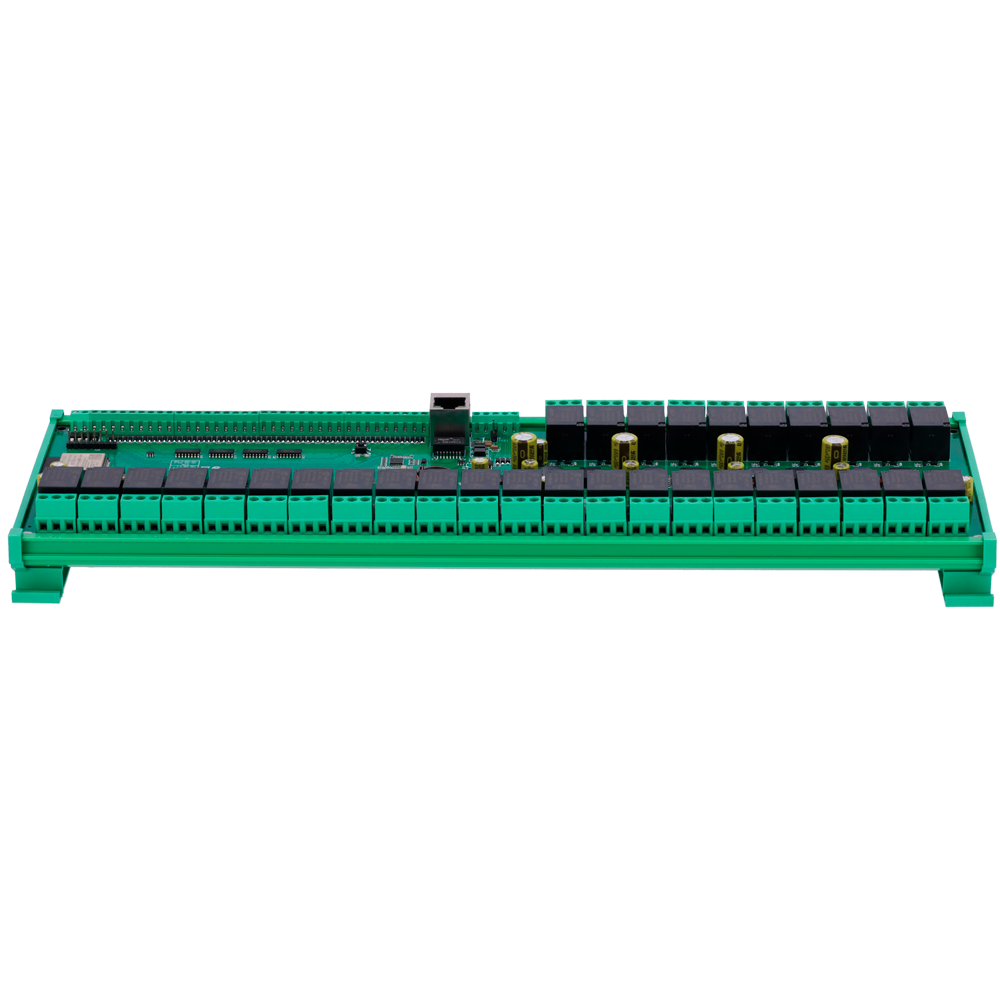

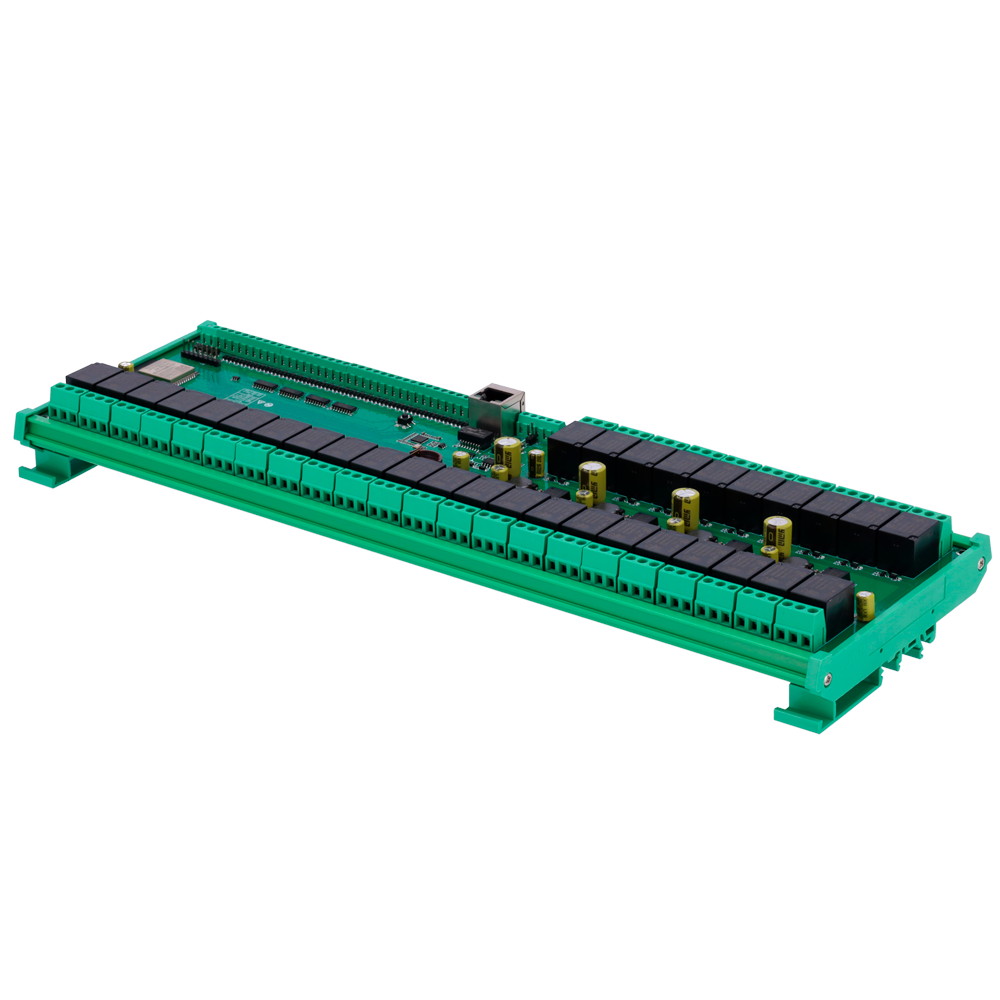

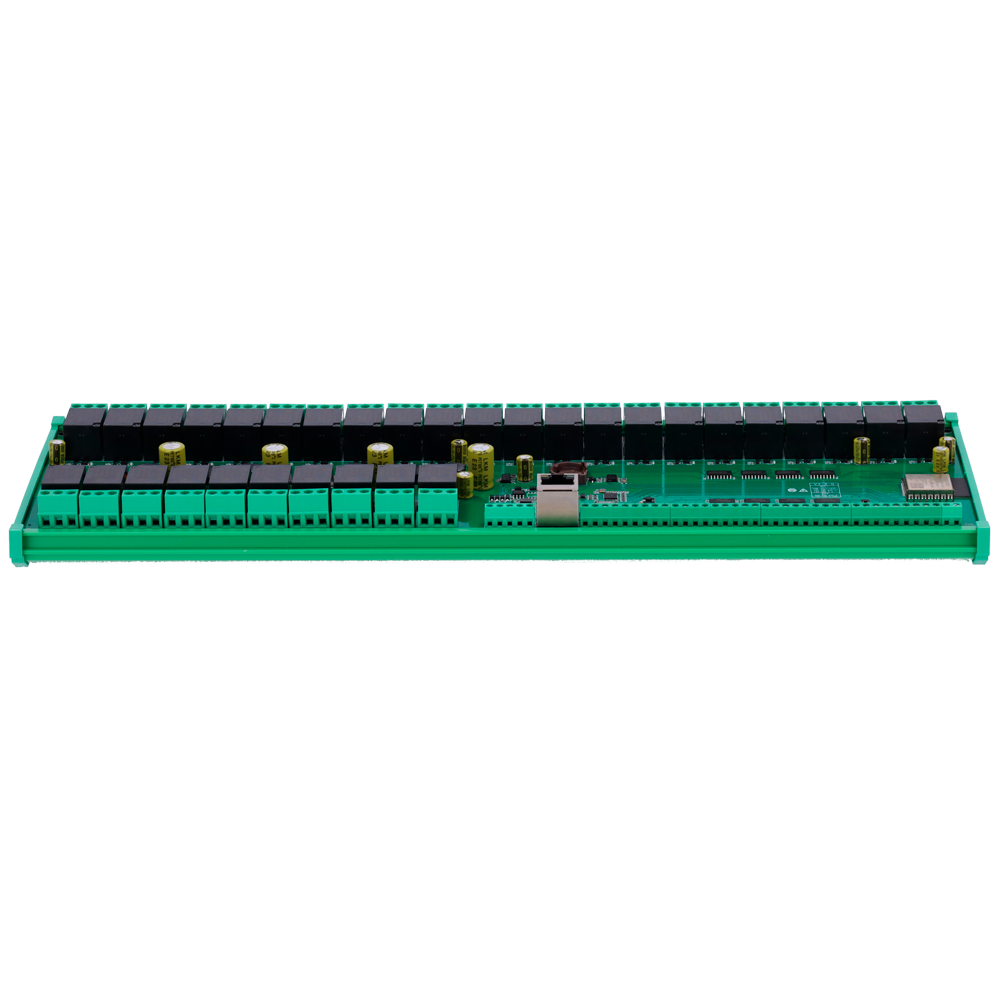

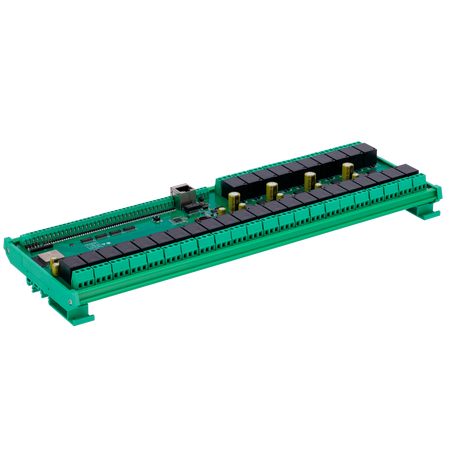

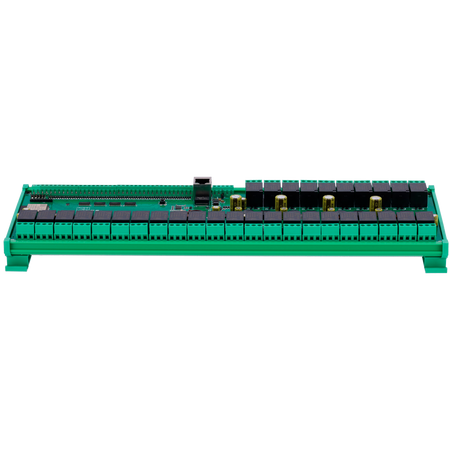

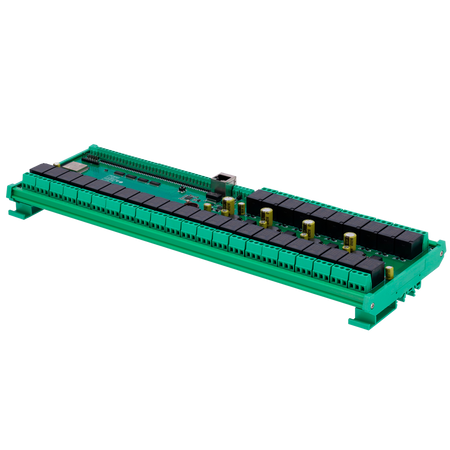

Dtech data acquisition and control module - 32 digital inputs. 32 relay outputs (NO/NC)
Dtech data acquisition and control module - 32 digital inputs. 32 relay outputs (NO/NC)
Regular price
€287,31
Final price
Regular price
-13%
€329,26
Sale price
€287,31
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Data acquisition and control module - 32 digital inputs. 32 relay outputs (NO/NC) - Protocols: Modbus/TCP, TCP/IP, UDP, HTTP,... - Integrated web server - 10/100 Base-TX Ethernet port | WiFi port - DIN rail mounting
📋 SPECIFICATIONS:
• Inputs: 32 digital
• Outputs: 32 relay
• Protocols: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP
• Communication: 1 10/100 Base-TX port; 1 WiFi port
• Watchdog: System: Programmable; Communication: Programmable
• Special functions: AND logic operations between inputs and outputs (from version V3.1.5406)
• Mounting: Suitable for DIN rail mounting
• Connector: Plug-in / screw terminal connectors
• Dimensions: 370 x 107 x 27mm
• Temperature: Operating: -10~85ºC
• Power supply: 12VDC-24VDC; 12VAC-24VAC; (power supply not included)
• Current: 3A@12VDC
• Consumption: 16W
📦 INCLUDED:
• Module• Installation hardware• Instructions
| Inputs | 32 digital |
|---|---|
| Outputs | 32 relay |
| Protocols | Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP |
| Communication | 1 x 10/100 Base-TX port, 1 x WiFi port |
| Watchdog | System: Programmable, Communication: Programmable |
| Special functions | AND logic operations between inputs and outputs (from version V3.1.5406) |
| Mounting | Suitable for DIN rail mounting |
| Connector | Plug-in / screw terminal connectors |
| Dimensions | 370 x 107 x 27mm |
| Temperature | Operating: -10~85ºC |
| Power supply | 12VDC-24VDC, 12VAC-24VAC (power supply not included) |
| Current | 3A@12VDC |
| Consumption | 16W |
