DTECH

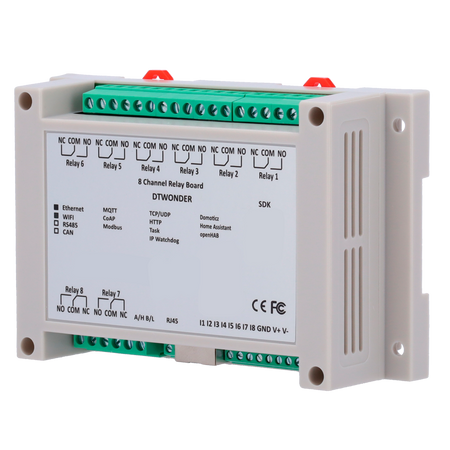

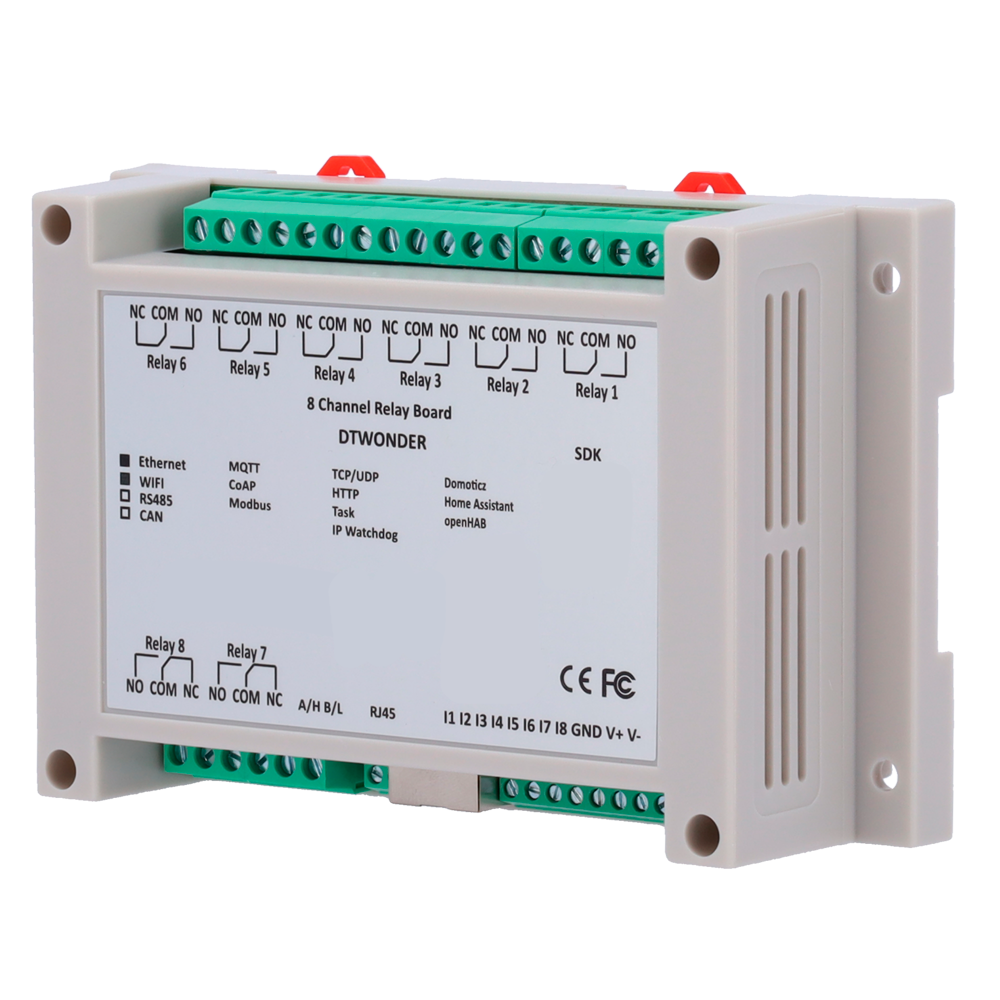

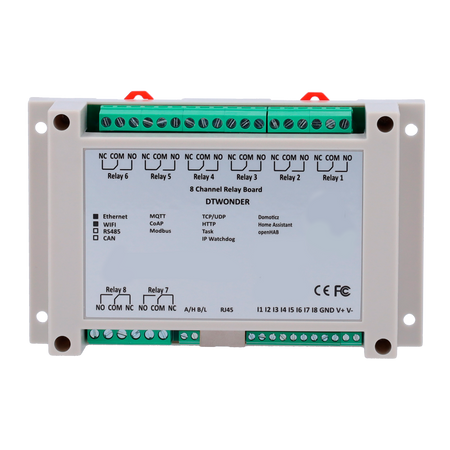

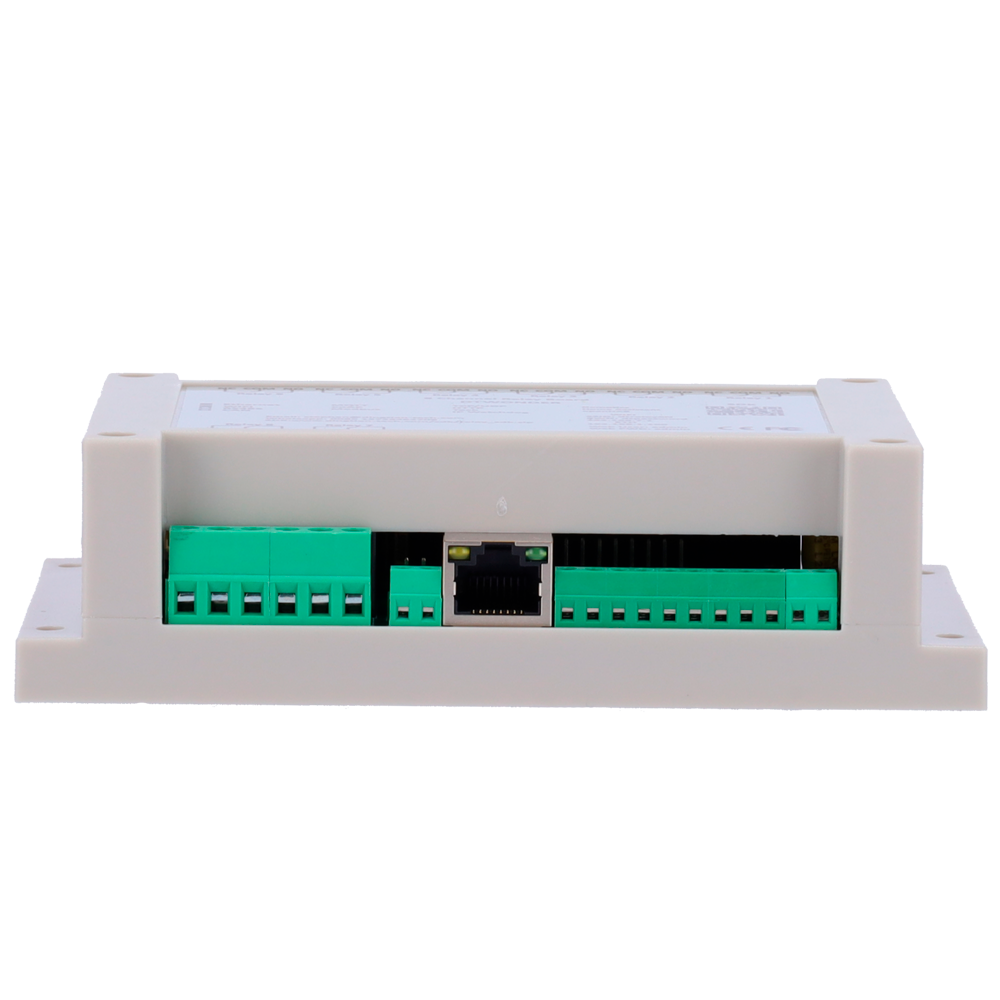

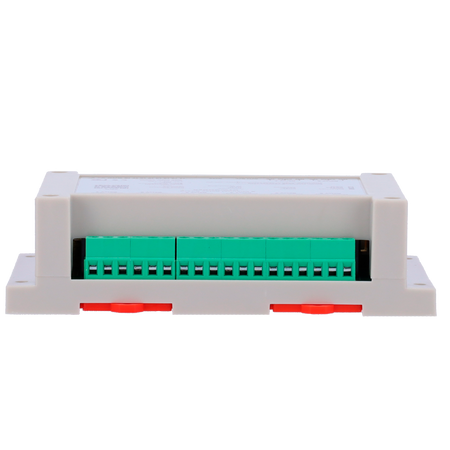

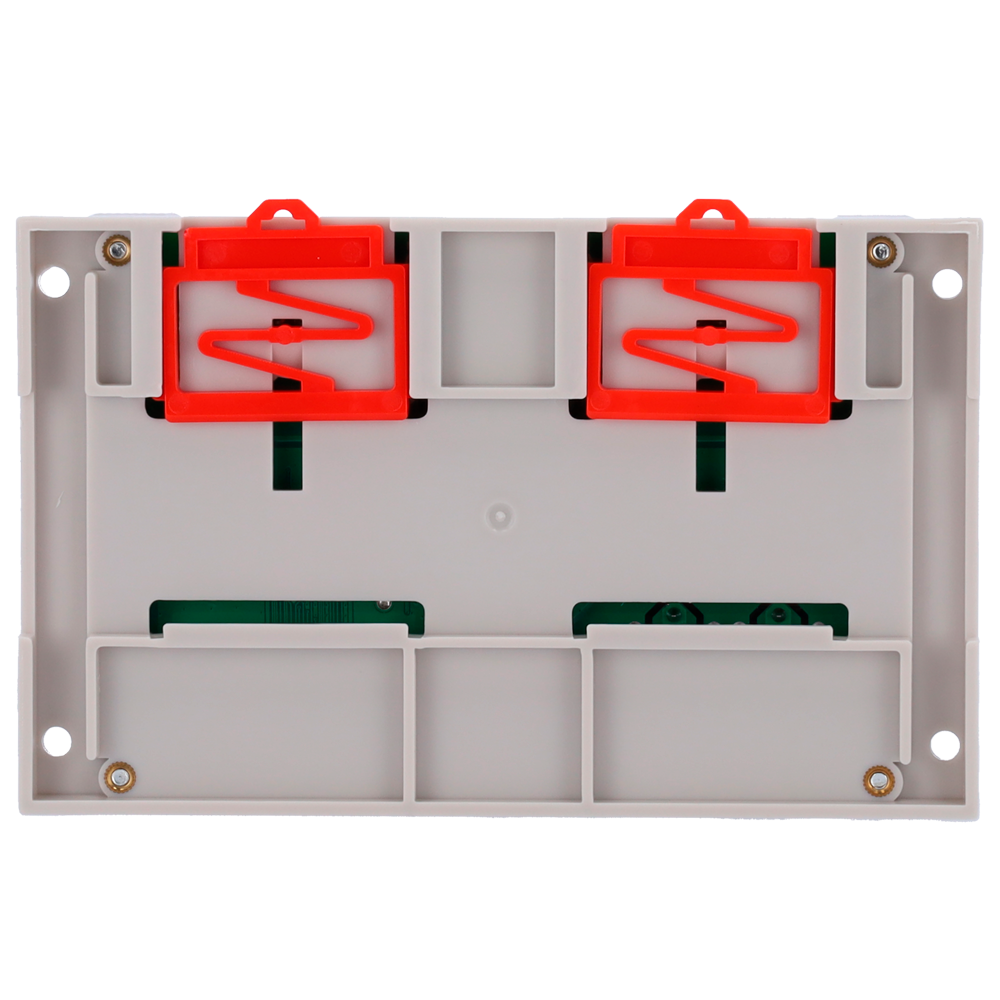

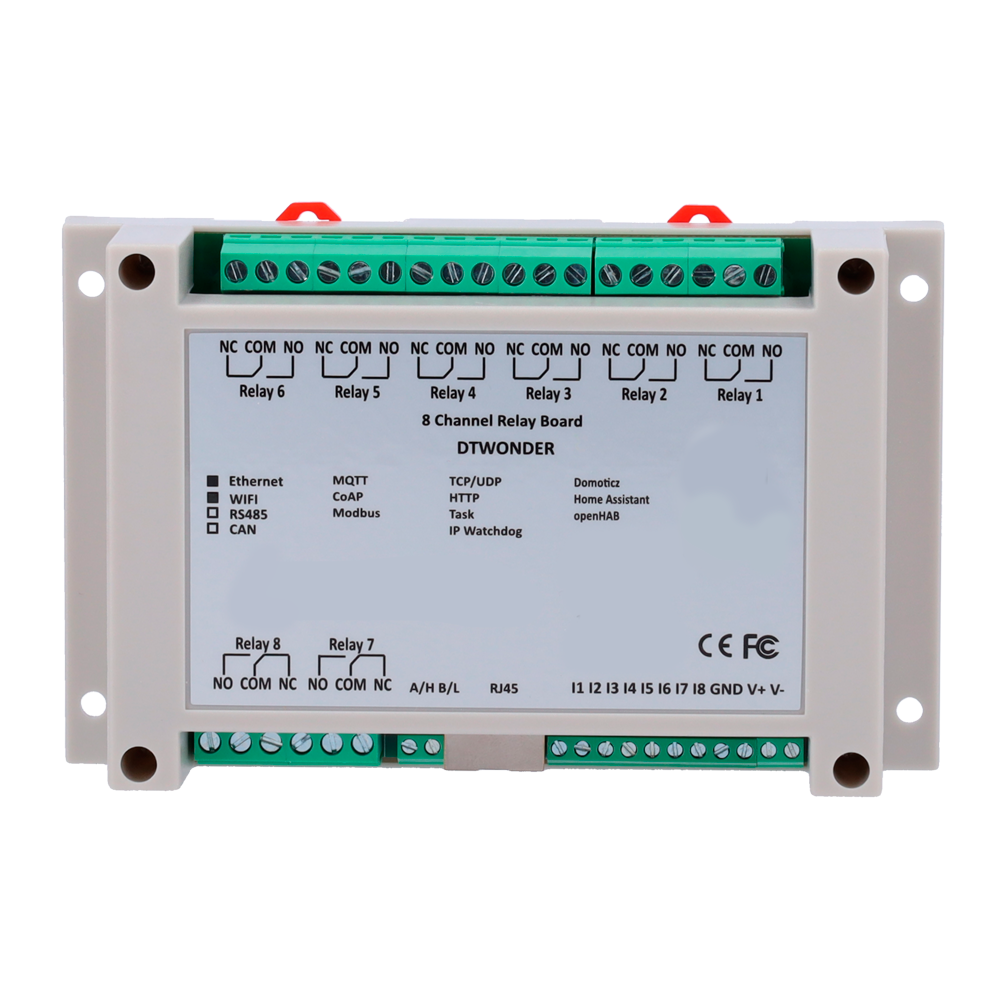

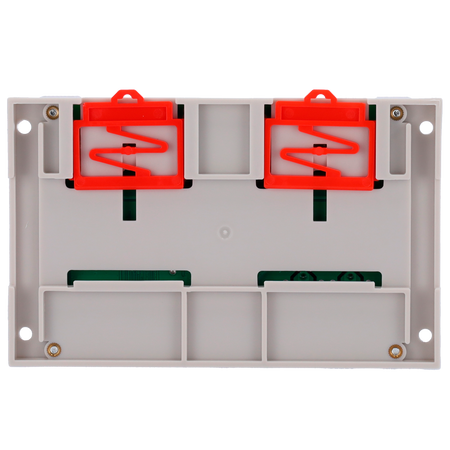

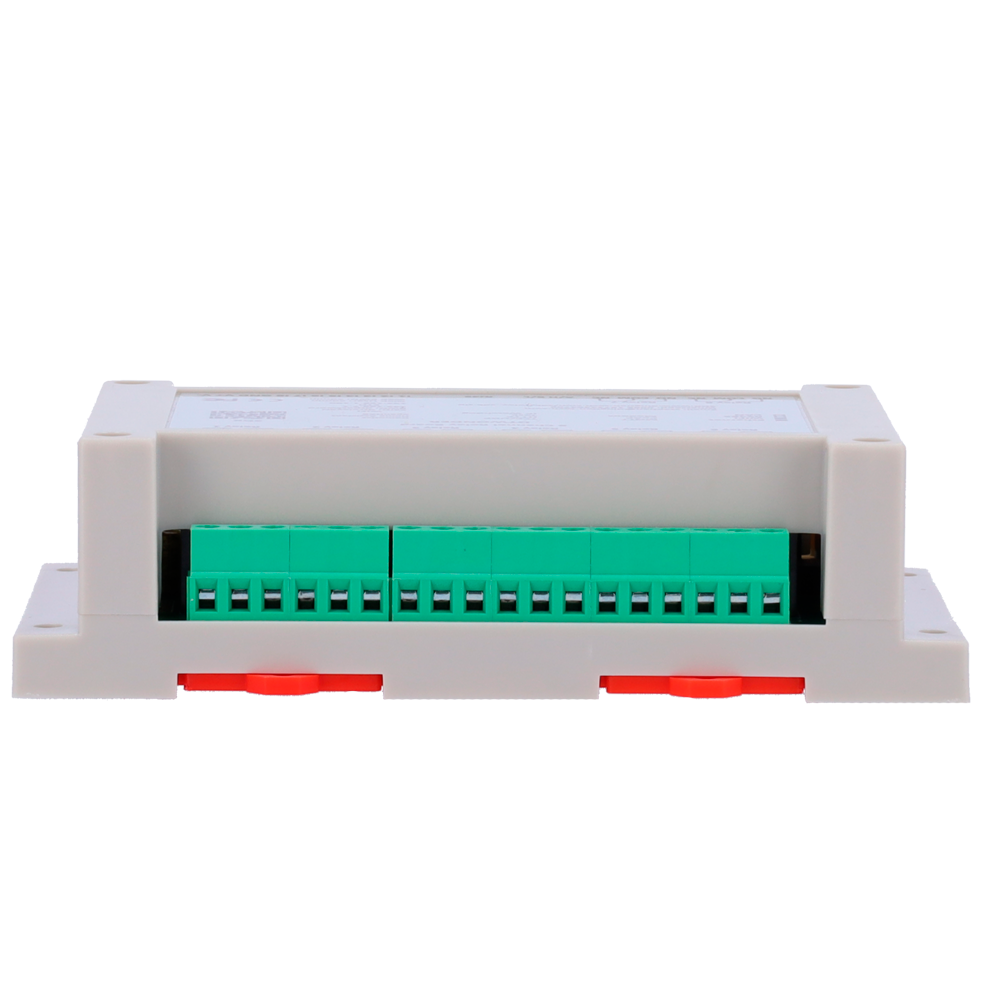

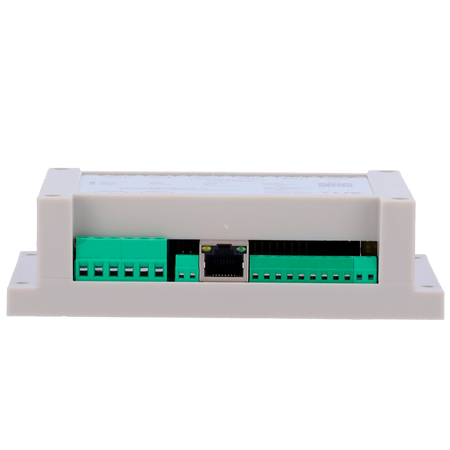

Dtech data acquisition and control module - 8 digital inputs | 8 relay outputs (NO/NC) - Accessories

SKU: DT-R008
(0)
In stock
Usually shipped within 24 hours
€64,56 Final price
-13% €74,00 €64,56 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Data acquisition and control module - 8 digital inputs | 8 relay outputs (NO/NC) - Protocols: Modbus/TCP, TCP/IP, UDP, HTTP,... - Integrated web server - 10/100 Base-TX Ethernet port | WiFi port - Power supply not included (12VDC/1A)

📋 SPECIFICATIONS:
• Inputs: 8 Digital
• Outputs: 8 relay
• Protocols: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP
• Communication: 1 10/100 Base-TX Port; 1 WiFi Port
• Watchdog: System: Programmable; Communication: Programmable
• Special functions: AND logic operations between inputs and outputs (from version V3.1.5406)
• Connector: Plug-in / screw terminal connectors
• Dimensions: 87x122x27mm
• Temperature: Operating: -10~85ºC
• Power supply: 12VDC-24VDC; 12VAC-24VAC
• Current: 1.5A@12VDC
• Consumption: 5W

📦 INCLUDED:
• Module• Installation material• Instructions
Inputs 8 Digital
Outputs 8 relay
Protocols Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP
Communication 1 Port 10/100 Base-TX 1 WiFi Port
Watchdog System: Programmable Communication: Programmable
Special functions AND logic operations between inputs and outputs (from version V3.1.5406)
Connector Plug-in / screw terminal connectors
Dimensions 87x122x27mm
Temperature Operation: -10~85ºC
Power supply 12VDC-24VDC 12VAC-24VAC
Current 1.5A@12VDC
Consumption 5W
