DSPPA voice evacuation controller
DSPPA voice evacuation controller
Regular price
€1.821,58
Final price
Regular price
-7%
€1.960,00
Sale price
€1.821,58
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

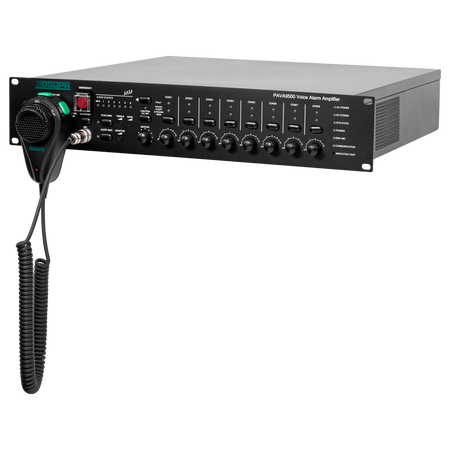

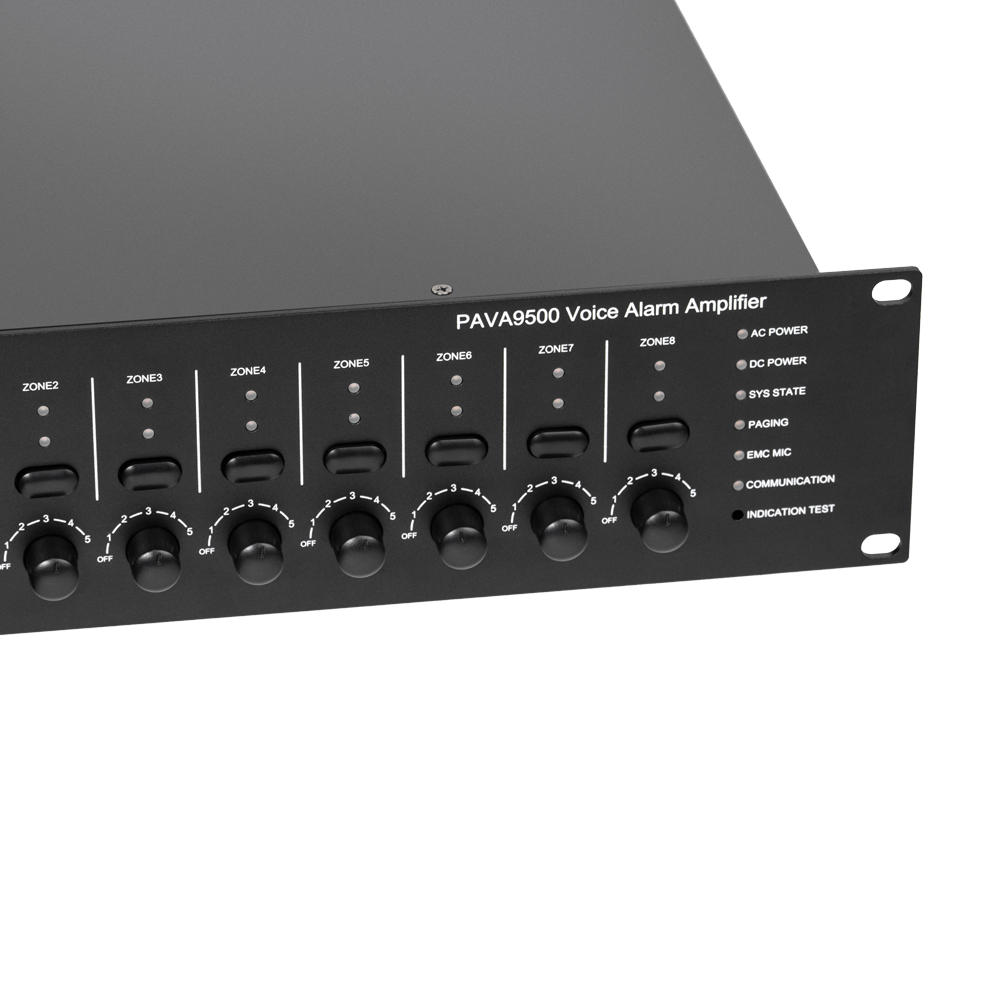

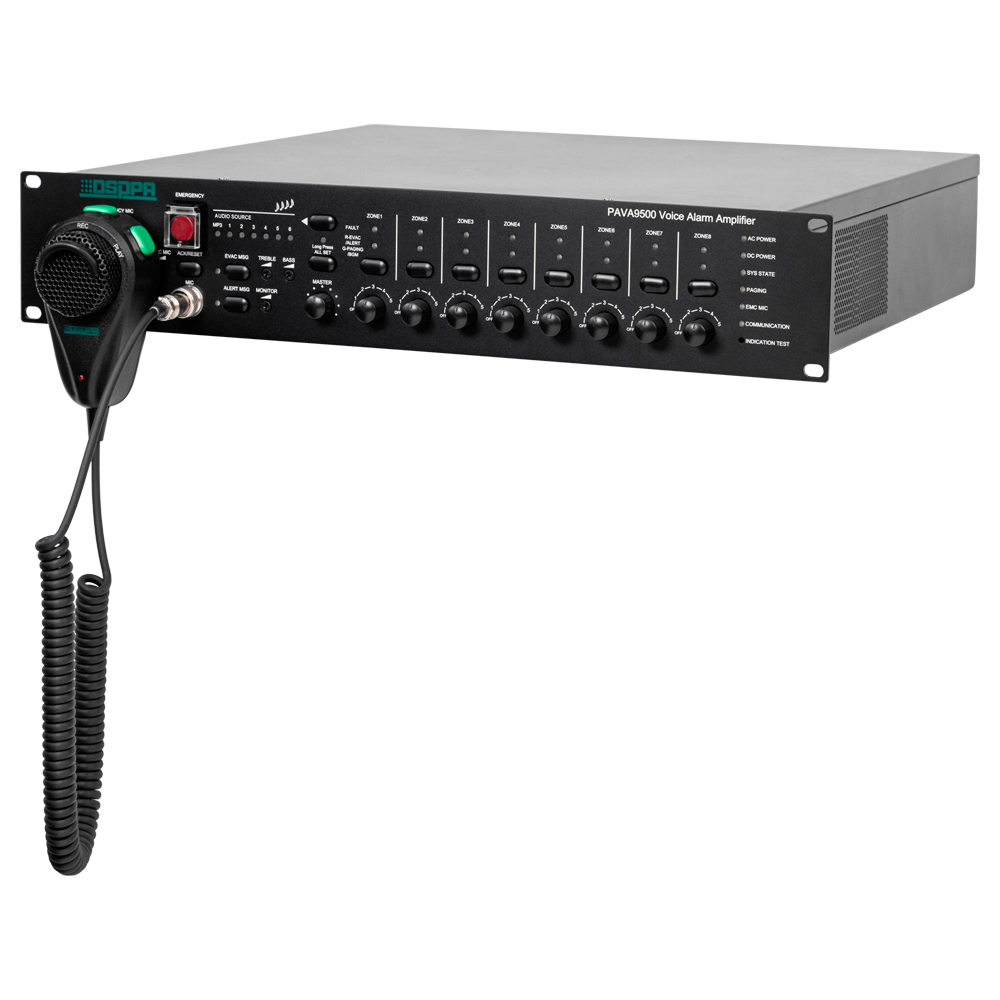

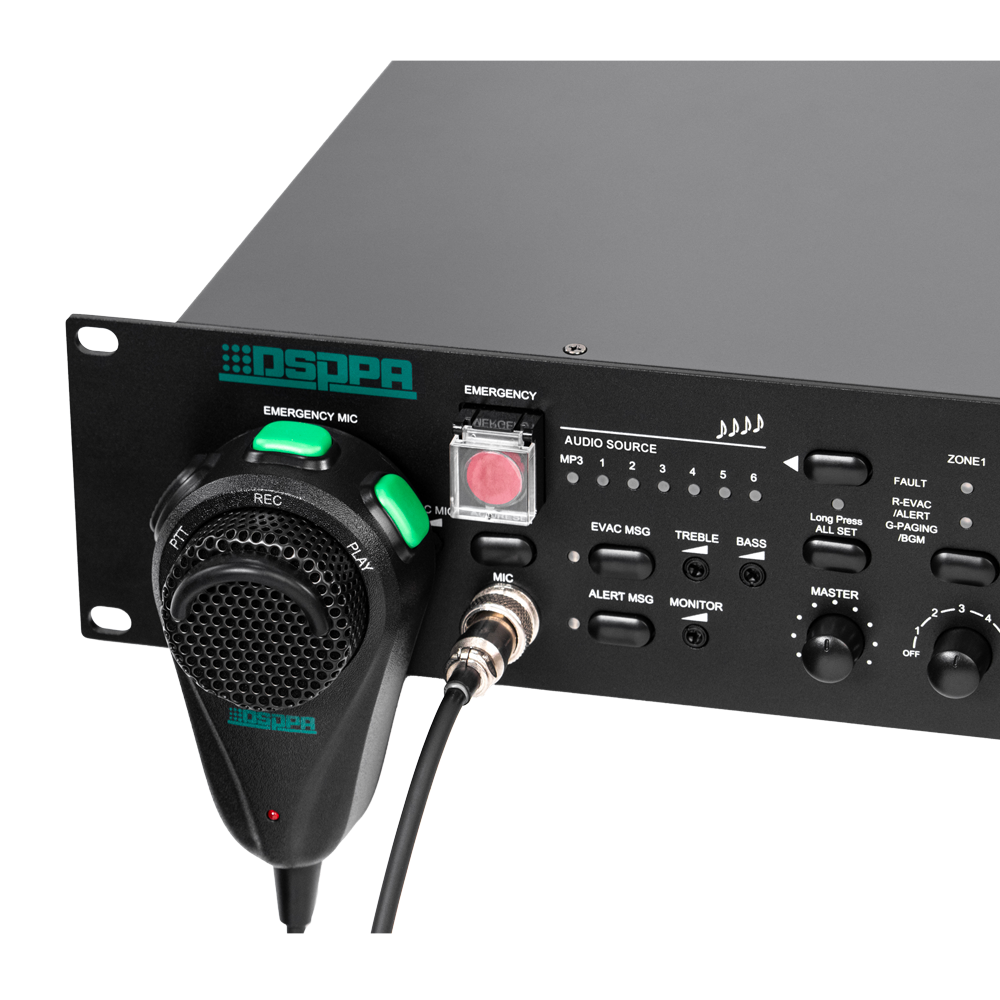

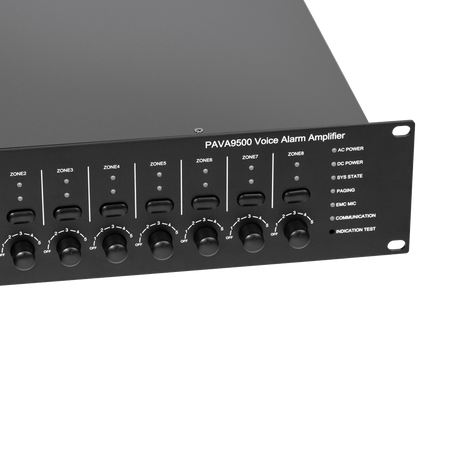

DSPPA Voice Evacuation Controller - PAVA9000 Central System - 8 zones | 500W | Redundant amplification - 2 Microphone | 4 Line | EMC Input - Messages | Continuous monitoring - Scalable up to 160 local or IP address zones
📋 SPECIFICATIONS:
• Model: PAVA9500
• Type: Fire alarm system with amplifier
• Certification: UNE-EN 54-16
• Rated power: 500 W (100V)
• Power supply: 220~240V AC @ 50/60 Hz

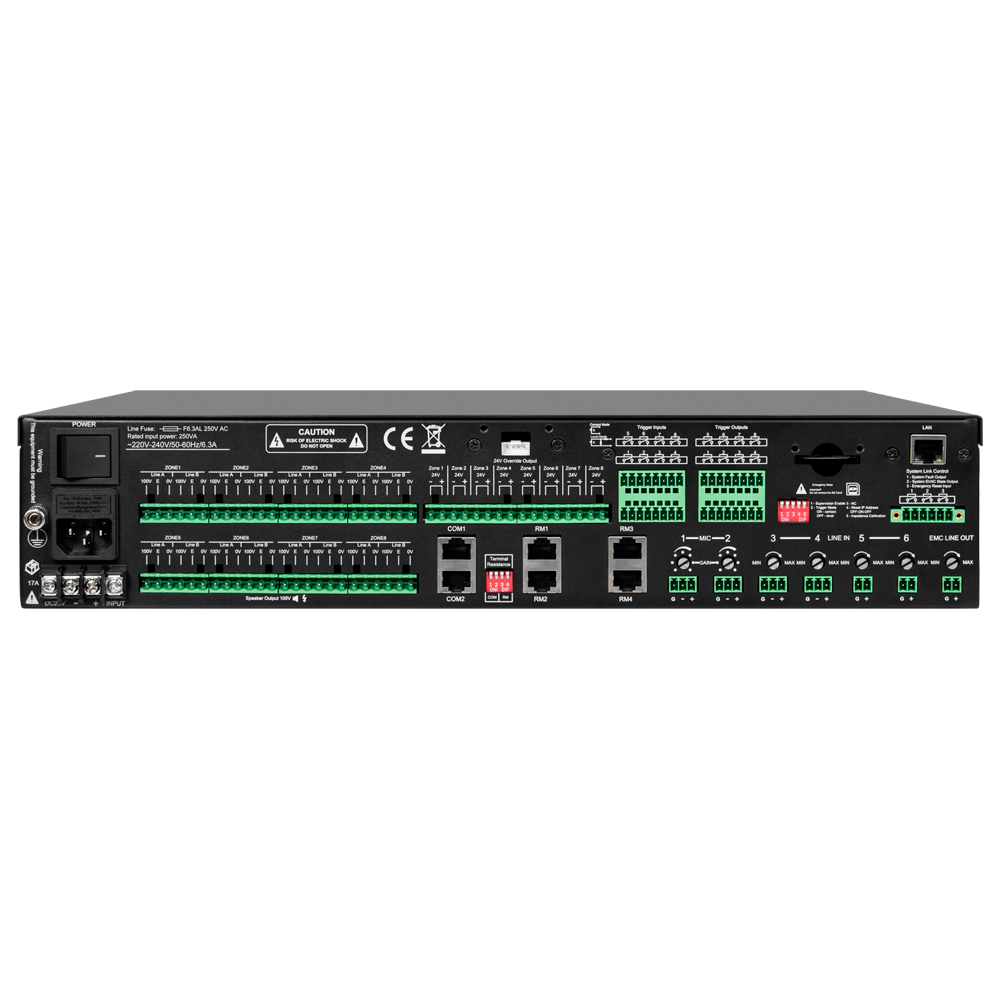

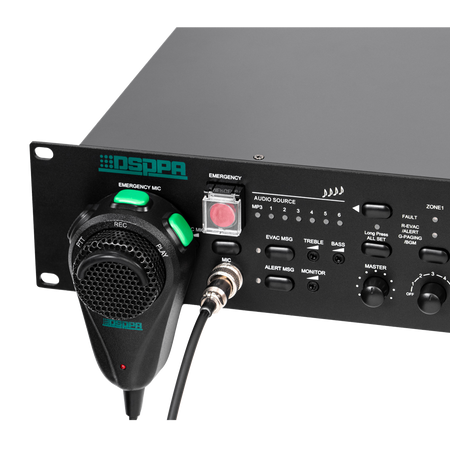

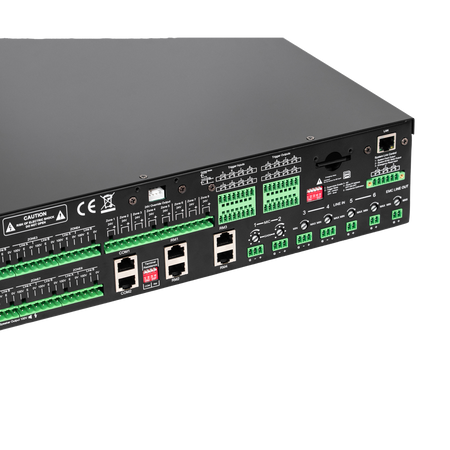

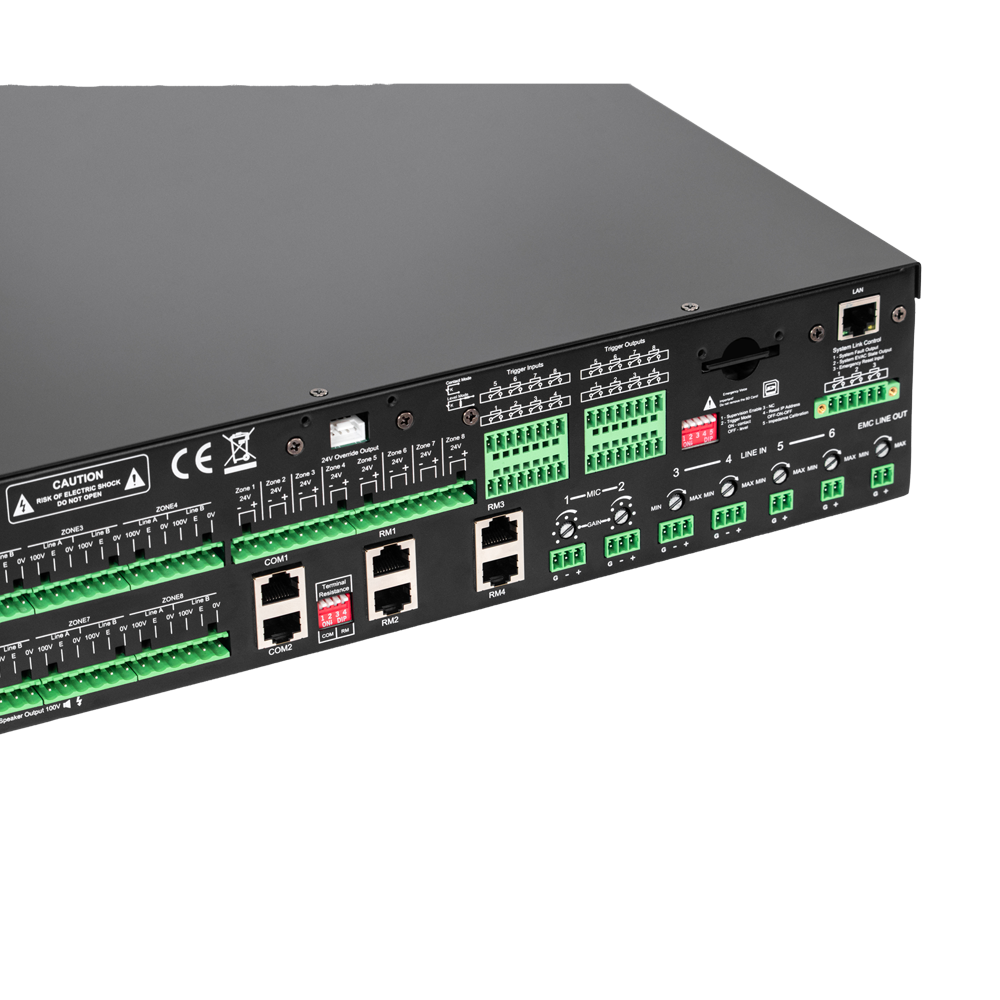

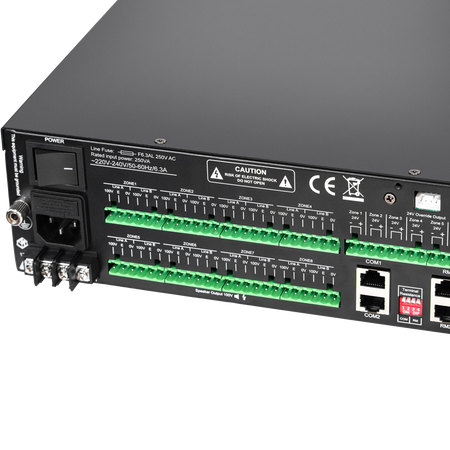

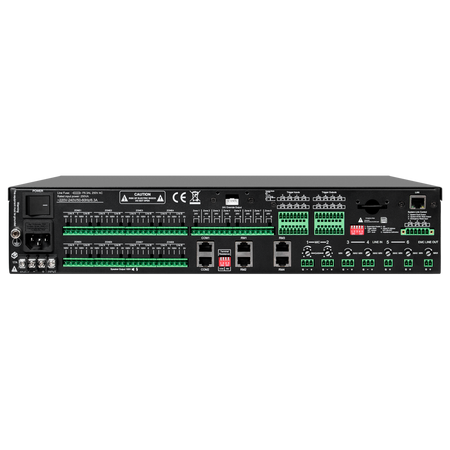

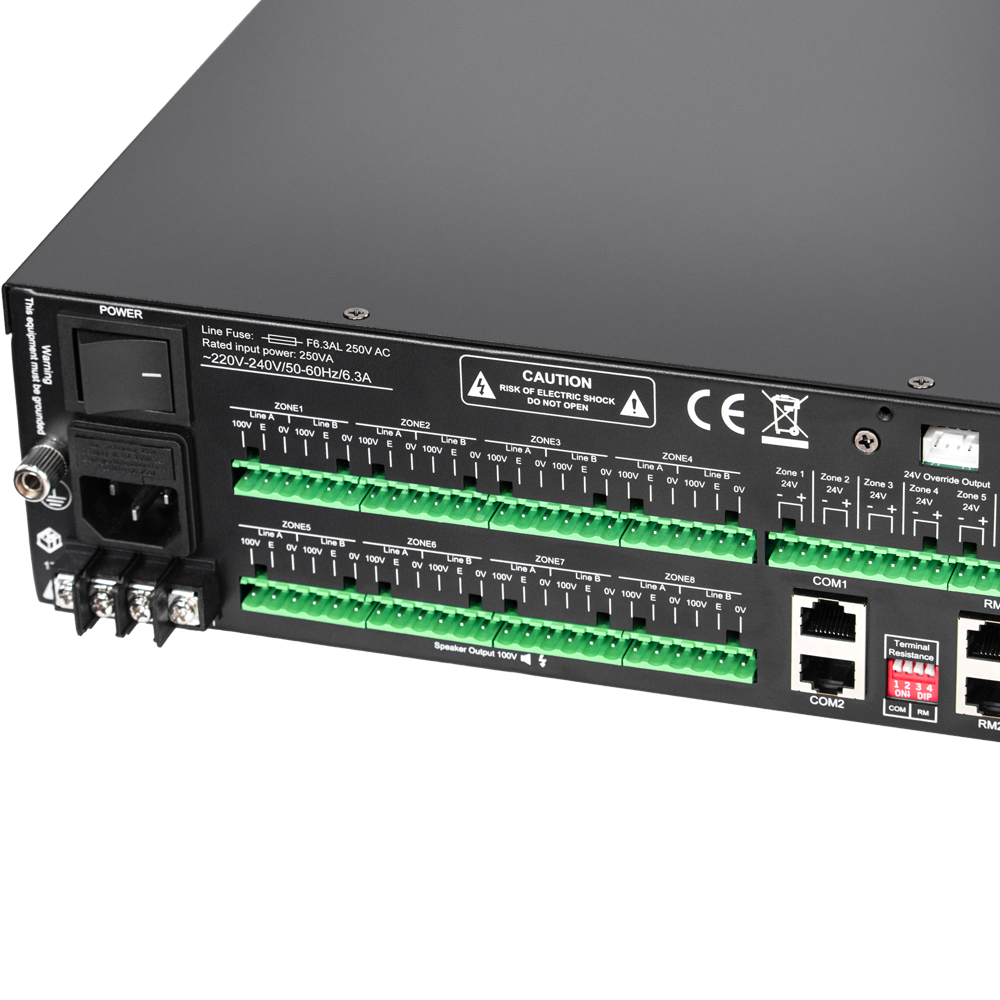

• Ports: 1 x DC24V backup input; 8 x Speaker outputs; 1 x EMC MIC; 2 x MIC; 4 x LINE IN; 1 x LINE OUT; 1 x EMC LINE OUT
• Sensitivity (input signal): EMC MIC: 20mV 600Ω; MIC: 5±0.5mV 10kΩ; LINE: 1000±100mV 10kΩ
• Harmonic distortion: EMC MIC: < 1% 1kHz; MIC: 1% 1kHz; LINE: < 1% 1kHz
• Frequency response: EMC MIC: 80Hz-15kHz (±3dB); MIC: 1% 1kHz; LINE: 50Hz-18kHz (±3dB)
• Signal-to-noise ratio: EMC MIC: > 75dBA; MIC: 1% 1kHz; LINE: > 80dBA
• Auxiliary EMC output: Output voltage: 1000mV; Frequency range: 80Hz-15kHz (±3dB); Harmonic distortion: < 1% 1kHz
• Contact control system (inputs/outputs): System fault relay output: short circuit, voltage-free; Emergency mode relay output: short circuit, voltage-free; Fire start input: short circuit, t ≥ 0.5S, voltage-free; 8-channel dry contact output: short circuit, voltage-free; Level mode: 3.3V ~ 24V
• Voice message: Format: WAV
• Power supply: AC 220V ~ 240V @ 50 / 60Hz; DC 24V / 17A
• Dimensions: 428mm (W) x 88mm (H) x 430mm (D)
• Weight: 12.05kg
📦 INCLUDED:
• Amplifier
| Model | PAVA9500 |
|---|---|
| Type | Fire emergency system with amplifier |
| Certification | UNE-EN 54-16 |
| Rated power | 500W (100V) |
| Power supply | 220~240V AC @ 50/60 Hz |
| Ports | 1 x DC24V backup input 8 x Speaker outputs 1 x EMC MIC 2 x MIC 4 x LINE IN 1 x LINE OUT 1 x EMC LINE OUT |
| Sensitivity (input signal) | - EMC MIC: 20mV 600Ω - MIC: 5±0.5mV 10kΩ - LINE: 1000±100mV 10kΩ |
| Harmonic distortion | - EMC MIC: < 1% 1kHz - MIC: 1% 1kHz - LINE: < 1% 1kHz |
| Frequency response | - EMC MIC: 80Hz-15kHz (±3dB) - MIC: 1% 1kHz - LINE: 50Hz-18kHz (±3dB) |
| Signal-to-noise ratio | - EMC MIC: > 75dBA - MIC: 1% 1kHz - LINE: > 80dBA |
| Auxiliary EMC output | - Output voltage: 1000mV - Frequency range: 80Hz-15kHz (±3dB) - Harmonic distortion: < 1% 1kHz |
| Contact control system (inputs/outputs) | - System fault relay output: short circuit, no voltage - Emergency mode relay output: short circuit, no voltage - Fire alarm input: short circuit, t ≥ 0.5S, no voltage - 8-channel dry contact output: short circuit, no voltage - Level mode: 3.3V ~ 24V |
| Voice message | Format: WAV |
| Power supply | - AC 220V ~ 240V @ 50 / 60Hz - DC 24V / 17A |
| Dimensions | 428mm (W) x 88mm (H) x 430mm (D) |
| Weight | 12.05kg |
- User manual Link
