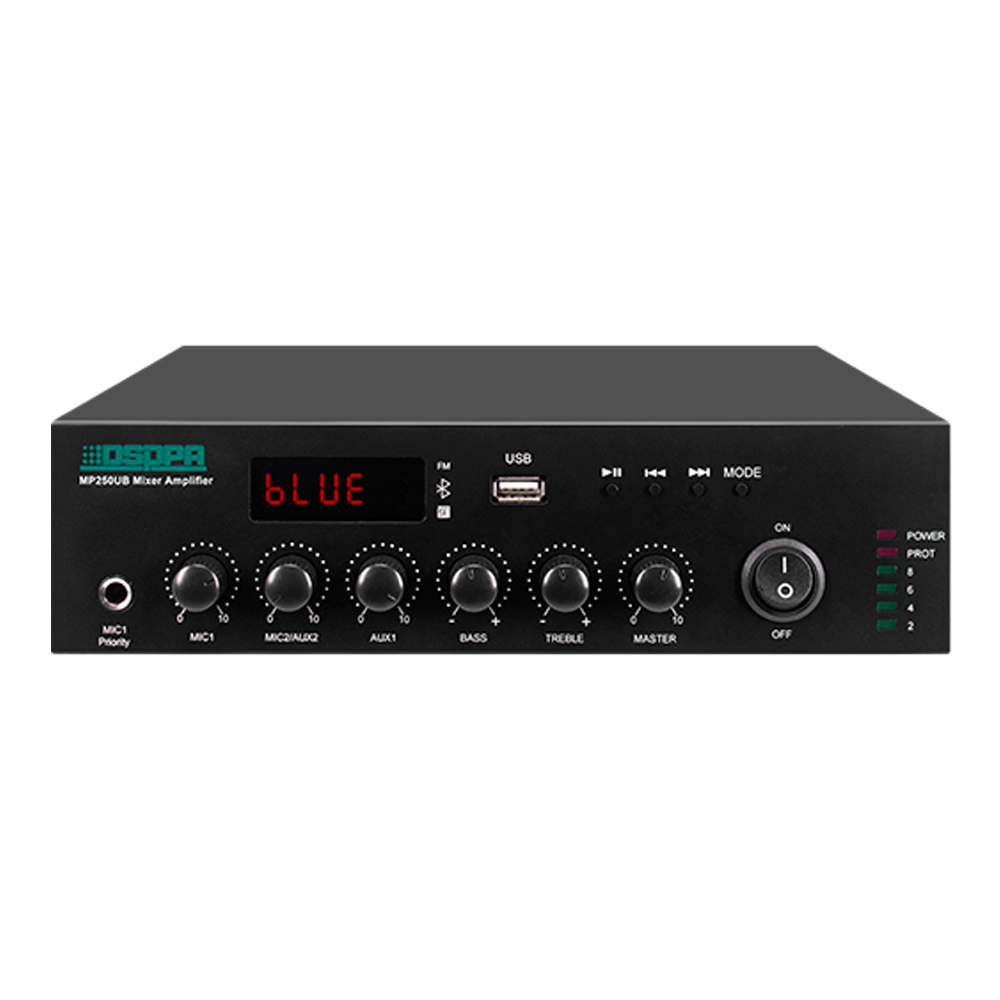

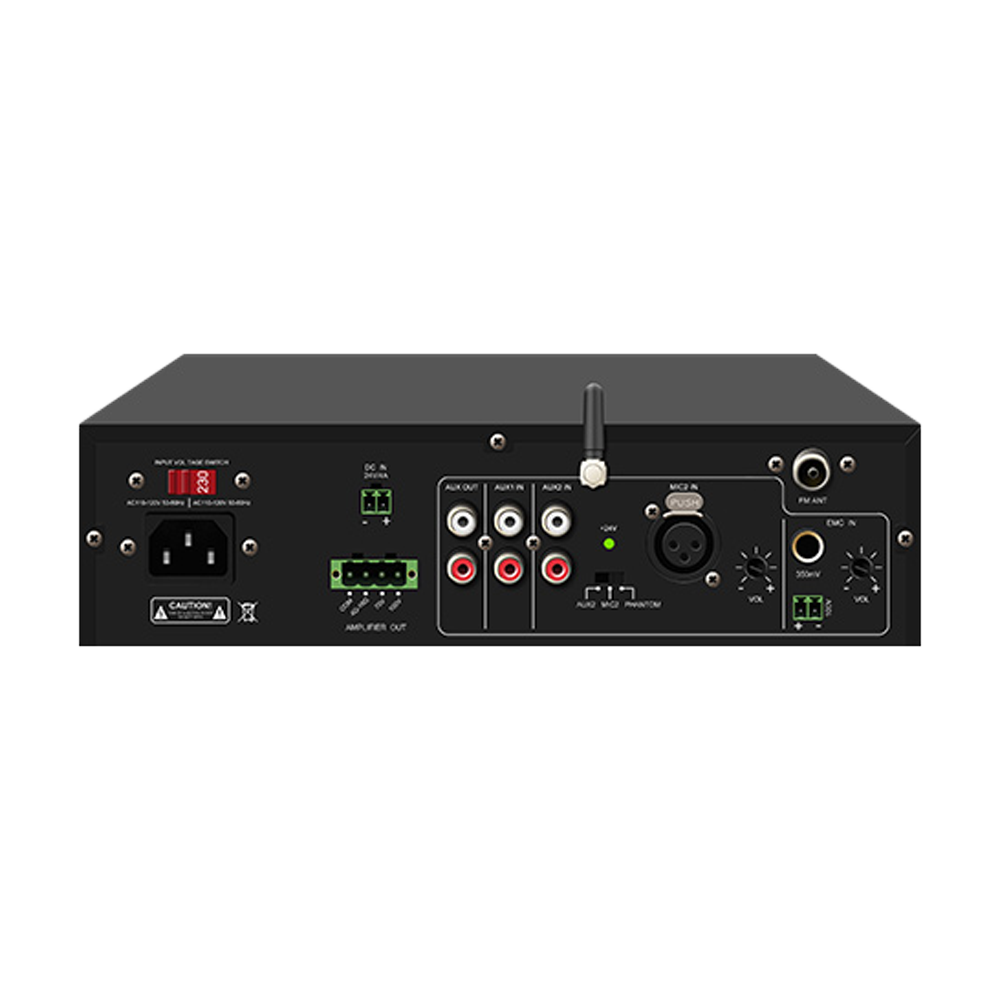

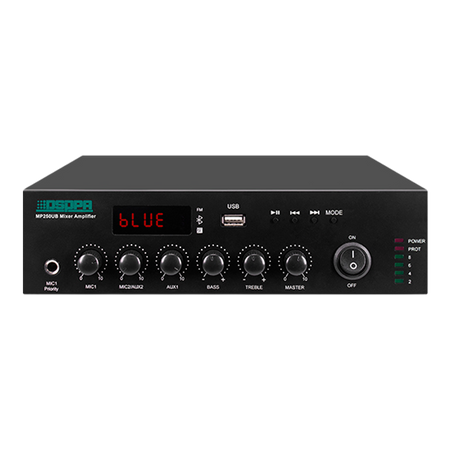

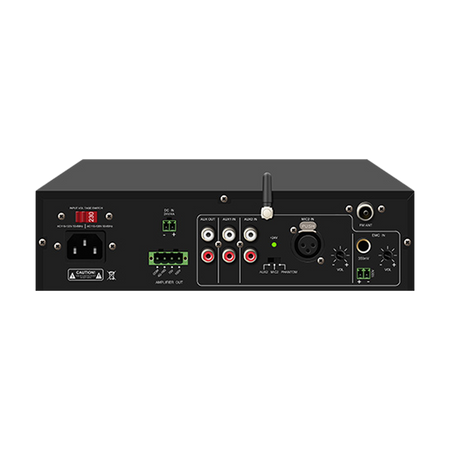

DSPPA mixer amplifier - 70V/100V line and low impedance - 1 x 250W - 2 Mic 2 Phantom | 2 Aux | EMC Emergency - USB player / FM Radio / Bluetooth - Remote control
📋 SPECIFICATIONS:
• Brand: DSPPA
• Model: MP250UB
• Range: Installation
• Output power: 1 x 250 W
• Areas or channels: 1 channel with 1 volume control zone
• Speaker outputs: 70 V / 100 V line; Low impedance (4-16 Ω)
• Integrated player: USB MP3 player; Bluetooth receiver; FM radio tuner
• Remote control: Infrared remote control included
• Microphone inputs: MIC1: Front 6.35 mm jack with priority; MIC2: Combo XLR + 6.35 mm jack, selectable 48V phantom; MIC3/AUX2: Selectable sharing, Combo XLR + 6.35 mm jack, selectable 48V phantom power; Input sensitivity: 10 mV ±1 mV; MIC frequency response: 120 Hz ~ 12 kHz (±3 dB)
• Auxiliary inputs: AUX1: RCA; AUX2: RCA shared with MIC3; Input sensitivity: 350 mV ±50 mV; AUX frequency response: 80 Hz ~ 15 kHz (±3 dB)
• Control inputs: 1 EMC input via Euroblock terminal with top priority for emergency audio; 1 relay input for MUTE; 1 relay input for siren activation
• Input priority: MUTE > EMC = Alarm = Chime > MIC1 > Others
• Audio outputs: AUX OUT: RCA
• Controls: Master volume; Independent volume adjustment per input; Tone control: Bass, Treble; USB/FM/Bluetooth source selection; Chime activation button
• Indicators: Segmented LCD status display; Signal LEDs; Power LED
• Compatible accessories: N/A
• Frequency response: MIC: 120 Hz ~ 12 kHz (±3 dB); AUX: 80 Hz ~ 15 kHz (±3 dB)
• Power supply: Integrated power supply; AC 110-120 V or 200-240 V, 50/60 Hz
• ENVIRONMENT: Operating temperature: -10 °C ~ +50 °C; Relative humidity: 20 % ~ 80 %
• Mounting type: Tabletop; Rack tray
• Dimensions: 363 × 292 × 106 mm
• Weight: 3 kg
📦 INCLUDED:
• 1x Amplifier
• 1x IR Remote control
• 1x FM antenna
• 1x Euroblock connector for EMC/MUTE/SIREN
• 1x User manual
• 1x Mounting hardware
• 1x Fixing accessories
| Model | MP250UB |
|---|---|
| Range | Installation |
| Output power | 1 x 250 W |
| Areas or channels | 1 channel with 1 volume control zone |
| Speaker outputs | 70 V / 100 V line Low impedance (4-16 Ω) |
| Integrated player | USB MP3 player Bluetooth receiver FM radio tuner |
| Remote control | Infrared remote control included |
| Microphone inputs | MIC1: Front 6.35 mm jack with priority MIC2: XLR + 6.35 mm jack combo, selectable 48V phantom power MIC3/AUX2: Selectable shared, XLR + 6.35 mm jack combo, selectable 48V phantom power Input sensitivity: 10 mV ±1 mV Frequency response MIC: 120 Hz ~ 12 kHz (±3 dB) |
| Auxiliary inputs | AUX1: RCA AUX2: RCA shared with MIC3 Input sensitivity: 350 mV ±50 mV Frequency response AUX: 80 Hz ~ 15 kHz (±3 dB) |
| Control inputs | 1 EMC input via Euroblock terminal with highest priority for emergency audio 1 relay input for MUTE 1 relay input for siren activation |
| Input priority | MUTE > EMC = Alarm = Chime > MIC1 > Others |
| Audio outputs | AUX OUT: RCA |
| Controls | Master volume Independent volume control per input Tone control: Bass, Treble USB/FM/Bluetooth source selection Chime activation button |
| Indicators | Segmented LCD status display Signal LED Power LED |
| Compatible accessories | N/A |
| Frequency response | MIC: 120 Hz ~ 12 kHz (±3 dB) AUX: 80 Hz ~ 15 kHz (±3 dB) |
| Power supply | Built-in power supply; AC 110-120 V or 200-240 V, 50/60 Hz |
| ENVIRONMENT | Operating temperature: -10 °C ~ +50 °C Relative humidity: 20% ~ 80% |
| Mounting type | Desktop Rack tray |
| Dimensions | 363 × 292 × 106 mm |
| Weight | 3 kg |
