DSPPA

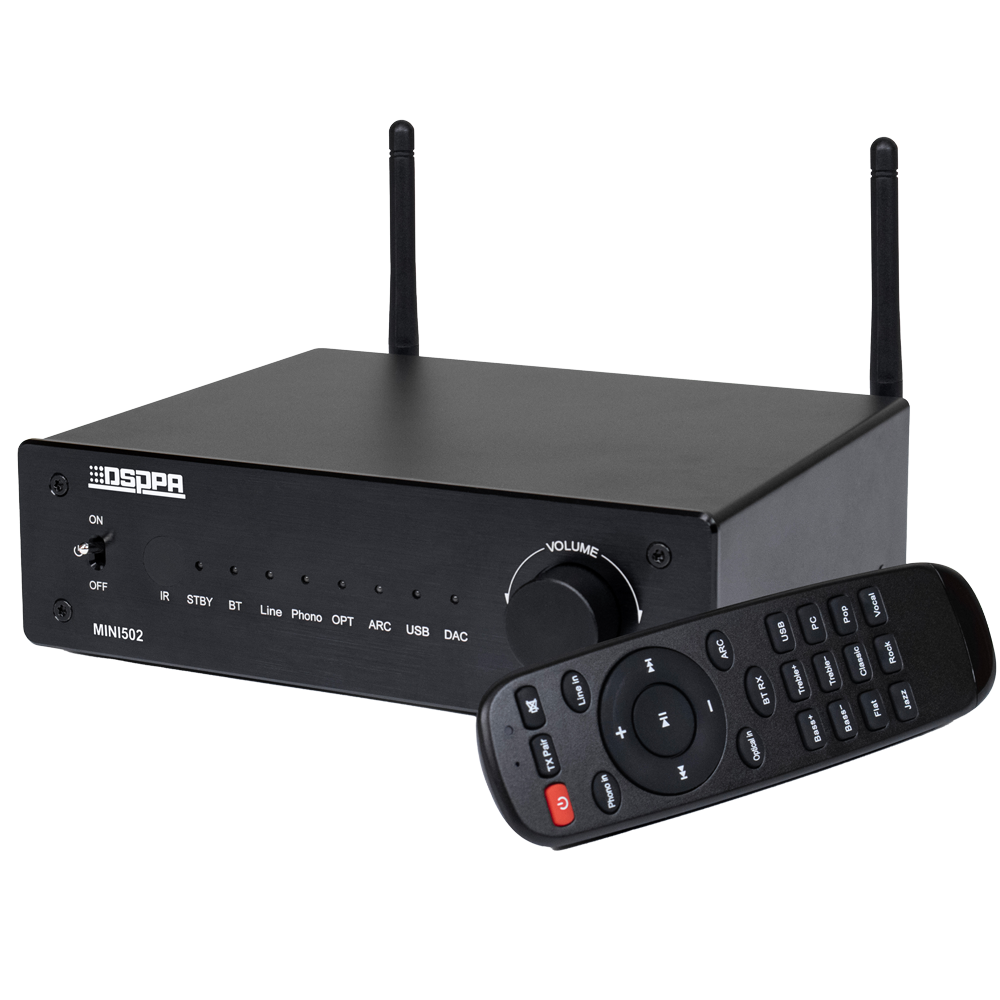

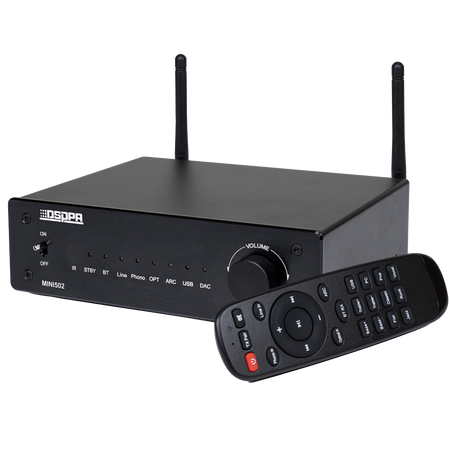

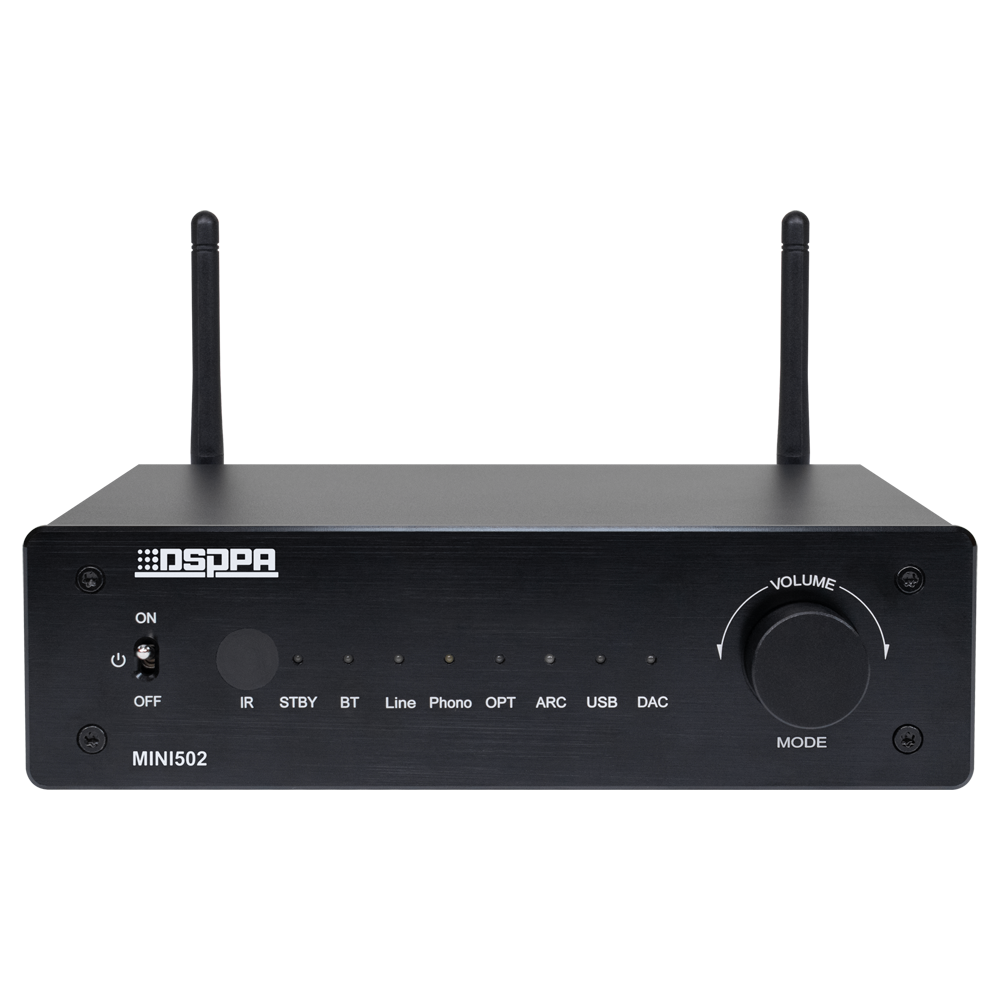

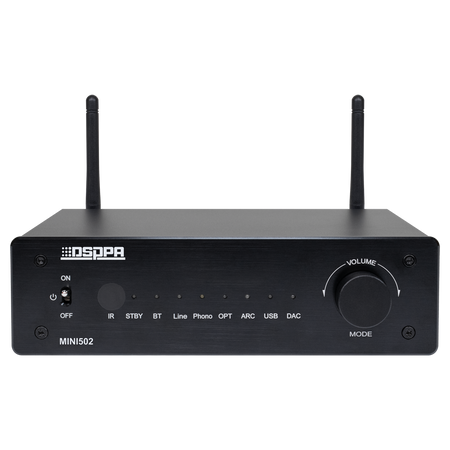

DSPPA 2 x 50W audio amplifier

SKU: DSPPA-MINI502
(0)
In stock
Usually shipped within 24 hours
€207,52 Final price
-13% €238,00 €207,52 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Audio amplifier - 2 x 50W - Dual Bluetooth connection - USB playback - Equalizer settings - Remote control

📋 SPECIFICATIONS:
• Model: MINI502
• Type: Audio amplifier
• Power: 2 x 50W (4Ω); 2 x 30W (8Ω)
• Impedance: 4Ω / 8Ω
• Frequency response: 20Hz - 32kHz
• Distortion: ≤ 0.01% (1kHz / 1W)
• SNR (Signal-to-noise ratio): > 93dB (max.)

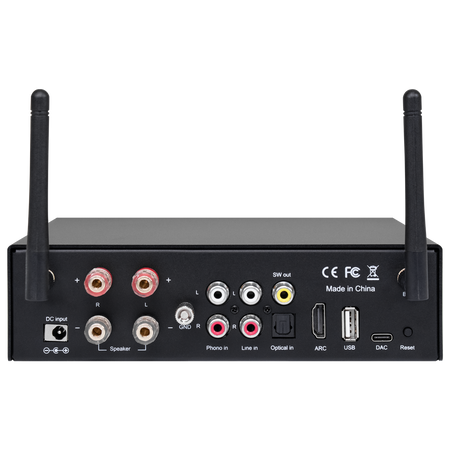

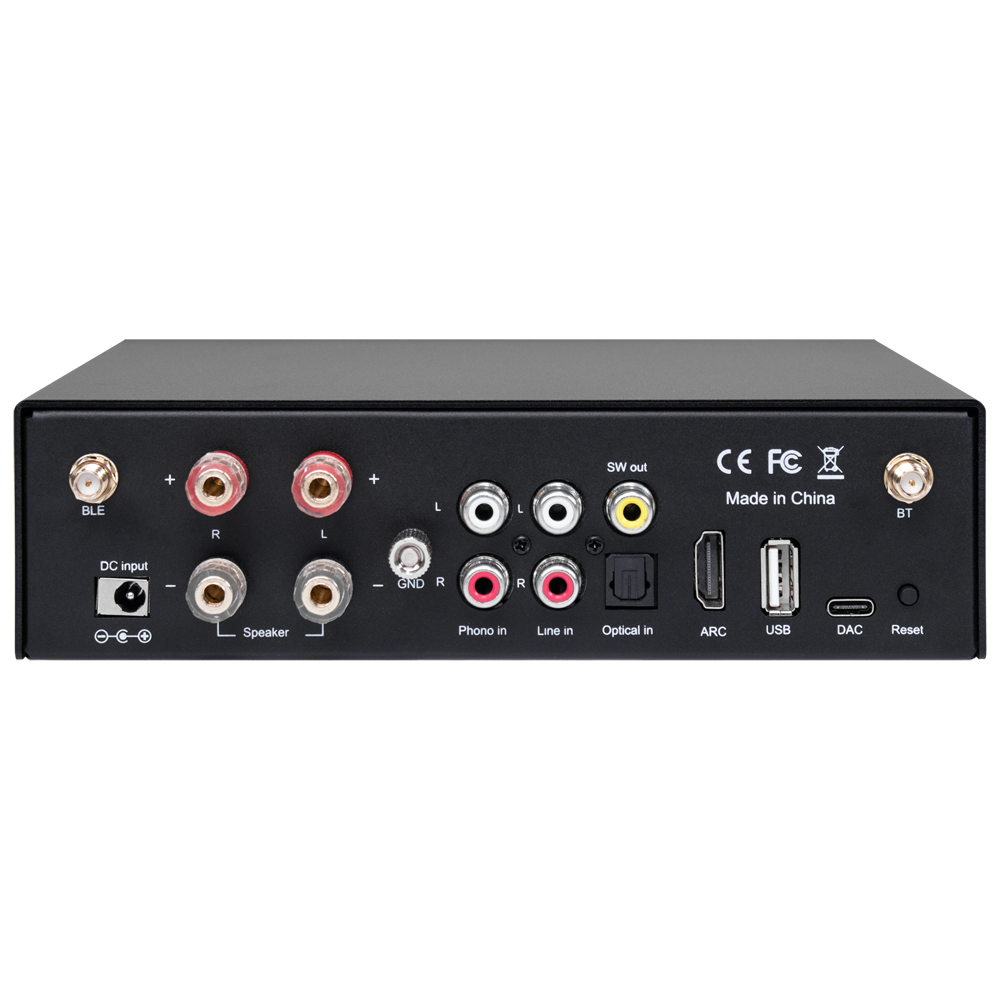

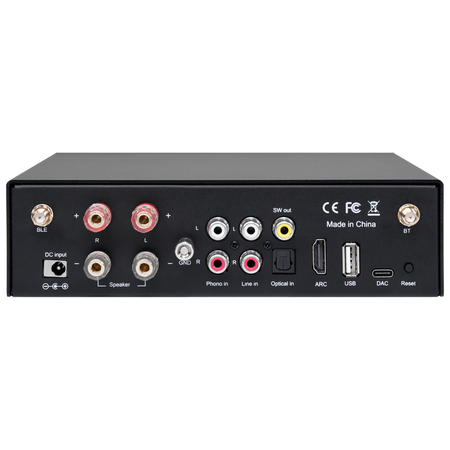

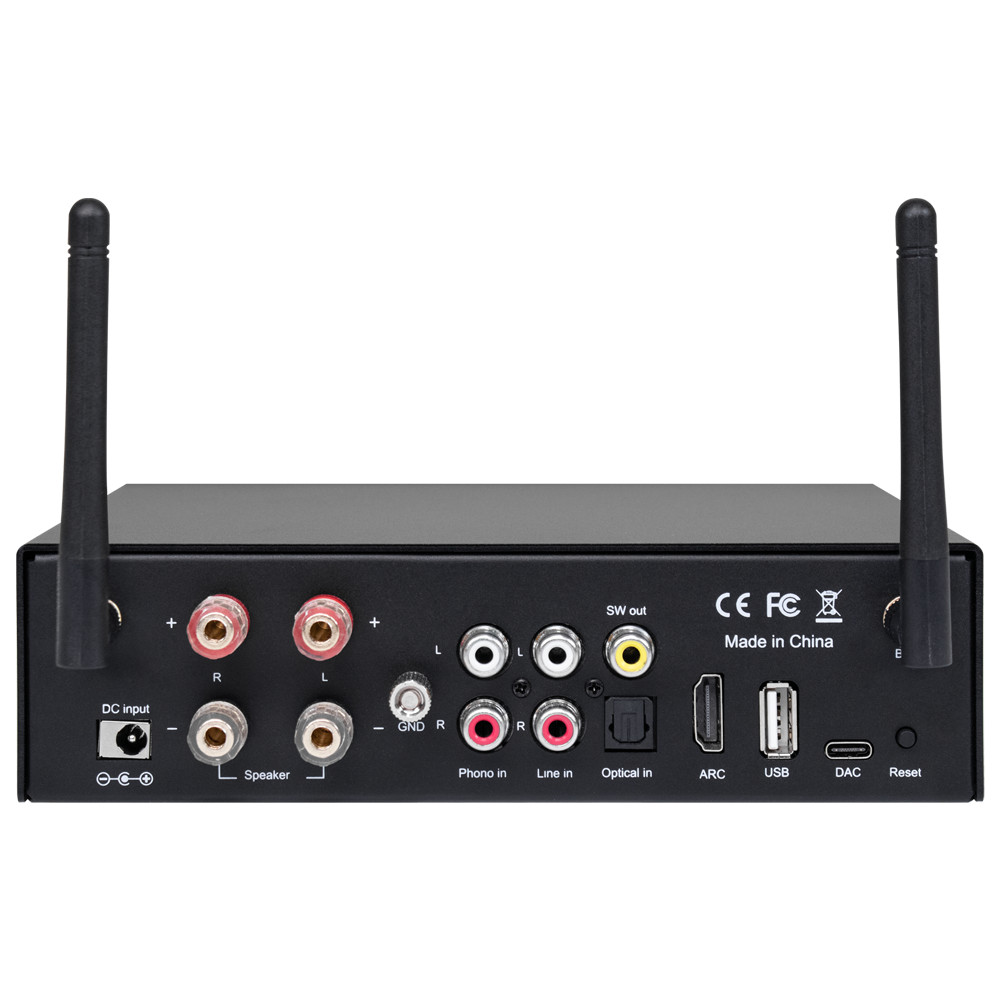

• Ports: Inputs:; 1 x RCA (LINE IN - Max. 2V RMS); 1 x RCA (PHONO IN - Supports MM/MC; 1 x Optical IN (Up to 192kHz/24bits PCM only); 1 x TV ARC (PCM only, does not support CEC); 1 x USB (Supported formats Fat16, Fat32, exFAT, up to 128GB. Supports mp3 codecs up to 384kbps, mp4, mov, m4a, aac, flac 96kHz/24bit, ape); 1 x USB-C (for PC connection, up to 48kHz); Outputs:; 1 x Subwoofer (Max. 3V RMS); 1 x Speaker OUT (50W per channel @ 4Ω)
• Bluetooth connection: Bluetooth 5.2; Allows connecting two transmission devices (speakers or headphones) and reception devices simultaneously; -Supported codecs: aptX HD, aptX LL, aptX AD, AAC, SBC
• Power supply: 24V DC, 4.16A
• Dimensions: 185mm (W) x 50mm (H) x 155mm (D)
• Weight: 0.9kg

📦 INCLUDED:

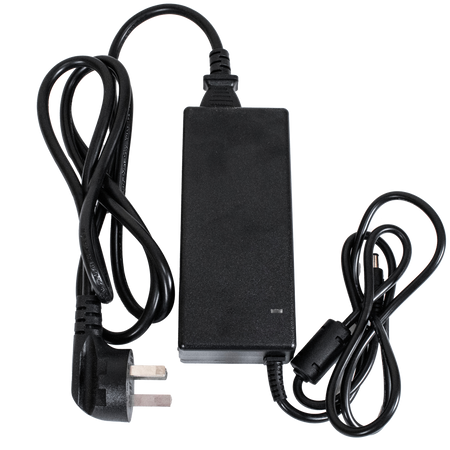

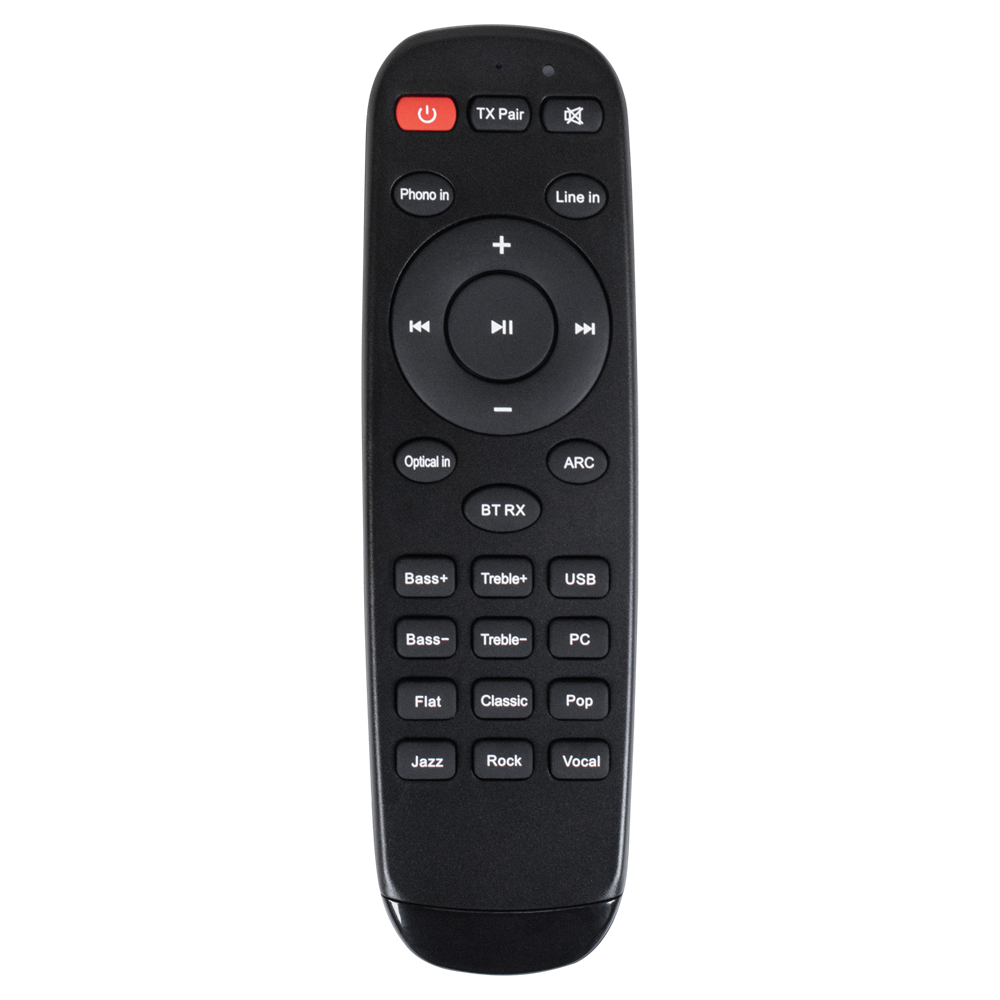

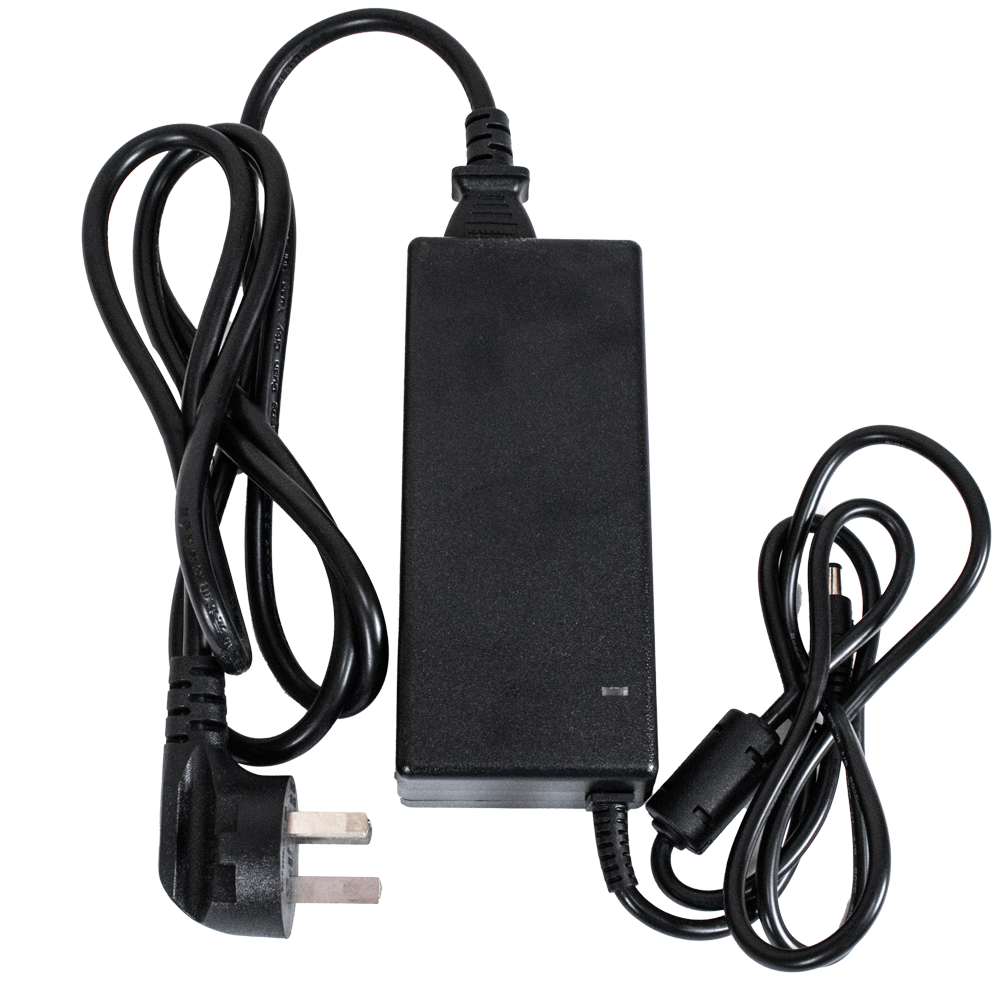

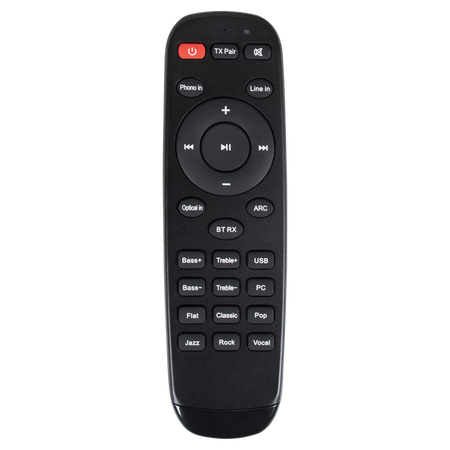

• Audio amplifier• Remote control• Power supply• 2 x Antenna (3dBi)• User manual
Model MINI502
Type Audio amplifier
Power 2 x 50W (4Ω) 2 x 30W (8Ω)
Impedance 4Ω / 8Ω
Frequency response 20Hz - 32kHz
Distortion ≤ 0.01% (1kHz / 1W)
SNR (Signal-to-noise ratio) > 93dB (max.)
Ports Inputs: 1 x RCA (LINE IN - Max. 2V RMS) 1 x RCA (PHONO IN - Supports MM/MC) 1 x Optical IN (Up to 192kHz/24bits PCM only) 1 x TV ARC (PCM only, does not support CEC) 1 x USB (Supported formats Fat16, Fat32, exFAT, up to 128GB. Supports mp3 codecs up to 384kbps, mp4, mov, m4a, aac, flac 96kHz/24bit, ape) 1 x USB-C (for PC connection, up to 48kHz) Outputs: 1 x Subwoofer (Max. 3V RMS) 1 x Speaker OUT (50W per channel @ 4Ω)
Bluetooth connection - Bluetooth 5.2 - Allows connection of two transmission devices (speakers or headphones) and receiving devices simultaneously - Supported codecs: aptX HD, aptX LL, aptX AD, AAC, SBC
Power supply 24V DC, 4.16A
Dimensions 185mm (W) x 50mm (H) x 155mm (D)
Weight 0.9kg
