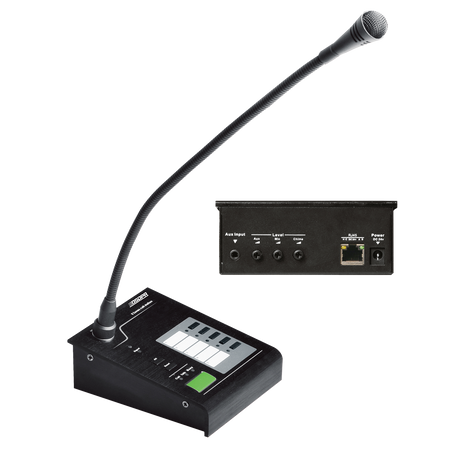

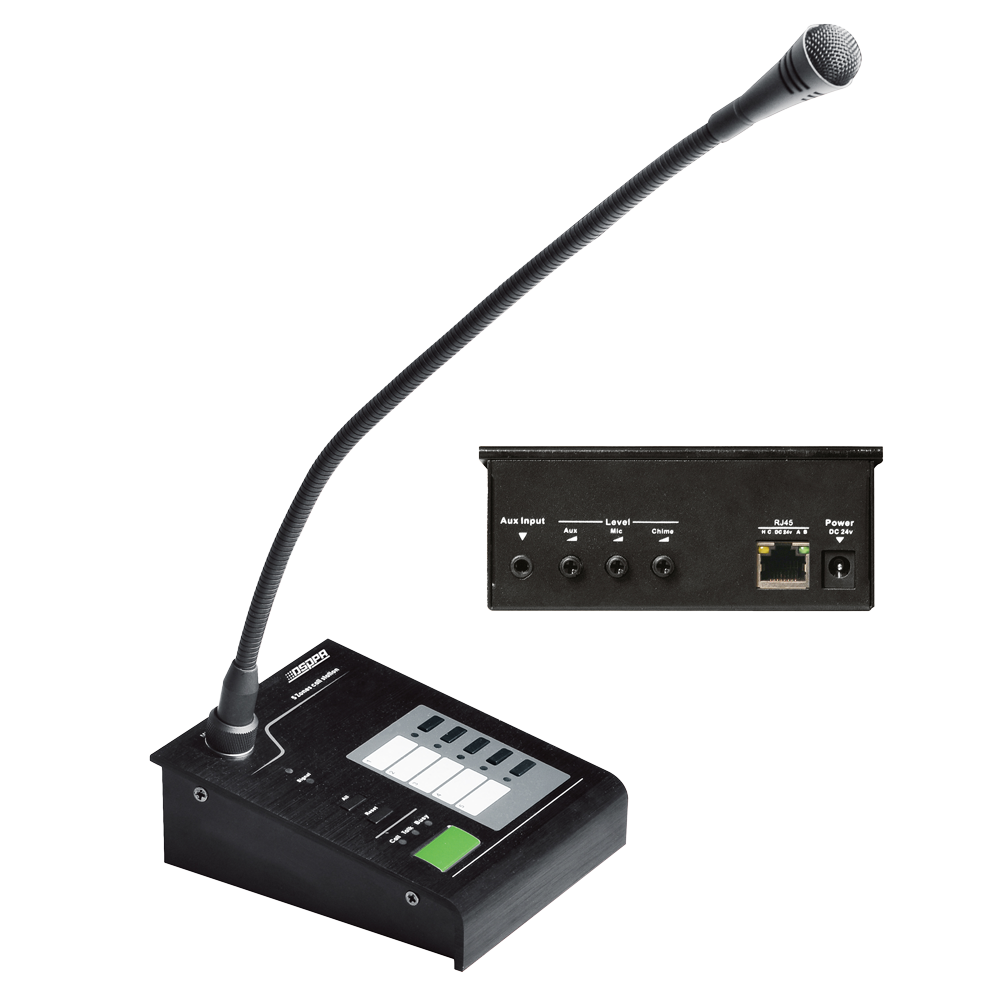

DSPPA condenser microphone - Cardioid model
DSPPA condenser microphone - Cardioid model
Regular price
€216,74
Final price
Regular price
-8%
€236,00
Sale price
€216,74
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Condenser microphone - Desktop microphone - Cardioid pattern - 5-zone selection - Compatible with DSPPA-MAG505 matrix
📋 SPECIFICATIONS:
• Model: MAG505R
• Power supply: 24V DC, 500mA
• Type: Condenser
• Pattern: Cardioid
• Frequency response: 150Hz ~ 22kHz (-3dB)
• Microphone input level: -46dBV; AUX IN: -10dBV
• Output impedance: 10dBV
• SNR (Signal-to-Noise Ratio): -60dB
• Ports: 1 x XLR (for gooseneck microphone connection); 1 x RJ45 (for matrix connection); 1 x Power; 1 x AUX IN (3.5mm Jack)
• Other: Volume settings:; 1 x Potentiometer for AUX signal volume control; 1 x Potentiometer for microphone signal volume control; 1 x Potentiometer for audio signal volume control; LED indicators:; Status LED indicator; Microphone activation LED indicator; buttons:; All-zone selection button; Microphone activation button; 5 x Zone selection buttons
• Dimensions: 460mm (W) x 140mm (H) x 115mm (D)
• Weight: 0.67kg
📦 INCLUDED:
• Microphone
| Model | MAG505R |
|---|---|
| Power supply | 24V DC, 500mA |
| Type | Condenser |
| Pattern | Cardioid |
| Frequency response | 150Hz ~ 22kHz (-3dB) |
| Microphone input level | -46dBV AUX IN: -10dBV |
| Output impedance | 10dBV |
| SNR (Signal-to-noise ratio) | -60dB |
| Ports | 1 x XLR (for microphone neck connection) 1 x RJ45 (for matrix connection) 1 x Power supply 1 x AUX IN (3.5mm jack) |
| Other | Volume settings: 1 x Potentiometer for AUX signal volume control 1 x Potentiometer for microphone signal volume control 1 x Potentiometer for audio signal volume control LED indicators: - Status LED indicator - Microphone activation LED indicator Buttons: - All-zone selection button - Microphone activation button - 5 x Zone selection buttons |
| Dimensions | 460mm (W) x 140mm (H) x 115mm (D) |
| Weight | 0.67kg |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
