DSPPA

DSPPA Intelligent Control Panel - Programmable/configurable

SKU: DSPPA-MAG505C
(0)
In stock
Usually shipped within 24 hours
€251,33 Final price
-16% €300,00 €251,33 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Intelligent control panel - Programmable/configurable - Wall-mount installation - Compatible with DSPPA-MAG505 - Volume control, equalizer - Source selection

📋 SPECIFICATIONS:
• Model: MAG505C
• Functions: Volume control; Equalizer; Source selection; Zone selection; Mute / unmute; Programming
• Installation: Wall-mount
• Power supply: 12V ~ 24V DC

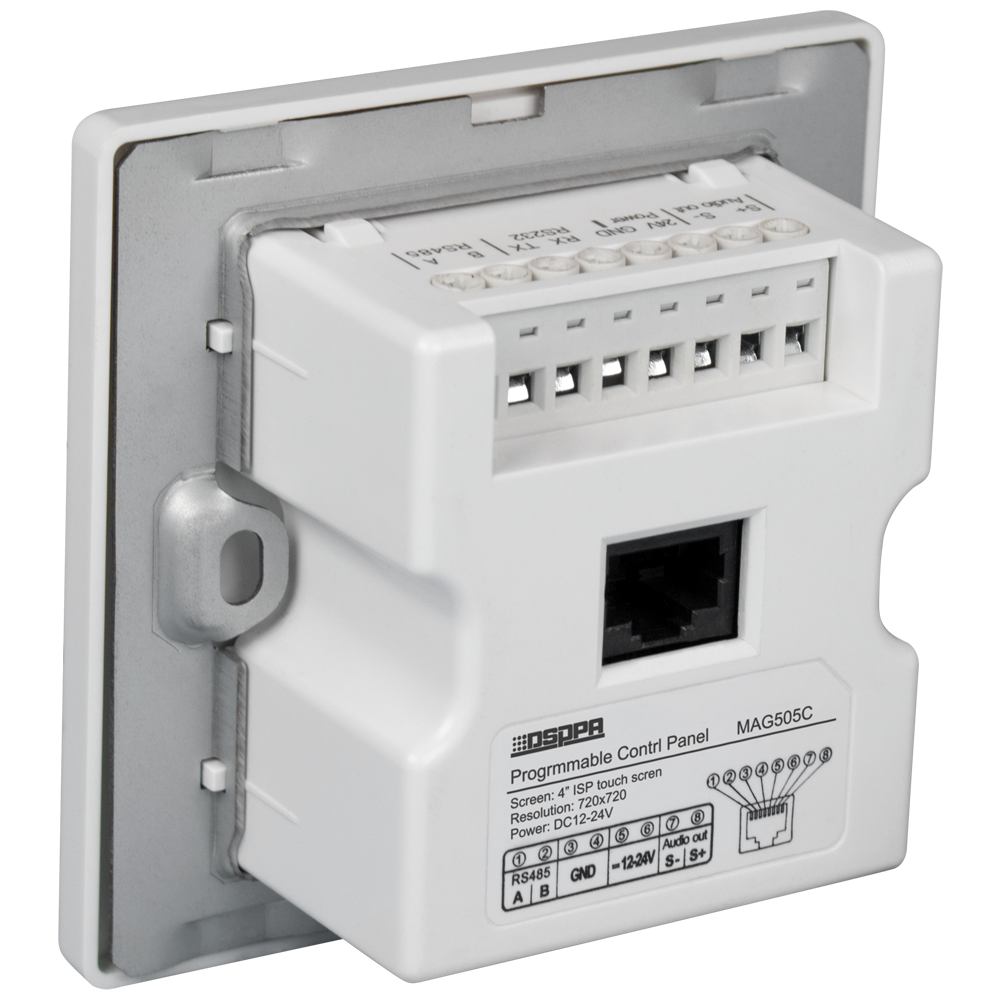

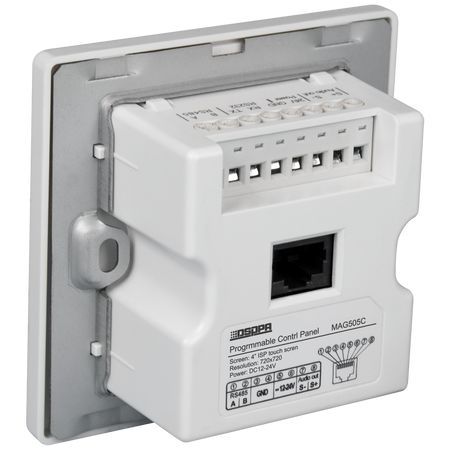

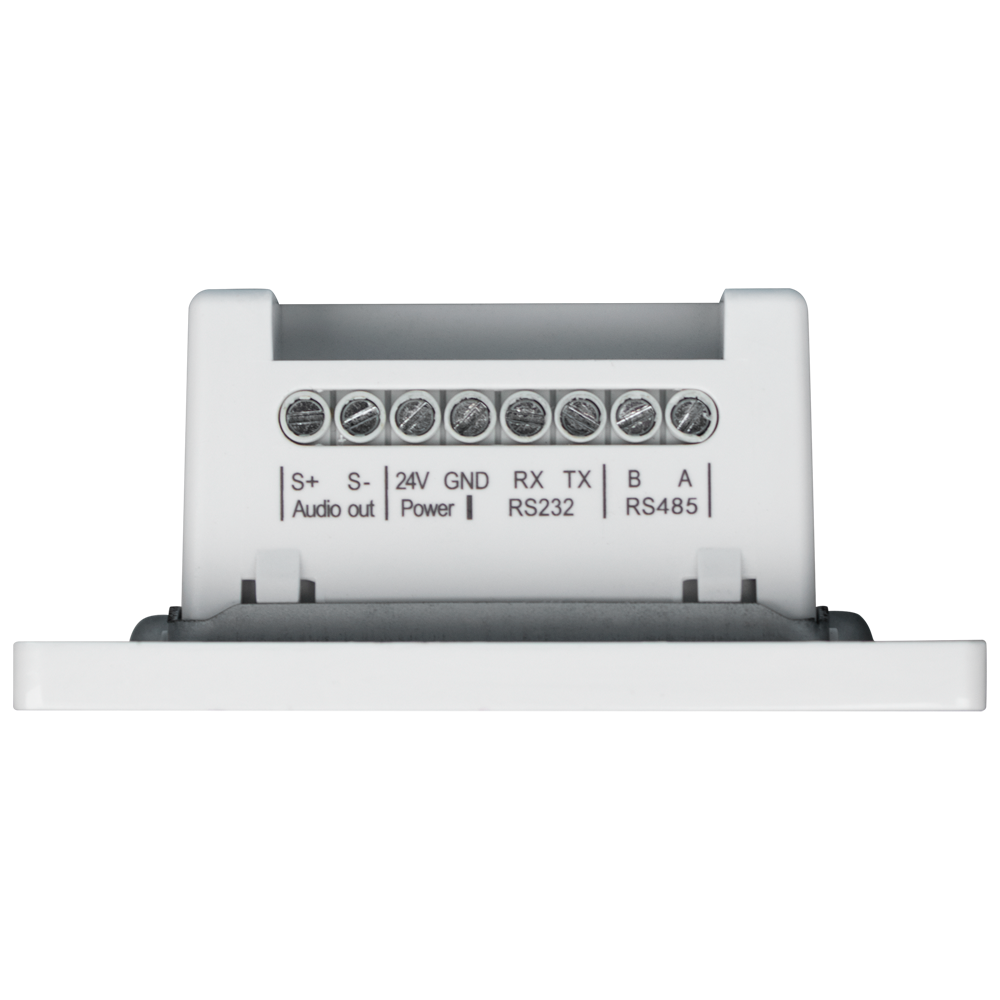

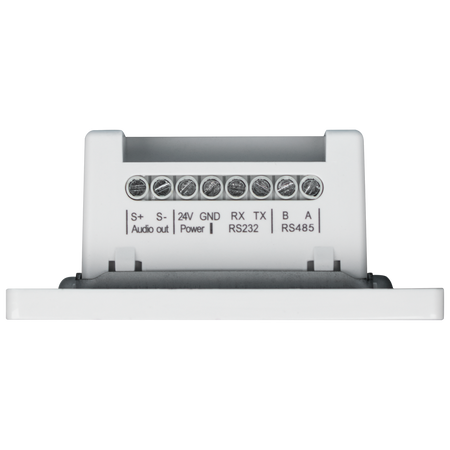

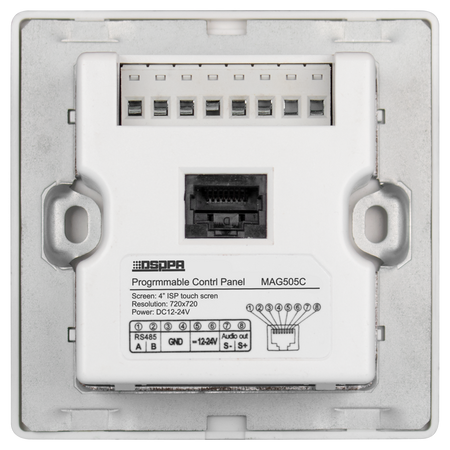

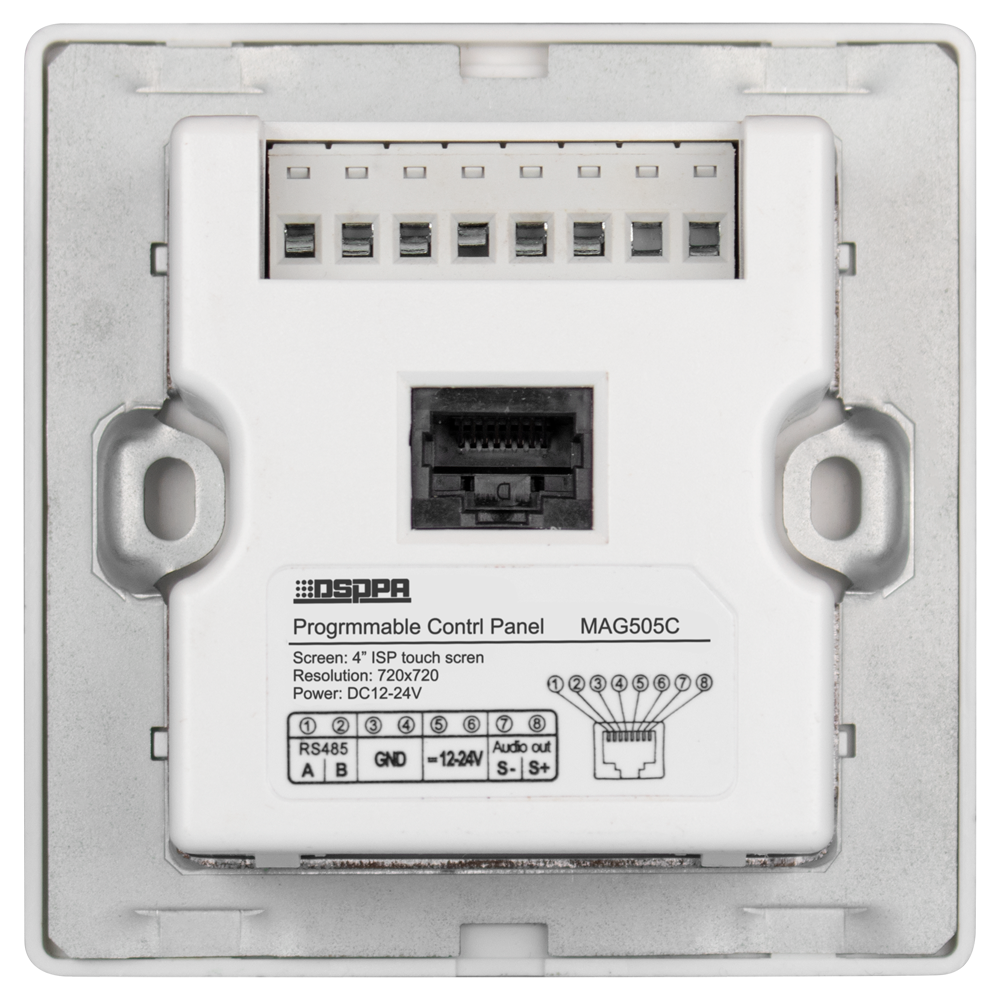

• Ports: 1 x RJ45 (RS485-A control, RS485-B control, GND, DC 12~24V, audio OUT); 8 x Euroblock (Audio OUT, power supply, RS232 control, RS485 control); 1 x MicroSD slot

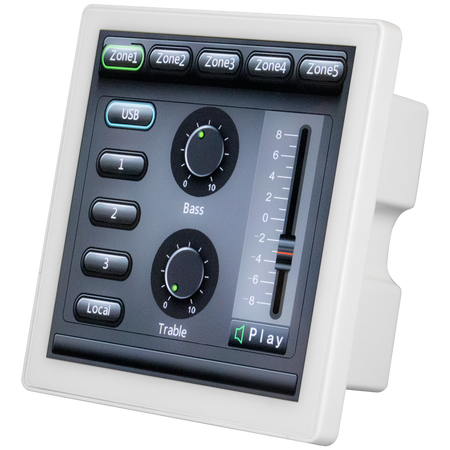

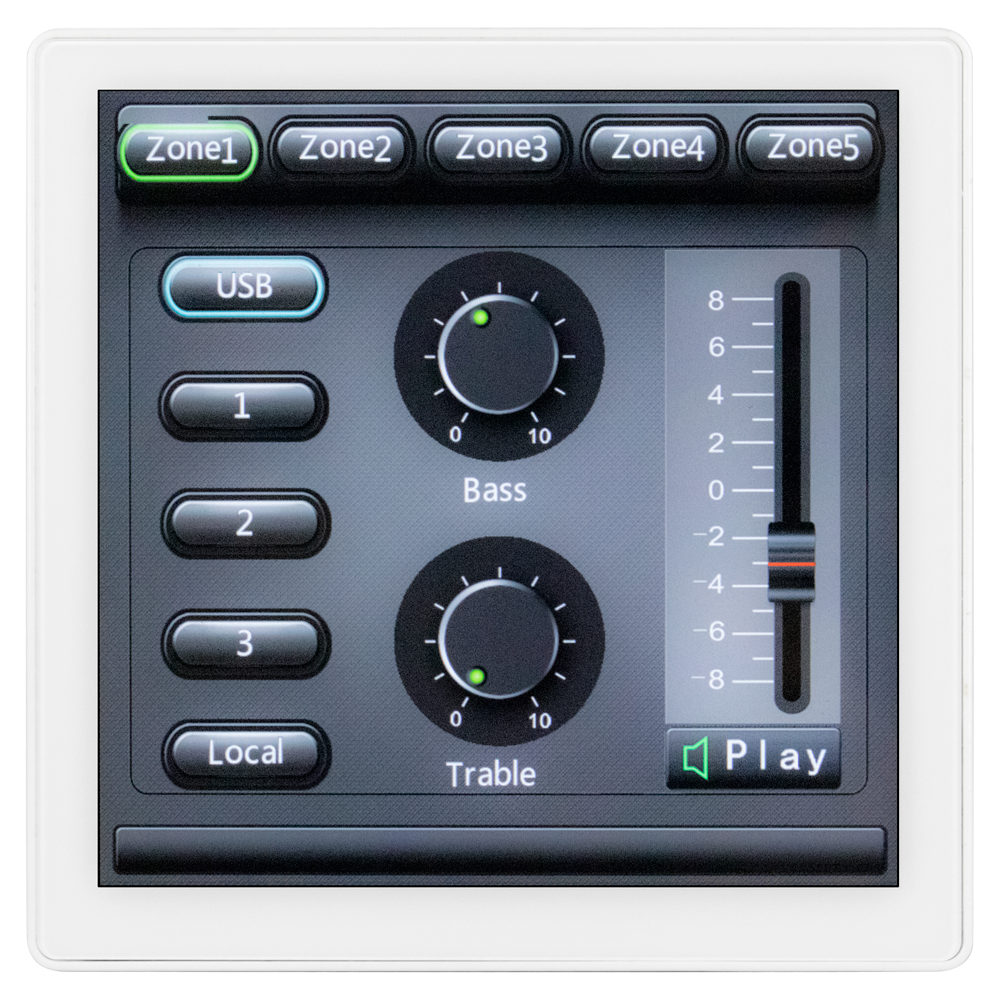

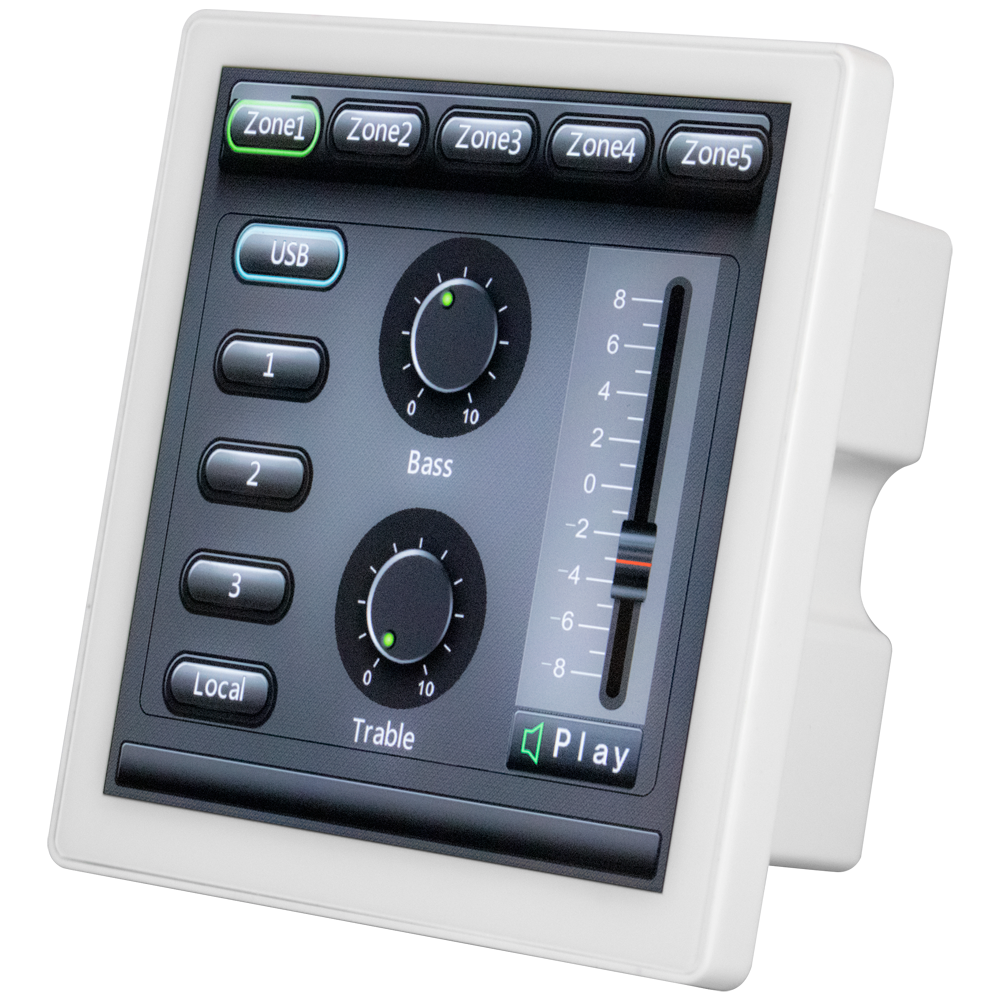

• Touchscreen: Size: 4"; Type: IPS; Color (24 bit); Resolution: 720x720; Laminated capacitive touch panel; Gesture control
• Processor: ARM 32-bit (64Mb SDR + 16Mb); 300MHz frequency
• Other: Allows the creation of custom screens using the SmartCreator software (available in the product's "Download" section)
• Dimensions: 86mm (W) x 86mm (H) x 39mm (D)
• Weight: 0.126kg

📦 INCLUDED:
• Control panel• User manual
Model MAG505C
Functions - Volume control - Equalizer - Source selection - Zone selection - Mute / unmute - Programming
Installation Wall
Power supply 12V ~ 24V DC
Ports 1 x RJ45 (RS485-A control, RS485-B control, GND, DC 12~24V, audio OUT) 8 x Euroblock (Audio OUT, power supply, RS232 control, RS485 control) 1 x MicroSD slot
Touch screen - Size: 4" - Type: ISP - Full color (24 bit) - Resolution: 720x720 - Laminated capacitive touch panel - Gesture control
Processor ARM 32-bit (64Mb SDR + 16Mb) 300MHz frequency
Other Allows the creation of custom screens via SmartCreator software (available in the "Download" section of the product)
Dimensions 86mm (W) x 86mm (H) x 39mm (D)
Weight 0.126kg
