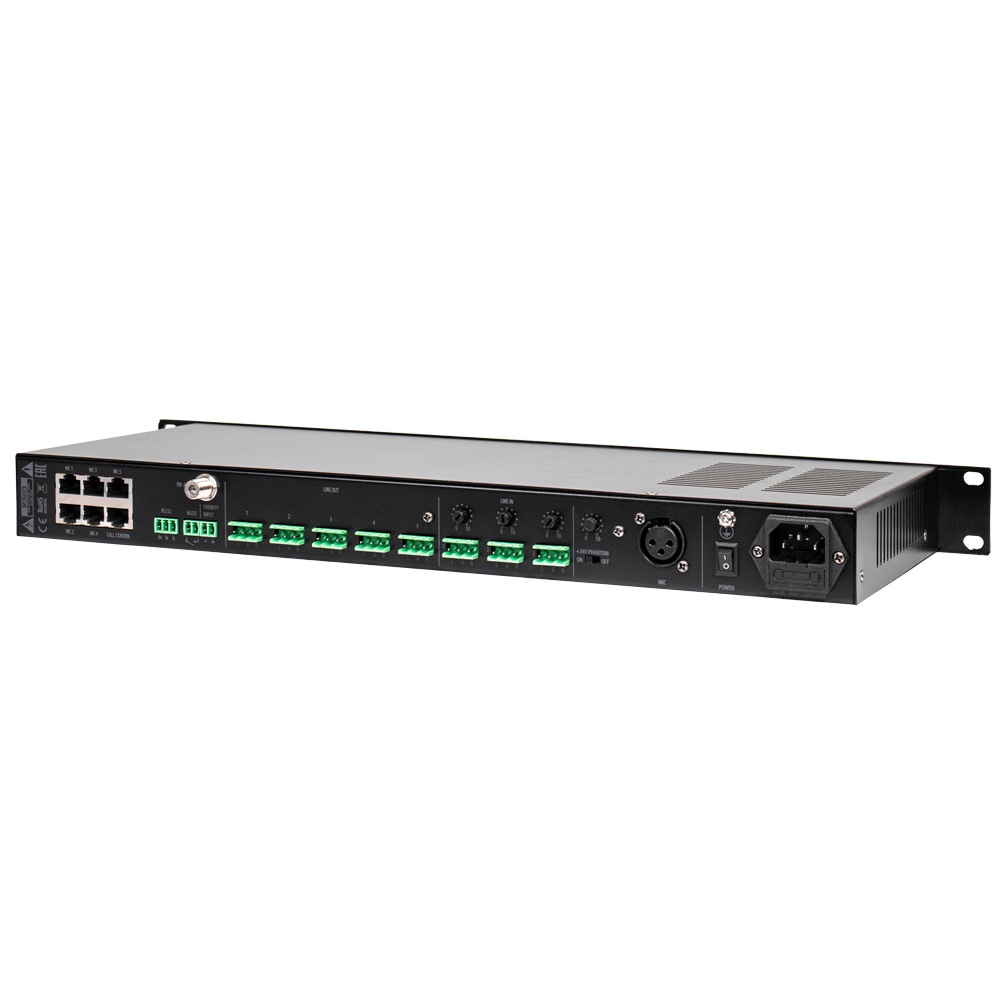

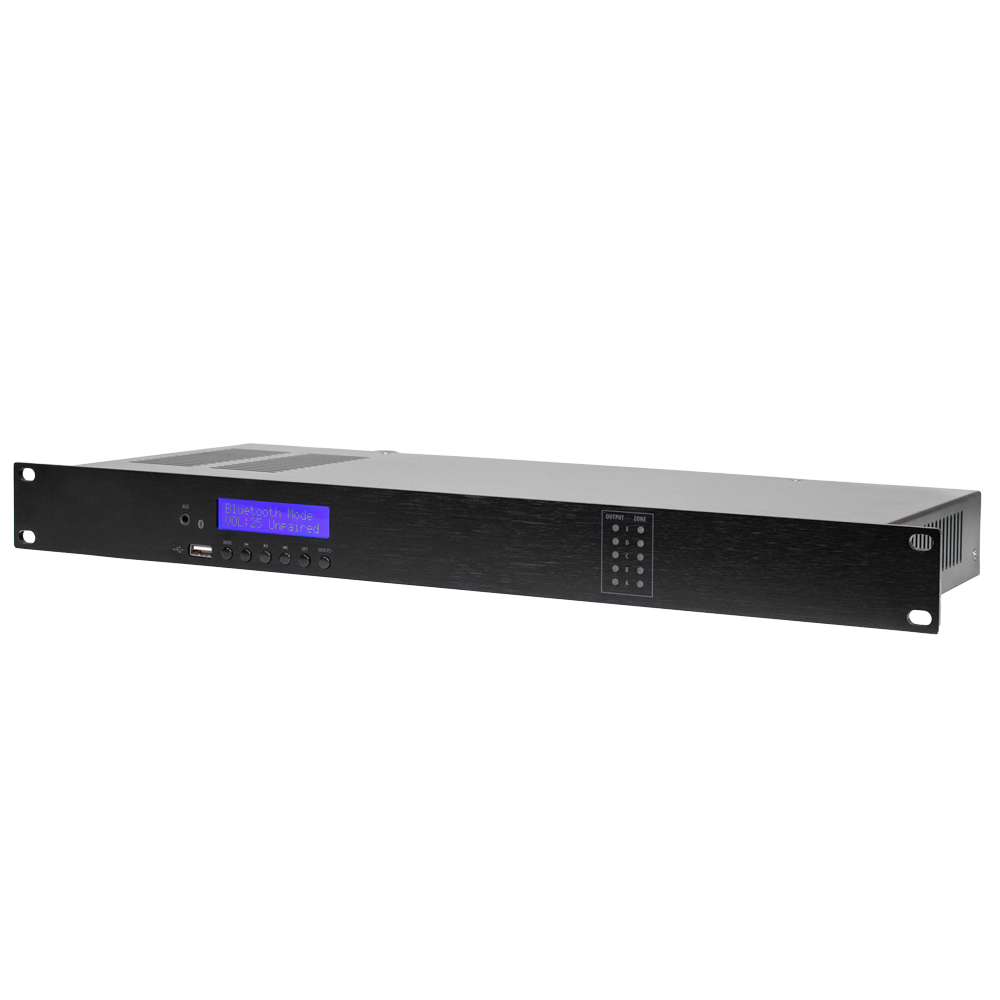

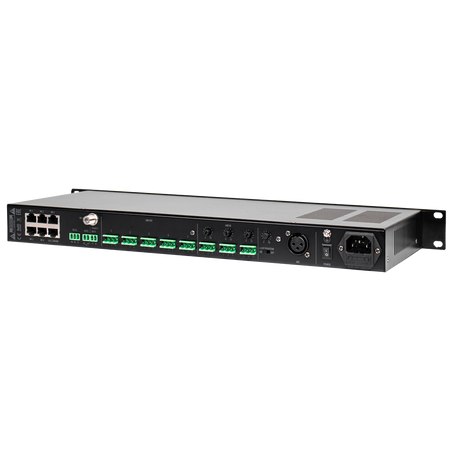

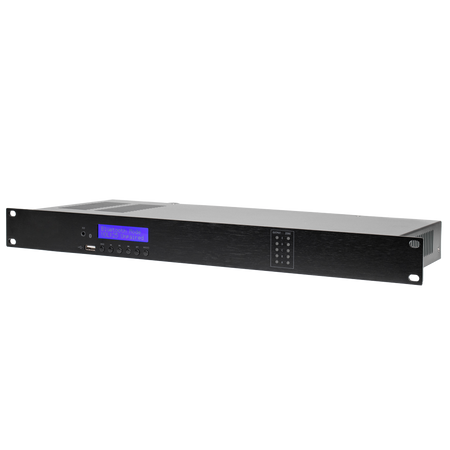

DSPPA 5-zone control matrix
DSPPA 5-zone control matrix
Regular price
€518,81
Final price
Regular price
-21%
€658,00
Sale price
€518,81
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Control matrix - 5 zones - USB player - Multiple inputs - Phantom power for microphone
📋 SPECIFICATIONS:
• Model: MAG505
• Type: Multi-zone matrix
• Power supply: 100 ~ 240V AC @ 50/60Hz (IEC)
• Player: USB; Bluetooth 5.0
• Multi-zone: Up to 5 zones with stereo audio
• Ports: Inputs:; 1 x Power supply; 1 x AUX IN (3.5mm); 1 x USB; 1 x Euroblock (RS232 remote control); 1 x Euroblock (external mute); 1 x Euroblock (priority input signal); 3 x Euroblock (stereo audio input); 1 x XLR (microphone input); Outputs:; 1 x Monitor OUTPUT (XLR); 5 x RJ45 (connection to DSPPA-MAG505S volume control panel); 1 x RJ45 (connection with DSPPA-MAG505R microphone); 5 x Euroblock (stereo audio output)
• Other: 1 x Power switch; 3 x Potentiometer for input audio signal gain control; 1 x Potentiometer for output audio signal gain control; 1 x Phantom power on/off switch
• Sensitivity: MIC IN: -41dBV; LINE IN: -12.5dBV; EMC IN: -10dBV
• SNR (Signal to Noise Ratio): MIC IN: 65dB; LINE IN: 73dB
• Output impedance: 600 Ohm
• Distortion: ＜0.1% @ 1KHz
• Phantom power: +24V DC
• Frequency response: 20Hz - 20kHz (±3dB)
• Compatibility: DSPPA-MAG505R microphone; DSPPA-MAG505C control panel; DSPPA-MAG505S volume control panel (up to 5)
• Dimensions: 177mm (W) x 44mm (H) x 483mm (D)
• Weight: 1.76kg
📦 INCLUDED:
• Matrix
| Model | MAG505 |
|---|---|
| Type | Multi-zone matrix |
| Power supply | 100 ~ 240V AC @ 50/60Hz (IEC) |
| Player | USB Bluetooth 5.0 |
| Multi-zone | Up to 5 zones with stereo audio |
| Ports | Inputs: 1 x Power supply 1 x AUX IN (3.5mm) 1 x USB 1 x Euroblock (RS232 remote control) 1 x Euroblock (external mute) 1 x Euroblock (priority input signal) 3 x Euroblock (stereo audio input) 1 x XLR (microphone input) Outputs: 1 x Monitor OUTPUT (XLR) 5 x RJ45 (connection to DSPPA-MAG505S volume control panel) 1 x RJ45 (connection with DSPPA-MAG505R microphone) 5 x Euroblock (stereo audio output) |
| Other | 1 x On/off button 3 x Potentiometer for input audio signal gain control 1 x Potentiometer for output audio signal gain control 1 x Phantom power on/off switch |
| Sensitivity | - MIC IN: -41dBV - LINE IN: -12.5dBV - EMC IN: -10dBV |
| SNR (Signal to Noise Ratio) | - MIC IN: 65dB - LINE IN: 73dB |
| Output impedance | 600 Ohm |
| Distortion | ＜0.1% @ 1KHz |
| Phantom power | +24V DC |
| Frequency response | 20Hz -20kHz (±3dB) |
| Compatibility | - DSPPA-MAG505R microphone - DSPPA-MAG505C control panel - DSPPA-MAG505S volume control panel (up to 5) |
| Dimensions | 177mm (W) x 44mm (H) x 483mm (D) |
| Weight | 1.76kg |
