Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

DSPPA

DSPPA Ceiling Speaker - 1x5" + 1x1" Full-range Speaker - Power 2 x 30W

SKU: DSPPA-DSP6606W
(0)
Out of stock
€195,99 Final price
-15% €230,00 €195,99 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Ceiling speaker - Full-range speaker 1x5" + 1x1" - Power 2 x 30W - Multiple inputs

📋 SPECIFICATIONS:
• Model: DSP6606B/W
• Speaker type: Wall-mounted speaker
• Power supply: 100~240V @ 50/60Hz 1A
• LINE input: Connection type: RCA and 3.5mm; Input impedance: >10kΩ; Sensitivity: 30±300mV; Frequency response: 20Hz - 20KHz (±3dB); Distortion: ≤1%; SNR (Signal to Noise Ratio): ≥ 81dB; Bass gain (100Hz): ±8dB; Treble gain (10kHz): ±8dB
• AUX1 input: Connection type: RCA (alarm signal); Input impedance: >10kΩ; Sensitivity: 1±0.1V; Frequency response: 20Hz - 20KHz (±3dB); Distortion: ≤ 1%; SNR (Signal to Noise Ratio): ≥ 81dB
• AUX2 input: Connection type: RCA (broadcast signal); Input impedance: >10kΩ; Sensitivity: 500±50mV; Frequency response: 20Hz - 20KHz (±3dB); Distortion: ≤ 1%; SNR (Signal to Noise Ratio): ≥ 81dB
• MIC input: Connection type: XLR and 6.3mm; Input impedance: 600Ω; Sensitivity: 40mV (XLR input), 300mV (6.3mm input); Frequency response: 80Hz - 12KHz (±3dB); Distortion: ≤ 1%; SNR (Signal to Noise Ratio): ≥ 70dB; Bass gain (100Hz): ±8dB; Treble gain (10kHz): ±8dB; Output signal amplitude: 1±0.1V
• Amplified output: Output power: 2x30W (8Ω); SNR (Signal to Noise Ratio): ≥ 81dB; Sensitivity: 90dB±2dB
• Speaker: Components: 1x5" Woofer + 1x1" Tweeter; Max SPL: 105dB±2dB; Frequency response: 80Hz-20KHz; Distortion: ≤ 5%

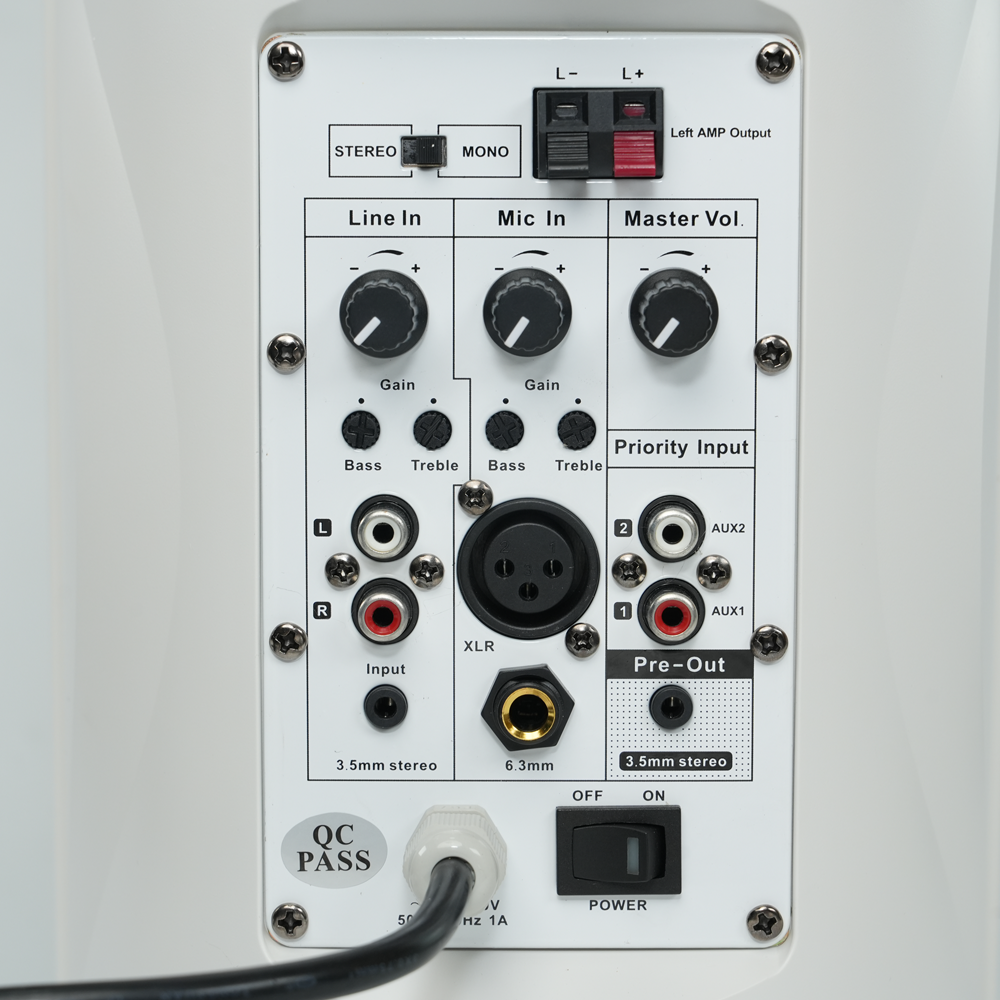

• Inputs / outputs: 3 x RCA (Line IN, AUX1 and AUX2); 2 x 3.5mm (Line IN and PRE-OUT); 1 x XLR (MIC IN); 1 x 6.3mm (MIC IN); 2 x Terminal blocks (left channel amplification)
• Dimensions: 194mm (W) x 280mm (H) x 185mm (D)
• Weight: 3.2kg

📦 INCLUDED:
• Wall-mounted speaker • Bracket
Model DSP6606B/W
Speaker type Wall-mounted speaker
Power supply 100~240V @ 50/60Hz 1A
LINE input - Connection type: RCA and 3.5mm - Input impedance: >10kΩ - Sensitivity: 30±300mV - Frequency response: 20Hz - 20KHz (±3dB) - Distortion: ≤1% - SNR (Signal to Noise Ratio): ≥ 81dB - Bass gain (100Hz): ±8dB - Treble gain (10kHz): ±8dB
AUX1 input - Connection type: RCA (alarm signal) - Input impedance: >10kΩ - Sensitivity: 1±0.1V - Frequency response: 20Hz - 20KHz (±3dB) - Distortion: ≤ 1% - SNR (Signal to Noise Ratio): ≥ 81dB
AUX2 input - Connection type: RCA (broadcast signal) - Input impedance: >10kΩ - Sensitivity: 500±50mV - Frequency response: 20Hz - 20KHz (±3dB) - Distortion: ≤ 1% - SNR (Signal to Noise Ratio): ≥ 81dB
MIC input - Connection type: XLR and 6.3mm - Input impedance: 600Ω - Sensitivity: 40mV (XLR input), 300mV (6.3mm input) - Frequency response: 80Hz - 12KHz (±3dB) - Distortion: ≤ 1% - SNR (Signal to Noise Ratio): ≥ 70dB - Bass gain (100Hz): ±8dB - Treble gain (10kHz): ±8dB - Output signal amplitude: 1±0.1V
Amplified output - Output power: 2x30W (8Ω) - SNR (Signal to Noise Ratio): ≥ 81dB - Sensitivity: 90dB±2dB
Speaker - Components: 1x5" Woofer + 1x1" Tweeter - Max SPL: 105dB±2dB - Frequency response: 80Hz-20KHz - Distortion: ≤ 5%
Inputs / outputs - 3 x RCA (Line IN, AUX1, and AUX2) - 2 x 3.5mm (Line IN and PRE-OUT) - 1 x XLR (MIC IN) - 1 x 6.3mm (MIC IN) - 2 x Terminal blocks (left channel amplification)
Dimensions 194mm (W) x 280mm (H) x 185mm (D)
Weight 3.2kg
