DSPPA Evacuation Projector Speaker - 12W | 5" Dual Cone
DSPPA Evacuation Projector Speaker - 12W | 5" Dual Cone
Regular price
€53,03
Final price
Regular price
-9%
€58,00
Sale price
€53,03
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

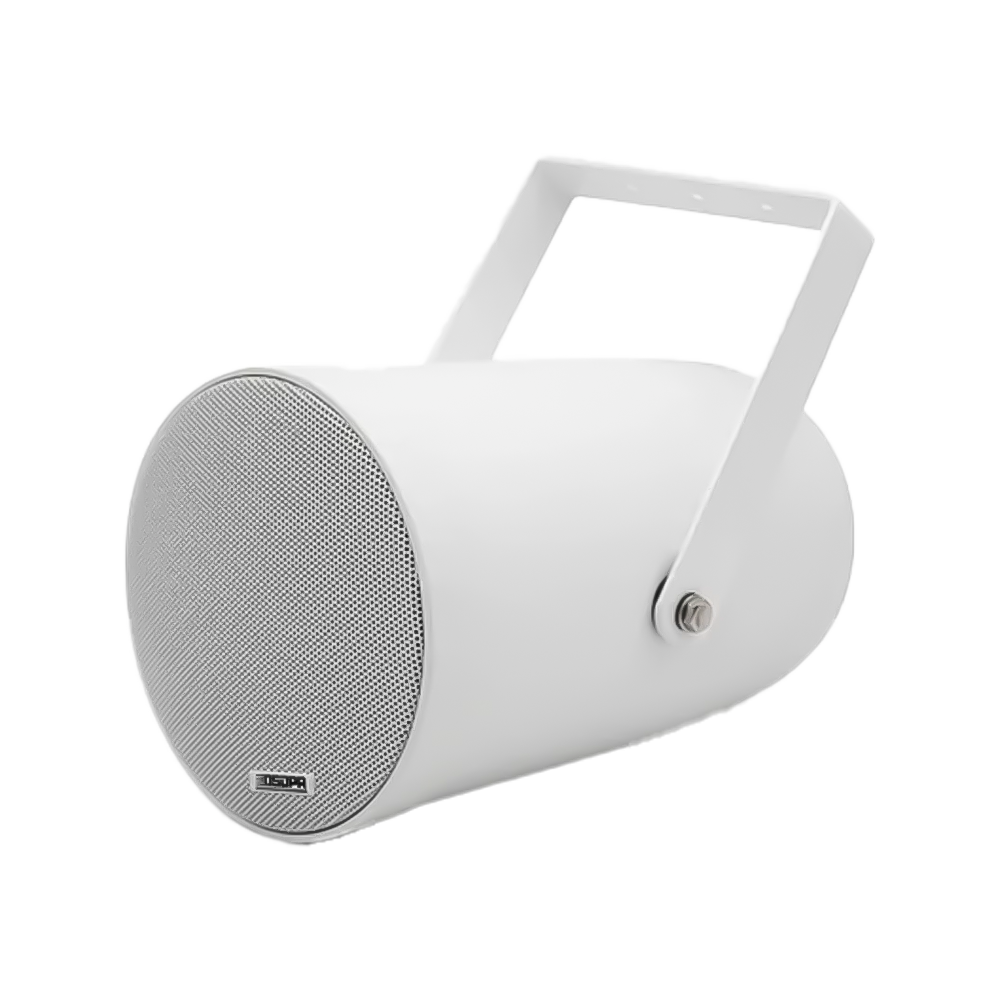

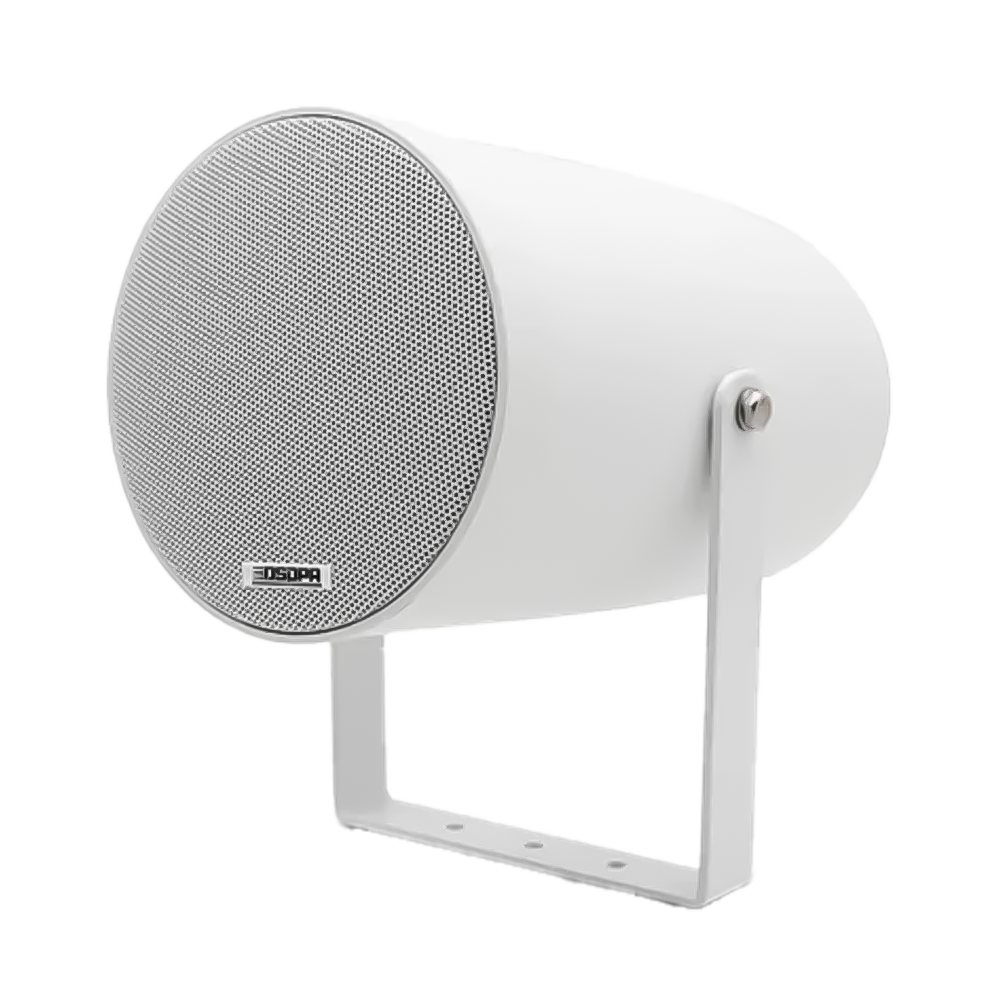

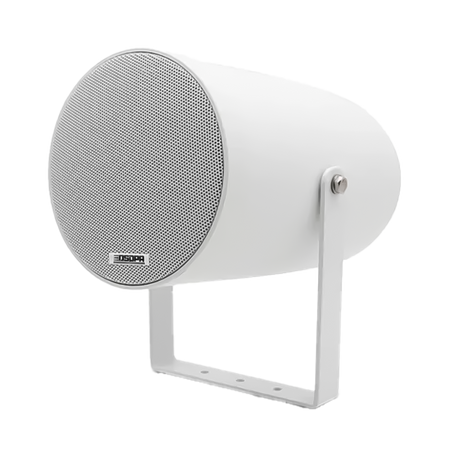

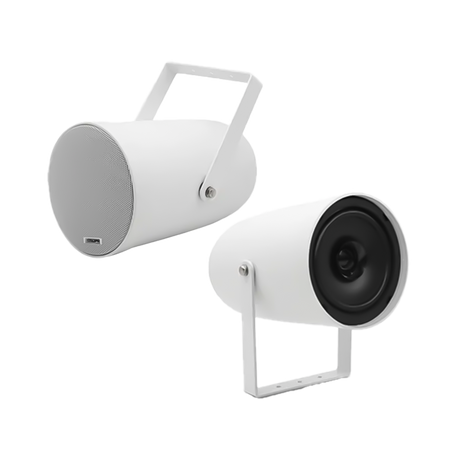

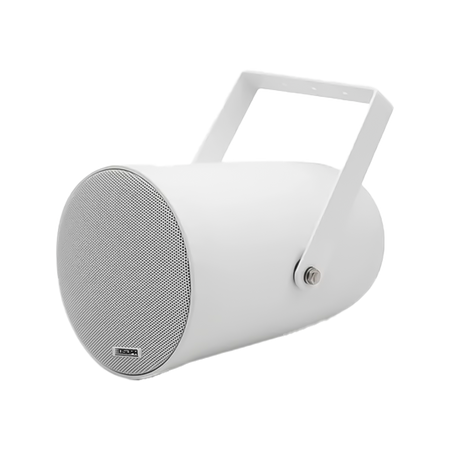

DSPPA Voice Evacuation Sound Projector Speaker - 100V Line - 12W | 5" Dual cone - 86.3dB | 97.2dB SPL | 110Hz-18kHz - Voice evacuation | EN54 Certified - For indoor/outdoor use | Public and industrial spaces
📋 SPECIFICATIONS:
• Brand: DSPPA
• Model: DSP207EN
• Range: Voice evacuation
• Product type: Acoustic projector
• Application: Evacuation via voice alerts and speakers
• Technology: Passive, wired
• Line type: 100V line
• Power: 12 W / 6 W / 3 W

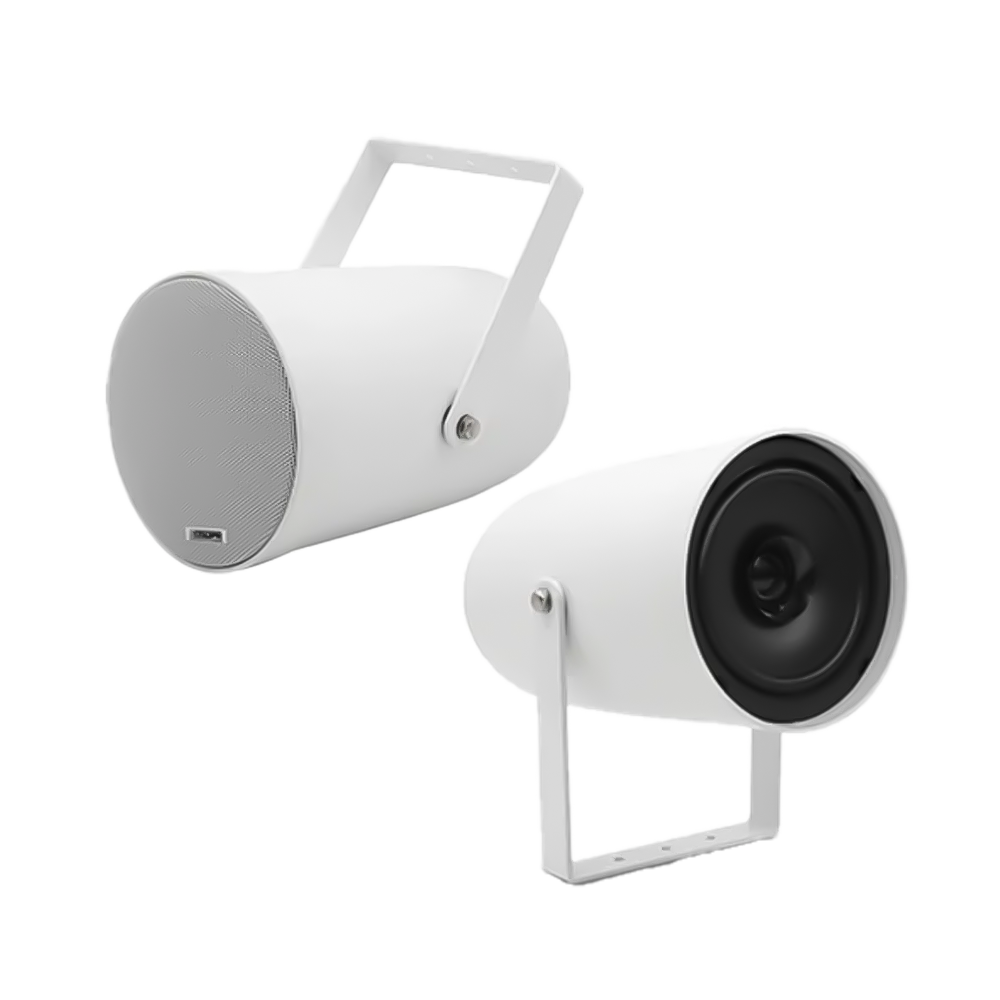

• Transducer type: 1-way, dual cone, full range Ø130 mm (5")
• Sensitivity and SPL: 86.3 dB (1W/1m) / 97.2 dB max. SPL

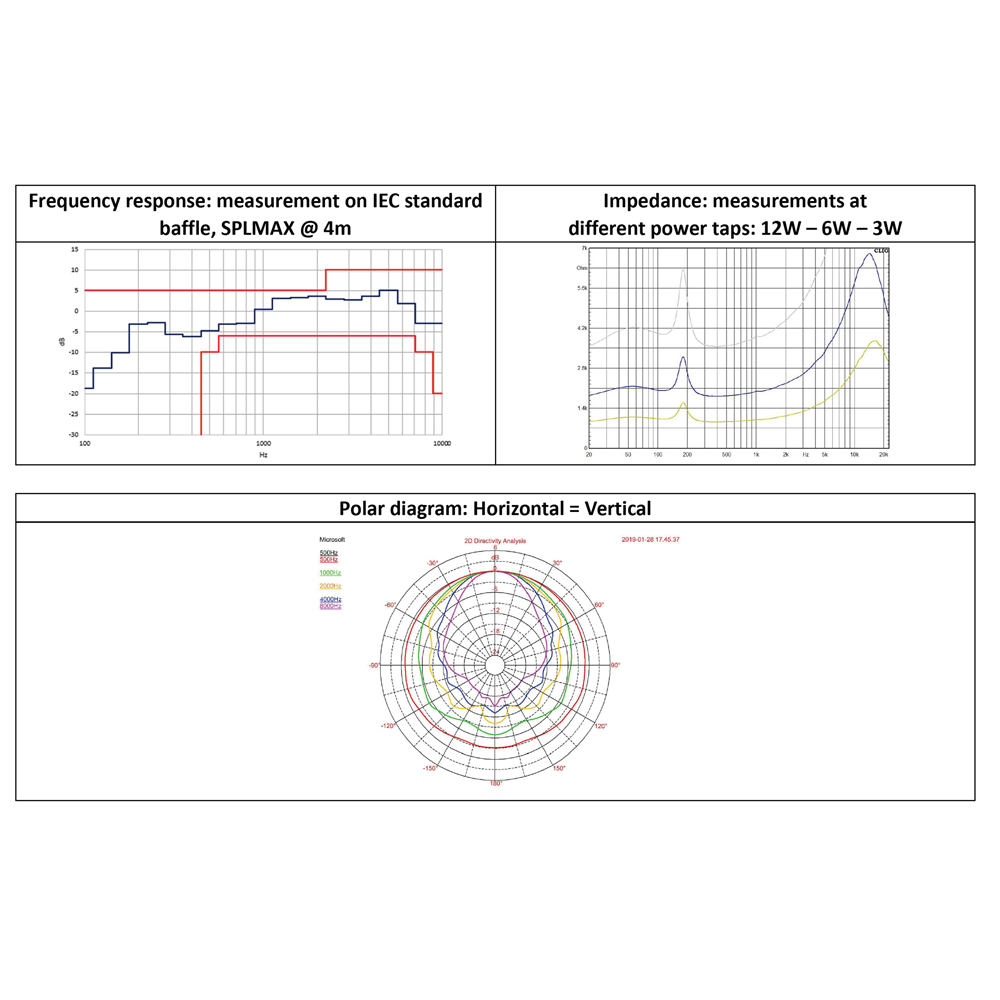

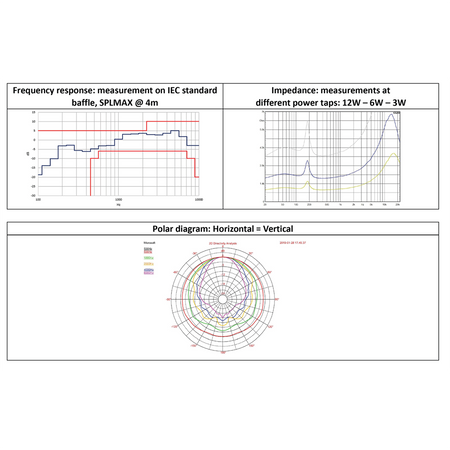

• Frequency response: 110 Hz ~ 18 kHz
• Coverage: Angle (-6dB): 360° (500 Hz) / 253.5° (1 kHz) / 125.5° (2 kHz) / 86.8° (4 kHz) / 59.4° (8 kHz); Directivity index DI: 1.3 (500 Hz), 3.9 (1 kHz), 5.4 (2 kHz), 6.7 (4 kHz), 8.2 (8 kHz); Directivity factor Q: 1.4 (500 Hz), 2.4 (1 kHz), 3.5 (2 kHz), 4.6 (4 kHz), 6.6 (8 kHz)

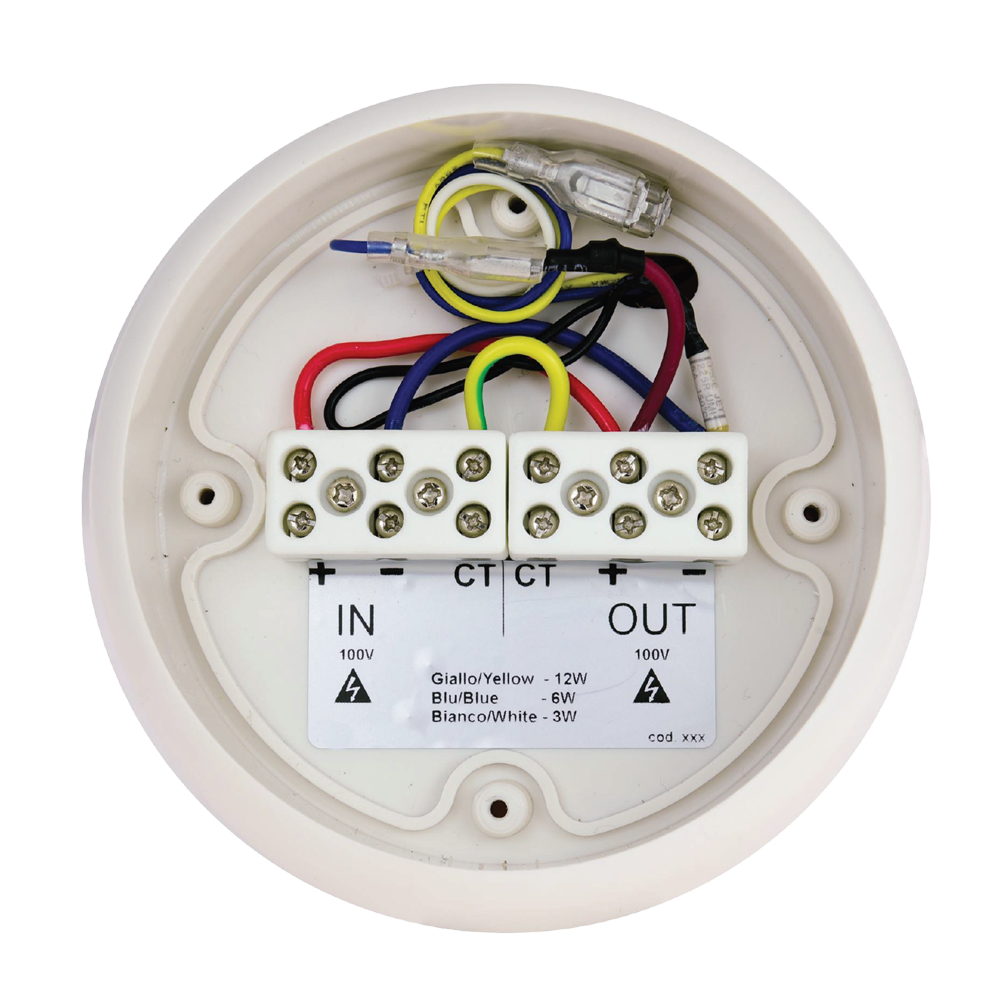

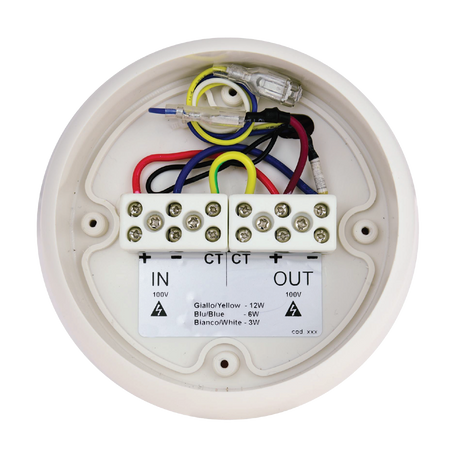

• Connector type: Ceramic IN/OUT connectors + thermal fuse
• Special certifications: EN54-24:2008
• Weather resistance: IP54 / Environmental class Type A / Indoor use

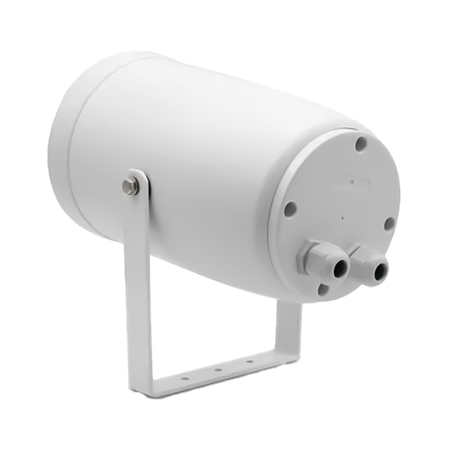

• Installation: Wall or surface mount via included aluminum bracket
• Material: Fire-retardant V0 ABS housing + aluminum grille
• Color: White
• Dimensions: 240 × 140 mm
• Weight: 1.2 kg
📦 INCLUDED:

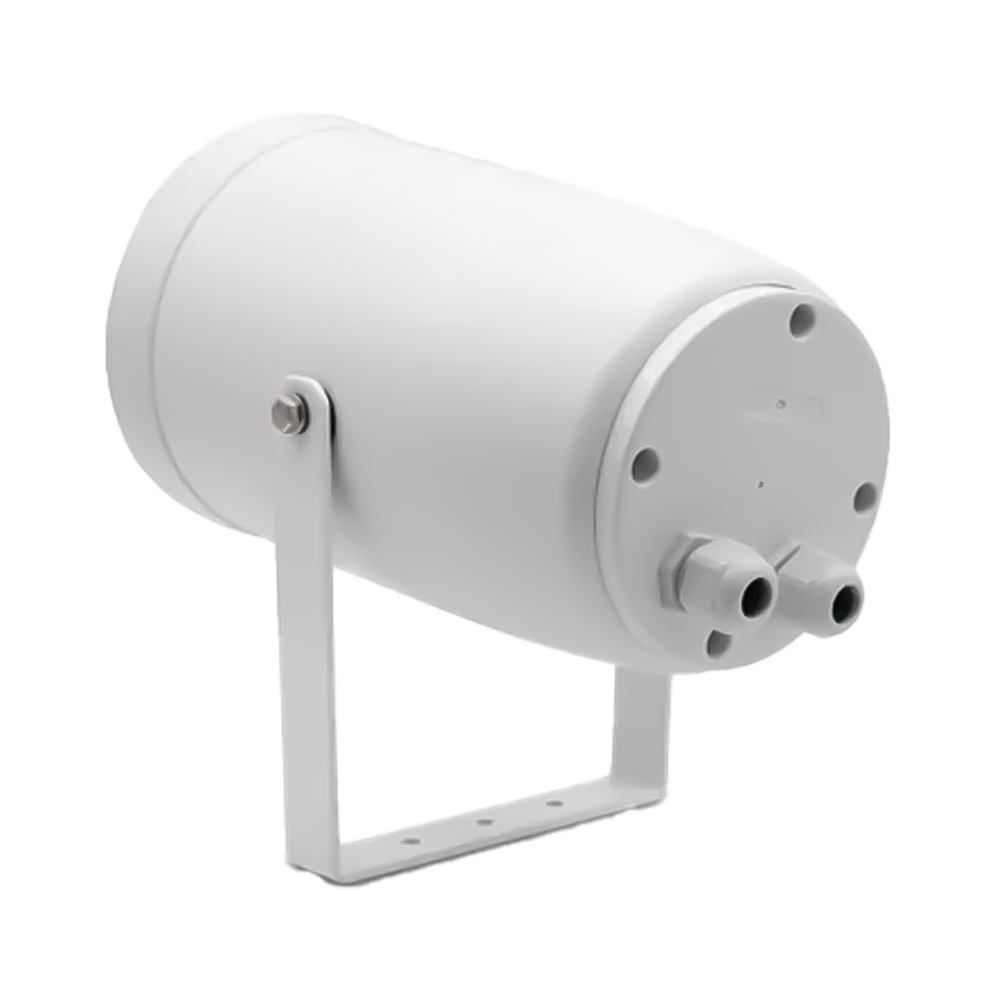

• 1x DSPPA DSP207EN speaker• 1x Aluminum bracket• 1x Waterproof protective cover• 1x Set of cable glands for wiring• 1x Product documentation
| Model | DSP207EN |
|---|---|
| Range | Voice evacuation |
| Product type | Sound projector |
| Application | Voice alarm evacuation and loudspeakers |
| Technology | Passive, wired |
| Line type | 100V line |
| Power | 12 W / 6 W / 3 W |
| Transducer type | 1-way, dual cone, full range Ø130 mm (5") |
| Sensitivity and SPL | 86.3 dB (1W/1m) / 97.2 dB max. SPL |
| Frequency response | 110 Hz ~ 18 kHz |
| Coverage | Angle (-6dB): 360° (500 Hz) / 253.5° (1 kHz) / 125.5° (2 kHz) / 86.8° (4 kHz) / 59.4° (8 kHz) Directivity Index DI: 1.3 (500 Hz), 3.9 (1 kHz), 5.4 (2 kHz), 6.7 (4 kHz), 8.2 (8 kHz) Directivity Factor Q: 1.4 (500 Hz), 2.4 (1 kHz), 3.5 (2 kHz), 4.6 (4 kHz), 6.6 (8 kHz) |
| Connector type | Ceramic IN/OUT connectors + thermal fuse |
| Special certifications | EN54-24:2008 |
| Weather resistance | IP54 / Environmental type A / Indoor use |
| Installation | Wall or surface mounting via included aluminum bracket |
| Material | Fireproof ABS V0 housing + aluminum grille |
| Color | White |
| Dimensions | 240 × 140 mm |
| Weight | 1.2 kg |
- User manual Link
