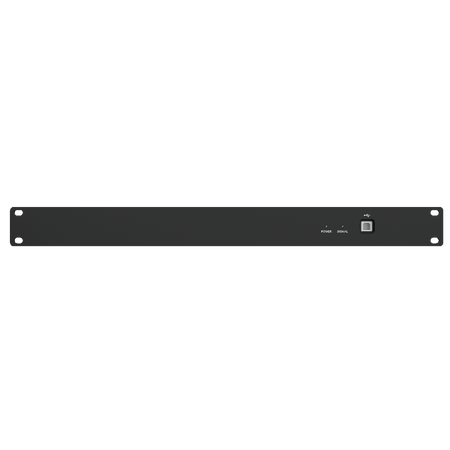

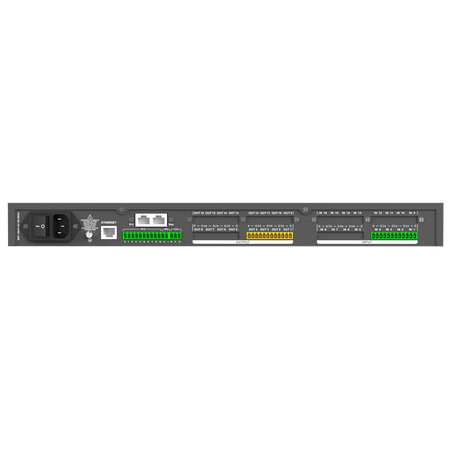

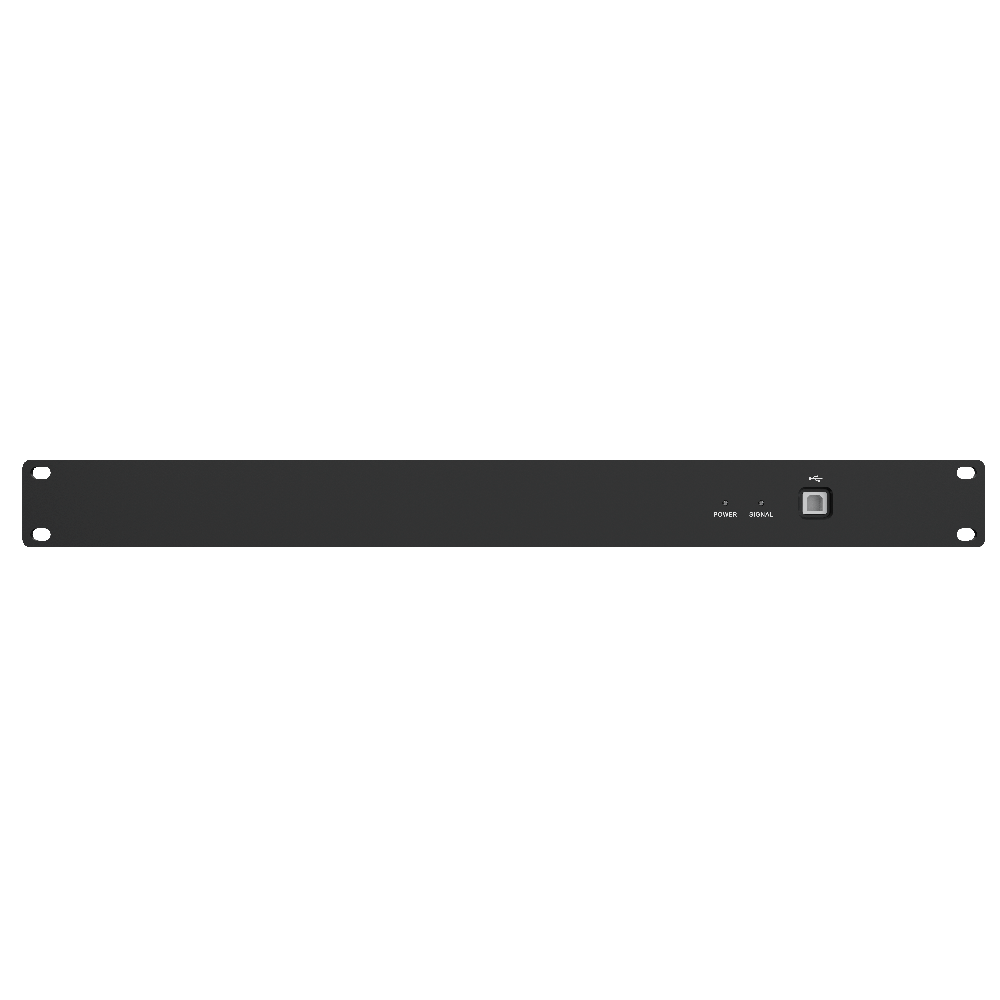

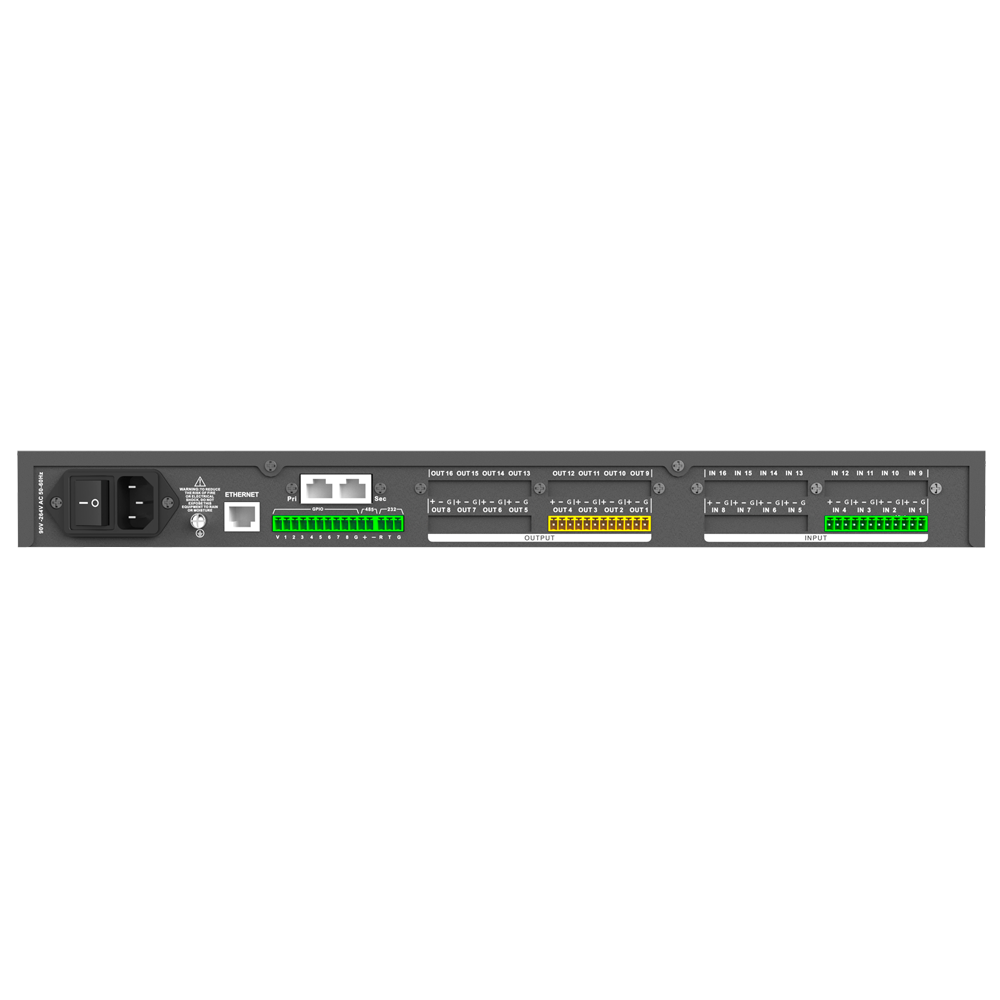

DSPPA 4-input 4-output audio processor
DSPPA 4-input 4-output audio processor
Regular price
€611,04
Final price
Regular price
-16%
€730,00
Sale price
€611,04
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Audio processor - 4 inputs and 4 outputs - Equalizer - Automatic gain control - Echo cancellation - Active noise control
📋 SPECIFICATIONS:
• Model: DP4004
• Signal processing: 32bit, 400MHz
• Audio system latency: < 3ms
• Digital-to-analog conversion: 24bit
• Sampling rate: 48kHz
• Input channel: 4 balanced inputs; Mic/Line level
• Connector: 3.81mm 12-pin Phoenix connector
• Input impedance: 16kΩ
• Maximum input level: Line: 17dBu (5.48Vrms); Mic: -3dBu (0.54Vrms@20dB gain)
• Phantom power: +48V DC (5.5mA per channel)
• Output channel: 4 balanced outputs; Line level
• Output impedance: 150Ω
• Frequency response: Line: 20Hz - 20kHz (±0.5dB) dBu (0.775Vrms); Mic: 20Hz-20kHz (±1.5dB), 20dB gain, -10dBu (0.245Vrms)
• Distortion: Line: -90dB (@17dBu, 1kHz, A-wt); Mic: -90dB (@-6dBu, 1kHz, A-wt), 20dB gain
• SNR (Signal-to-noise ratio): Line: 110dB (@17dBu, 1kHz, A-wt); Mic: 100dB (@-6dBu, 1kHz, A-wt), 20dB gain
• USB: Type B 2.0
• RS232: Communication port
• TCP/IP network port: RJ-45
• LED indicator: Network, Phantom, active input and output
• Power supply: 90V ~ 264V AC @50&60Hz
• Operating temperature: -20ºC ~ 60ºC
• Dimensions: 483mm (W) x 44.5mm (H) x 265mm (D)
• Weight: 3.3kg
📦 INCLUDED:
• Processor
| Model | DP4004 |
|---|---|
| Signal processing | 32bit, 400MHz |
| Audio system latency | < 3ms |
| Digital-to-analog conversion | 24bit |
| Sampling frequency | 48kHz |
| Input channel | 4 balanced Mic/Line level inputs |
| Connector | 3.81mm 12-pin Phoenix connector |
| Input impedance | 16kΩ |
| Maximum input level | - Line: 17dBu (5.48Vrms) - Mic: -3dBu (0.54Vrms@20dB gain) |
| Phantom power | +48V DC (5.5mA per channel) |
| Output channel | 4 balanced line level outputs |
| Output impedance | 150Ω |
| Frequency response | - Line: 20Hz - 20kHz (±0.5dB) dBu (0.775Vrms) - Mic: 20Hz-20kHz (±1.5dB), 20dB gain, -10dBu (0.245Vrms) |
| Distortion | - Line: -90dB (@17dBu, 1kHz, A-wt) - Mic: -90dB (@-6dBu, 1kHz, A-wt), 20dB gain |
| SNR (Signal-to-noise ratio) | - Line: 110dB (@17dBu, 1kHz, A-wt) - Mic: 100dB (@-6dBu, 1kHz, A-wt), 20dB gain |
| USB | Type B 2.0 |
| RS232 | Communication port |
| TCP/IP network port | RJ-45 |
| LED indicator | Network, Phantom, active input and output |
| Power supply | 90V ~ 264V AC @50&60Hz |
| Operating temperature | -20ºC ~ 60ºC |
| Dimensions | 483mm (W) x 44.5mm (H) x 265mm (D) |
| Weight | 3.3kg |
