DSPPA professional analog mixer
DSPPA professional analog mixer
Regular price
€334,34
Final price
Regular price
-7%
€360,00
Sale price
€334,34
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

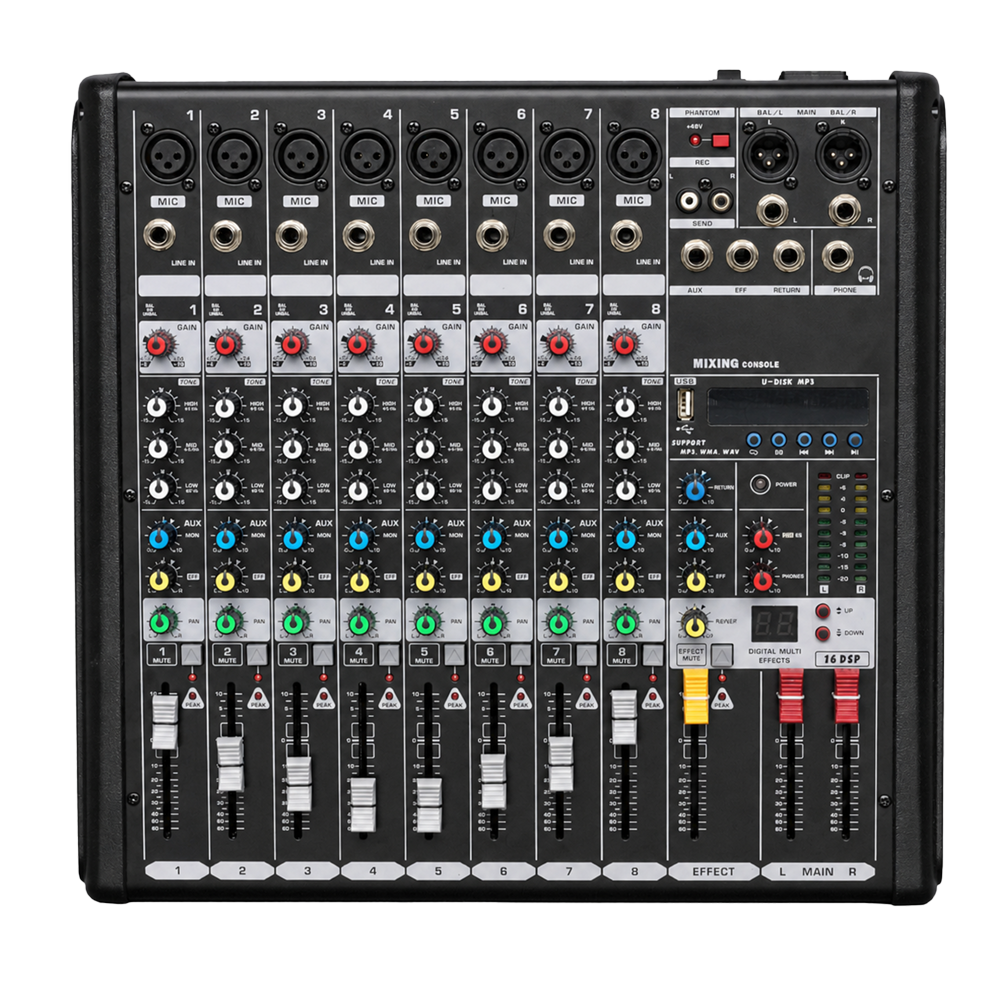

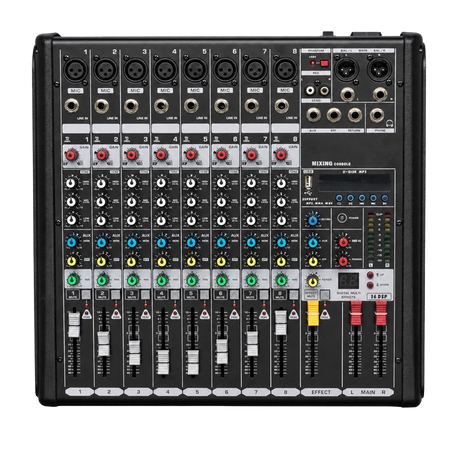

DSPPA professional analog mixer - 8 balanced XLR microphone inputs - Stereo bus | 2 AUX | Integrated DSP - 3-band EQ | Mute | 60 mm faders - USB playback/recording | Bluetooth - Ideal for live, events, and AV installations
📋 SPECIFICATIONS:
• Brand: DSPPA
• Model: DMX08
• Range: Professional audio
• Product type: Professional analog mixer with DSP
• Input channels: 8 mono channels with balanced XLR and TRS jack inputs
• Phantom power: Global +48 V for microphone inputs
• Equalization: 3-band per channel (12 kHz, 2.5 kHz, and 80 Hz, ±15 dB)

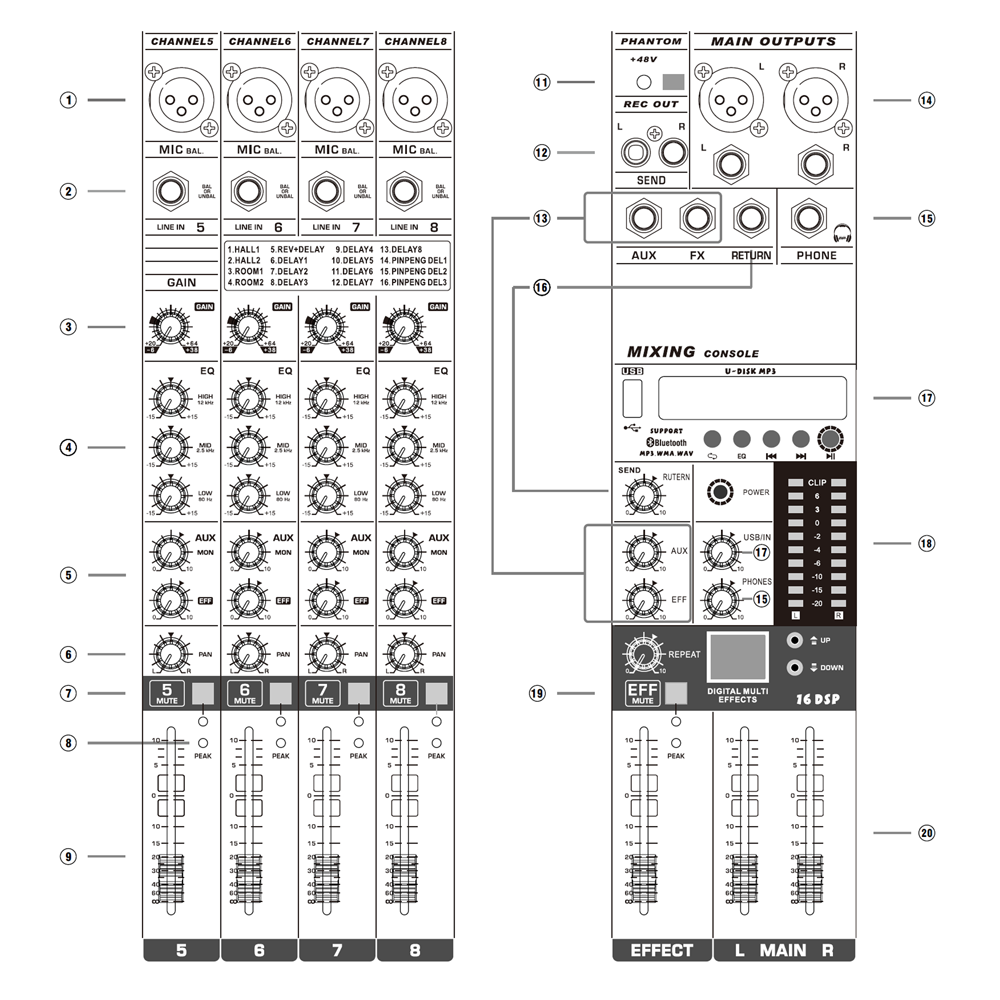

• Channel controls: Gain, EQ, AUX, FX, PAN, MUTE, PEAK, and 60 mm fader
• DSP processing: Integrated digital processor with 16 effects
• Built-in player: Bluetooth, USB MP3/WMA playback, and USB recording
• Mixing buses: Main stereo bus + 2 AUX buses (including FX)
• Auxiliary inputs: Stereo RCA 2 Track and RETURN
• Audio outputs: Balanced XLR Main Out L/R, AUX Send, FX Send, RCA REC Out, and headphone output
• Monitoring: PHONES output with independent level control
• Indicators: 10-segment three-color LED VU meter with PEAK indicators per channel
• Frequency response: 20 Hz ~ 20 kHz (±0.5 dB)
• Signal-to-noise ratio: ≥83 dB
• Distortion: ≤0.02% @ 0 dB, 1 kHz
• Crosstalk: < -75 dB @ 1 kHz
• Input gain: MIC: -60 dB / LINE: -40 dB
• Impedance: MIC input 600 Ω, LINE 10 kΩ, output 100 Ω
• Power supply: AC 100-240 V, 50 Hz
• Power consumption: 30 W
• Mounting type: Desktop
• Dimensions: 385 × 367 × 100 mm
• Net weight: 4 kg
📦 INCLUDED:
• 1x DSPPA DMX08 professional mixer• 1x Power cable• 1x User manual
| Model | DMX08 |
|---|---|
| Range | Professional audio |
| Product type | Professional analog mixer with DSP |
| Input channels | 8 mono channels with balanced XLR and TRS jack inputs |
| Phantom power | Global +48 V for microphone inputs |
| Equalization | 3-band per channel (12 kHz, 2.5 kHz and 80 Hz, ±15 dB) |
| Channel controls | Gain, EQ, AUX, FX, PAN, MUTE, PEAK and 60 mm fader |
| DSP processing | Integrated digital processor with 16 effects |
| Built-in player | Bluetooth, USB MP3/WMA playback and USB recording |
| Mixing buses | Main stereo bus + 2 AUX buses (including FX) |
| Auxiliary inputs | 2-track stereo RCA and RETURN |
| Audio outputs | Balanced XLR Main Out L/R, AUX Send, FX Send, RCA REC Out and headphone output |
| Monitoring | PHONES output with independent level control |
| Indicators | 10-segment three-color LED VU meter with PEAK indicators per channel |
| Frequency response | 20 Hz ~ 20 kHz (±0.5 dB) |
| Signal-to-noise ratio | ≥83 dB |
| Distortion | ≤0.02% @ 0 dB, 1 kHz |
| Crosstalk | < -75 dB @ 1 kHz |
| Input gain | MIC: -60 dB / LINE: -40 dB |
| Impedances | MIC input 600 Ω, LINE 10 kΩ, output 100 Ω |
| Power supply | AC 100-240 V, 50 Hz |
| Consumption | 30 W |
| Mounting type | Desktop |
| Dimensions | 385 × 367 × 100 mm |
| Net weight | 4 kg |
