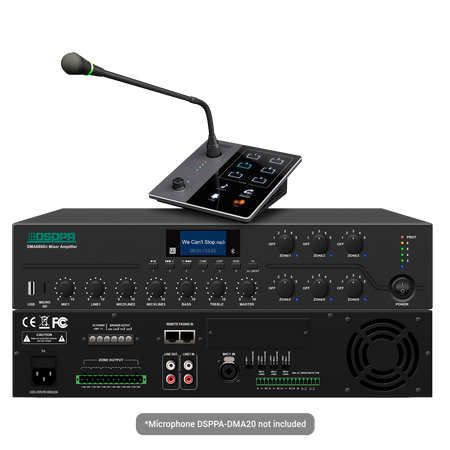

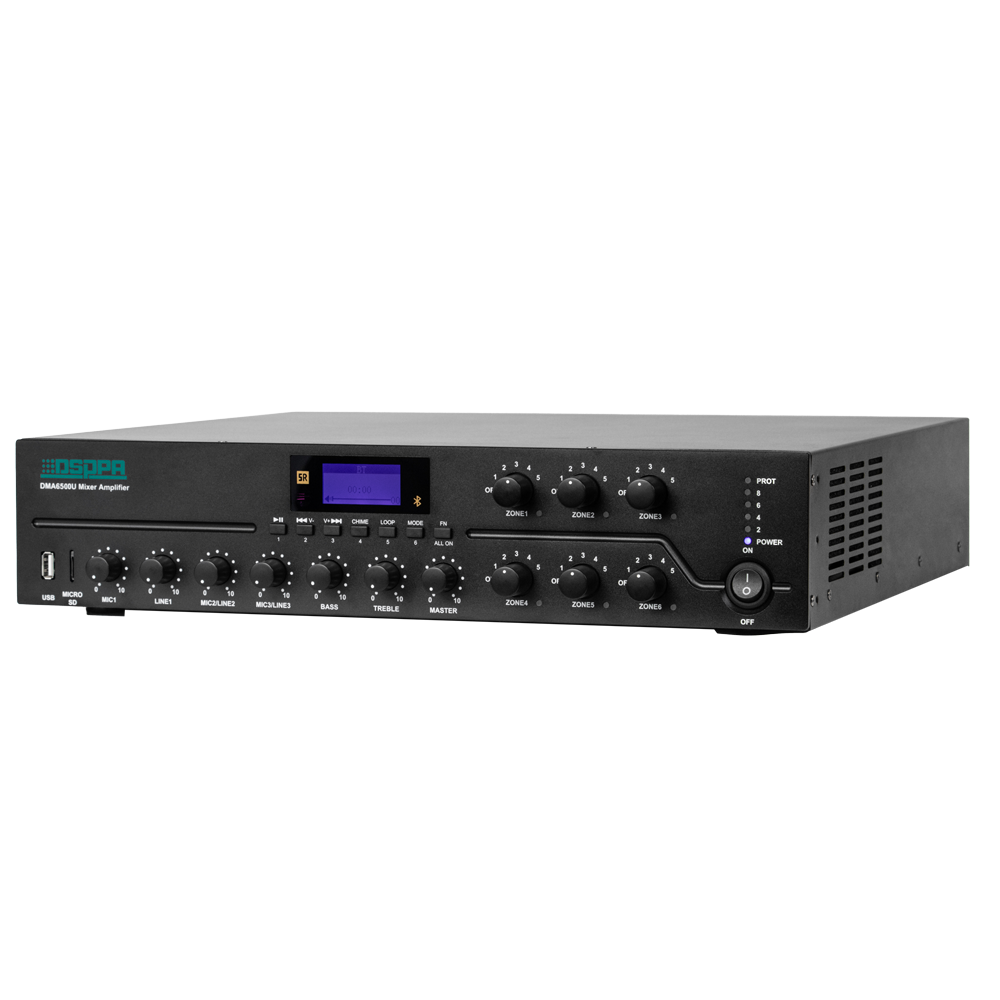

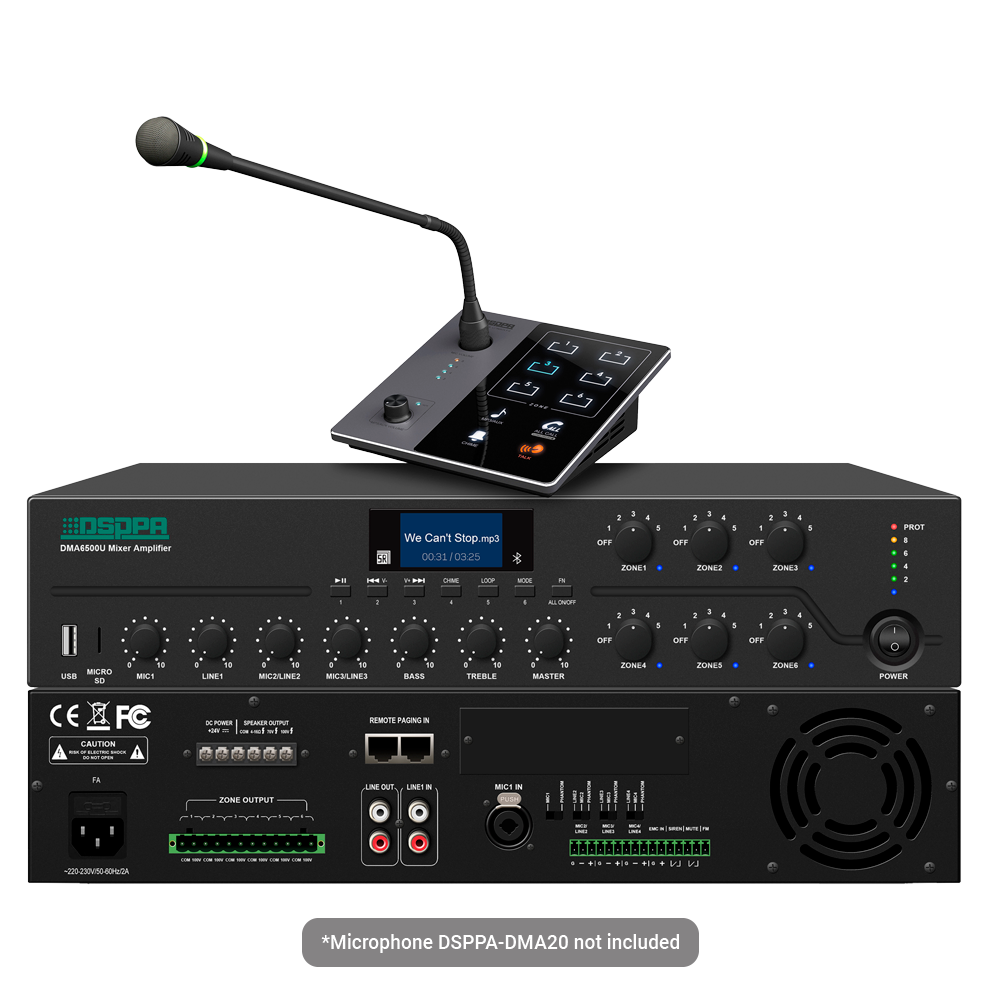

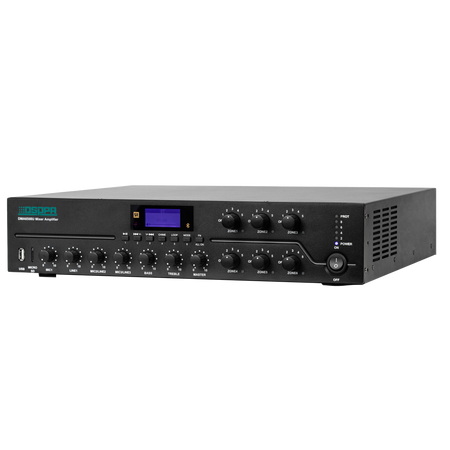

DSPPA 100V Digital Matrix Mixer Amplifier - Rated power 500W
DSPPA 100V Digital Matrix Mixer Amplifier - Rated power 500W
Regular price
€802,41
Final price
Regular price
-7%
€864,00
Sale price
€802,41
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

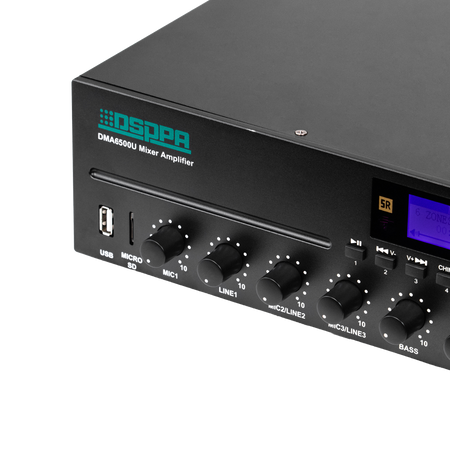

Digital matrix mixer - 100V amplifier - USB player / FM radio / Bluetooth - 500W rated power - Up to 6 zones - Includes remote control
📋 SPECIFICATIONS:
• Model: DMA6500U
• Power supply: 220 - 230V AC @ 50/ 60Hz

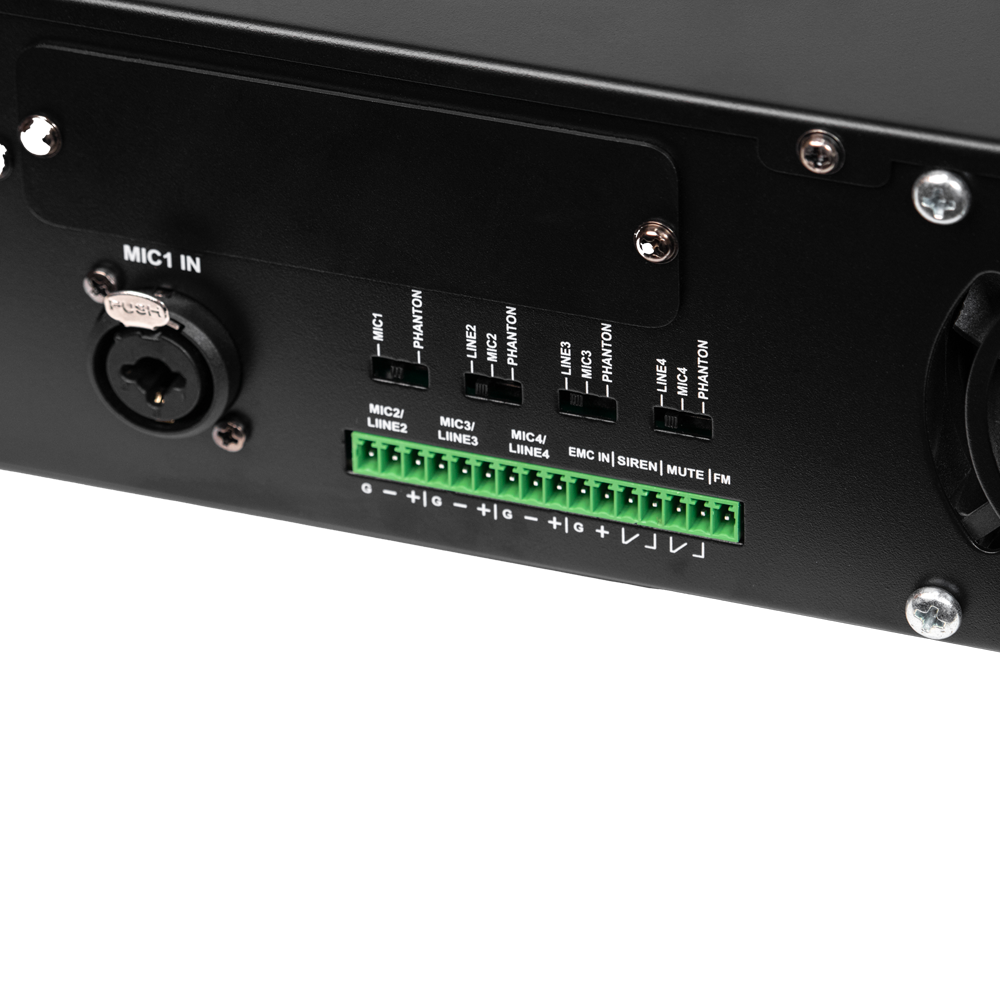

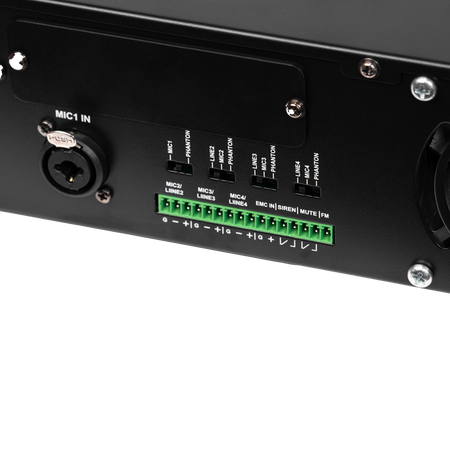

• Inputs: 1 x LINE (RCA); 1 x MIC (balanced XLR); 3 x MIC / LINE (unbalanced Phoenix jack); 2 x AUX (1 x unbalanced AUX RCA, 1 x unbalanced AUX Phoenix jack); 2 x Input for DSPPA-DMA20 paging microphone (RJ45 with DC +24V power supply); 1 x Emergency signal (EMC) (unbalanced Phoenix jack)
• Priority function: MUTE > EMC IN = SIREN > MIC1 > Chime > Paging microphone > LINE1 = MIC2 / LINE2 = MIC3 / LINE3 = MIC4 / LINE4 = MP3 = BT = FM; The chime does not sound when an alarm is active
• Input signal sensitivity: MIC 1: 5mV ±1mV; MIC2, MIC3 and MIC4: 5mV ±1mV; AUX 1 and AUX 2: 350mV±50mV; EMC: 350mV ±50mV
• Frequency response: MIC: 120Hz～ 12kHz (±3dB); AUX: 80Hz～ 15kHz (±3dB)
• Total harmonic distortion (THD): <1%
• Connection with DSPPA-DMA20 paging microphones: Up to 6 daisy-chained microphones; With one microphone connected to the amplifier, the maximum distance between the amplifier and the microphone is 600m; With multiple microphones daisy-chained, the distance between the first microphone and the amplifier and between the microphones is 300m

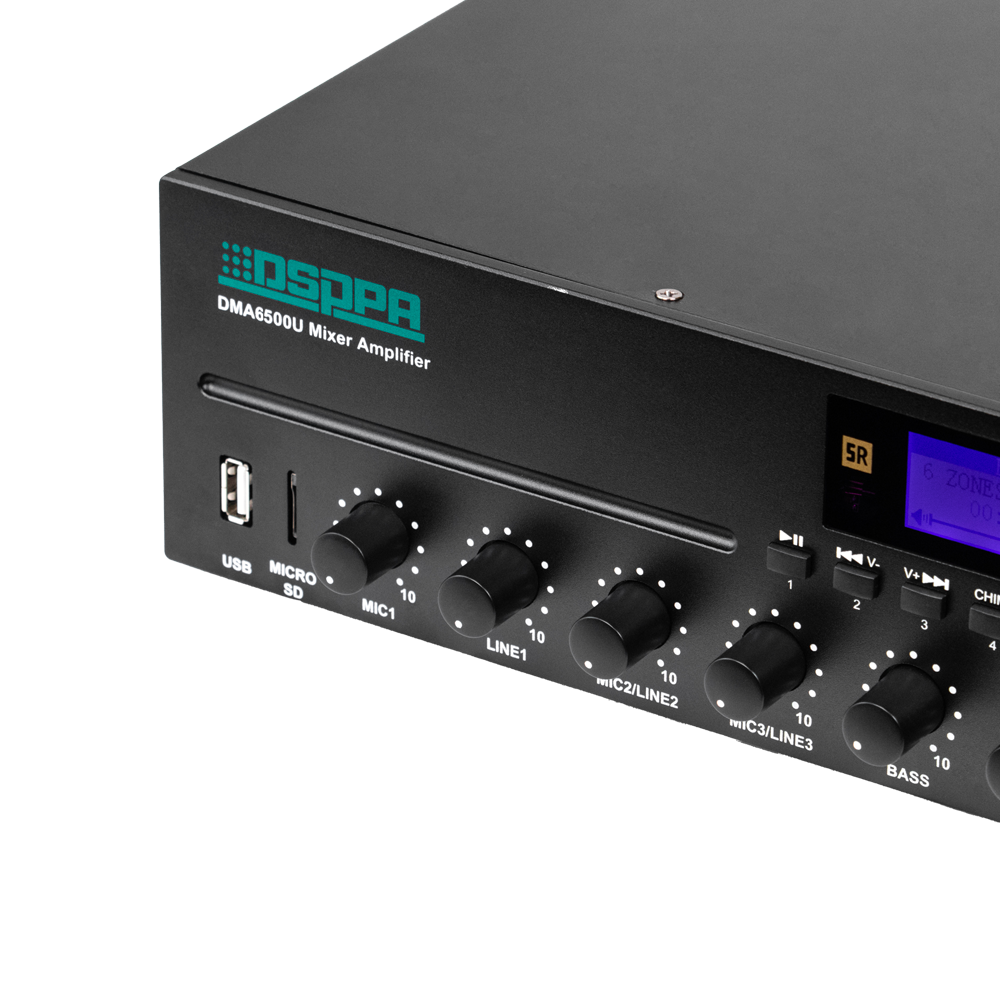

• Volume control: Zone; Siren; Chime; EMC IN; MIC and AUX; Treble and bass
• Treble adjustment: 10dB (±2)
• Bass adjustment: 10dB (±2)
• Phantom power: +48V

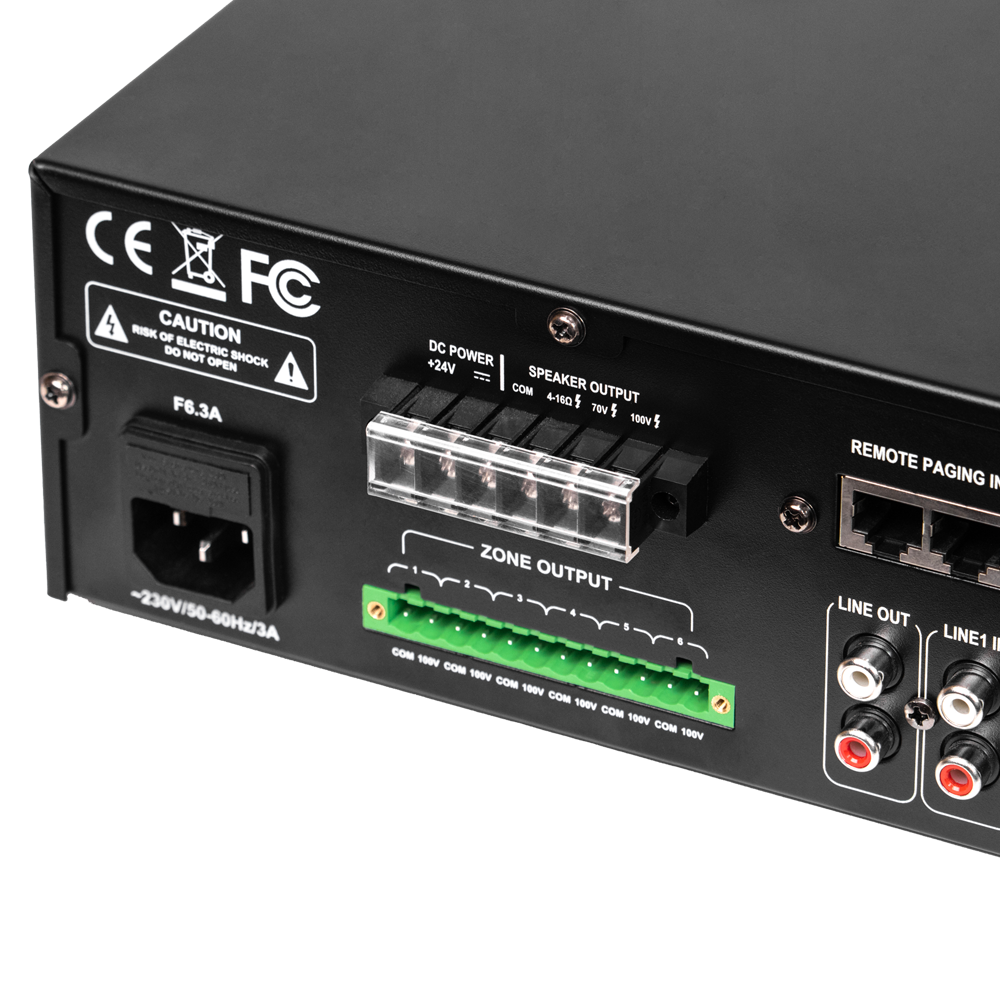

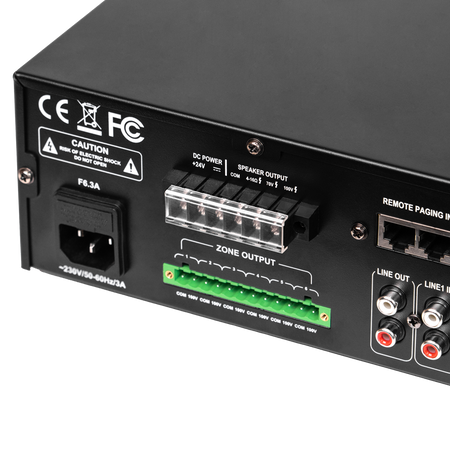

• Output interface: 70V, 100V (constant voltage output); 4-16Ω
• Current: 3A
• Protection: F6.3AL

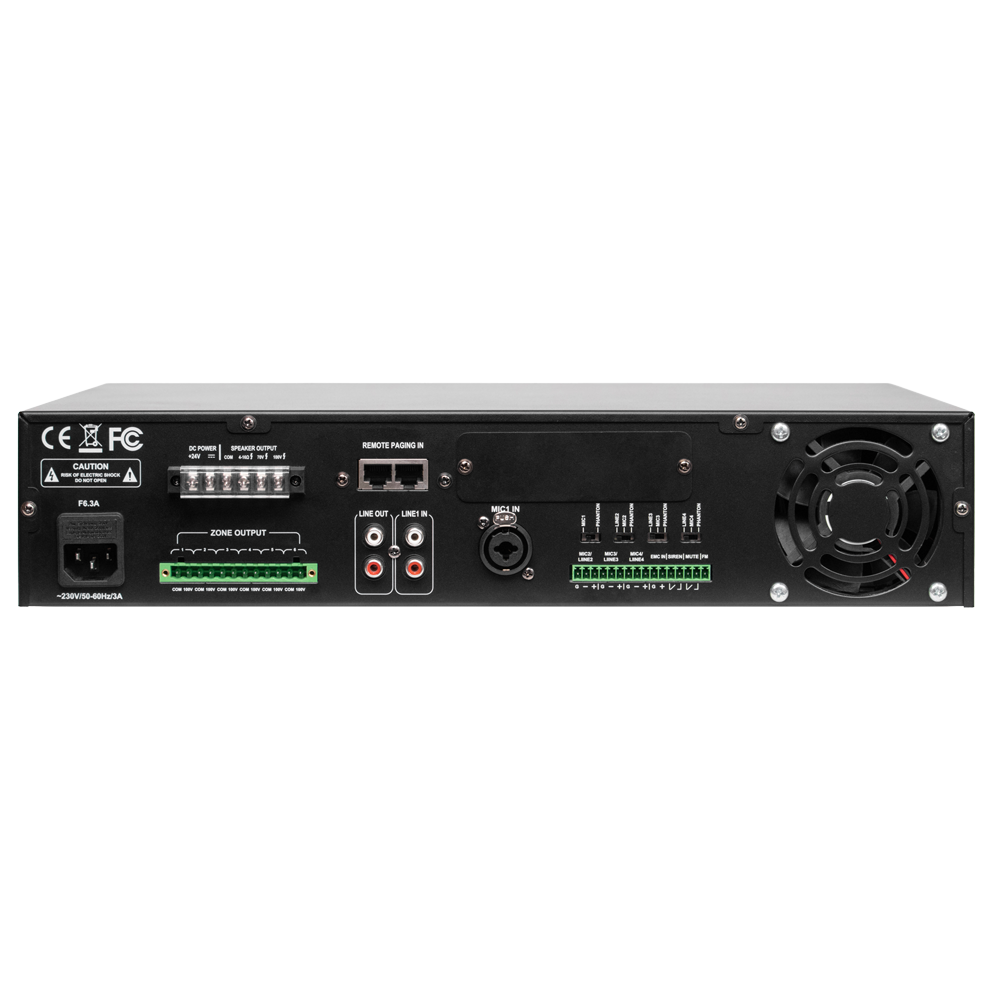

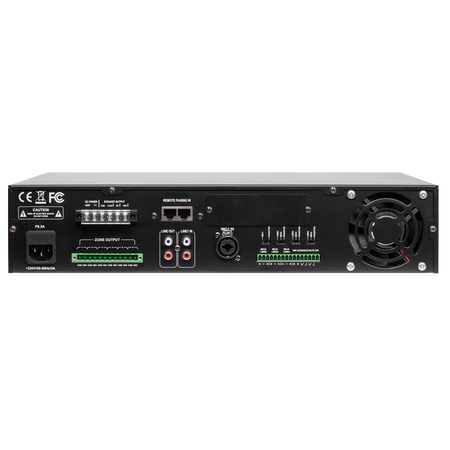

• Outputs: 1 x LINE (RCA); 6 x Zone (Phoenix)
• Bluetooth: Yes
• FM radio: Yes
• USB player: Yes
• Rated output power: 500W
• Dimensions: 430 × 390 × 88mm (D x W x H)
• Weight: 10.1 kg
📦 INCLUDED:
• Player
| Model | DMA6500U |
|---|---|
| Power supply | 220 - 230V AC @ 50/ 60Hz |
| Inputs | 1 x LINE (RCA), 1 x MIC (balanced XLR), 3 x MIC / LINE (unbalanced Phoenix jack), 2 x AUX (1 x unbalanced RCA AUX, 1 x unbalanced Phoenix jack AUX), 2 x DSPPA-DMA20 paging microphone input (RJ45 with +24V DC power supply), 1 x Emergency signal (EMC) (unbalanced Phoenix jack) |
| Priority function | MUTE > EMC IN = SIREN > MIC1 > Chime > Paging microphone > LINE1 = MIC2 / LINE2 = MIC3 / LINE3 = MIC4 / LINE4 = MP3 = BT = FM. The chime does not sound when an alarm is triggered. |
| Input signal sensitivity | - MIC 1: 5mV ±1mV - MIC2, MIC3 and MIC4: 5mV ±1mV - AUX 1 and AUX 2: 350mV±50mV - EMC: 350mV ±50mV |
| Frequency response | - MIC: 120Hz～ 12kHz (±3dB) - AUX: 80Hz～ 15kHz (±3dB) |
| Total Harmonic Distortion (THD) | <1% |
| Connection with DSPPA-DMA20 paging microphones | - Up to 6 daisy-chainable microphones - With one microphone connected to the amplifier, the maximum distance between the amplifier and the microphone is 600m - When more than one microphone is daisy-chained, the distance between the first microphone and the amplifier and between the microphones is 300m |
| Volume control | - Zone - Siren - Chime - EMC IN - MIC and AUX - Treble and Bass |
| Treble adjustment | 10dB (±2) |
| Bass adjustment | 10dB (±2) |
| Phantom power | +48V |
| Output interface | 70V, 100V (constant voltage output), 4-16Ω |
| Current | 3A |
| Protection | F6.3AL |
| Outputs | 1 x LINE (RCA), 6 x Zones (Phoenix) |
| Bluetooth | Yes |
| FM Radio | Yes |
| USB Player | Yes |
| Rated output power | 500W |
| Dimensions | 430 × 390 × 88mm (D x W x H) |
| Weight | 10.1 Kg |
- User manual Link
