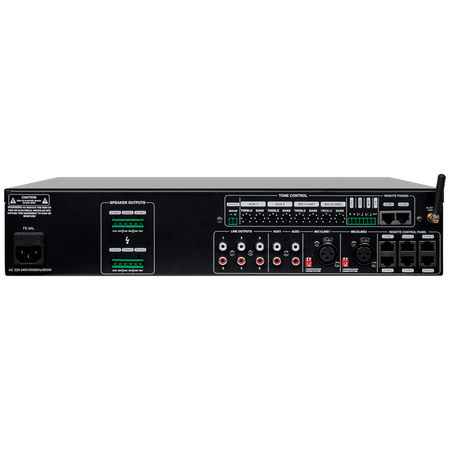

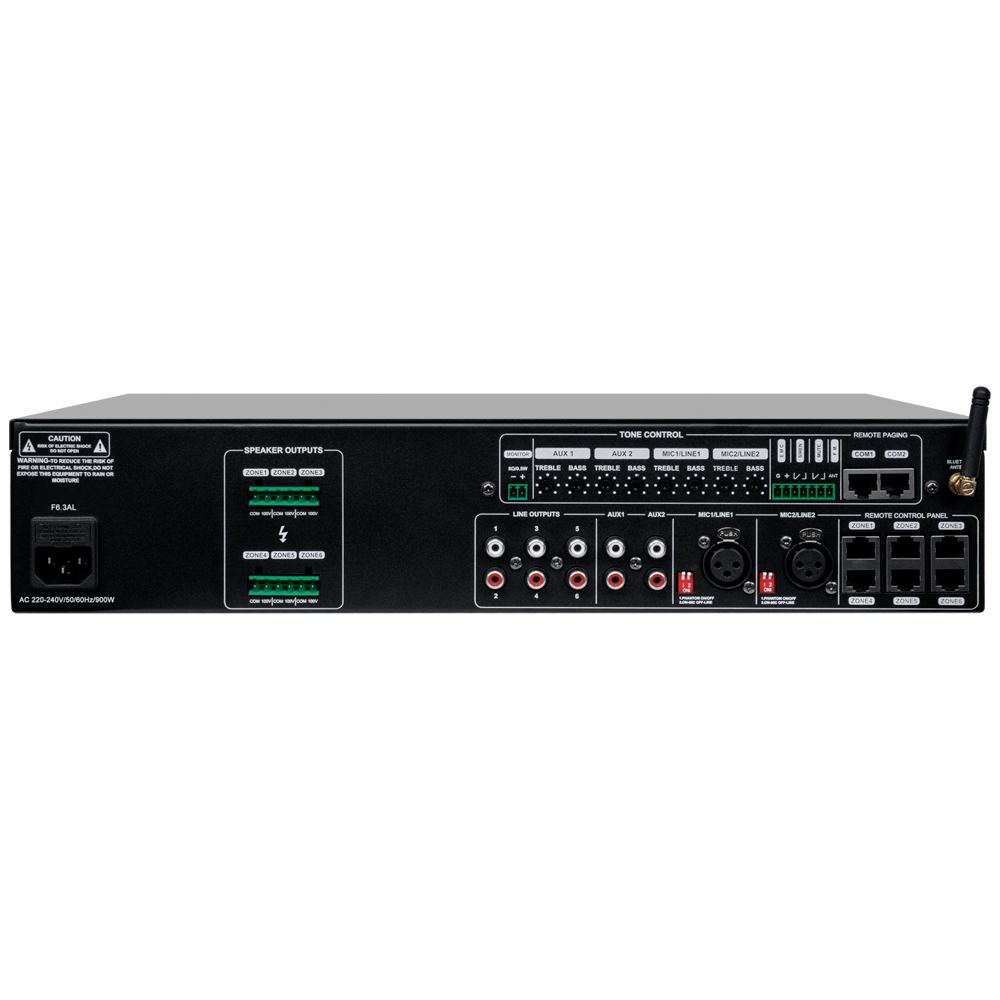

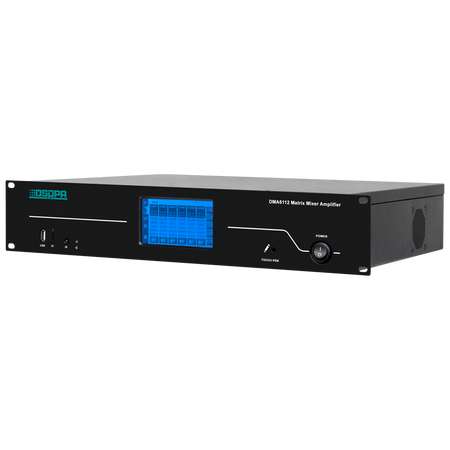

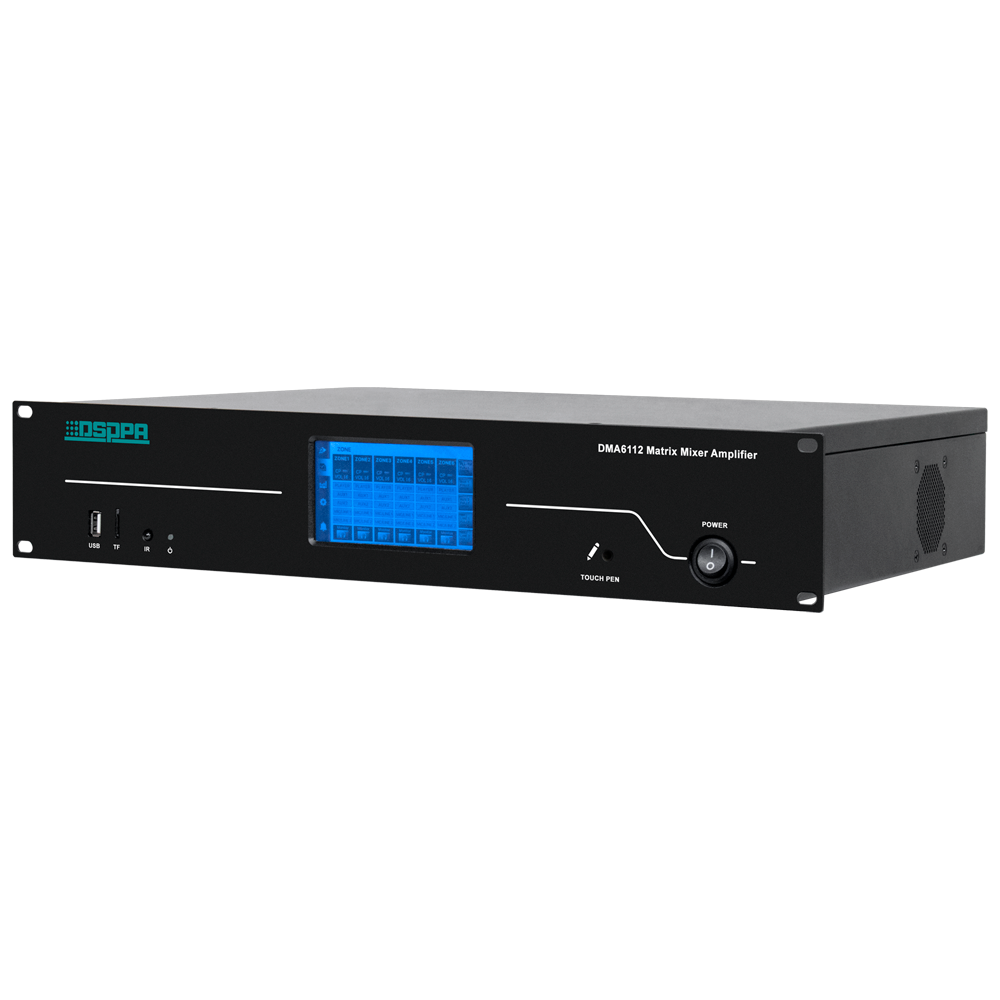

DSPPA 100V Digital Matrix Mixer Amplifier - 6 x 120W Rated Power
DSPPA 100V Digital Matrix Mixer Amplifier - 6 x 120W Rated Power
Regular price
€1.051,45
Final price
Regular price
-2%
€1.074,00
Sale price
€1.051,45
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Digital matrix mixer - 100V amplifier - USB player / FM Radio / Bluetooth - Rated power 6 x 120W - Up to 6 zones - Includes remote control
📋 SPECIFICATIONS:
• Model: DMA6112
• Power supply: 220 - 240V AC
• Inputs: 1 x 3.81mm Phoenix connector (1P-7P) for FM antenna; 1 x 3.81mm Phoenix connector (2P-7P) for emergency signal (EMC); 1 x 3.81mm Phoenix connector (2P-7P) for MUTE; 1 x 3.81mm Phoenix connector for speaker output (monitoring); 6 x 2-pin 5.08mm power output interfaces; 2 x AUX (RCA); 2 x MIC/LINE (balanced input); 2 x Input for DSPPA-DMA60M paging microphone (RJ45 with DC +48V power supply)
• Priority function: MUTE > Emergency signal > SIREN > Chime > MIC (DSPPA-DMA60M) > AUX/MP3 > Bluetooth panel > AUX1 = AUX2 = MIC1 / LINE1 = MIC2 / LINE2 = MP3 = BT = FM
• Input signal sensitivity: MIC 1 and MIC 2: 5mV ±1mv; AUX 1 and AUX 2: 775mV±100mv; LINE 1 and LINE 2: 350±50mV
• Signal to noise ratio (S/N): MIC: ≥ 71dB(A); LINE: ≥ 76dB(A)
• Frequency response: LINE: 80Hz - 15kHz (under normal operating conditions ±3dB)
• Total harmonic distortion (THD): 100V < 5%
• Overload strength: ≥ 14dB (constant voltage)
• Connection with DSPPA-DMA60M paging microphones: Up to 6 microphones can be cascaded; With one microphone connected to the amplifier, the maximum distance between the amplifier and the microphone is 600m; When more than one microphone is cascaded, the distance between the first microphone and the amplifier and between microphones is 300m
• Volume control: Source volume and corresponding zone volume can only be controlled via the DSPPA-DMA60W Bluetooth panel; The remote control can be used to turn up/down the volume of the MP3, FM, or Bluetooth signal
• Treble adjustment: ±10dB (±2dB) 10kHz
• Bass adjustment: ±10dB (±2dB) 100Hz
• Phantom power: 48V (±5V)
• Output interface: LINE 1000±100mV
• Outputs: 6 x LINE (RCA); 6 x Zones (Phoenix)
• Bluetooth: Yes
• FM Radio: Yes
• USB player: Yes
• Rated output power: 6x120W
• Operating conditions: Temperature: -10℃ + 50℃
• Dimensions: 483 × 353 × 88mm (D x W x H)
• Weight: 6.7 Kg
📦 INCLUDED:
• Matrix mixer
| Model | DMA6112 |
|---|---|
| Power Supply | 220 - 240V AC |
| Inputs | 1 x Phoenix 3.81mm connector (1P-7P) for FM antenna 1 x Phoenix 3.81mm connector (2P-7P) for emergency signal (EMC) 1 x Phoenix 3.81mm connector (2P-7P) for MUTE 1 x Phoenix 3.81mm connector for speaker output (monitoring) 6 x 2-pin 5.08mm power output interfaces 2 x AUX (RCA) 2 x MIC/LINE (balanced input) 2 x Input for DSPPA-DMA60M paging microphone (RJ45 with DC +48V power supply) |
| Priority function | MUTE > Emergency signal > SIREN > Chime > MIC (DSPPA-DMA60M) > AUX/MP3 > Bluetooth panel > AUX1 = AUX2 = MIC1 / LINE1 = MIC2 / LINE2 = MP3 = BT = FM |
| Input signal sensitivity | - MIC 1 and MIC 2: 5mV ±1mv - AUX 1 and AUX 2: 775mV±100mv - LINE 1 and LINE 2: 350±50mV |
| Signal to Noise Ratio (S/N) | - MIC: ≥ 71dB(A) - LINE: ≥ 76dB(A) |
| Frequency response | LINE: 80Hz - 15kHz (under normal operating conditions ±3dB) |
| Total Harmonic Distortion (THD) | 100V < 5% |
| Overload margin | ≥ 14dB (constant voltage) |
| Connection with DSPPA-DMA60M paging microphones | - Up to 6 microphones can be cascaded - With one microphone connected to the amplifier, the maximum distance between the amplifier and the microphone is 600m - When more than one microphone is connected in cascade, the distance between the first microphone and the amplifier and between the microphones is 300m |
| Volume control | Source volume and the corresponding zone volume can be controlled only through the use of the DSPPA-DMA60W Bluetooth panel. With the remote control, it is possible to increase and decrease the volume of the MP3, FM, or Bluetooth signal |
| Treble adjustment | ±10dB (±2dB) 10kHz |
| Bass adjustment | ±10dB (±2dB) 100Hz |
| Phantom power | 48V (±5V) |
| Output interface | LINE 1000±100mV |
| Outputs | 6 x LINE (RCA) 6 x Zone (Phoenix) |
| Bluetooth | Yes |
| FM Radio | Yes |
| USB player | Yes |
| Rated output power | 6x120W |
| Operating conditions | Temperature: -10℃ + 50℃ |
| Dimensions | 483 × 353 × 88mm (D x W x H) |
| Weight | 6.7 Kg |
