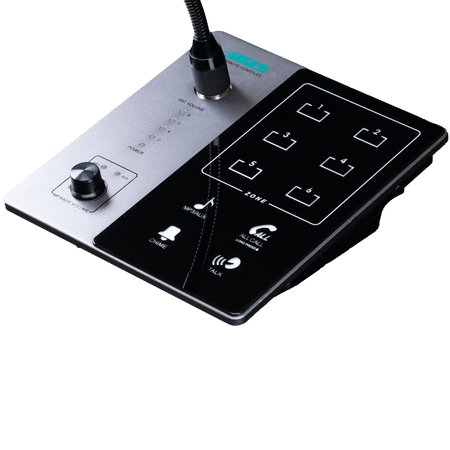

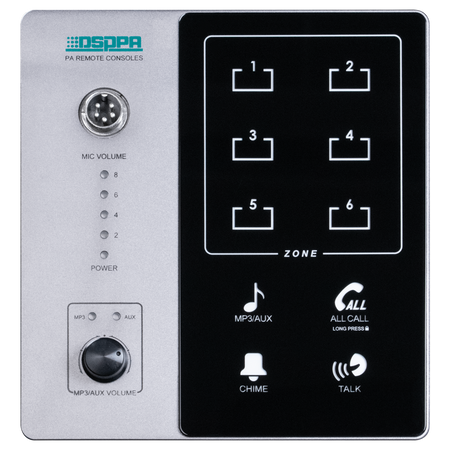

DSPPA Desktop Paging Microphone - DMA60M
DSPPA Desktop Paging Microphone - DMA60M
Regular price
€308,97
Final price
Regular price
-7%
€332,00
Sale price
€308,97
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

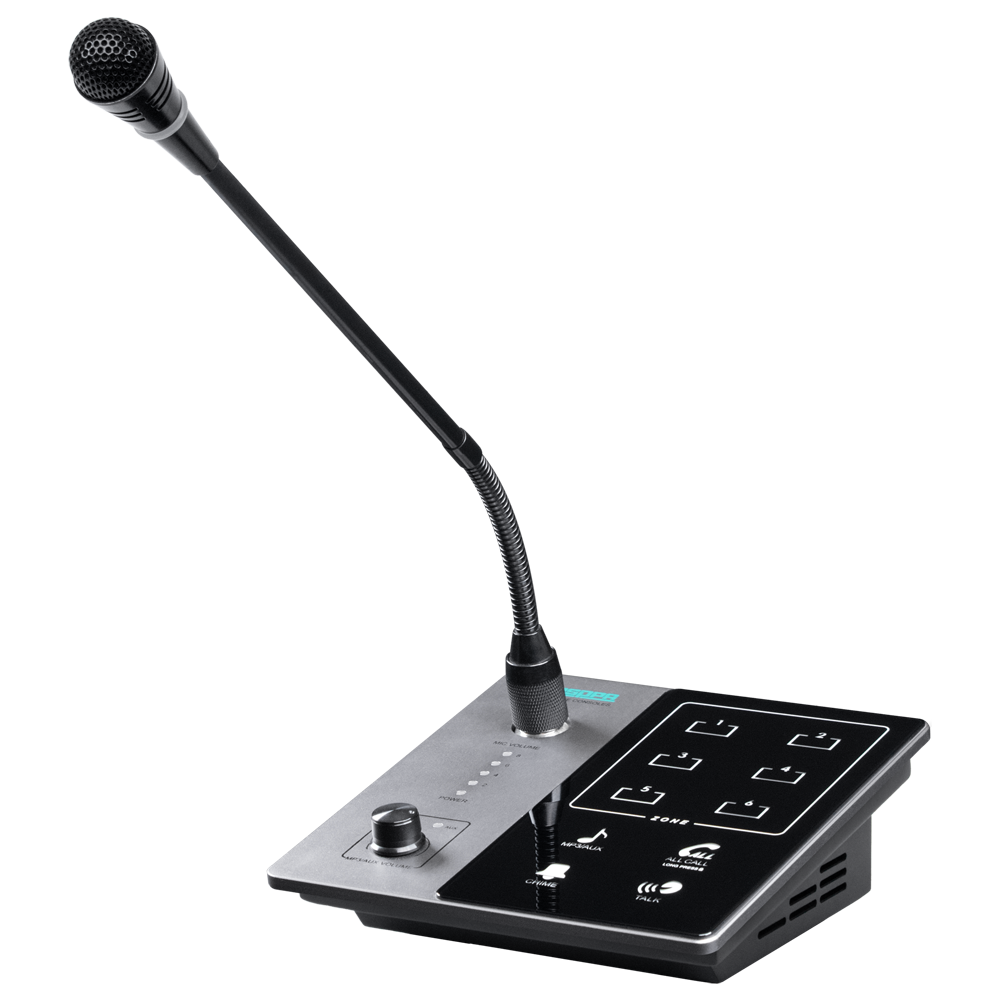

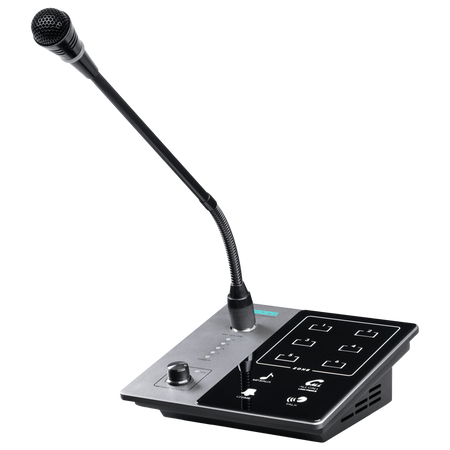

Tabletop microphone - Announcement button - Up to 6 microphones can be daisy-chained - Powered by amplifier - Compatible with DSPPA-DMA6112
📋 SPECIFICATIONS:
• Model: DMA60M
• Sensitivity: 30 ± 3mV
• Frequency response: 200Hz - 15KHz
• Signal-to-noise ratio (SNR): ≥ 70db
• Compatibility: DSPPA-DMA6112 mixer amplifier

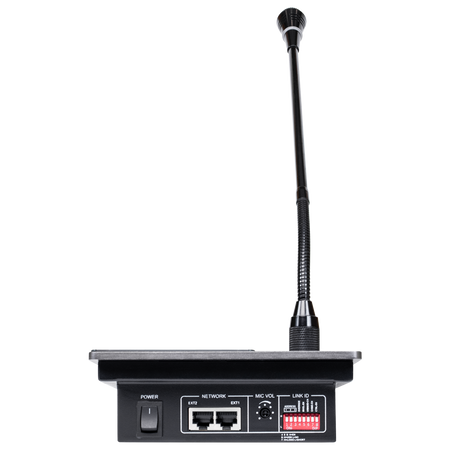

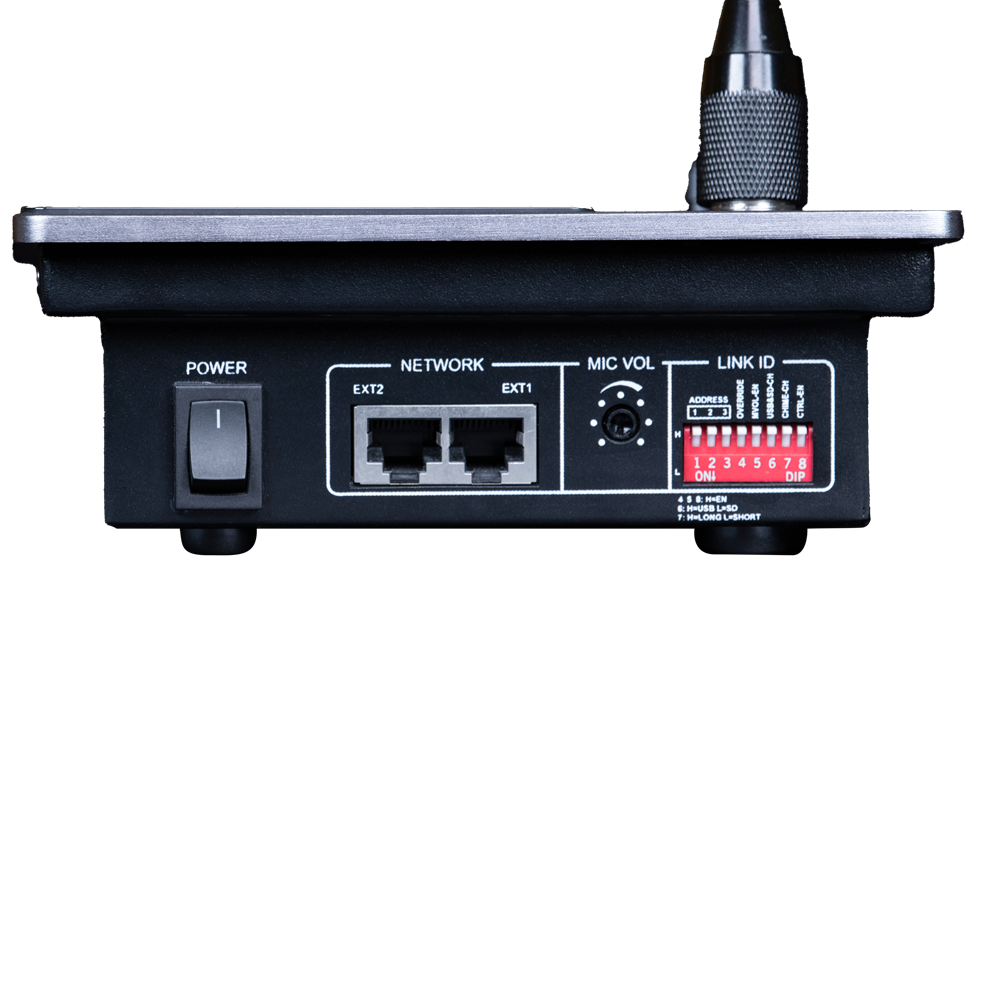

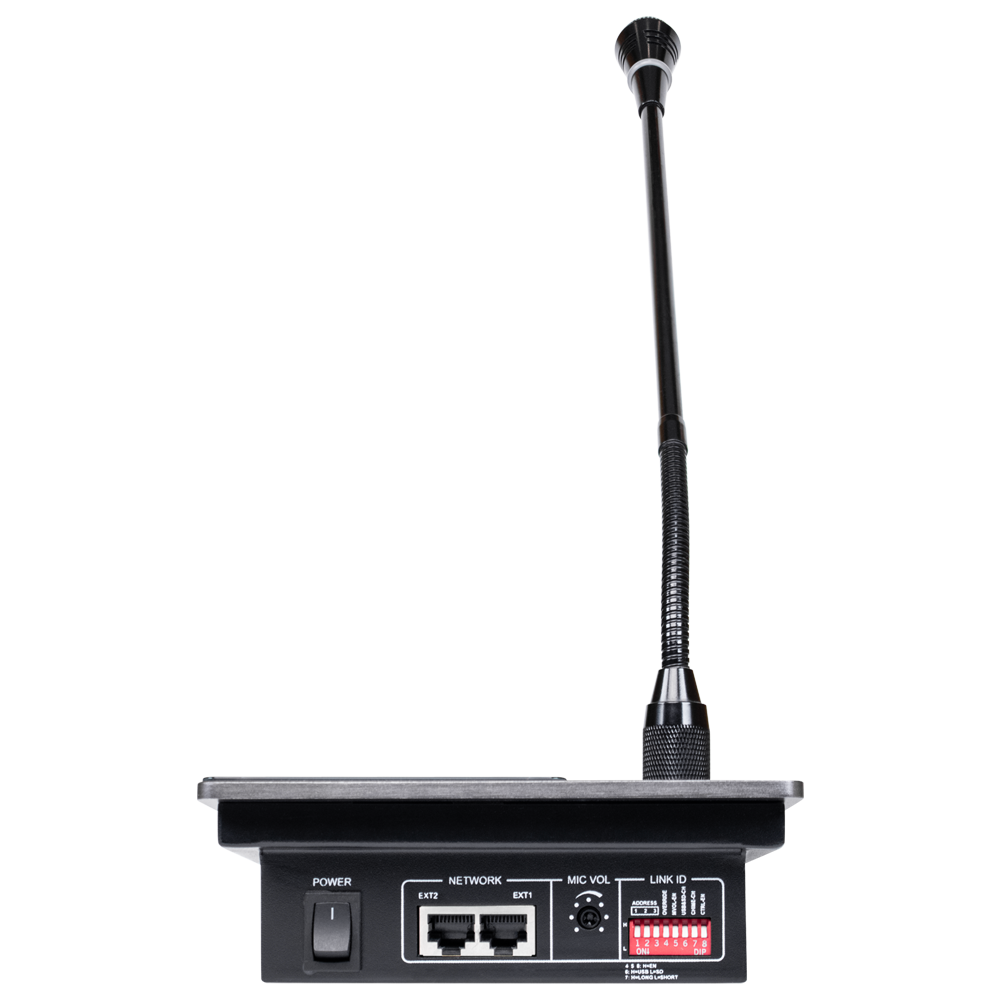

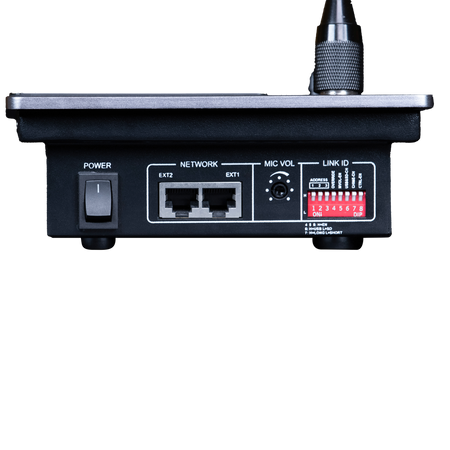

• RJ45 port: 2 x RJ45 (Communication via RS485 protocol with DSPPA-DMA6112 mixer amplifier)
• Connection with DMA series mixer amplifiers: CAT5e (or higher) cable with resistance ≤12Ω per 100 meters; Up to 6 microphones can be daisy-chained; With one microphone connected to the amplifier, the maximum distance between the amplifier and the microphone is 600m; When more than one microphone is daisy-chained, the distance between the first microphone and the amplifier and between the microphones is 300m
• Connections: 1 x XLR connector (5-pin)
• Power supply: Provided by the mixer amplifier
• Indicator lights: On the microphone neck to indicate activation; On the microphone base to indicate volume (4 LEDs); On the microphone base to indicate if the microphone is powered; On the microphone base to indicate AUX / MP3 signal usage
• Volume control: For AUX / MP3 signals

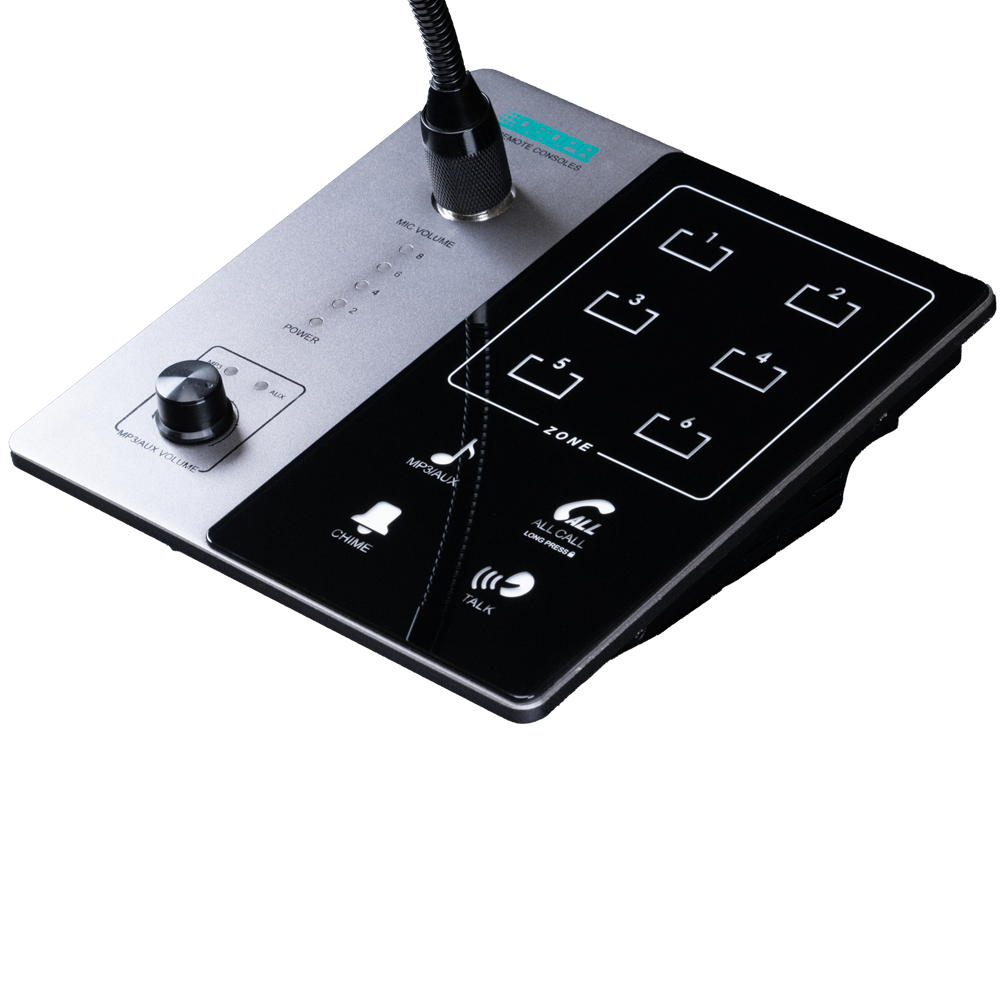

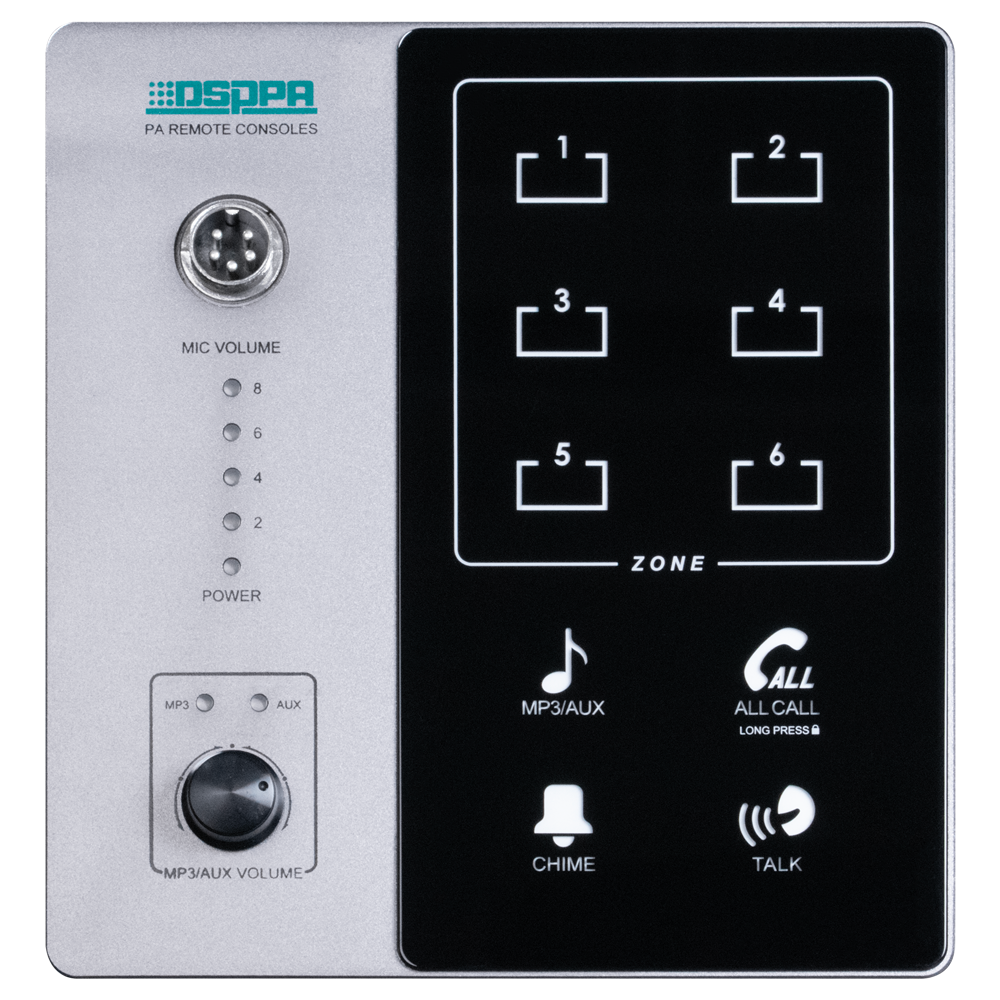

• Zone selection: 6 buttons on the microphone base for selecting each zone; 1 button on the microphone base for selecting all zones
• Source selection: 1 button on the microphone base for selecting AUX / MP3
• Microphone activation: 1 button on the microphone base to enable/disable voice transmission
• Chime activation: 1 button on the microphone base
• Gain control: 1 potentiometer on the back of the microphone base
• Dimensions: 172 × 160 × 53 mm (H x W x D)
• Weight: 0.89 kg
| Model | DMA60M |
|---|---|
| Sensitivity | 30 ± 3mV |
| Frequency response | 200Hz - 15KHz |
| Signal-to-noise ratio (SNR) | ≥ 70dB |
| Compatibility | DSPPA-DMA6112 mixer amplifier |
| RJ45 port | 2 x RJ45 (Communication via RS485 protocol with DSPPA-DMA6112 mixer amplifier) |
| Connection with DMA series mixer amplifiers | - CAT5e cable (or higher) with resistance ≤12Ω per 100 meters - Up to 6 microphones can be daisy-chained - With one microphone connected to the amplifier, the maximum distance between the amplifier and the microphone is 600m - When more than one microphone is daisy-chained, the distance between the first microphone and the amplifier and between the microphones is 300m |
| Connections | 1 x XLR connector (5-pin) |
| Power supply | Supplied by the mixer amplifier |
| Indicator lights | - On the microphone neck to indicate activation - On the microphone base to indicate volume (4 LEDs) - On the microphone base to indicate if the microphone is powered - On the microphone base to indicate AUX / MP3 signal usage |
| Volume control | For AUX / MP3 signals |
| Zone selection | - 6 buttons on the microphone base for selecting each zone - 1 button on the microphone base for selecting all zones |
| Source selection | 1 button on the microphone base for selecting AUX / MP3 |
| Microphone activation | 1 button on the microphone base to activate / deactivate voice transmission |
| Alert signal activation | 1 button on the microphone base |
| Gain control | 1 potentiometer on the back of the microphone base |
| Dimensions | 172 × 160 × 53 mm (H x W x D) |
| Weight | 0.89 kg |
