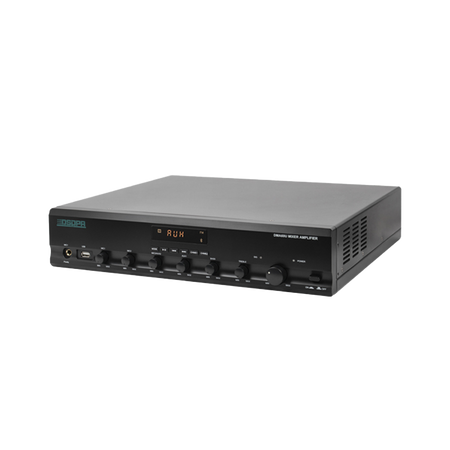

DSPPA 70V/100V and low-impedance powered mixer - 1 x 250W | 1 Zone | Class D

DSPPA Powered Mixer - 70V/100V line and low impedance - 1 x 250W | 1 Zone | Class D - 3 Mic 2 Phantom | 2 Aux | EMC Emergency - USB Player / FM Radio / Bluetooth - Remote control | Siren relay

📋 SPECIFICATIONS:
• Brand: DSPPA
• Model: DMA250U
• Range: Installation
• Amplification type: Class D
• Output power: 1 x 250 W
• Areas or channels: 1 channel with 1 volume control zone
• Speaker outputs: 70 V / 100 V line; Low impedance (4-16 Ω)
• Built-in player: USB MP3 player; Bluetooth receiver; FM radio tuner
• Remote control: Infrared remote control included
• Microphone inputs: MIC1: Front 6.35 mm Jack with priority; MIC2: Combo XLR + 6.35 mm Jack, selectable 48V phantom power; MIC3/AUX2: Selectable sharing, Combo XLR + 6.35 mm Jack, selectable 48V phantom power; Input sensitivity: 10 mV ±1 mV; MIC frequency response: 120 Hz ~ 12 kHz (±3 dB)
• Auxiliary inputs: AUX1: RCA; AUX2: RCA shared with MIC3; Input sensitivity: 350 mV ±50 mV; AUX frequency response: 80 Hz ~ 15 kHz (±3 dB)
• Control inputs: 1 EMC input via Euroblock terminal with highest priority for emergency audio; 1 relay input for MUTE; 1 relay input for siren activation
• Input priority: MUTE > EMC = Alarm = Chime > MIC1 > Others
• Audio outputs: AUX OUT: RCA
• Controls: Master volume; Independent volume adjustment per input; Tone control: Bass, Treble; USB/FM/Bluetooth source selection; Chime activation button
• Indicators: Segmented LCD status display; Signal LED; Power LED
• Compatible accessories: N/A
• Frequency response: MIC: 120 Hz ~ 12 kHz (±3 dB); AUX: 80 Hz ~ 15 kHz (±3 dB)
• Signal to noise ratio: N/A
• Distortion: < 1 %
• Separation / Crosstalk: N/A
• Damping factor: N/A
• Protections: N/A
• Ventilation: Forced ventilation via 1 fan
• Power supply: Built-in power supply; AC 110-120 V or 200-240 V, 50/60 Hz; Auxiliary DC 24 V power supply limited to 60 W; Consumption: N/A
• ENVIRONMENT: Operating temperature: -10 °C ~ +50 °C; Relative humidity: 20 % ~ 80 %
• Mounting type: Tabletop; Rack tray
• Dimensions: 430 × 330 × 88 mm
• Weight: 6.8 kg

📦 INCLUDED:
• 1x DSPPA DMA250U Amplifier • 1x Infrared remote control • 1x FM antenna • 1x Euroblock connector for EMC/MUTE/SIREN • 1x User manual • 1x Mounting screws • 1x Fixing accessories
