DSPPA 5-channel mixer amplifier
DSPPA 5-channel mixer amplifier
Regular price
€597,20
Final price
Regular price
-8%
€652,00
Sale price
€597,20
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

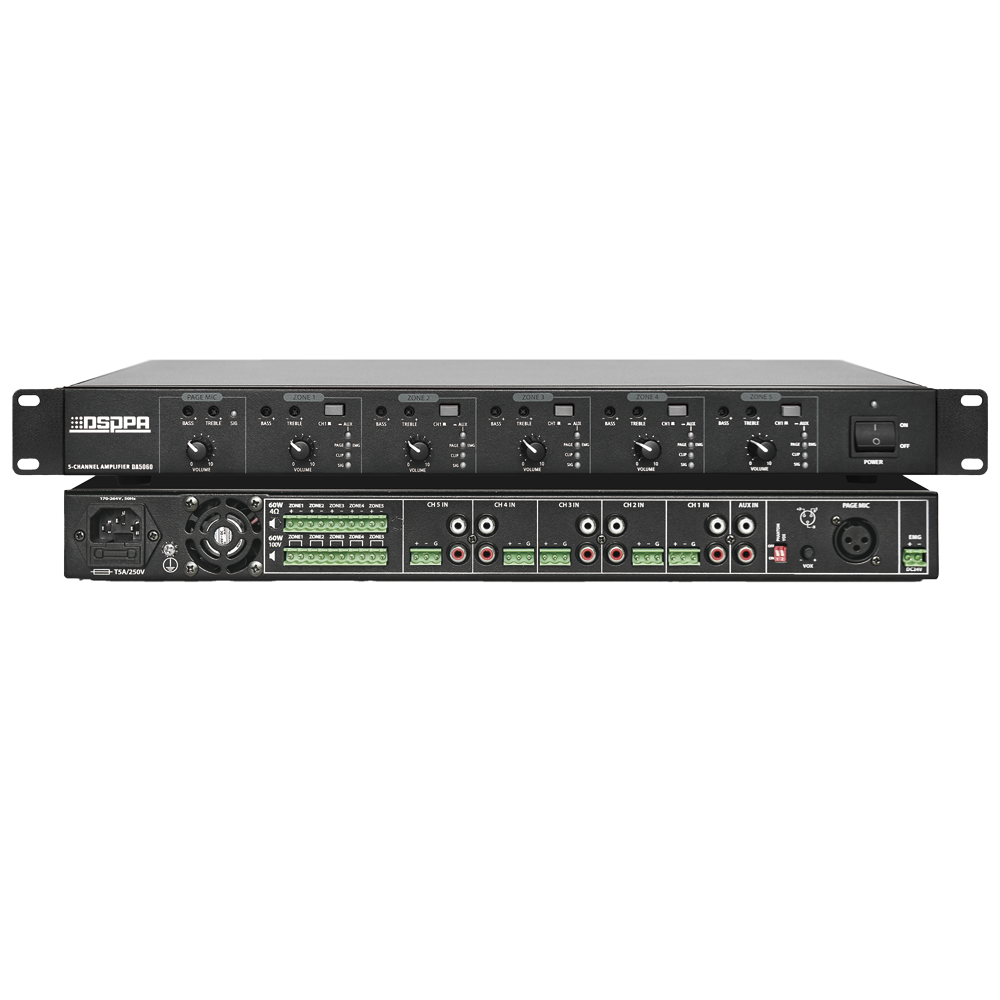

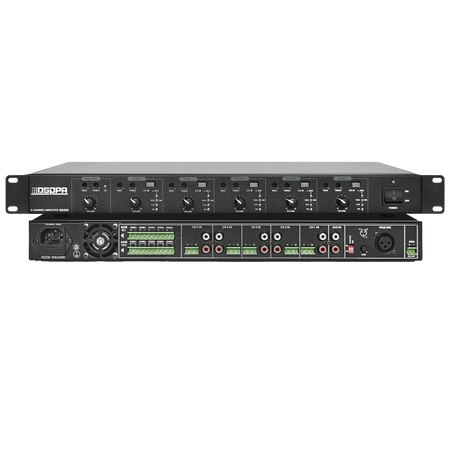

Mixer amplifier - 5 channels - 5x60W power - 100V amplification - Low impedance 4-16Ω
📋 SPECIFICATIONS:
• Model: DA5060
• Rated output power: 5x60W
• Power per channel (RMS): 60W RMS (@100V); 60W RMS (@4Ω); 34W RMS (@8Ω); 18W RMS (@16Ω)
• Power supply: 170 ~ 264V AC, 50/60Hz
• Fuse: T5AL (250V)
• Ports: Inputs:; 1 x Power supply; 1 x Balanced XLR (for microphone connection); 5 x LINE IN (unbalanced RCA); 5 x LINE IN (balanced 3EDG Phoenix); 1 x AUX (balanced RCA); Outputs:; 5 x Euroblock (100V); 5 x Euroblock (4Ω)
• Input sensitivity: MIC: -24dBV; LINE / AUX: -10dBV
• Frequency response: MIC: 100Hz ~ 17kHz; LINE: 100Hz ~ 22kHz; AUX: 100 ~ 22kHz
• Distortion: 1%
• SNR (Signal-to-noise ratio): MIC: 75dB; LINE: 80dB
• Dimensions: 482mm (W) x 44mm (H) x 302mm (D); 1U
• Weight: 8.1kg
• Other: On/off power button; Bass and treble control potentiometers for microphone signal; Bass and treble control potentiometers for output signal; Gain control potentiometer for microphone signal; Output signal LED indicator; Microphone signal LED indicator; Power LED indicator
📦 INCLUDED:
• Mixer amplifier
| Model | DA5060 |
|---|---|
| Rated output power | 5x60W |
| Power per channel (RMS) | 60W RMS (@100V) 60W RMS (@4Ω) 34W RMS (@8Ω) 18W RMS (@16Ω) |
| Power supply | 170 ~ 264V AC, 50/60Hz |
| Fuse | T5AL (250V) |
| Ports | Inputs: 1 x Power supply 1 x Balanced XLR (for microphone connection) 5 x LINE IN (unbalanced RCA) 5 x LINE IN (balanced Phoenix 3EDG) 1 x AUX (balanced RCA) Outputs: 5 x Euroblock (100V) 5 x Euroblock (4Ω) |
| Input sensitivity | - MIC: -24dBV - LINE / AUX: -10dBV |
| Frequency response | - MIC: 100Hz ~ 17kHz - LINE: 100Hz ~ 22kHz - AUX: 100 ~ 22kHz |
| Distortion | 1% |
| SNR (Signal to Noise Ratio) | - MIC: 75dB - LINE: 80dB |
| Dimensions | 482mm (W) x 44mm (H) x 302mm (D) 1U |
| Weight | 8.1kg |
| Other | - On/Off switch - Bass and treble control potentiometers for microphone signal - Bass and treble control potentiometers for output signal - Gain control potentiometer for microphone signal - Output signal LED indicator - Microphone signal LED indicator - Power LED indicator |
