DSPPA wireless microphone receiver - Dual channel
DSPPA wireless microphone receiver - Dual channel
Regular price
€304,16
Final price
Regular price
-9%
€332,82
Sale price
€304,16
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

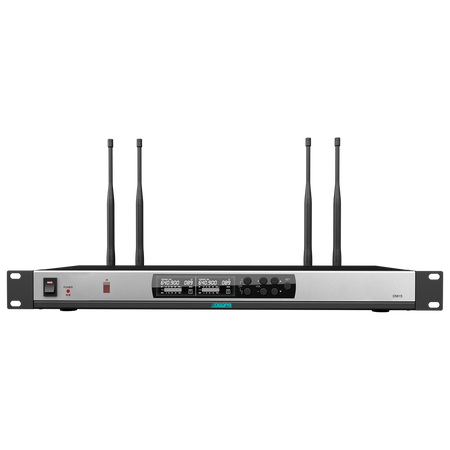

Wireless microphone receiver - Dual channel - IR pairing - Volume control for each channel - XLR output - Compatible with DSPPA-D58XX microphones
📋 SPECIFICATIONS:
• Model: D5815
• Type: Wireless microphone receiver
• Dual channel: PLL
• Communication: UHF200
• Frequency range: 632MHz ~ 1.25MHz
• Number of channels: 100
• Channel frequency spacing: 250kHz
• Dynamic range: 82dB
• Maximum frequency: ±45KHz
• Audio frequency response: 120Hz ~ 15kHz (±3dB)
• SNR (Signal to Noise Ratio): > 70dB
• Distortion: ≤ 1%
• Working conditions: Temperature: -10℃ ~ +40℃
• Effective pickup range: Max. 300m (in open spaces)
• Wireless interface: BNC (50Ω)
• Sensitivity: ≤ -95dBm
• Power supply: DC12V, 600mA
• Compatibility: Microphones:; DSPPA-D5811; DSPPA-D5812; DSPPA-D5813; DSPPA-D5814
• Dimensions: 430mm (W) x 44mm (H) x 176mm (D)
• Weight: 2.3kg
📦 INCLUDED:
• Receiver
| Model | D5815 |
|---|---|
| Type | Wireless microphone receiver |
| Dual channel | PLL |
| Communication | UHF200 |
| Frequency range | 632MHz ~ 1.25MHz |
| Number of channels | 100 |
| Frequency interval per channel | 250kHz |
| Dynamic range | 82dB |
| Maximum frequency | ±45KHz |
| Audio frequency response | 120Hz ~ 15kHz (±3dB) |
| SNR (Signal to Noise Ratio) | > 70dB |
| Distortion | ≤ 1% |
| Working conditions | - Temperature: -10℃ ~ +40℃ |
| Effective pickup range | Max. 300m (in open spaces) |
| Wireless interface | BNC (50Ω) |
| Sensitivity | ≤ -95dBm |
| Power supply | DC12V, 600mA |
| Compatibility | Microphones: DSPPA-D5811 DSPPA-D5812 DSPPA-D5813 DSPPA-D5814 |
| Dimensions | 430mm (W) x 44mm (H) x 176mm (D) |
| Weight | 2.3kg |
