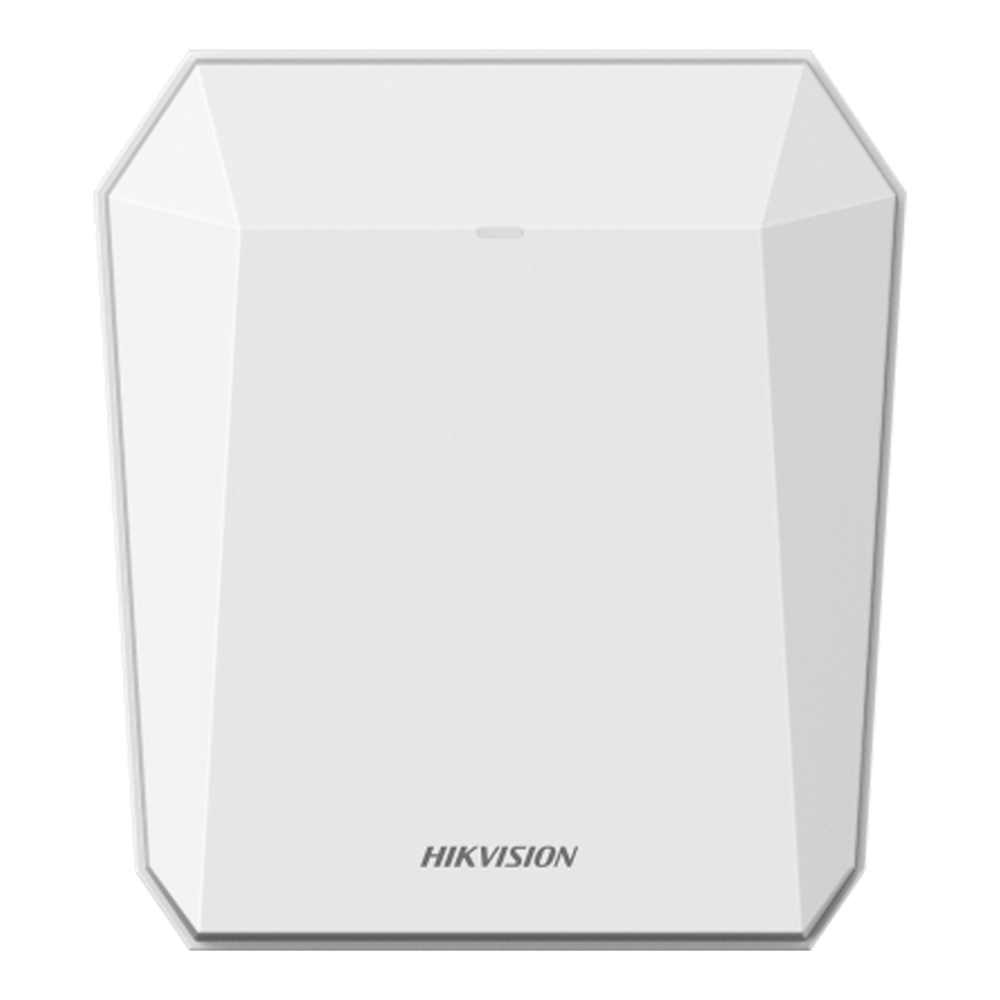

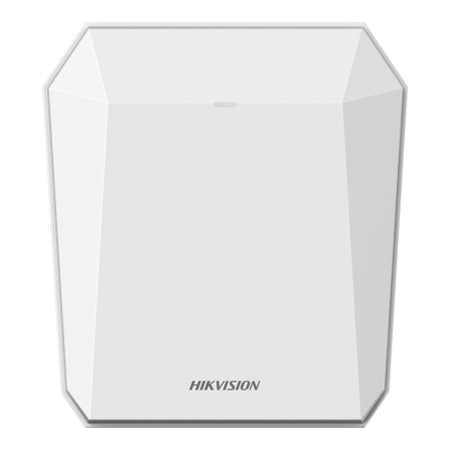

Hikvision intrusion radar with a detection range of up to 500 m
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Intrusion radar - Detection range up to 500 m - Opening angle up to 16º - Linkage with up to 4 PTZ cameras / NEMA 4X - Suitable for outdoor use IP67 / Vandal-proof IK10
📋 SPECIFICATIONS:
• Brand: Hikvision
• Operating frequency: 24 GHz
• Communication interface: RJ45 10/100M/1000M
• Max. number of targets: 32
• Detection distance: 500 m (Configurable)
• Detection angle: 16° (Configurable)
• Speed range: 68.4 km/h
• Installation height: 2~4 m (recommended at 2.5 m)
• Modulation type: FMCW
• Pet immunity: Not available
• Measurement accuracy: ± 1.3 m
• Angle accuracy: ± 1º
• Speed accuracy: ± 0.1 m/s (0.36 km/h)
• Alarms: 16 alarm zones / 4 outputs (NO/NC)
• Calibration software: iVMS-4200
• Operating temp.: -40~65 °C
• Power supply: DC 36 V, 24W
• Protection rating: Waterproof IP67; Vandal-proof IK10
• Anti-corrosion: NEMA 4X
• Dimensions: 228 mm (H) x 206 mm (W) x 61 mm (D)
• Weight: 1.8 kg
📦 INCLUDED:
• Hikvision IP Radar
• Installation bracket
• Manual
| Operating frequency | 24 GHz |
|---|---|
| Communication interface | RJ45 10/100M/1000M |
| Max. number of targets | 32 |
| Detection distance | 500 m (Configurable) |
| Detection angle | 16º (Configurable) |
| Speed range | 68.4 km/h |
| Installation height | 2~4 m (recommended at 2.5 m) |
| Modulation type | FMCW |
| Pet immunity | Not available |
| Measurement accuracy | ± 1.3 m |
| Angle accuracy | ± 1º |
| Speed accuracy | ± 0.1 m/s (0.36 km/h) |
| Alarms | 16 Alarm zones / 4 Outputs (NO/NC) |
| Calibration software | iVMS-4200 |
| Operating temp. | -40~65 °C |
| Power supply | DC 36 V, 24W |
| Protection level | Waterproof IP67 Vandal-proof IK10 |
| Anti-corrosion | NEMA 4X |
| Dimensions | 228 mm (H) x 206 mm (W) x 61 mm (D) |
| Weight | 1.8 Kg |
