DS-TDSB00-EKH/POE/2M
DS-TDSB00-EKH/POE/2M

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

HIKVISION

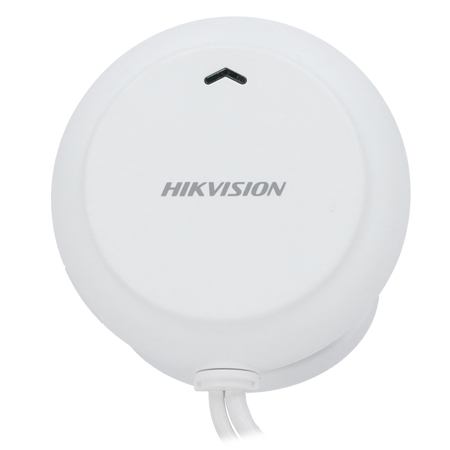

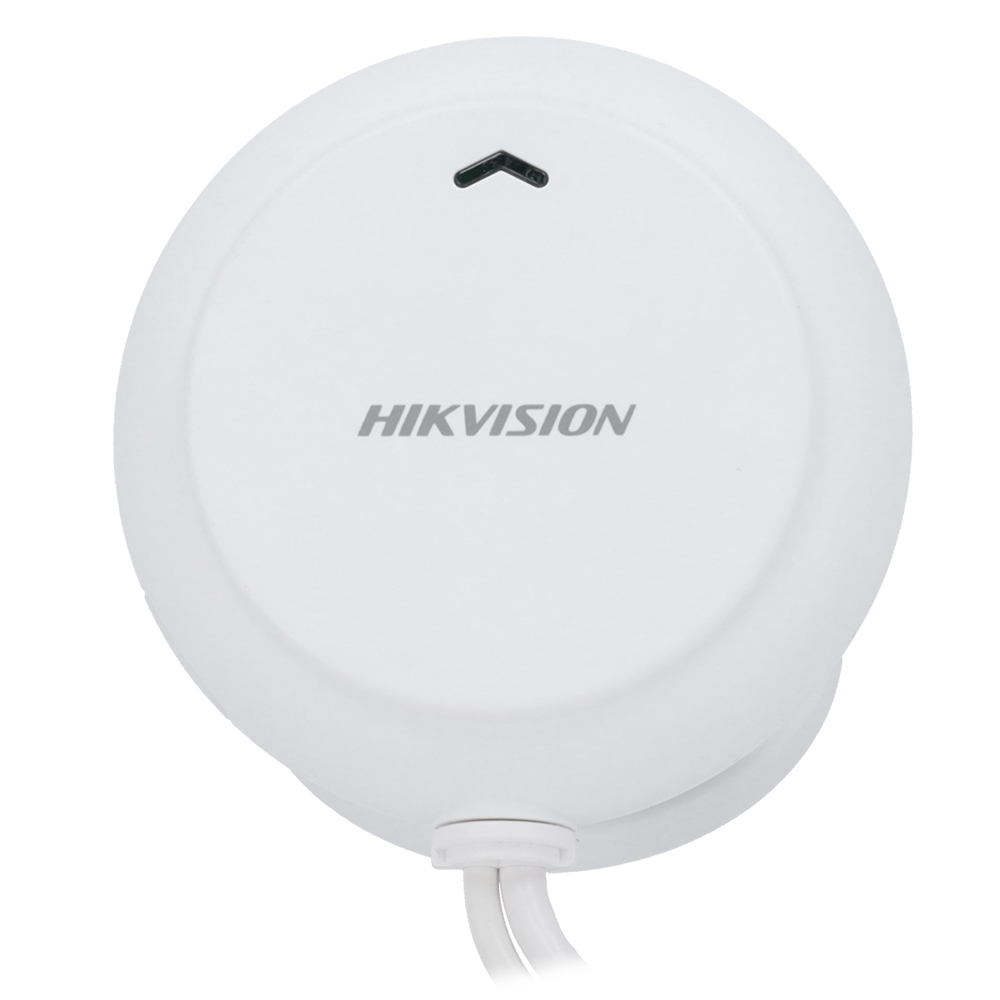

Hikvision medical assistance radar sensor - Heart rate measurement

SKU: DS-TDSB00-EKH/POE/2M
(0)
In stock
Usually shipped within 24 hours
€464,23 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Medical assistance radar sensor - Heart rate measurement - Detection: 25° (V), 10° (H) / 2.7m - Wi-Fi and Ethernet communication - Hikvision browser and Software/App - PoE power supply | IP54

📋 SPECIFICATIONS:
• Brand: Hikvision
• General Function: Person detection, body movement detection, respiration and heart rate monitoring.
• Number of patients: 1
• Operating Frequency: 60 to 63 GHz
• Modulated waveform: FMCW
• Detection Angle: ± 25° (V) / ± 10° (H)
• Detection Distance: 2.7m
• Network Interface: Wi-Fi, 1 RJ45 10/100Mbps Ethernet
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IGMP, 802.1X, IPv4/IPv6, UDP, SSL/TLS, ISUP, ARP
• API: ISAPI, SDK, OTAP
• Remote access: Web browser and Hik-Central
• Power supply: DC 5 V, 2 A, max. 10 W, Type-C / PoE: 802.3af, max. 10 W
• Dimensions / Weight: Ø90 mm × 81 mm / 130 g
• Operating temp.: -10 °C to 50 °C
• Material: PC
• Certifications: IP54 / CE-EMC / CE-RED

📦 INCLUDED:
• Medical assistance radar sensor
General Function Person detection, body movement detection, respiration and heart rate monitoring.
Number of patients 1
Operating Frequency 60 to 63 GHz
Modulated Waveform FMCW
Detection Angle ± 25° (V) / ± 10° (H)
Detection Range 2.7m
Network Interface Wi-Fi, 1 RJ45 10/100Mbps Ethernet
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IGMP, 802.1X, IPv4/IPv6, UDP, SSL/TLS, ISUP, ARP
API ISAPI, SDK, OTAP
Remote Access Web browser and Hik-Central
Power Supply DC 5 V, 2 A, max. 10 W, Type-C / PoE: 802.3af, max. 10 W
Dimensions / Weight Ø90 mm × 81 mm / 130 g
Operating Temp. -10 °C to 50 °C
Material PC
Certifications IP54 / CE-EMC / CE-RED

Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.

For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.

The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
