HIKVISION

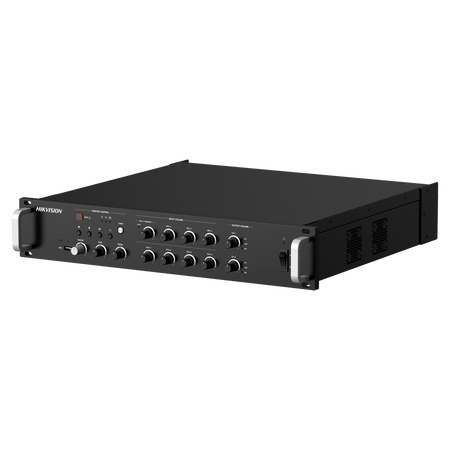

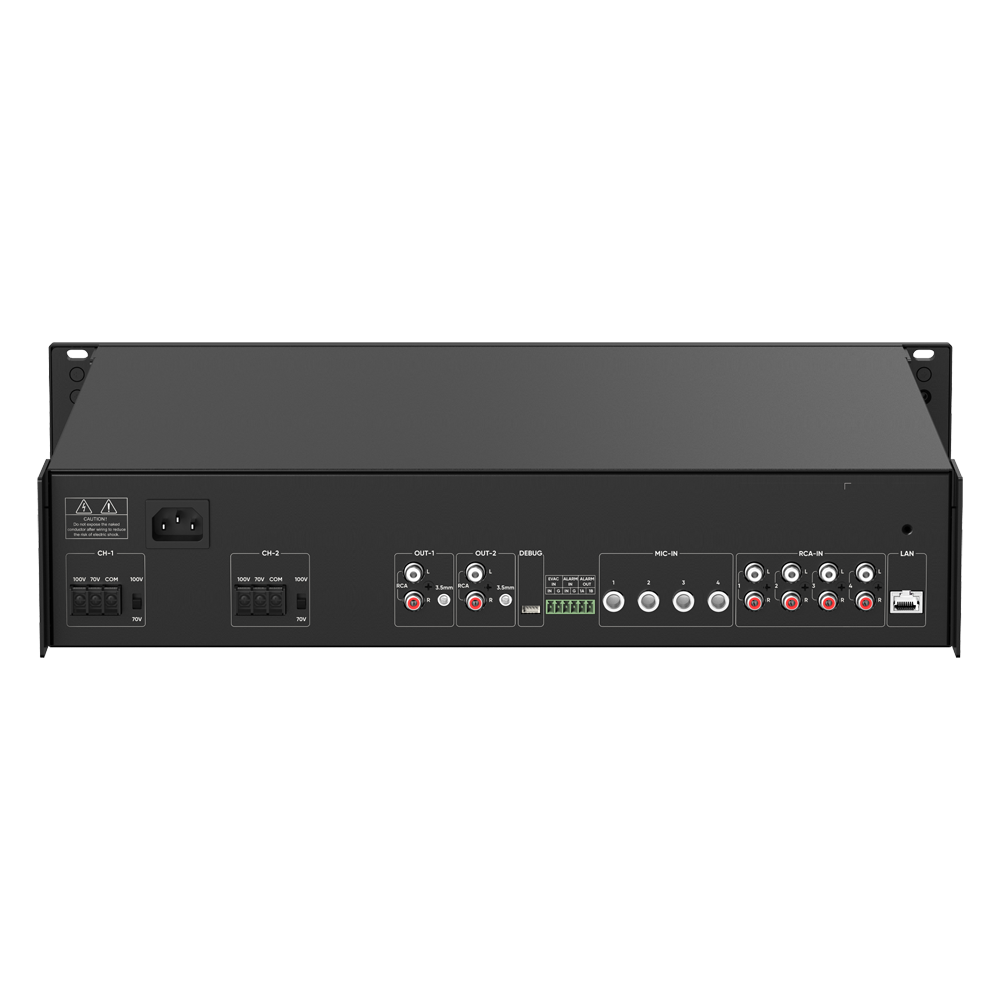

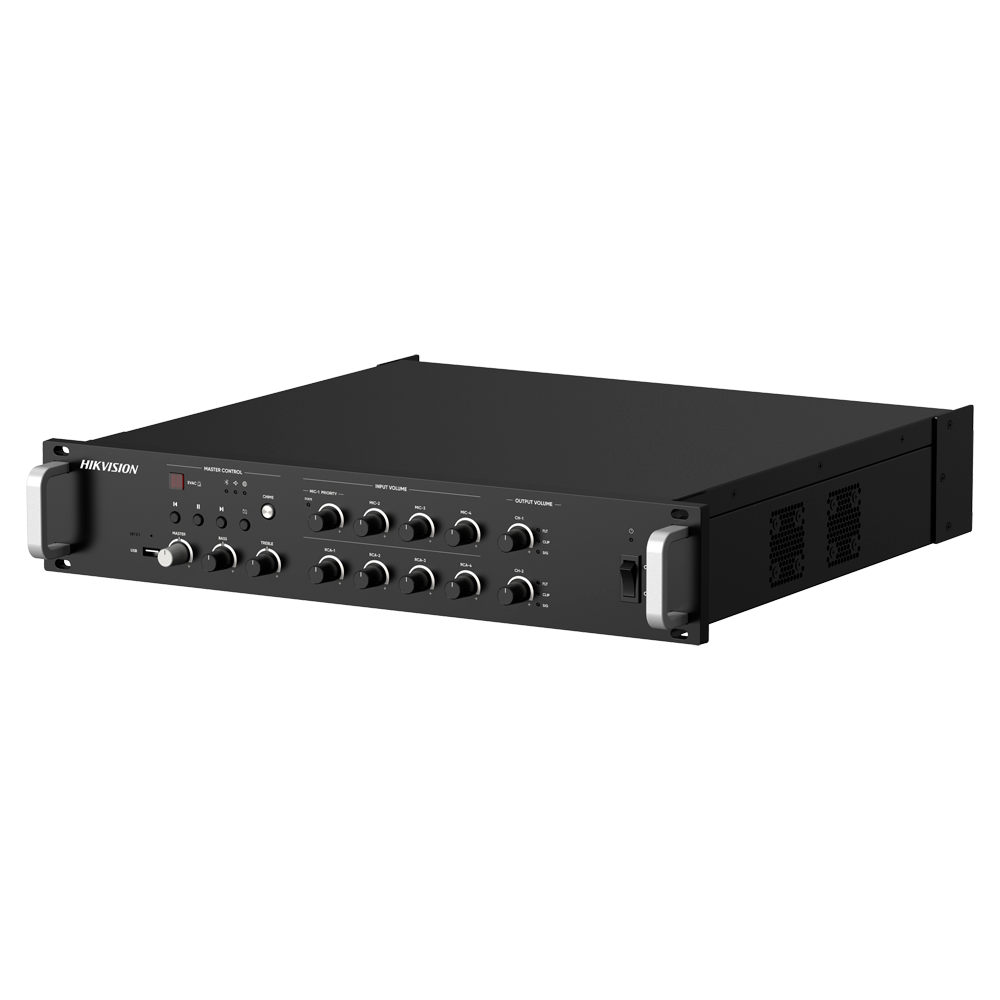

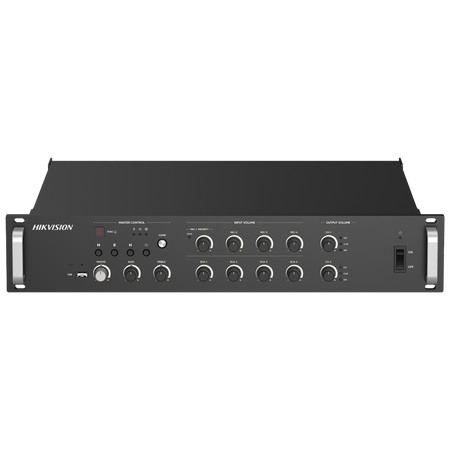

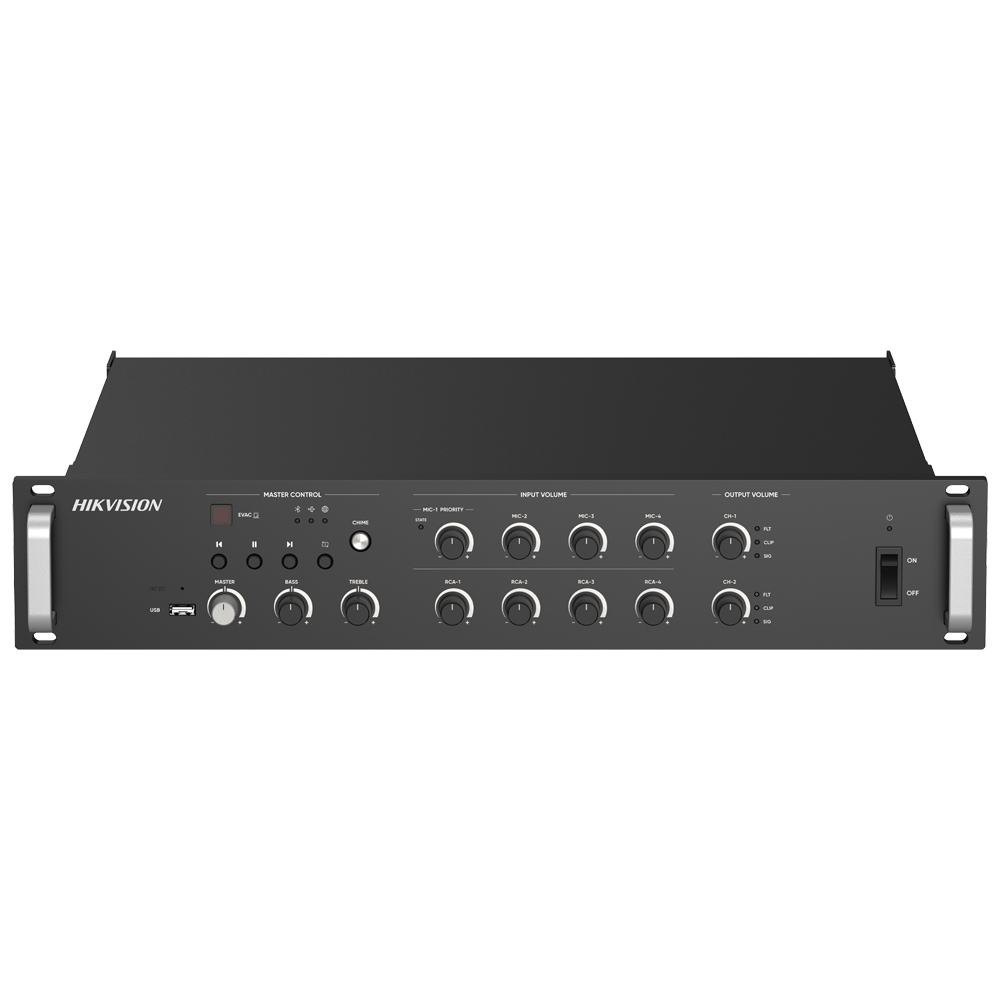

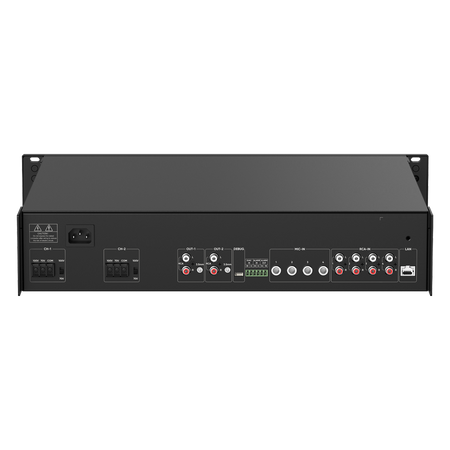

Network amplifier Hikvision basic mixing functions - 500 W rated power

SKU: DS-QAZ1A500G1-VB2
(0)
In stock
Usually shipped within 24 hours
€684,13 Final price
-2% €698,10 €684,13 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Network amplifier - Basic mixing functions - 100 V amplifier - USB / BT / MIC / RCA player - Rated power 500 W - Up to 2 zones

📋 SPECIFICATIONS:
• Network protocol: IPv4, HTTP, HTTPS, SIP, SSL/TLS, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, NTP, RTP
• Interface protocol: ISAPI, ISUP, SIP, RTP (API)
• Audio bit rate: G.711ulaw (64 Kbps); G.711alaw (64 Kbps); MP3 (128 Kbps); AAC (128 Kbps）
• Protection functions against: Short-circuit; Overcurrent; Overheating; Static electricity; Overvoltage; Electrical discharge
• Rated power: 500 W
• Frequency response: 100 V COM / 70 V COM: 50 ~ 20,000 Hz (±3 dB); RCA Out / 3.5 mm out: 50 ~ 20,000 Hz (±1 dB)
• Total harmonic distortion (THD): <0.5 % at 1 kHz, 1/3 of rated power
• Signal-to-noise ratio (SNR): > 90 dB
• Alarm (Euroblock): 1x EVAC alarm; 1x Alarm input; 1x Alarm output; If the device connected to the alarm output is "normally closed", connect: 1A to GND; if it is "normally open", connect: 1B to GND.
• Ethernet (RJ45): 1x LAN (10 / 100 / 1000 M)
• Local storage: 4 GB (EMMC); The available space for audio files is 1 GB.
• Audio: INPUTS:; 4x MIC (6.35 mm Jack) -28 dBV, 4.7 kΩ, unbalanced output (cannot be connected without a microphone); 4x RCA (Pin Jack) 0 dBV, 4.7 kΩ, unbalanced output; 1x USB 2.0; Bluetooth 5.0 (reception range 10 m); OUTPUTS:; 1x Constant voltage output 100 V COM and 70 V COM; A single channel supports an output power of up to 250 W; 2x RCA (Pin Jack) 0 dBV, unbalanced output; 2x Output (3.5 mm Jack) 0 dBV, unbalanced output; If the constant voltage mode is set to 100 V, the output interface must be connected to a speaker with a rated voltage of 100 V. Connecting to a speaker with a rated voltage of 70 V could damage the device.
• LED indicator: 1x Power: Solid white light, the device is working correctly.; 1x USB: Solid white light, the device is in USB mode.; 1x Bluetooth: Solid blue light, the device is in Bluetooth mode.; 1x EVAC: Solid red light, the EVAC alarm has been triggered.; 1x MIC 1: Solid white, MIC 1 input is connected correctly.; 1x Module: Solid FLT, indicates an overload or other system faults.; 1x CLIP: Solid light, indicates clipping or other anomalies.; 1x SIG: Solid light, indicates normal operation.
• Volume: 1x Total (potentiometer); 4x MIC input (potentiometer); 4x RCA input (potentiometer); 2x Output channel (potentiometer); 1x Treble (potentiometer); 1x Bass (potentiometer)
• USB: 1x USB 2.0; Compatible formats: FAT32 (maximum partition capacity: 32 GB) and EXFAT (maximum partition capacity: 256 GB)
• Power supply: 100 ~ 240 V AC
• Consumption: 45 W (standby mode); 110 W (max.)
• Material: Front panel: PC + ABS; Top and bottom panel: SGCC
• Dimensions: 495.97 (W) × 90.89 (H) × 473.18 (D) mm
• Weight: 5.6 Kg
• Color: Black
• Working conditions: Temperature: -10 ~ 50 °C; Humidity: ＜90 % (non-condensing)

📦 INCLUDED:
• Network amplifier• Power cable
Network protocol IPv4, HTTP, HTTPS, SIP, SSL/TLS, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, NTP, RTP
Interface protocol ISAPI, ISUP, SIP, RTP (API)
Audio bit rate G.711ulaw (64 Kbps) G.711alaw (64 Kbps) MP3 (128 Kbps) AAC (128 Kbps)
Protection functions Short circuit, overcurrent, overheating, static electricity, surges, electric discharge
Rated power 500 W
Frequency response 100 V COM / 70 V COM: 50 ~ 20,000 Hz (±3 dB) RCA Out / 3.5 mm out: 50 ~ 20,000 Hz (±1 dB)
Total Harmonic Distortion (THD) &lt;0.5% at 1 kHz, 1/3 of rated power
Signal-to-noise ratio (SNR) &gt; 90 dB
Alarm (Euroblock) 1x EVAC alarm, 1x alarm input, 1x alarm output. If the device connected to the alarm output is "normally closed" type, connect: 1A to GND; if it is "normally open" type, connect: 1B to GND.
Ethernet (RJ45) 1x LAN (10 / 100 / 1000 M)
Local storage 4 GB (EMMC). Available space for audio files is 1 GB.
Audio INPUTS: 4x MIC (6.35 mm Jack) -28 dBV, 4.7 kΩ, unbalanced output (cannot be connected without a microphone), 4x RCA (Pin Jack) 0 dBV, 4.7 kΩ, unbalanced output, 1x USB 2.0, Bluetooth 5.0 (reception range 10 m). OUTPUTS: 1x Constant voltage output 100 V COM and 70 V COM. A single channel supports an output power of up to 250 W. 2x RCA (Pin Jack) 0 dBV, unbalanced output. 2x Output (3.5 mm Jack) 0 dBV, unbalanced output. If the constant voltage mode is set to 100 V, the output interface must be connected to a speaker with a rated voltage of 100 V. Connecting to a speaker with a rated voltage of 70 V could damage the device.
LED indicator 1x Power: Solid white light, the device is working correctly. 1x USB: Solid white light, the device is in USB mode. 1x Bluetooth: Solid blue light, the device is in Bluetooth mode. 1x EVAC: Solid red light, the EVAC alarm has been activated. 1x MIC 1: Solid white, the MIC 1 input is connected correctly. 1x Module: Steady FLT, indicates an overload or other system faults. 1x CLIP: Solid light, indicates clipping or other anomalies. 1x SIG: Solid light, indicates normal operation.
Volume 1x Master (potentiometer), 4x MIC input (potentiometer), 4x RCA input (potentiometer), 2x Output channel (potentiometer), 1x Treble (potentiometer), 1x Bass (potentiometer)
USB 1x USB 2.0. Compatible formats: FAT32 (maximum partition capacity: 32 GB) and EXFAT (maximum partition capacity: 256 GB)
Power supply 100 ~ 240 V AC
Consumption 45 W (standby mode), 110 W (max.)
Material Front panel: PC + ABS. Top and bottom panel: SGCC
Dimensions 495.97 (W) × 90.89 (H) × 473.18 (D) mm
Weight 5.6 kg
Color Black
Operating conditions Temperature: -10 ~ 50 °C, Humidity: &lt;90% (no condensation)
