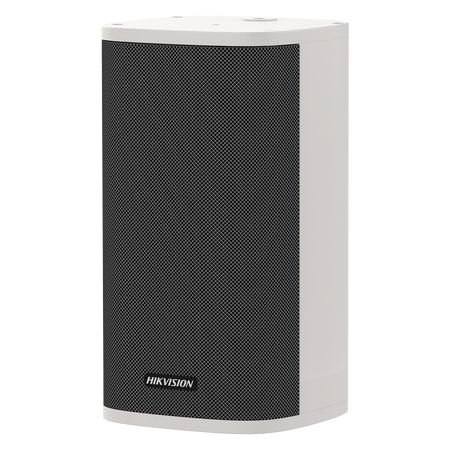

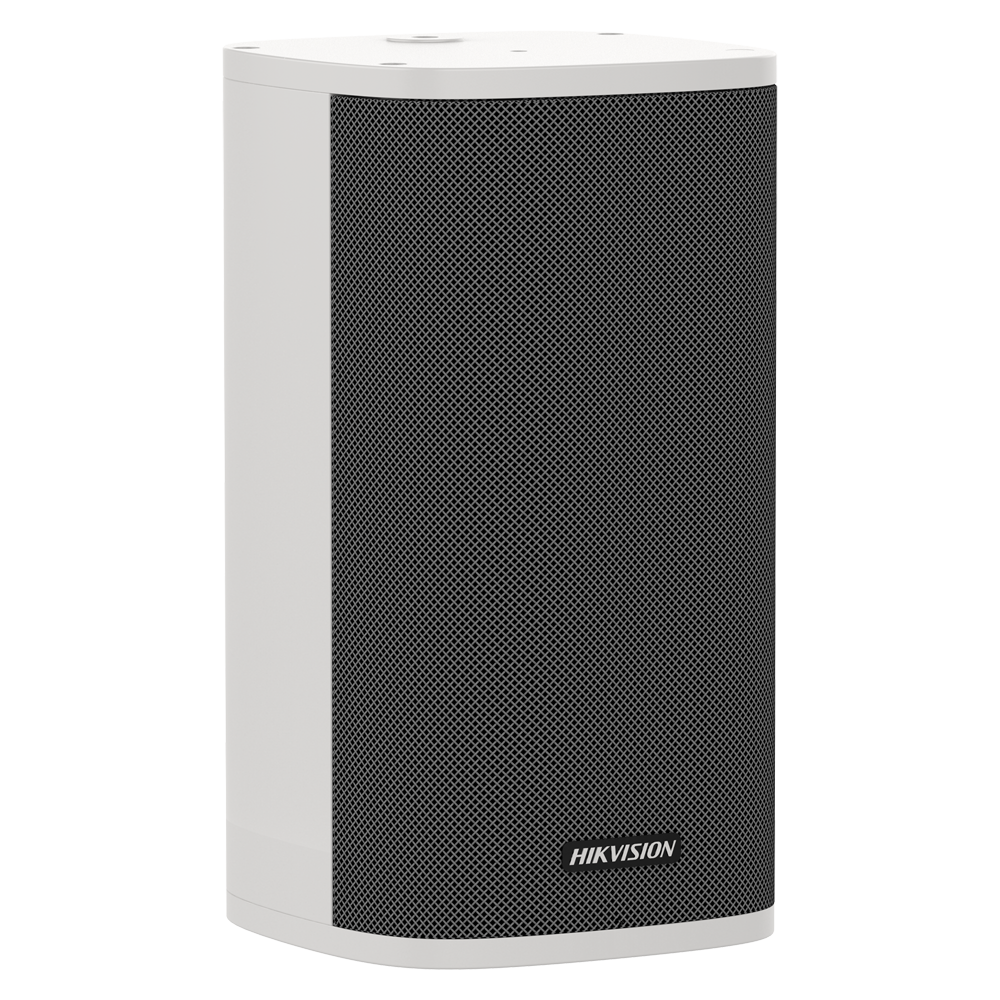

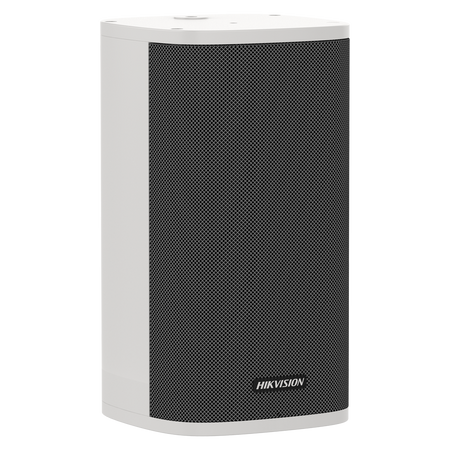

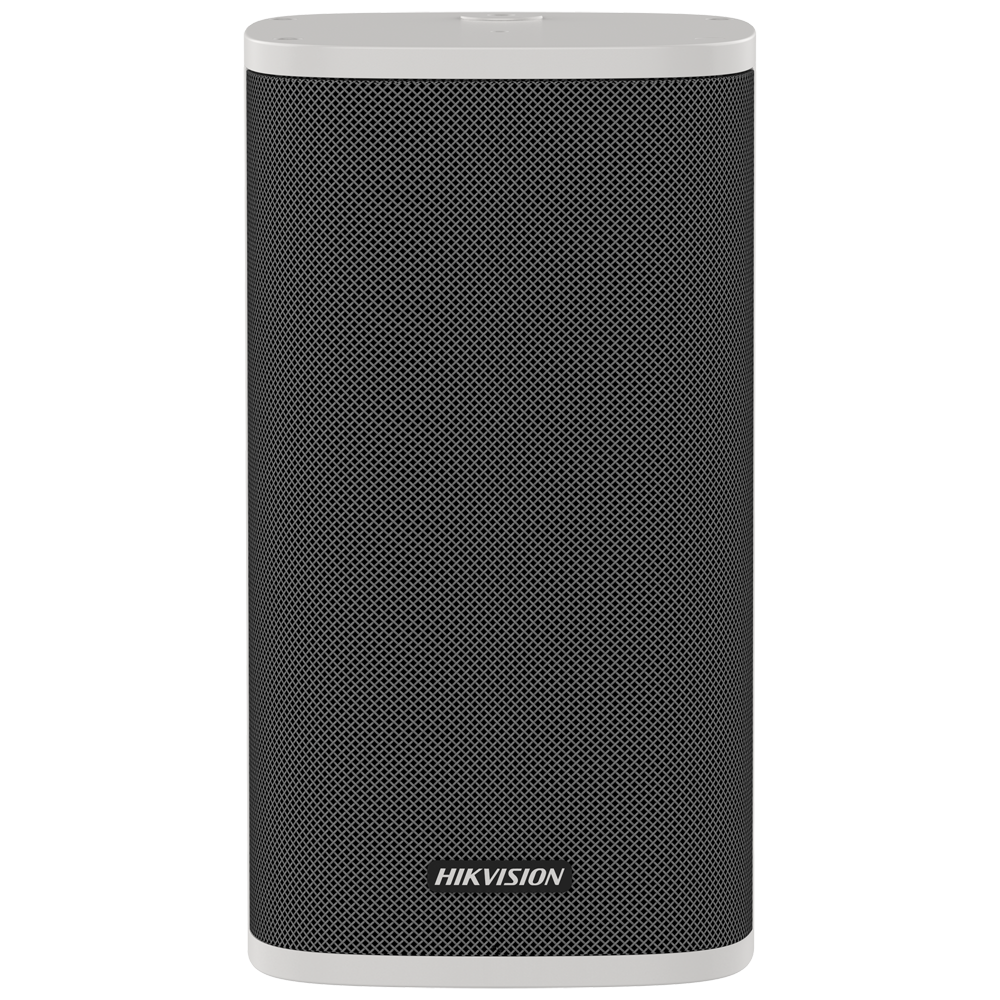

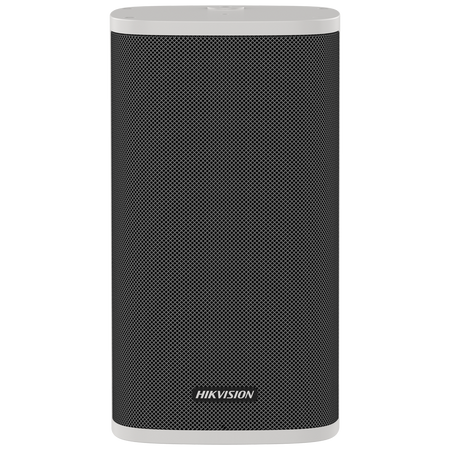

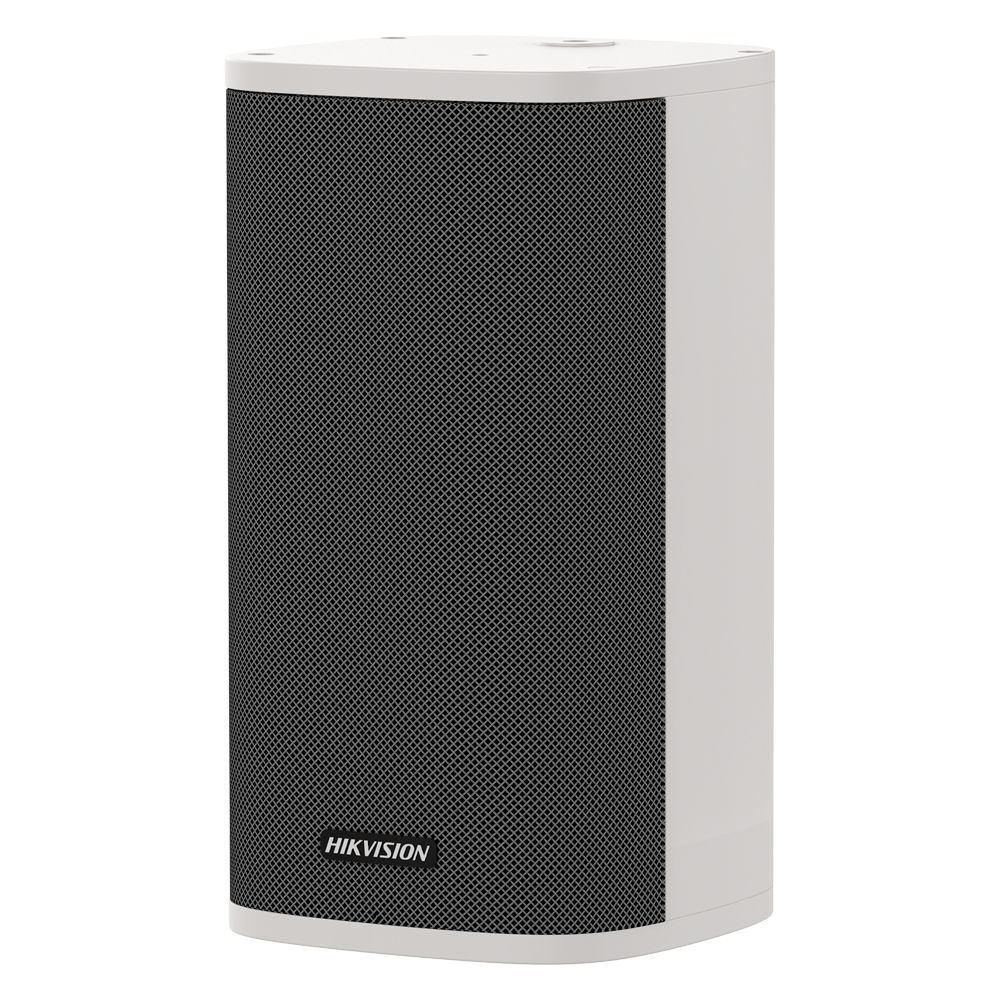

Hikvision IP Digital Speaker - Surface-mounted
Hikvision IP Digital Speaker - Surface-mounted
Regular price
€527,34
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
IP Digital Speaker - Surface - Power (8 Ω): 30 W - Sensitivity 91 dB - IP66
📋 SPECIFICATIONS:
• Quantity: 2
• Type: Electret
• Frequency response: 100 Hz ~ 20 kHz
• Sensitivity: -42 dBV/Pa
• Sampling rate: 48 kHz
• Quantization bits: 16 bit
• Rated power: 30 W
• Impedance: 8 Ω
• SPL (max.): 97.5 dB
• Sensitivity: 91 dB (1 W @ 1 m)
• Signal-to-noise ratio (SNR): 85 dB
• Frequency response: 100 Hz - 20 kHz
• Speakers: 2x 5.25" (low frequencies); 1 x 1" (high frequencies)
• Coverage angle: Horizontal: 170 º; Vertical: 190 º
• Audio algorithms: AEC, AGC, ANS, DRC
• Audio transmission speed: G.711ulaw (64 Kbps) / G.711alaw (64 Kbps) / MP3 (128 Kbps); Sampling rate: 16 bit
• Audio format: MP3, WAV
• NTP synchronization: Supported
• Broadcast: Regular, direct, and emergency
• Two-way audio: Supported
• Text-to-speech languages: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazilian), Korean, French
• Network protocols: IPv4, HTTP, HTTPS, SIP, SSL/TLS, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
• Interface protocol (API): ISAPI, ISUP, SIP, RTP, ONVIF
• Client: Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone
• Communication method: Compatible with wired network communication
• Network: 1x RJ45 (10 / 100 M)
• Internal storage: EMMC memory (4 GB); Available space for audio files is 1 GB
• API: ISAPI, ISUP, SIP, ONVIF
• Alarm: 2x Alarm
• Audio: 1x Line IN (Phoenix)
• LED indicator: Solid green light: normal operation; Flashing green light: communication in progress; Solid red light: startup or disconnected from network; Flashing red light: updating
• Reset: Supported
• Power supply: 24 V DC @ 1.5 A
• Material: Metal
• Operating conditions: Temperature: -40 ~ 60 °C; Humidity: < 90 % (non-condensing)
• Color: White
• Dimensions: 265 (W) x 560 (H) × 250 (D) mm
• Weight: 5.14 kg
• Protection: IP66 (IEC 60529-2013)
• EMC: CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, IT 61000-3-3:2013+A1:2019+A2:2021, IT 55035:2017+A11:2020; RCM: AS/NZS; CISPR 32: 2015; IC: ICES-003: Issue 7
• Safety: CB: IEC 62368-1:2014; CE-LVD: EN 62368-1:2014/A11:2017
• Environmental: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
📦 INCLUDED:
• Speaker• Adapter• Bracket• Screws• Mounting wrench
| Quantity | 2 |
|---|---|
| Type | Electret |
| Frequency response | 100 Hz ~ 20 kHz |
| Sensitivity | -42 dBV/Pa |
| Sampling rate | 48 kHz |
| Quantization bit | 16 bit |
| Rated power | 30 W |
| Impedance | 8 Ω |
| SPL (max.) | 97.5 dB |
| Sensitivity | 91 dB (1 W @ 1 m) |
| Signal-to-noise ratio (SNR) | 85 dB |
| Frequency response | 100 Hz - 20 kHz |
| Speakers | 2x 5.25" (low frequencies) 1 x 1" (high frequencies) |
| Coverage angle | Horizontal: 170º Vertical: 190º |
| Audio algorithms | AEC, AGC, ANS, DRC |
| Audio bit rate | G.711ulaw (64 Kbps) / G.711alaw (64 Kbps) / MP3 (128 Kbps) Sampling rate: 16 bit |
| Audio format | MP3, WAV |
| NTP synchronization | Supported |
| Broadcast | Scheduled, direct, and emergency |
| Two-way audio | Supported |
| Text-to-speech languages | English, Russian, Spanish, Japanese, Thai, Portuguese (Brazilian), Korean, French |
| Network protocols | IPv4, HTTP, HTTPS, SIP, SSL/TLS, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH |
| Interface protocol (API) | ISAPI, ISUP, SIP, RTP, ONVIF |
| Client | Hik-Connect, iVMS-4200, HikCentral Professional, Hik-Partner Pro, NVR, Milestone |
| Communication method | Compatible with wired network communication |
| Network | 1x RJ45 (10 / 100 M) |
| Internal storage | EMMC memory (4 GB) Available space for audio files is 1 GB |
| API | ISAPI, ISUP, SIP, ONVIF |
| Alarm | 2x Alarm |
| Audio | 1x Line IN (Phoenix) |
| LED indicator | Solid green light: normal operation Flashing green light: communication in progress Solid red light: startup or network disconnection Flashing red light: updating |
| Reset | Supported |
| Power supply | 24 V DC @ 1.5 A |
| Material | Metal |
| Working conditions | Temperature: -40 ~ 60 °C Humidity: < 90% (non-condensing) |
| Color | White |
| Dimensions | 265 (W) x 560 (H) × 250 (D) mm |
| Weight | 5.14 kg |
| Protection | IP66 (IEC 60529-2013) |
| EMC | CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7 |
| Safety | CB: IEC 62368-1:2014 CE-LVD: EN 62368-1:2014/A11:2017 |
| Environmental | CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006 |
