HIKVISION

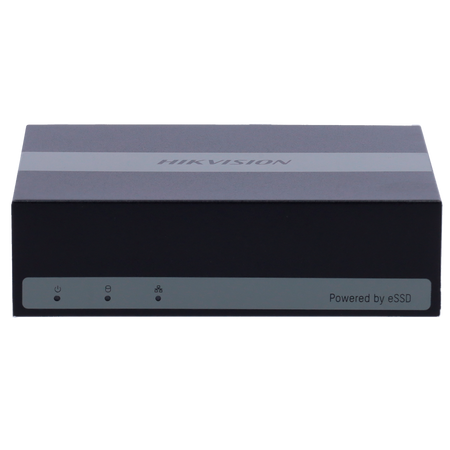

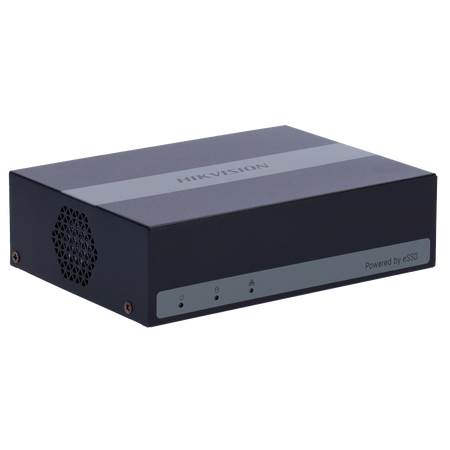

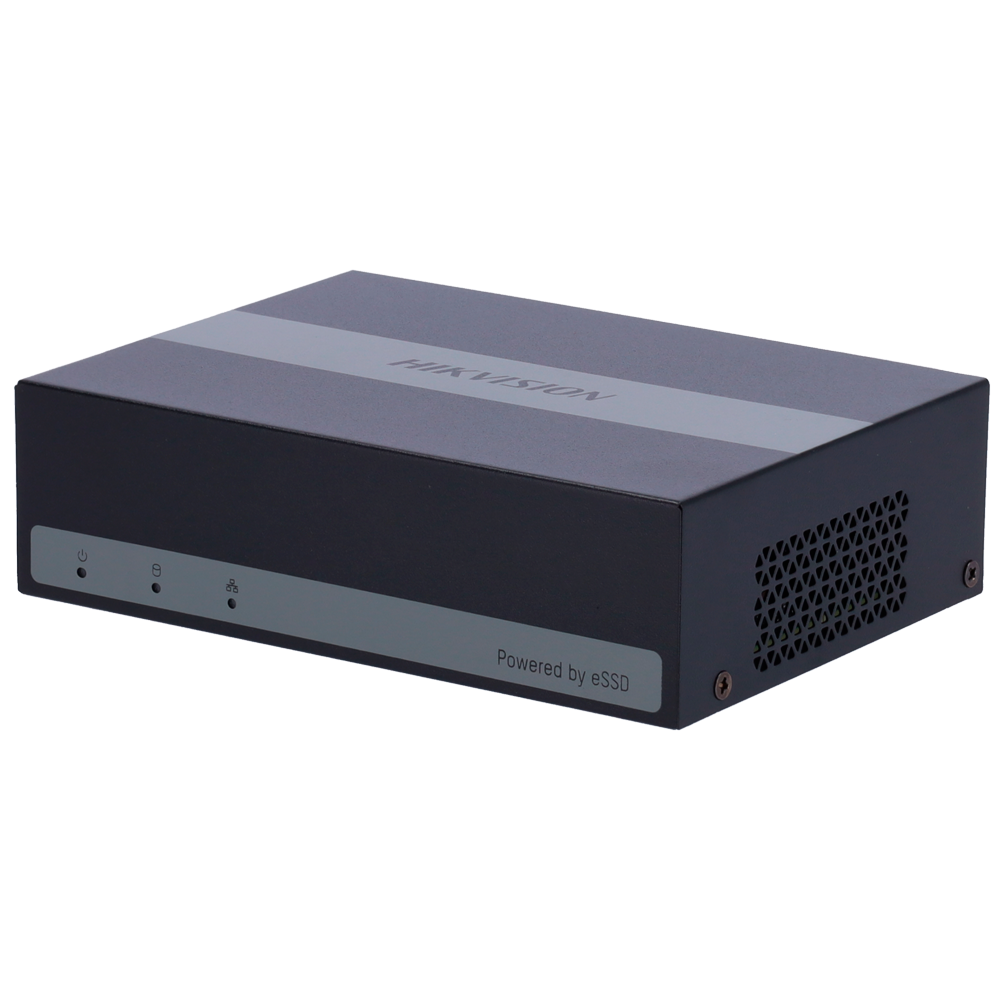

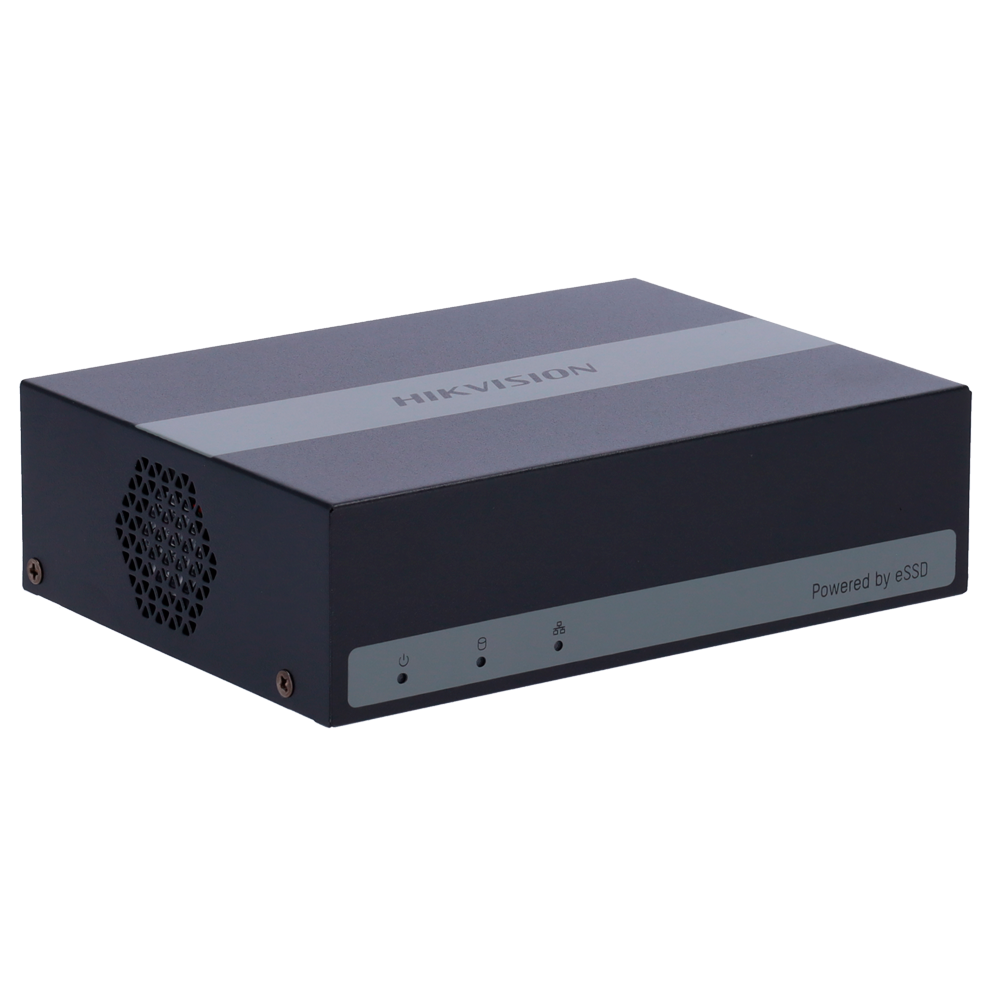

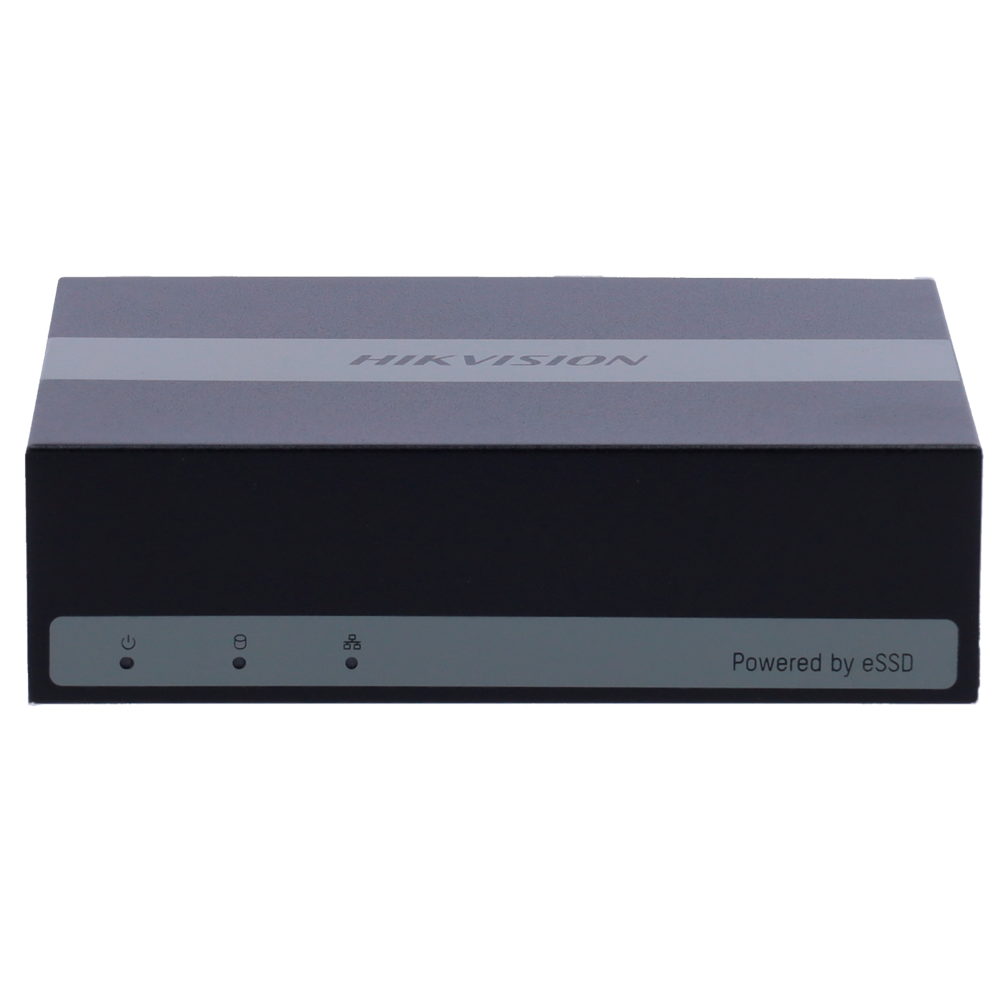

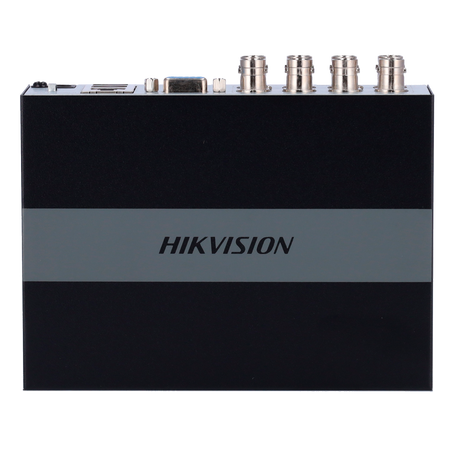

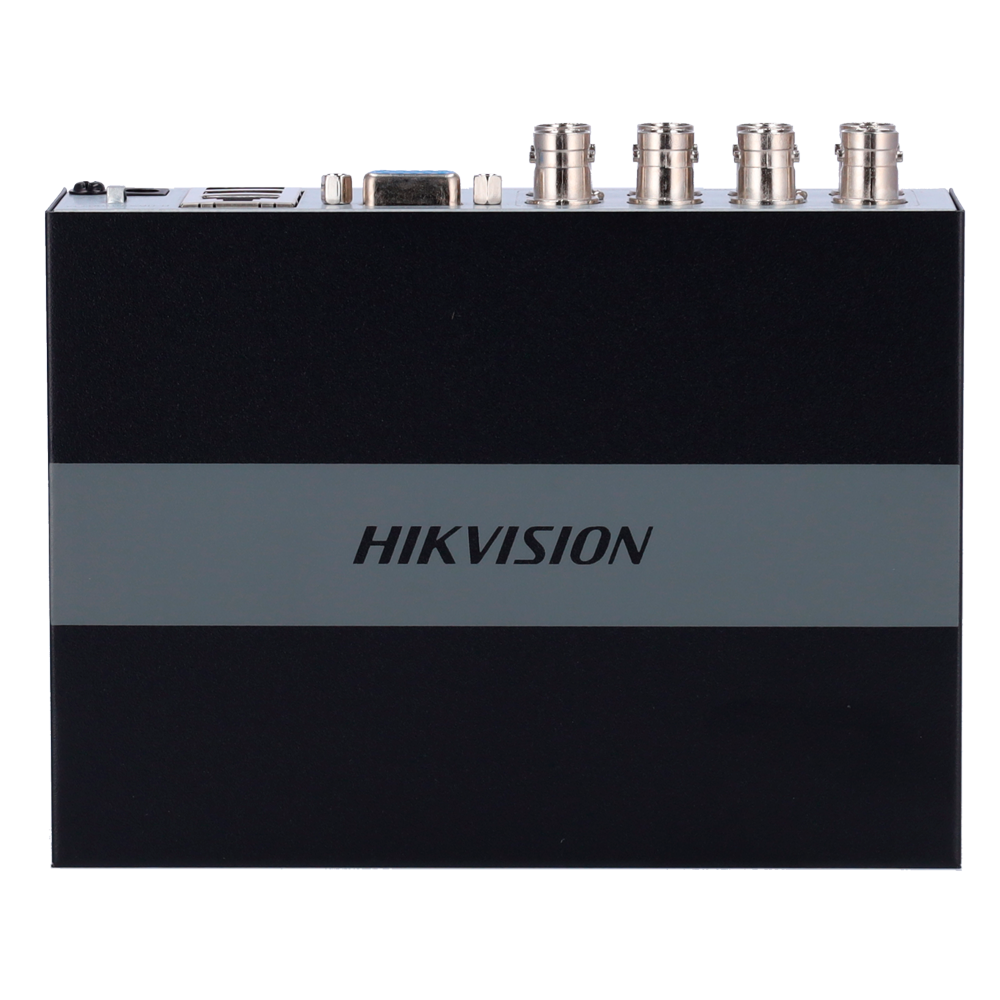

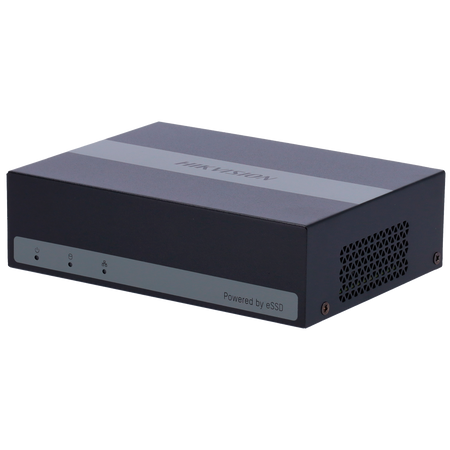

Hikvision 5-in-1 DVR 4 CH HDTVI / HDCVI / AHD / CVBS

SKU: DS-E04HQHI-B
(0)
In stock
Usually shipped within 24 hours
€132,03 Final price
-19% €163,52 €132,03 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Hikvision 5-in-1 DVR - 4 CH HDTVI / HDCVI / AHD / CVBS - 1 IP Channel 6 MPx - Maximum input resolution 5 MPx - Integrated 512 GB eSSD | Low power consumption - Coaxial audio | Motion Detection 2.0

📋 SPECIFICATIONS:
• Brand: HIKVISION
• Range: Value
• Video format: HDTVI / HDCVI / AHD / CVBS / IP
• Video inputs: 4 BNC channels (HDTVI / HDCVI / AHD / CVBS)
• Hybrid configuration: 1 additional IP channel up to 6 MPx
• Available bandwidth: 72 Mbps
• Video output: 1 Full HD HDMI and 1 VGA, simultaneous;
• Display resolution: HDMI: 1920x1080, 1280x1024, 1280x720 / 60 Hz; VGA: 1920x1080, 1280x1024, 1280x720 / 60 Hz
• Audio inputs: Audio via coaxial on all BNC input channels
• Audio outputs: Audio output via HDMI
• Audio Bit Rate: 64 Kbps
• Audio compression: G.711u
• Video compression: Analog channels: H.265 Pro / H.265; IP channels: H.265 Pro / H.265
• Recording resolution: 4MPx Lite/ 1080p/ 1080p Lite/ 720p/ WD1/ 4CIF/ CIF
• Input resolution: HDTVI: 5MPx (20 fps), 3K (20 fps), 4MPx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps); HDCVI: 4MPx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps); AHD: 4MPx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps); CVBS: PAL/NTSC
• Main stream: When 1080p Lite mode is disabled:; For 4 MPx stream:; 4MPx Lite (15 fps), 1080p/720p/WD1/4CIF (25 fps (P), 30 fps (N)); For 1080p stream:; 1080p/720p (15 fps), WD1/4CIF (25 fps (P), 30 fps (N)); For 720p stream:; 720p/WD1/4CIF(25 fps (P), 30 fps (N)); When 1080p Lite mode is enabled:; 4MPx Lite (15 fps), 1080p Lite/720p Lite/WD1/4CIF (25 fps (P), 30 fps (N))
• Sub-stream: WD1/4CIF (12 fps), CIF (25 fps (P), 30 fps (N))
• Video Bit Rate: Video bitrate adaptable based on scene type
• Multifunction: Pentaplex: Live, recording, playback, backup and remote access
• Alarms: Not available
• Motion detection: Motion Detection 2.0 with human and vehicle classification (applied to motion detection).; Available on all analog channels.
• Recording method: Manual, scheduled, motion detection
• Internal memory: 1 x 512 GB eSSD included (480 GB available)

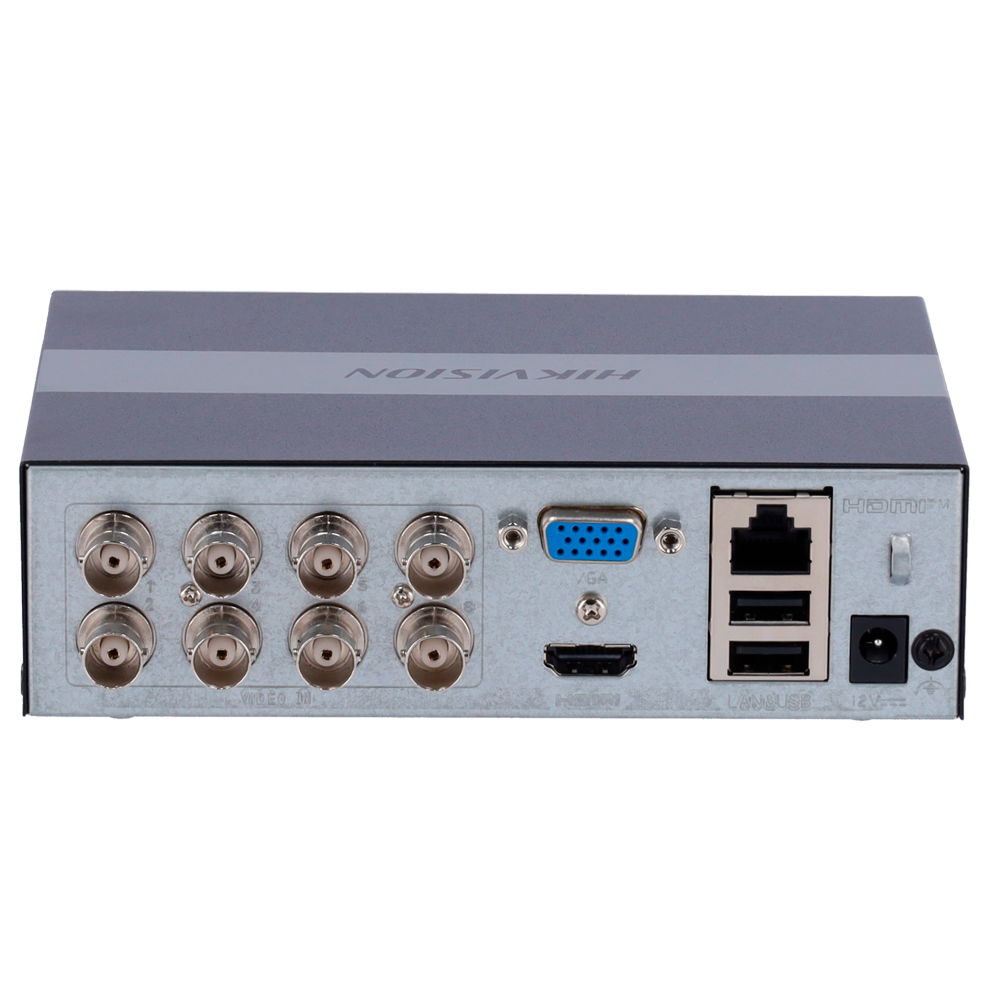

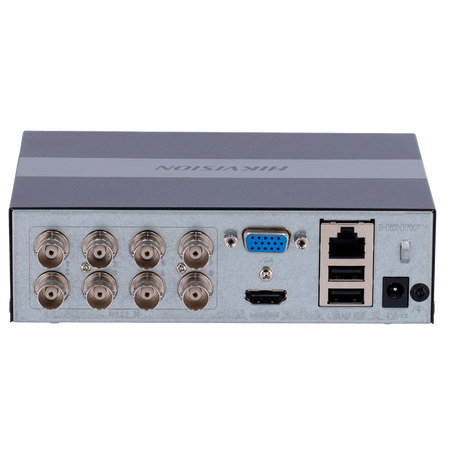

• Communication: 2 x USB 2.0 (rear) / 1 x RJ45 (Ethernet)
• Remote connection: 32
• Remote access: Web browser, Hik-Connect smartphone App, iVMS-4200 PC software and Hik-Central
• Power supply: DC 12 V, 1 A, ≤ 5.4 W (with eSSD)
• Operating temperature: -10° ~ +45° C
• Dimensions / Weight: 46 (H) mm x 151 (W) mm x 121 (D) mm / ≤ 0.5 Kg (with eSSD)

📦 INCLUDED:
• Hikvision 5-in-1 video recorder • Mouse • 12 V AC/DC adapter • CD with manual and software
Range Value
Video format HDTVI / HDCVI / AHD / CVBS / IP
Video inputs 4 BNC channels (HDTVI / HDCVI / AHD / CVBS)
Hybrid configuration 1 additional IP channel up to 6 MPx
Available bandwidth 72 Mbps
Video output 1 HDMI Full HD and 1 VGA, simultaneous;
Display resolution HDMI: 1920x1080, 1280x1024, 1280x720 / 60 Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60 Hz
Audio inputs Audio via coaxial on all BNC input channels
Audio outputs Audio output via HDMI
Audio Bit Rate 64 Kbps
Audio compression G.711u
Video compression Analog channels: H.265 Pro / H.265 IP channels: H.265 Pro / H.265
Recording resolution 4MPx Lite/ 1080p/ 1080p Lite/ 720p/ WD1/ 4CIF/ CIF
Input resolution HDTVI: 5MPx (20 fps), 3K (20 fps), 4MPx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 4MPx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) AHD: 4MPx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC
Main Stream When 1080p Lite mode is not enabled: For 4 MPx stream: 4MPx Lite (15 fps), 1080p/720p/WD1/4CIF (25 fps (P), 30 fps (N)) For 1080p stream: 1080p/720p (15 fps), WD1/4CIF (25 fps (P), 30 fps (N)) For 720p stream: 720p/WD1/4CIF(25 fps (P), 30 fps (N)) When 1080p Lite mode is enabled: 4MPx Lite (15 fps), 1080p Lite/720p Lite/WD1/4CIF (25 fps (P), 30 fps (N))
Sub-stream WD1/4CIF (12 fps), CIF (25 fps (P), 30 fps (N))
Video Bit Rate Adaptive video bitrate based on scene type
Multifunction Pentaplex: Live, recording, playback, backup, and remote access
Alarms Not available
Motion detection Motion detection 2.0 with human and vehicle classification (applied to motion detection). Available on all analog channels.
Recording method Manual, scheduled, motion detection
Internal memory 1 eSSD included, 512 GB (480 GB available)
Communication 2 x USB 2.0 (rear) / 1 x RJ45 (Ethernet)
Remote connection 32
Remote access Web Browser, Hik-Connect Smartphone App, iVMS-4200 and Hik-Central PC Software
Power supply DC 12 V, 1 A, ≤ 5.4 W (with eSSD)
Operating temperature -10° ~ +45° C
Dimensions / Weight 46 (H) mm x 151 (W) mm x 121 (D) mm / ≤ 0.5 Kg (with eSSD)
