DS-2TD2637T-7/QY
DS-2TD2637T-7/QY

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

HIKVISION

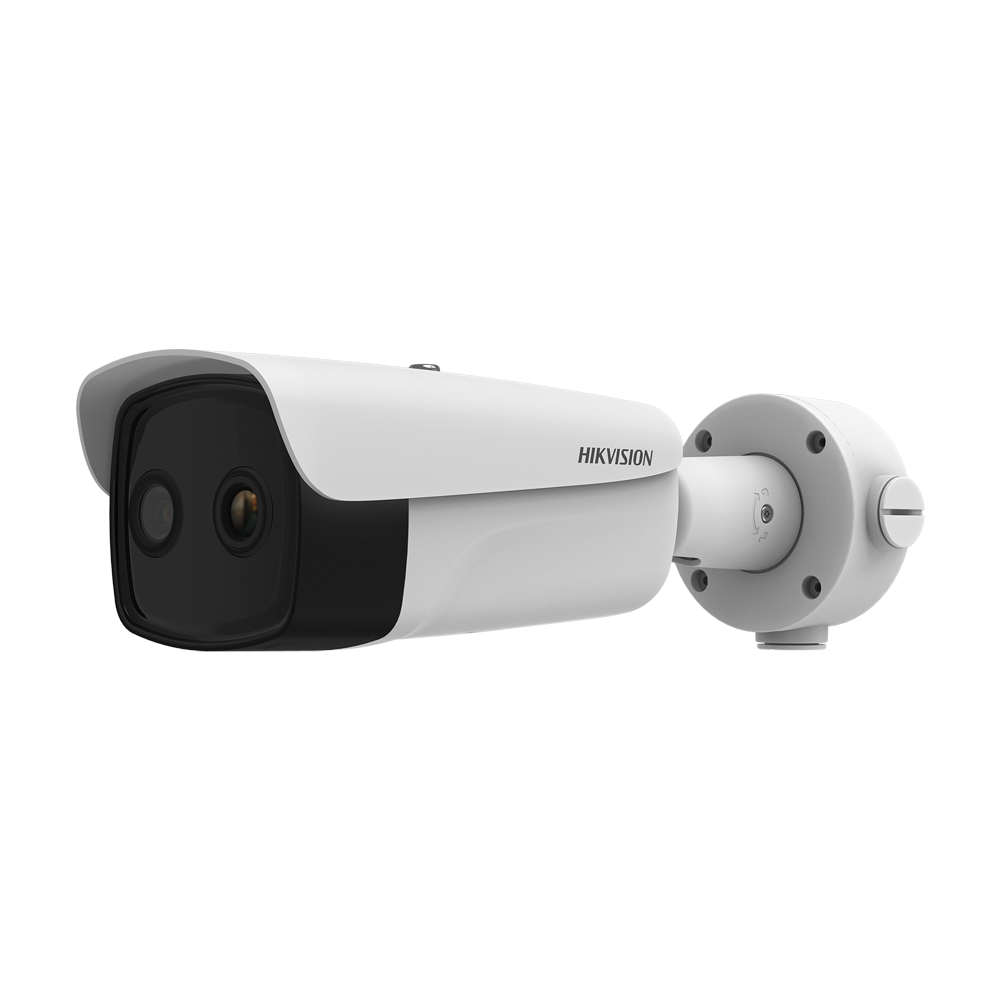

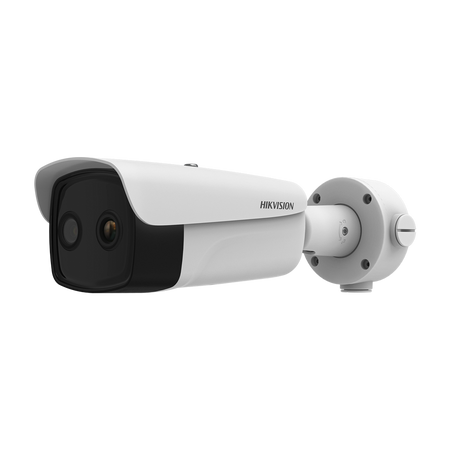

Hikvision PRO Series Dual IP Thermal Camera

SKU: DS-2TD2637T-7/QY
(0)
In stock
Usually shipped within 24 hours
€7.982,61 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Hikvision PRO Series Dual IP Thermal Camera - 384x288 VOx thermal sensor | 6.5mm lens - 1/2.7” 4 Mpx optical sensor | 4mm lens - Thermal sensitivity ≤ 35mK - Temperature measurement range -20~550ºC / ±2ºC - IP67 | IK10 | Anti-corrosion | 40m IR range

📋 SPECIFICATIONS:
• Brand: Hikvision
• Series: PRO
• Thermal sensor: Vanadium Oxide
• Thermal sensor resolution: 384x288
• Optical sensor: 1/2.7” Progressive Scan CMOS
• Optical sensor resolution: 4 Megapixel (2688x1520)
• Main Stream frame rate: Thermal: 25 fps (1280×720, 704×576, 352×288, 384×288); Optical: 25 fps (2688×1520, 1920×1080, 1280×720)
• Sub Stream frame rate: Thermal: 25 fps (704×576, 352×288, 384×288); Optical: 25 fps (704x576, 352x288)
• Compression: H.265 / H.264 / MJPEG
• Lens: 6.5 mm (Therm) / 4 mm (Opt)
• Minimum illumination: 0.0089 Lux@(F1.6, AGC ON); 0 lux with 40m IR range
• DRI: Human: 191m (D), 48m (R), 24m (I); Vehicle: 586m (D), 147m (R), 73m (I)
• VCA Range: Human: 45.5m; Vehicle: 136.5m; Temperature measurement (Object 0.2 x 0.2m): 15.2m; Temperature measurement (Object 0.5 x 0.5m): 38m; Fire detection (Object 0.2 x 0.2m): 65m; Smoke detection (Object 0.5 x 0.5m): 12m; Smoking detection: 6.5m
• Field of view: Thermal: 60° (H), 44.1° (V); Optical: 84.4° (H), 51.1° (V)
• Thermal sensitivity: ≤ 35 mK
• Thermal measurement range: -20 ~550ºC / ±2ºC
• Spectral range: 8~14 μm
• Pixel pitch: 17 μm
• VCA: Up to 8 VCA rules (line crossing, intrusion, region entrance and exit)
• Temperature rules: Up to 21 rules (10 points, 10 regions, and 1 line)
• Audio: 1 input / 1 output line level 600 ohm
• Audio compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
• Alarms: 2 inputs / 2 outputs
• Internal memory: MicroSD card slot up to 512 GB
• Network interface: Ethernet 10/100 BaseT
• Communication: 1 x RS-485 (half duplex)
• Remote access: Web browser, Hik-Connect smartphone app, iVMS-4200 and Hik-Central PC software
• Interoperability: ONVIF, ISAPI
• Power: AC 24 V, 500~800 mA, 9.5 W max.; DC 12 V, 630~1060 mA, 9 W max.; PoE IEEE802.3af
• Operating temp: -40º C ~ +65º C
• Protection rating: Waterproof IP67, vandal-proof IK10, 4000V surge protection, NEMA 4X anti-corrosion
• Dimensions: 118.1 mm (W) x 119.1 (H) x 376.1 (D) mm
• Base diameter: Ø base 113 mm / Ø between screws 88.5 mm / 4 screws
• Weight: 1.82 kg

📦 INCLUDED:
• Hikvision PRO Series Dual IP Thermal Camera• Installation material• User manual• DS-1260ZJ-AC junction box included
Range PRO
Thermal sensor Vanadium Oxide
Thermal sensor resolution 384x288
Optical sensor 1/2.7” Progressive Scan CMOS
Optical sensor resolution 4 Megapixel (2688x1520)
Main Stream frame rate Thermal: 25 fps (1280×720, 704×576, 352×288, 384×288) Optical: 25 fps (2688×1520, 1920×1080, 1280×720)
Sub Stream frame rate Thermal: 25 fps (704×576, 352×288, 384×288) Optical: 25 fps (704x576, 352x288)
Compression H.265 / H.264 / MJPEG
Lens 6.5 mm (Therm) / 4 mm (Opt)
Minimum illumination 0.0089 Lux@(F1.6, AGC ON) 0 lux with IR range 40 m
DRI Person: 191 m (D), 48 m (R), 24 m (I) vehicle: 586 m (D), 147 m (R), 73 m (I)
VCA range Person: 45.5 m vehicle: 136.5 m Temperature measurement (Object 0.2 x 0.2m): 15.2m Temperature measurement (Object 0.5 x 0.5m): 38m Fire detection (Object 0.2 x 0.2m): 65m Smoke detection (Object 0.5m x 0.5m): 12m Smoking detection: 6.5m
Field of view Thermal: 60° (H), 44.1° (V) Optical: 84.4° (H), 51.1° (V)
Thermal sensitivity ≤ 35 mK
Thermal measurement range -20 ~550ºC / ±2ºC
Spectral range 8~14 μm
Pixel pitch 17 μm
VCA Up to 8 VCA rules (line crossing, intrusion, area entrance and exit)
Temperature rules Up to 21 rules (10 points, 10 areas and 1 line)
Audio 1 input / 1 output line level 600 ohm
Audio compression G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Alarms 2 inputs / 2 outputs
Internal memory MicroSD card slot up to 512 GB
Network interface Ethernet 10/100 BaseT
Communication 1 x RS-485 (half duplex)
Remote access Web Browser, Hik-Connect Smartphone App, iVMS-4200 and Hik-Central PC Software
Interoperability ONVIF, ISAPI
Power supply AC 24 V, 500~800 mA, 9.5 W max. DC 12 V, 630~1060 mA, 9 W max. PoE IEEE802.3af
Operating temp. -40º C ~ +65º C
Protection level Waterproof IP67, vandal-proof IK10, 4000V surge protection, Anti-corrosion NEMA 4X
Dimensions 118.1 mm (W) x 119.1 (H) x 376.1 (D) mm
Base diameter Ø base 113 mm / Ø between screws 88.5 mm / 4 screws
Weight 1.82 kg
