Hikvision Category 5E UTP cable
Regular price
€156,79
Final price
Regular price
-2%
€160,00
Sale price
€156,79
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

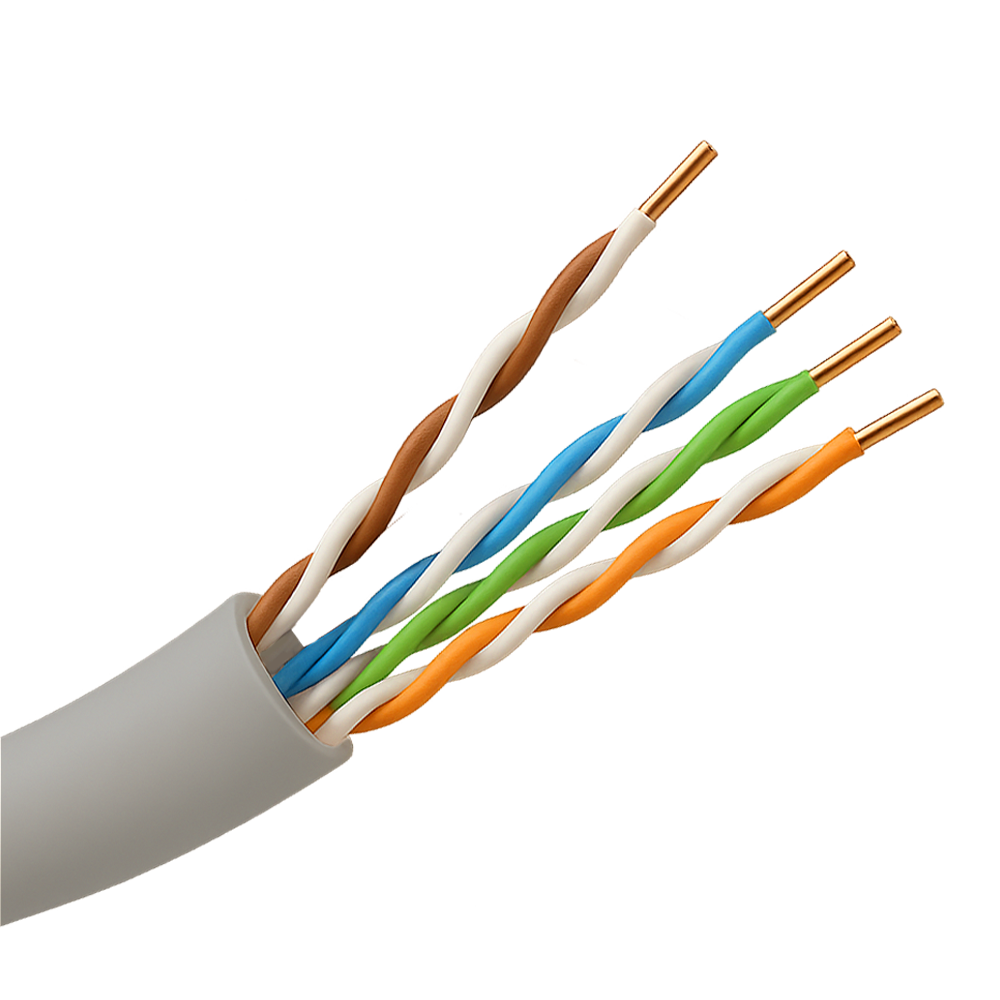

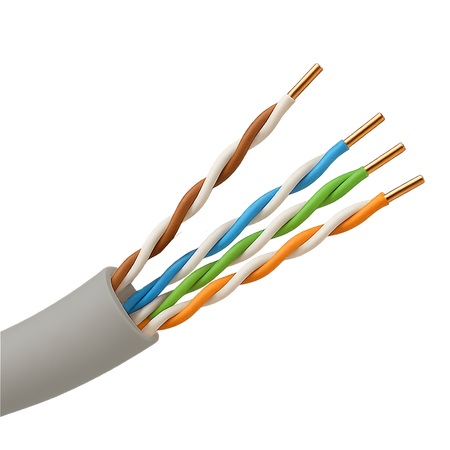

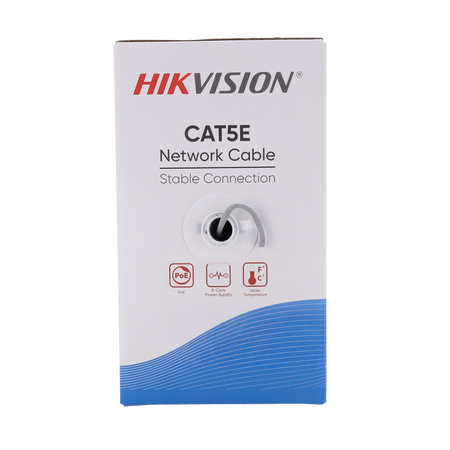

Hikvision Category 5E UTP Cable - OFC Conductor | 99.95% copper - HDPE insulation - 305m length - Eca/UL CM certified - Gray color
📋 SPECIFICATIONS:
• Brand: Hikvision
• Shielding: UTP
• Cable Category: Category 5E
• Length: 305m
• Conductor: OFC (Oxygen Free Conductor), 99.95% copper purity /24AWG
• Conductor diameter: 0.5mm
• Insulation: Material: HDPE
• Sheath color: Gray
• Installation: Indoor
• CPR Certificate: Eca/UL CM
• Operating temperature: 20℃～75℃

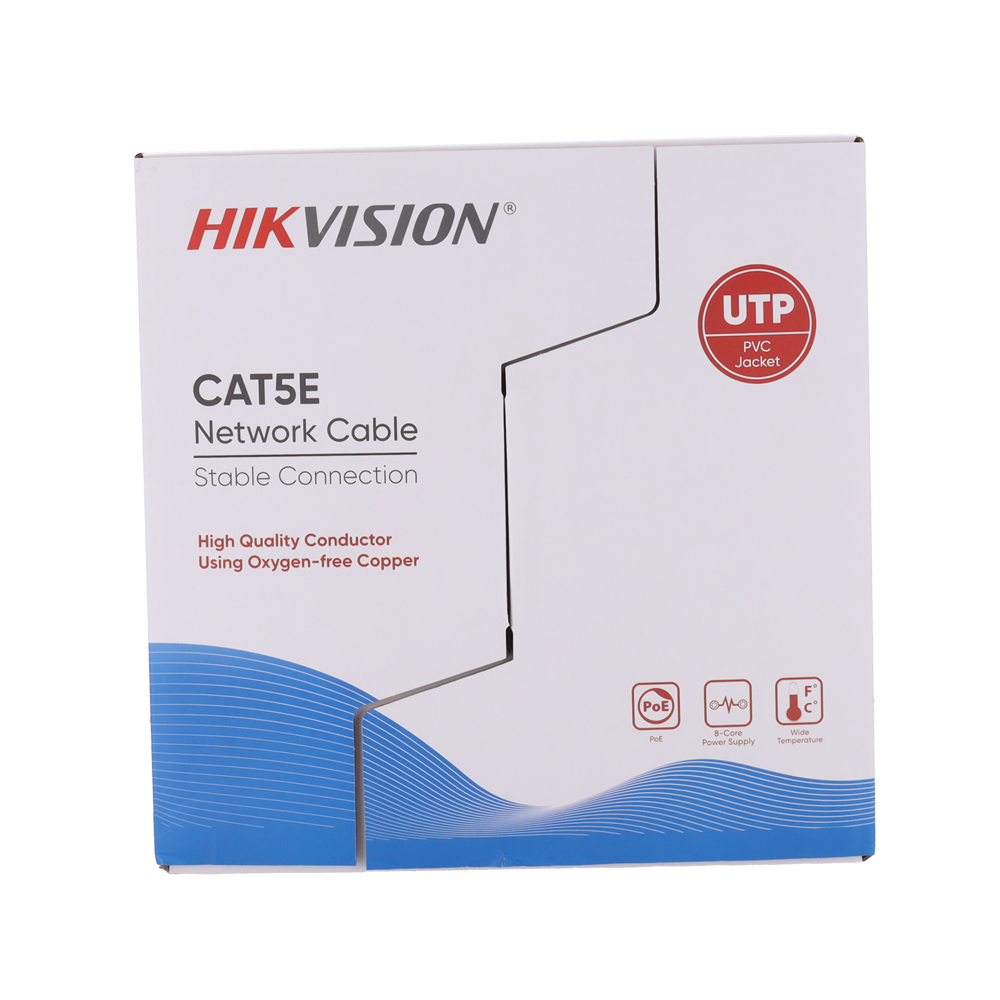

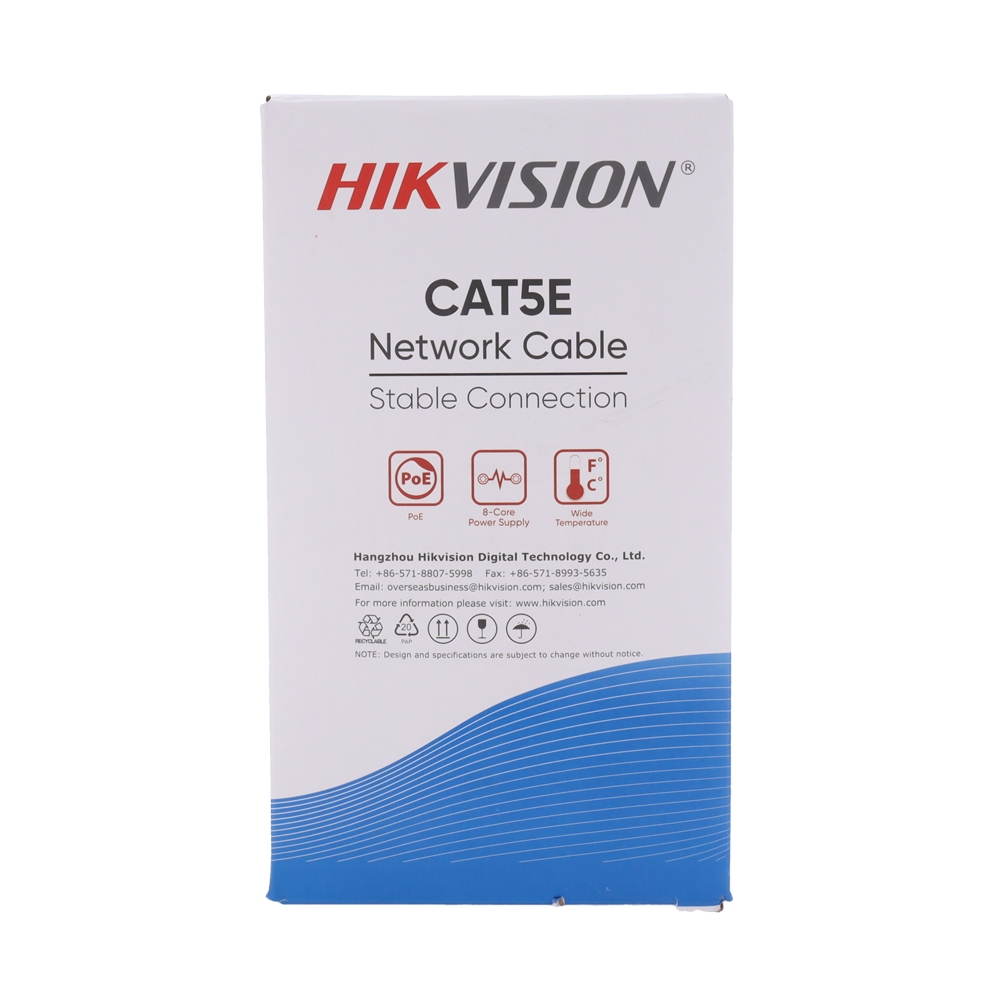

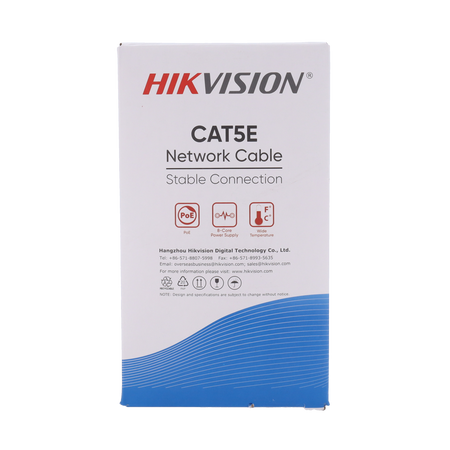

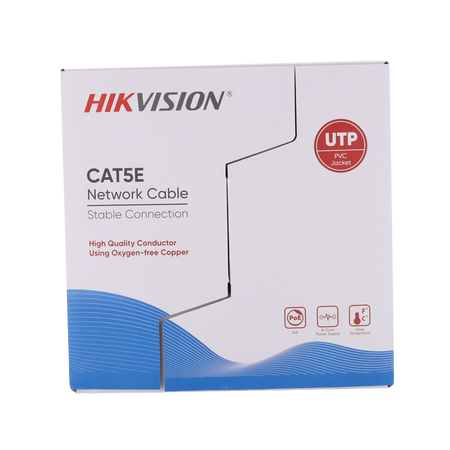

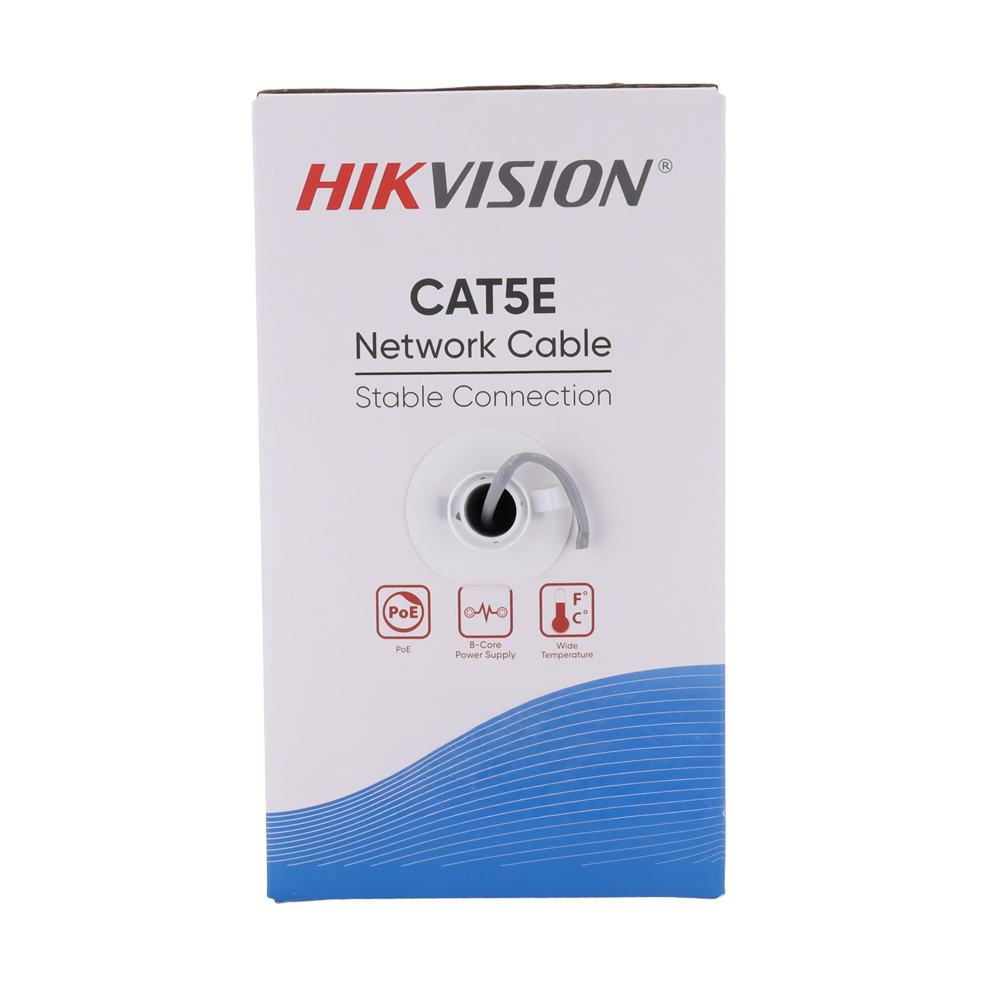

• Packaging: Carton box
• Packaging dimensions: 400 x 240 x 400mm
• Jacket: Tensile strength before aging (MPa) ≥13.5 Elongation (%) ≥150; Aging period (°C × h) 100°C×24h×10d; Tensile strength after aging (MPa) ≥12.5 Elongation (%) ≥125; Cold bend (-20±2 °C×4 h) 8 × cable O.D., no visible cracks
• Electrical characteristics (20 °C): 1.0-100.0 MHz Impedance (Ω) 100±15; 1.0-100.0 MHz Phase delay (ns/100 m) ≤45; DC resistance (Ω/100 m) max. 9.5; DC conductor resistance unbalance (%) max. 5.0
📦 INCLUDED:

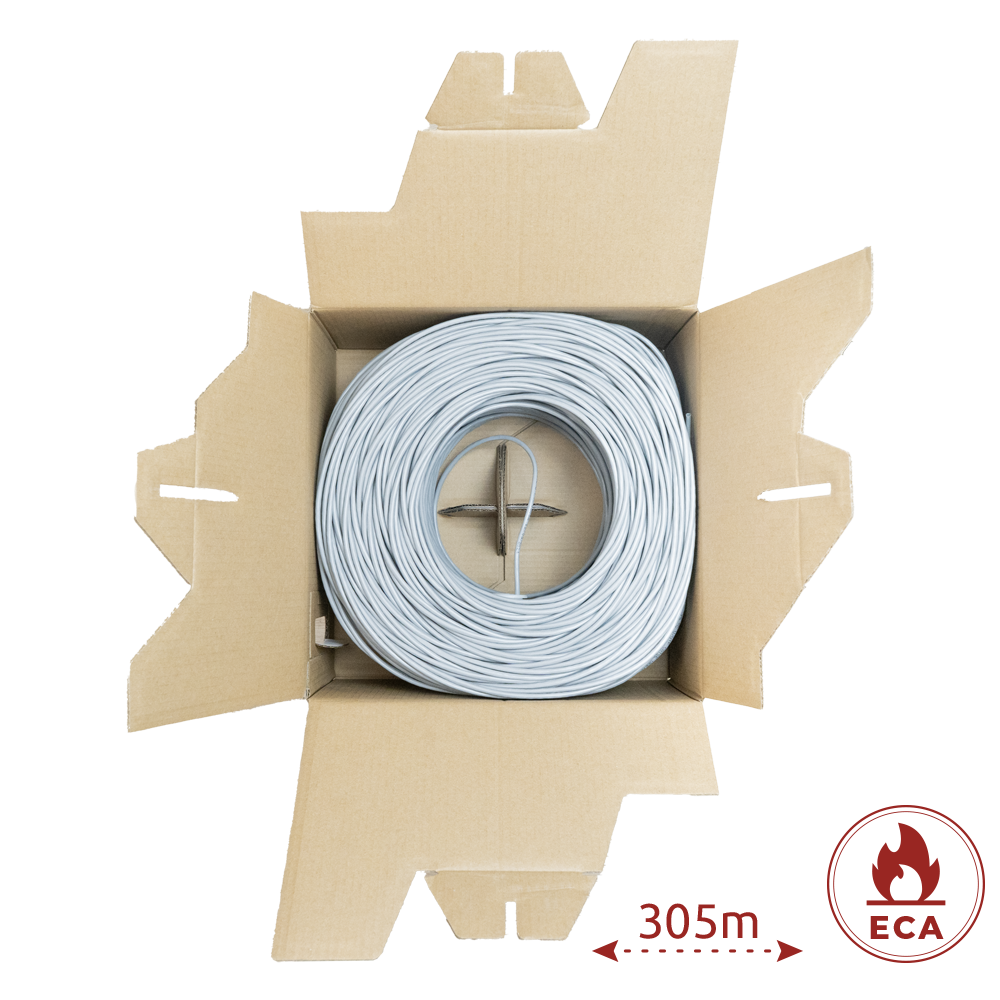

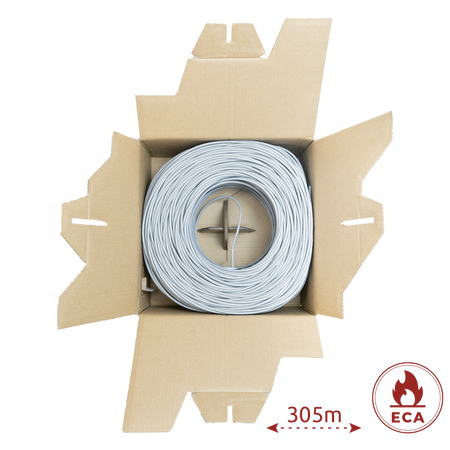

• Cable reel
| Shielding | UTP |
|---|---|
| Cable category | Category 5E |
| Length | 305m |
| Conductor | OFC (Oxygen Free Conductor), 99.95% purity copper / 24AWG |
| Conductor diameter | 0.5mm |
| Insulation | Material: HDPE |
| Jacket color | Gray |
| Installation | Indoor |
| CPR Certificate | Eca/UL CM |
| Operating temperature | 20℃～75℃ |
| Packaging | Carton box |
| Packaging dimensions | 400 x 240 x 400mm |
| Sheath | Tensile strength before aging (MPa) ≥13.5 Elongation (%) ≥150 Aging period (°C × h) 100°C×24h×10d Tensile strength after aging (MPa) ≥12.5 Elongation (%) ≥125 Cold bend (-20±2 °C×4 h) 8 × cable O.D., no visible cracks |
| Electrical characteristics (20 °C) | Impedance 1.0-100.0 MHz (Ω) 100±15 Phase delay 1.0-100.0 MHz (ns/100 m) ≤45 DC resistance (Ω/100 m) max. 9.5 DC conductor resistance unbalance (%) max. 5.0 |
