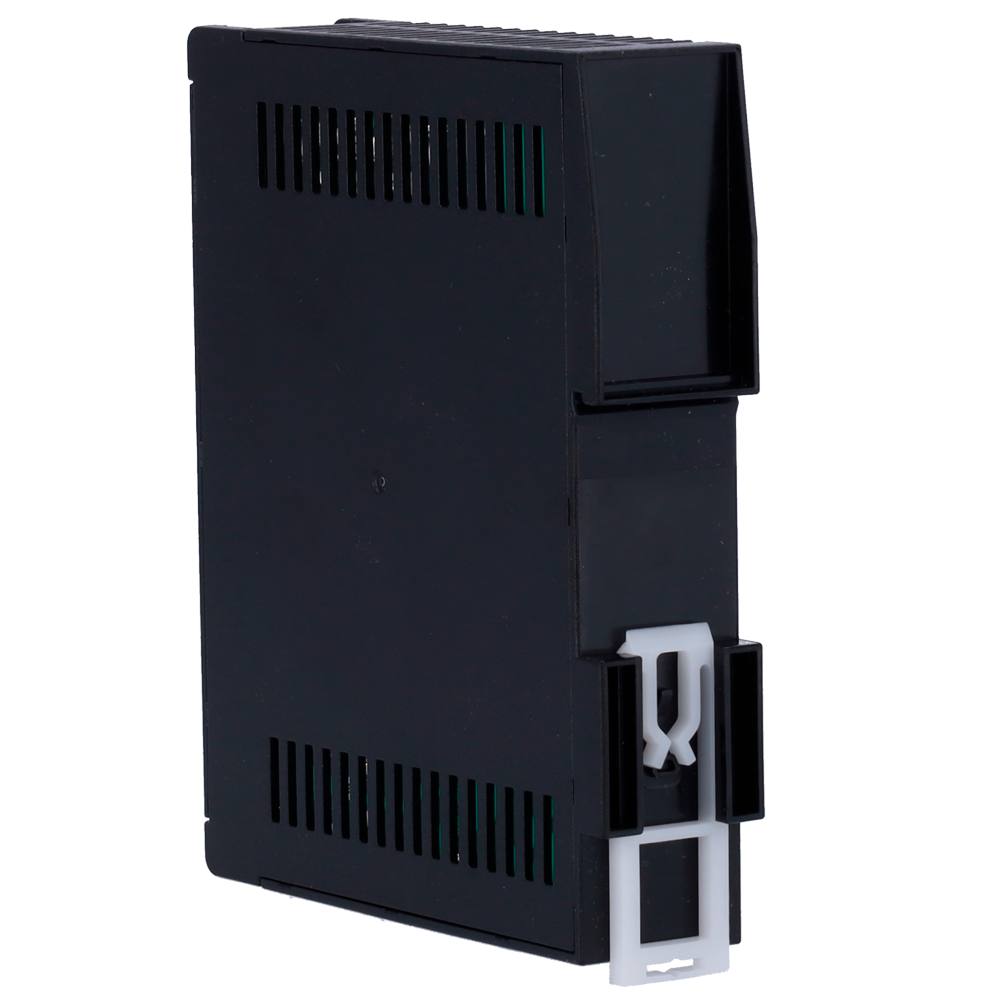

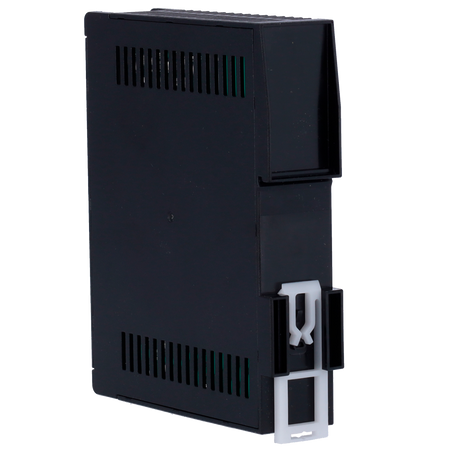

Hikvision switching power supply - 48 V DC / 1.57 A / 75 W output
Hikvision switching power supply - 48 V DC / 1.57 A / 75 W output
Regular price
€43,72
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Switching power supply - DC output 48 V / 1.57 A / 75 W - DIN rail mounting
📋 SPECIFICATIONS:
• Power output: 48V DC
• Output voltage range: 43.2 ~ 52.8V DC
• Input voltage range: 85-264 Vac
• Input frequency: 50/60 Hz
• Output current: 1.57A
• Maximum output power: 75W
• Efficiency at full load: 90%
• Storage temperature: -40 ºC ~ +85 ºC
• Ripple and noise: < 240mVpp @ > -10°C to +70°C; < 480mVpp @ ≤ -10°C to -30°C
• Hold-up time: 16ms @ 115Vac (100% load); 60ms @ 230Vac (100% load)
• Operating humidity: 5 to 95%
• Dimensions: 123.6 x 27 x 102 mm
• Weight: 220 g
• Mounting: DIN rail
• Input wiring: AWG 18-12
• Output wiring: AWG 22-12
📦 INCLUDED:
• Power supply
| Power output | 48V DC |
|---|---|
| Output voltage range | 43.2 ~ 52.8V DC |
| Input voltage range | 85-264 Vac |
| Input frequency | 50/60 Hz |
| Output current | 1.57A |
| Maximum output power | 75W |
| Efficiency at full load | 90% |
| Storage temperature | -40 ºC ~ +85 ºC |
| Ripple and noise | < 240mVpp @ > -10°C to +70°C < 480mVpp @ ≤ -10°C to -30°C |
| Hold-up time | 16ms @ 115Vac (100% load) 60ms @ 230Vac (100% load) |
| Operating humidity | 5 to 95% |
| Dimensions | 123.6 x 27 x 102 mm |
| Weight | 220 g |
| Mounting | DIN rail |
| Input wiring | AWG 18-12 |
| Output wiring | AWG 22-12 |
