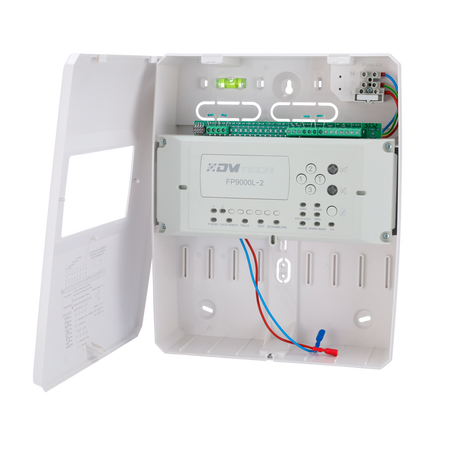

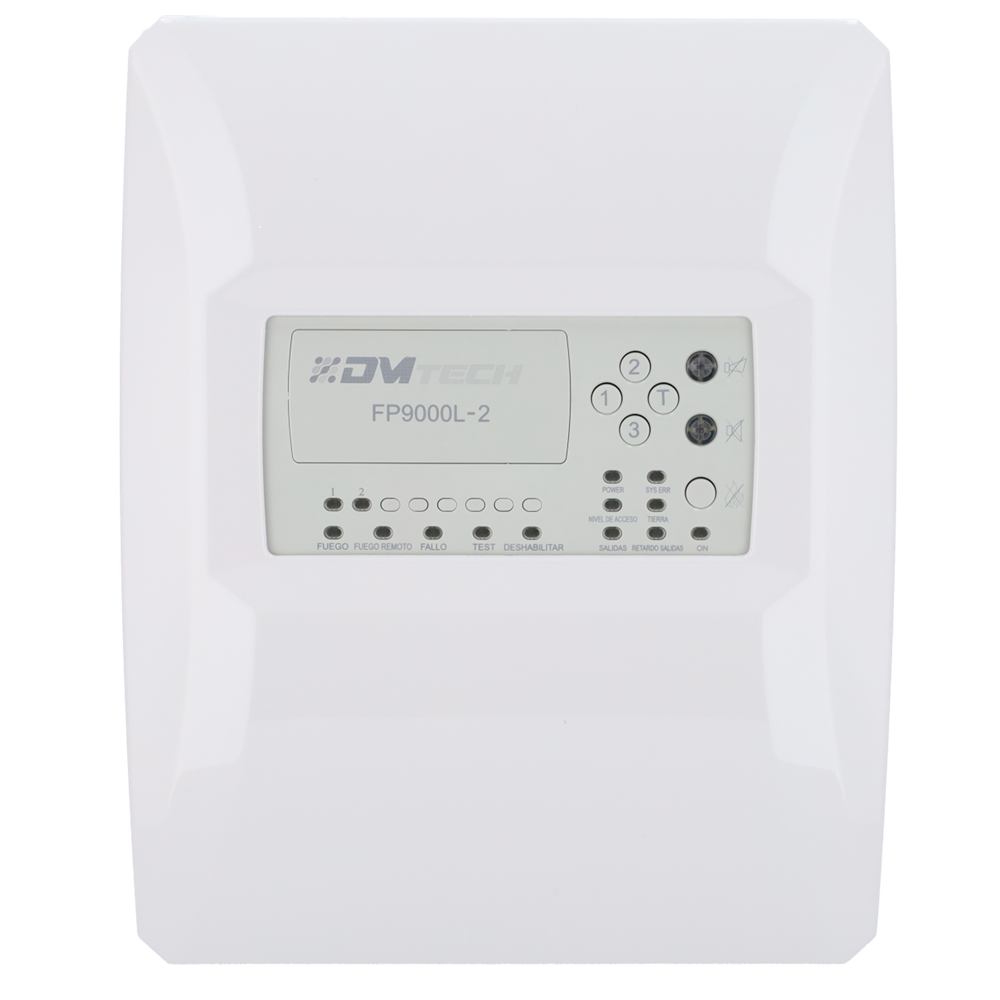

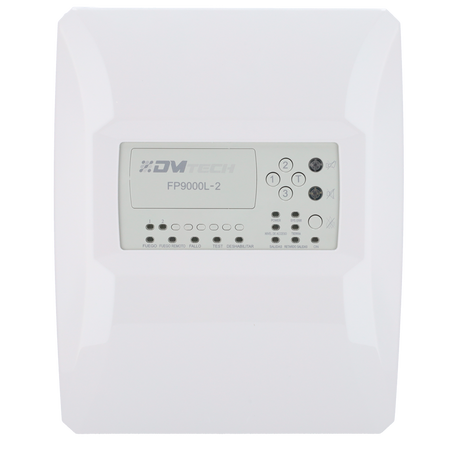

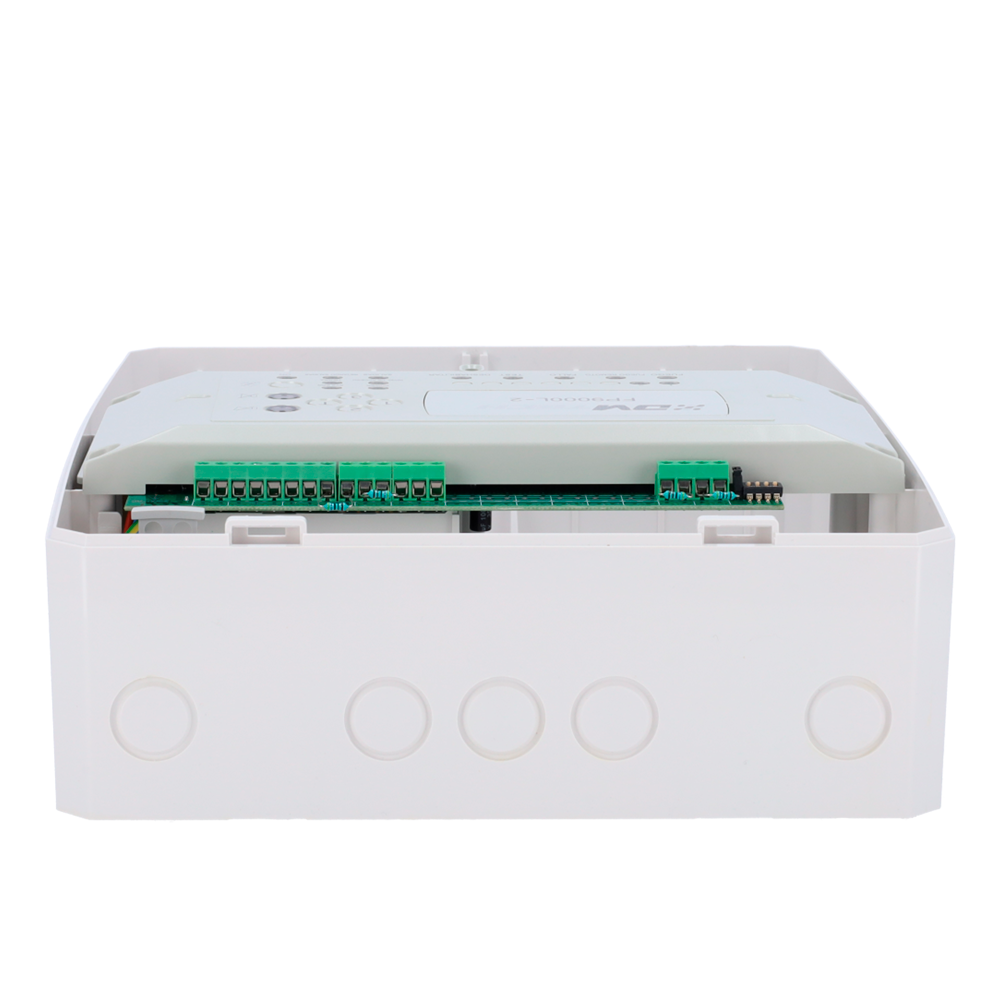

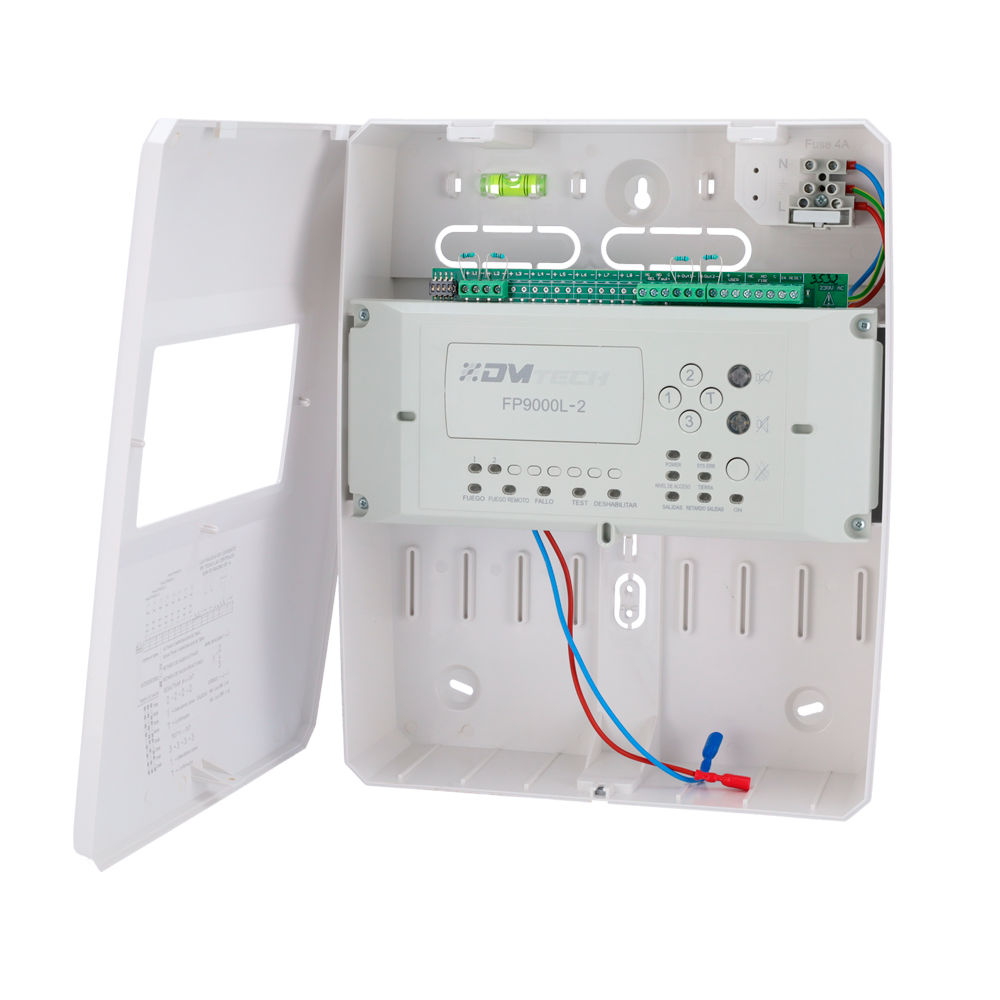

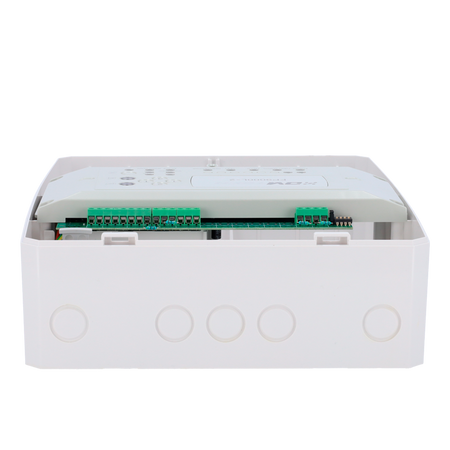

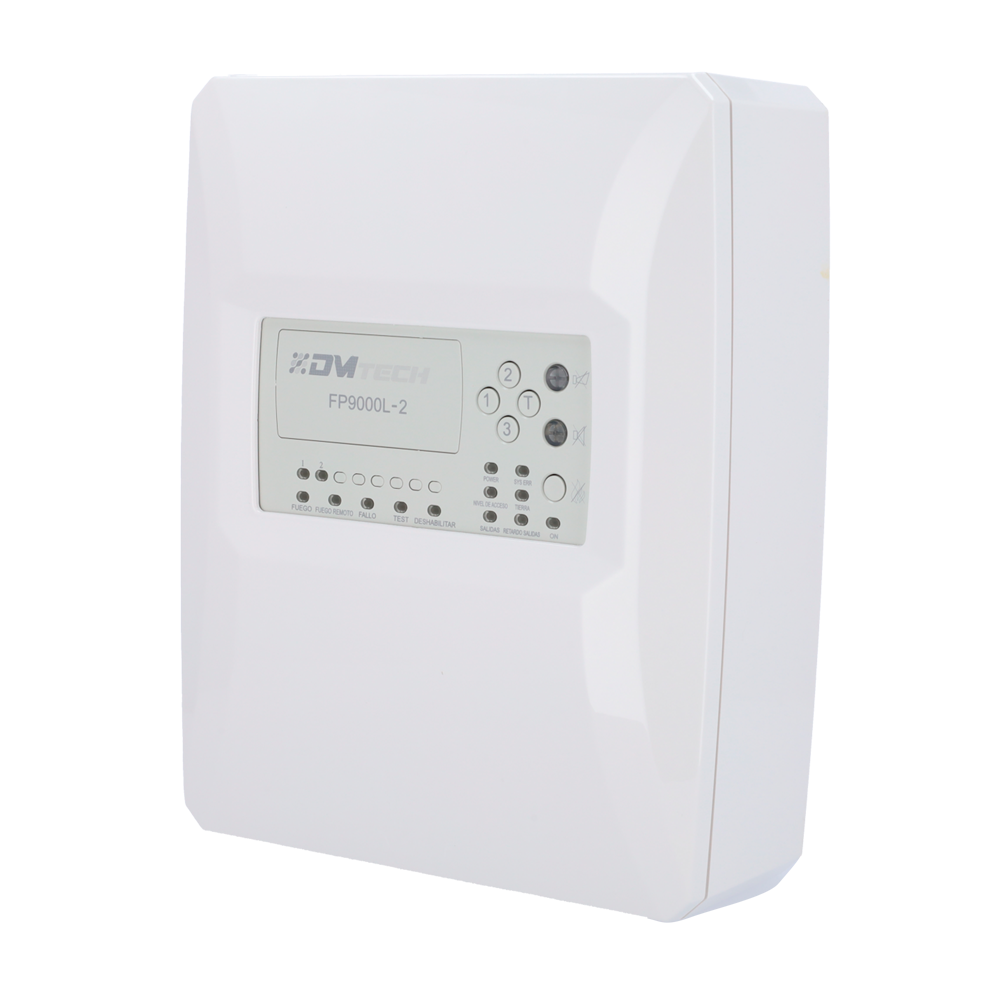

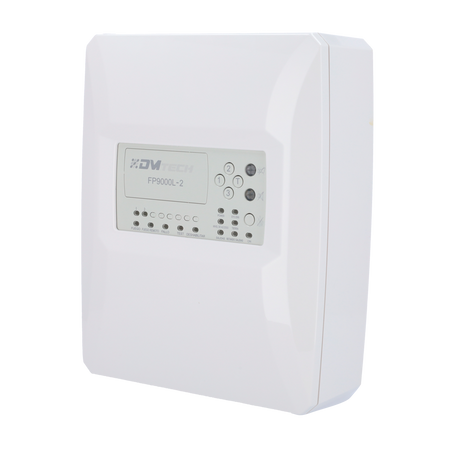

DMTech 2-zone conventional control panel
Regular price
€110,67
Final price
Regular price
-8%
€120,00
Sale price
€110,67
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Conventional 2-zone control panel - 2 siren outputs - 2 alarm and fault outputs and 2 configurable relay outputs - Repeater output - Up to 30 detectors per zone - Automatic end-of-line resistor detection
📋 SPECIFICATIONS:
• Primary power supply: Switched-mode power supply 187-252V AC 50-60 Hz 65W max.
• Secondary power supply: 2 x 12VDC batteries (up to 5 Ah). Ensures a minimum of 120 hours of operation.
• Number of Zones: 4 zones, up to 30 detectors per area.
• Siren outputs: 2 x 24VDC siren outputs. Independent and monitored collector outputs
• Relay outputs: 4 Relay outputs: 1 Alarm output, 1 Fault output, and 2 configurable relay outputs. All support 30VDC 3A max.
• End-of-line resistor: Areas fully monitored by end-of-line resistor (4.7K)
• Auxiliary output voltage: 24VDC. Protected by a 1.85A resettable electronic fuse
• Protection rating: IP30
• Temperature: -5ºC~+45ºC
• Material and Color: ABS, Color: White
• Dimensions: 310 x 240 x 80 mm
• Weight: 1.3 kg
• Recommended cable: Fire-resistant cable with a minimum cross-section of 1.0mm (18AWG).
📦 INCLUDED:
• Control panel• Battery cables• Fuse• End-of-line resistor
| Primary power supply | Switched-mode power supply 187-252V AC 50-60 Hz 65W max. |
|---|---|
| Secondary power supply | 2 x 12VDC batteries (up to 5 Ah). Ensures a minimum of 120 hours of runtime. |
| Number of zones | 4 zones, up to 30 detectors per area. |
| Siren outputs | 2 x 24VDC siren outputs. Independent and monitored collector outputs. |
| Relay outputs | 4 relay outputs: 1 alarm output, 1 fault output, and 2 configurable relay outputs. All rated for 30VDC 3A max. |
| End-of-line resistor | Areas fully monitored by end-of-line resistor (4.7K). |
| Auxiliary output voltage | 24VDC. Protected by a 1.85A resettable electronic fuse. |
| Protection rating | IP30 |
| Temperature | -5ºC~+45ºC |
| Material and color | ABS, Color: White |
| Dimensions | 310 x 240 x 80 mm |
| Weight | 1.3 kg |
| Recommended cable | Fire-rated cable with a minimum cross-section of 1.0mm (18AWG). |
- User manual Link
