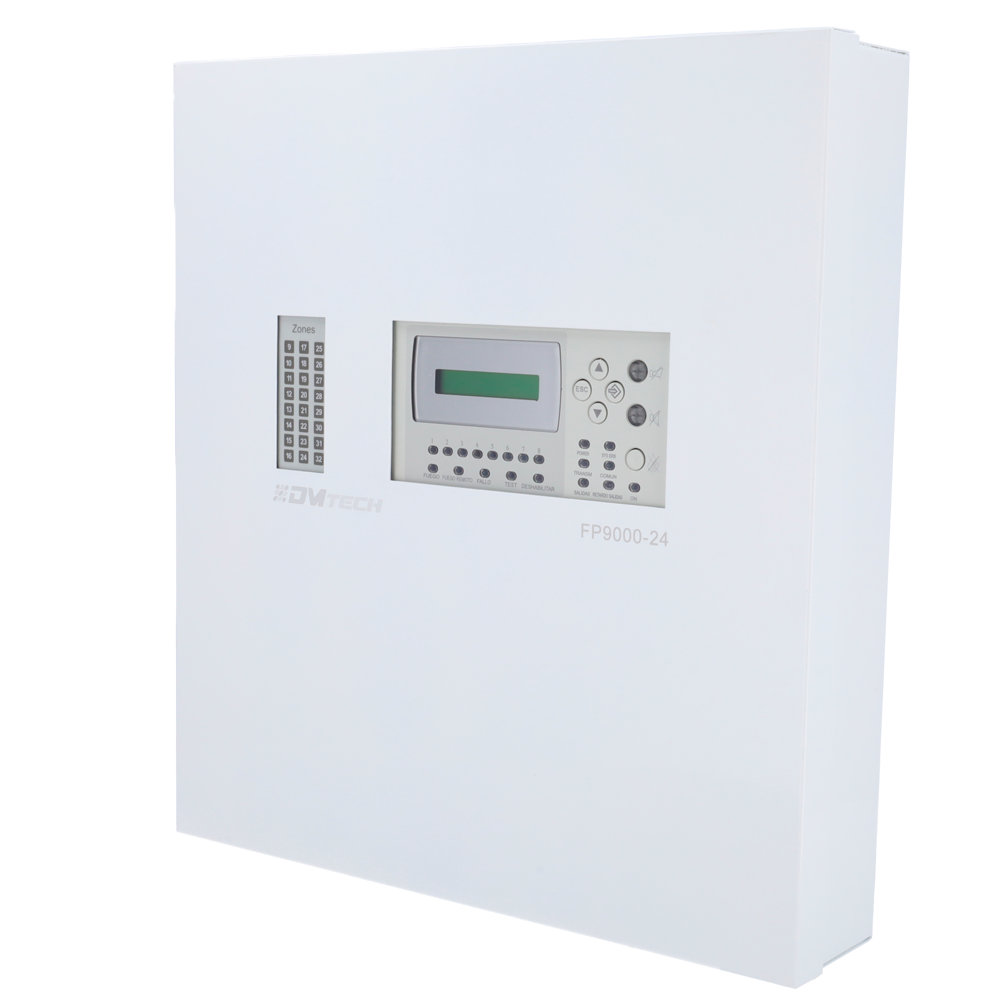

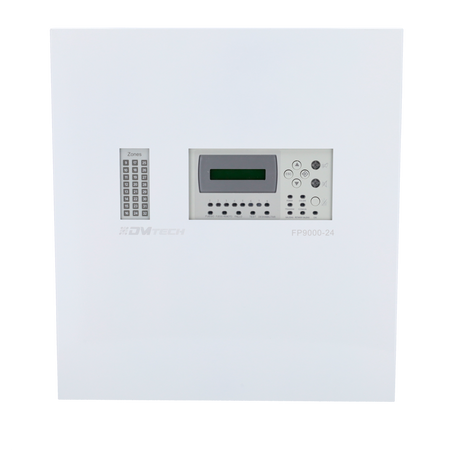

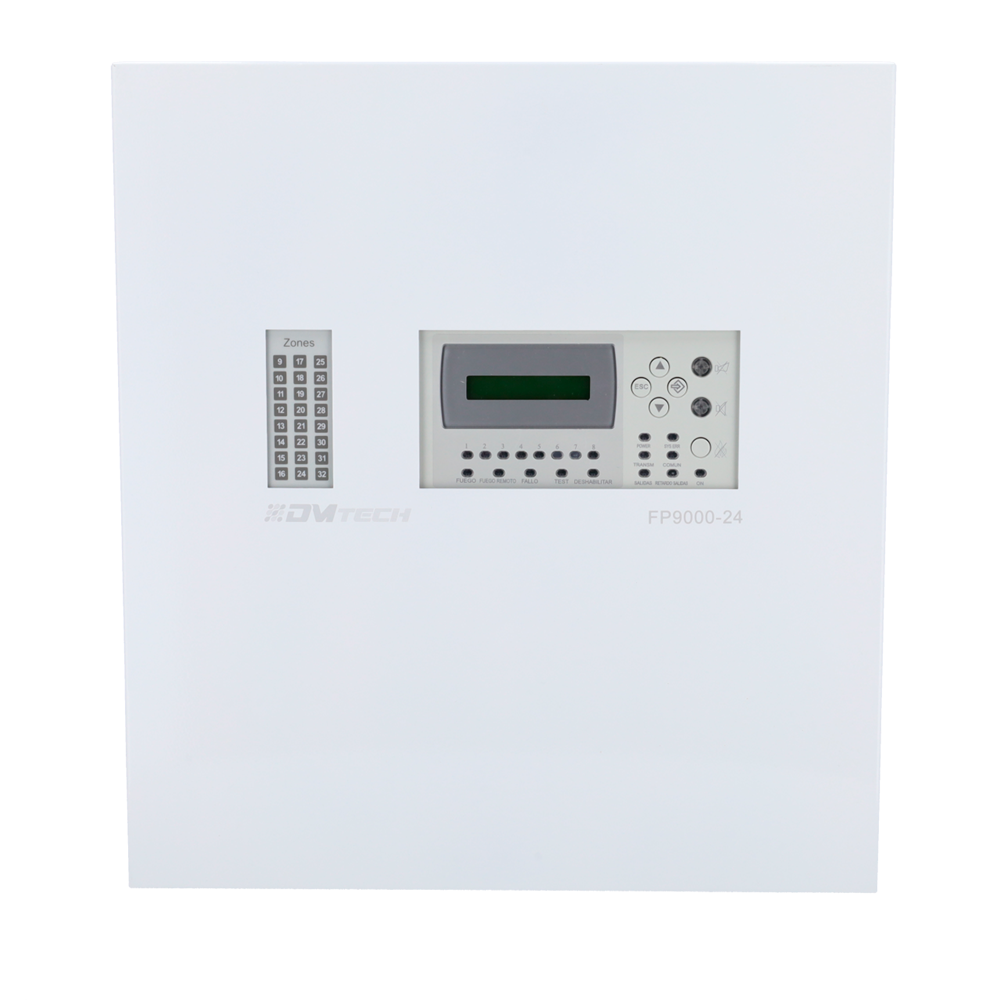

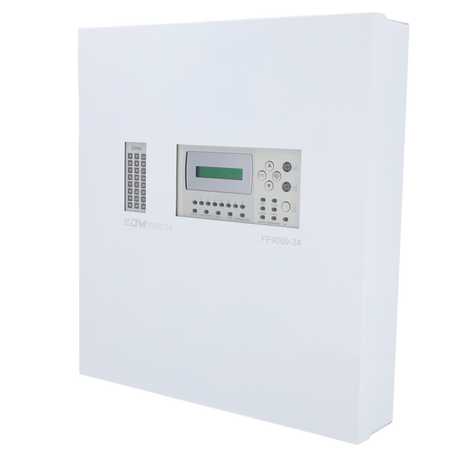

Conventional 24-zone control panel with DMTech LCD screen
Conventional 24-zone control panel with DMTech LCD screen
Regular price
€719,41
Final price
Regular price
-7%
€770,00
Sale price
€719,41
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

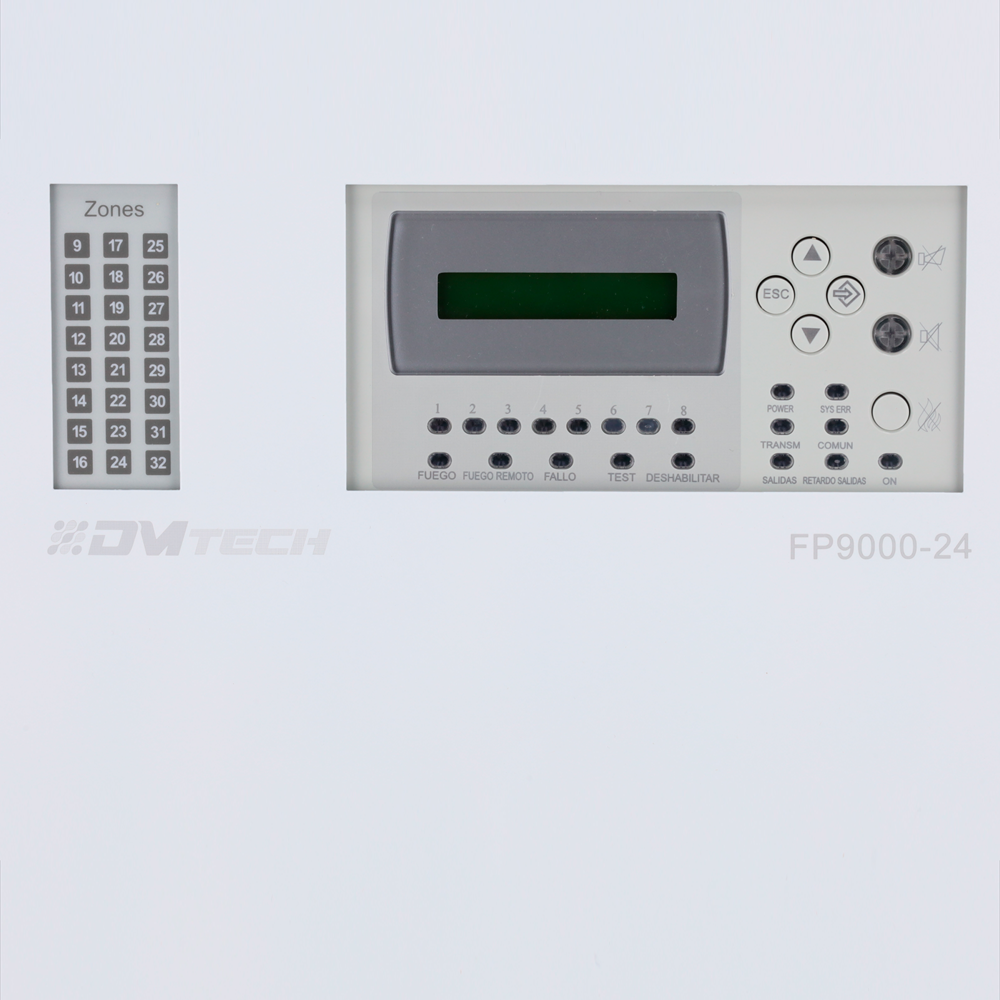

Conventional 24-zone control panel with LCD screen - 2 siren outputs - 2 alarm and fault outputs and 10 configurable relay outputs - Repeater output - Up to 30 detectors per zone - Automatic end-of-line resistor detection
📋 SPECIFICATIONS:
• Primary power supply: Switching power supply 187-252V AC 50-60 Hz 65W max.
• Secondary power supply: 2 x 12VDC batteries (up to 18 Ah). Guarantees a minimum duration of 72 hours.
• Available languages: Spanish, English, Portuguese, Italian, French, and German.
• Number of zones: 24 zones, up to 30 detectors per area.
• Siren outputs: 2 x 24VDC siren outputs. Independent and monitored collector outputs.
• Relay outputs: 12 relay outputs: 1 alarm output, 1 fault output, and 10 configurable relay outputs. All support 30VDC 3A max.
• End-of-line resistor: Areas fully monitored by end-of-line resistor (4.7K).
• Auxiliary output voltage: 24VDC. Protected by a 1.85A resettable electronic fuse.
• Protection rating: IP30
• Temperature: -5ºC~+45ºC
• Material and color: ABS, Color: White
• Dimensions: 370 x 410 x 80 mm
• Weight: 2.5 kg
• Recommended cable: Fire cable with a minimum cross-section of 1.0mm (18AWG).
📦 INCLUDED:
• Control panel • Battery cables • Fuse • End-of-line resistor
| Primary power supply | Switching power supply 187-252V AC 50-60 Hz 65W max. |
|---|---|
| Secondary power supply | 2 x 12VDC batteries (up to 18 Ah). Provides a minimum of 72 hours of operation. |
| Available languages | Spanish, English, Portuguese, Italian, French, and German. |
| Number of zones | 24 zones, up to 30 detectors per zone. |
| Siren outputs | 2 x 24VDC siren outputs. Independent and monitored collector outputs. |
| Relay outputs | 12 Relay outputs: 1 alarm output, 1 fault output, and 10 configurable relay outputs. All support 30VDC 3A max. |
| End-of-line resistor | Zones fully monitored by end-of-line resistor (4.7K). |
| Auxiliary output voltage | 24VDC. Protected by a 1.85A resettable electronic fuse. |
| Protection rating | IP30 |
| Temperature | -5ºC~+45ºC |
| Material and color | ABS, color: white |
| Dimensions | 370 x 410 x 80 mm |
| Weight | 2.5kg |
| Recommended cable | Fire-rated cable with a minimum cross-section of 1.0mm (18AWG). |
