DMTECH

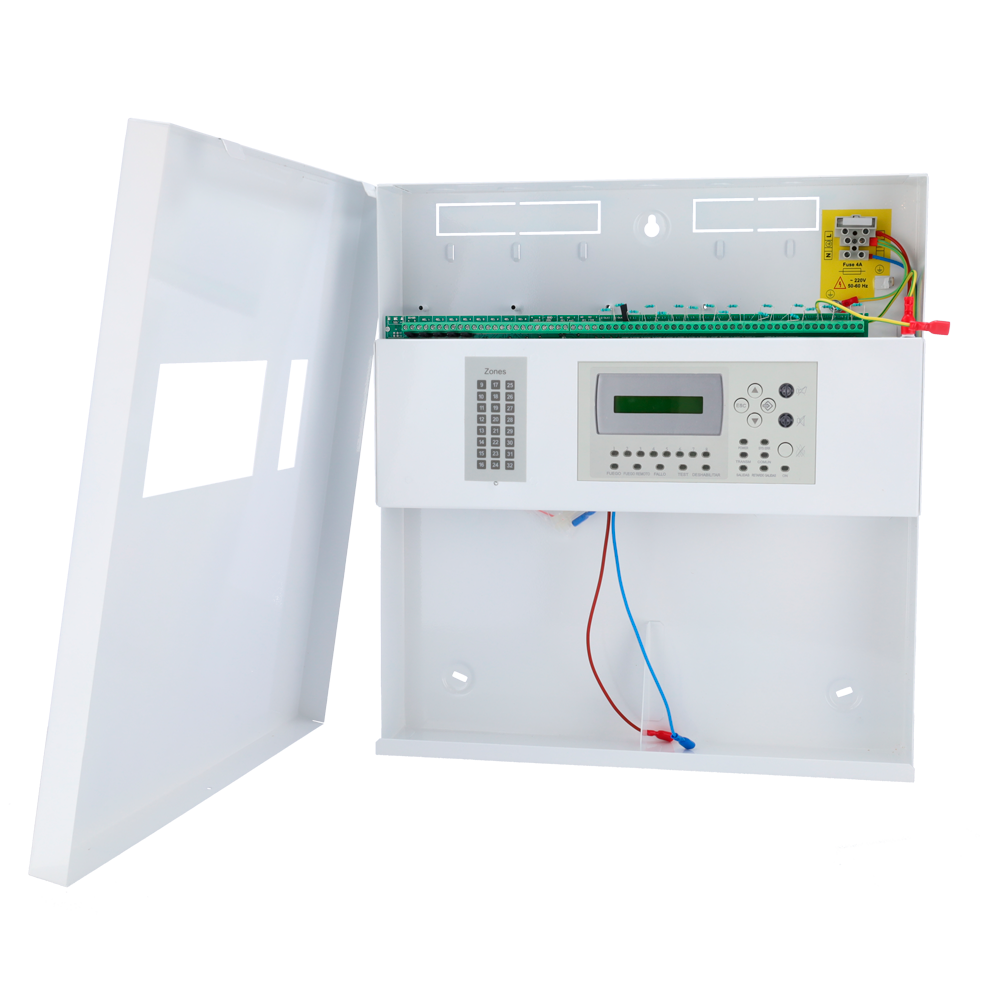

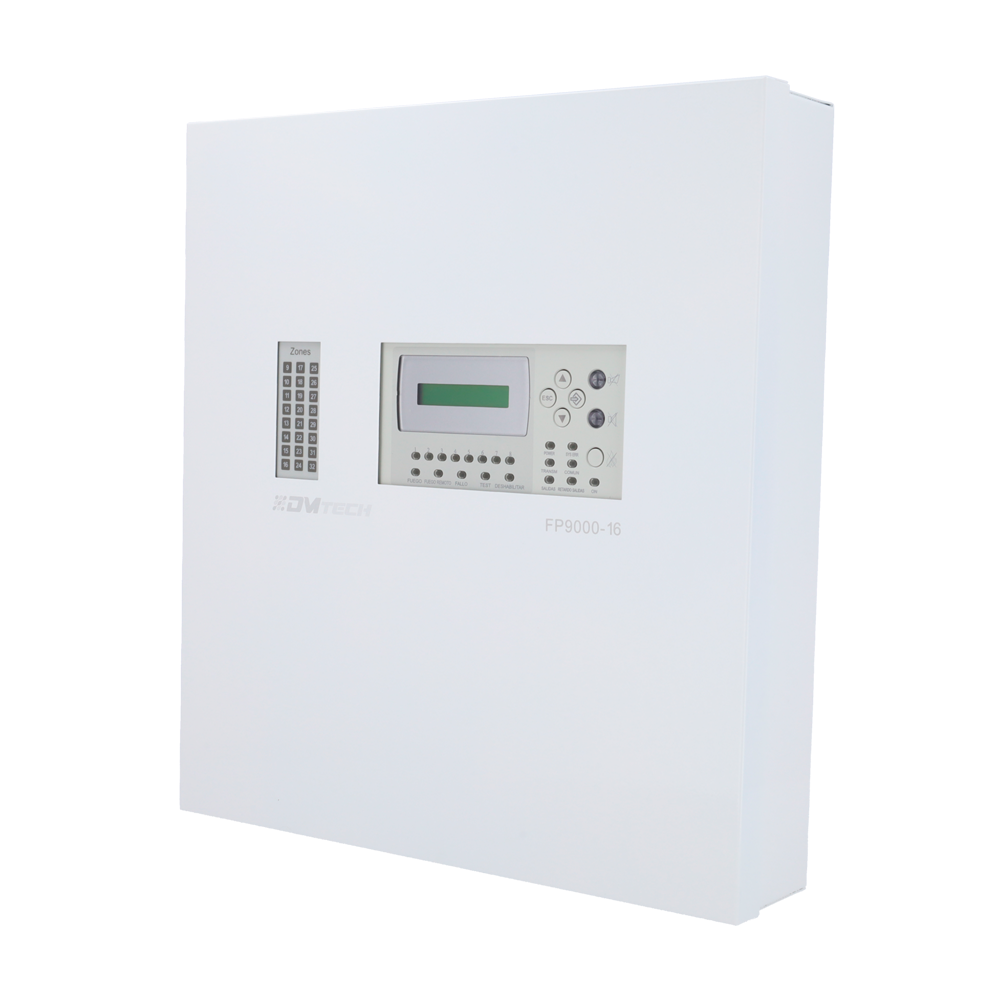

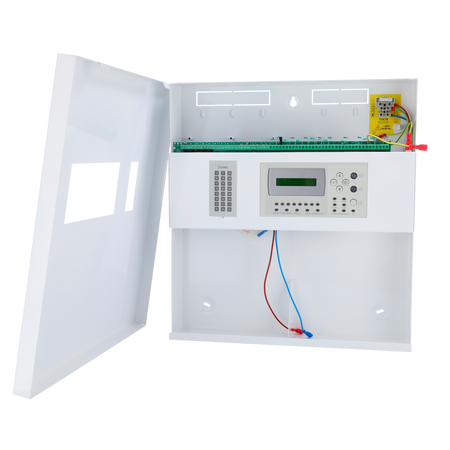

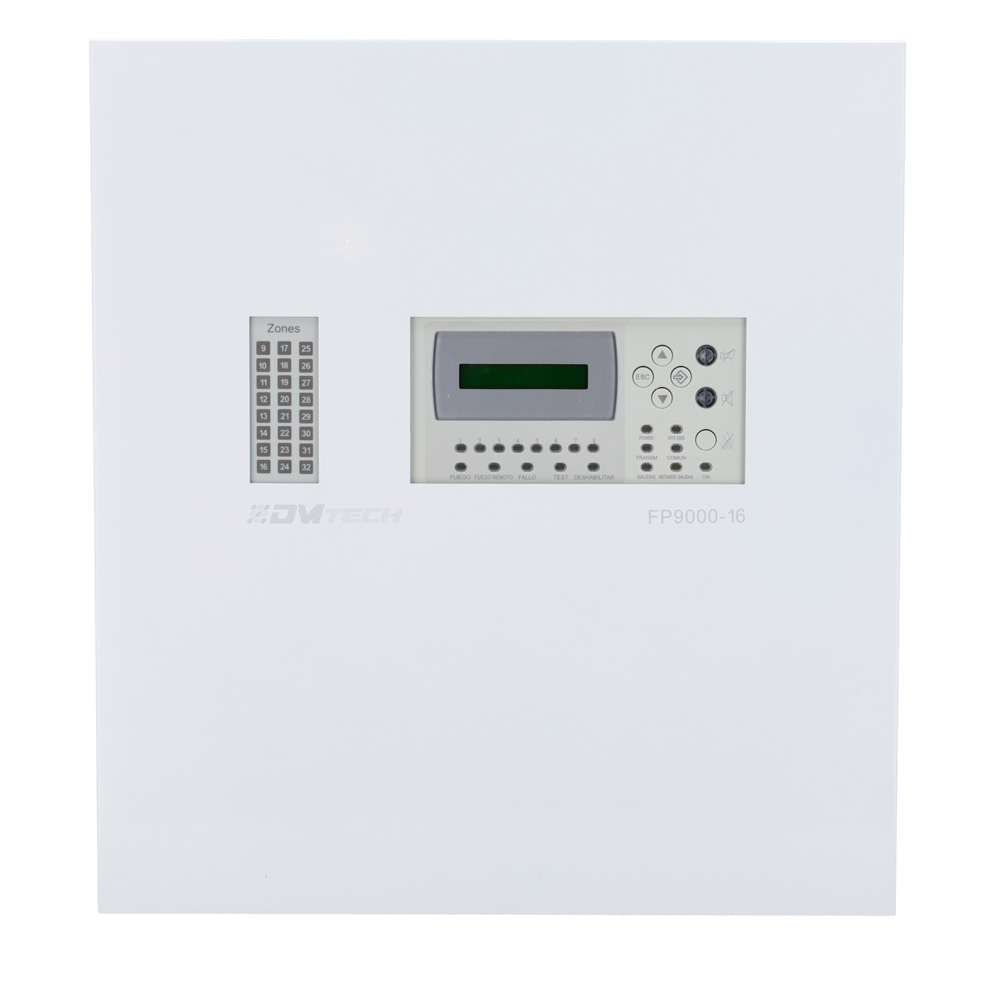

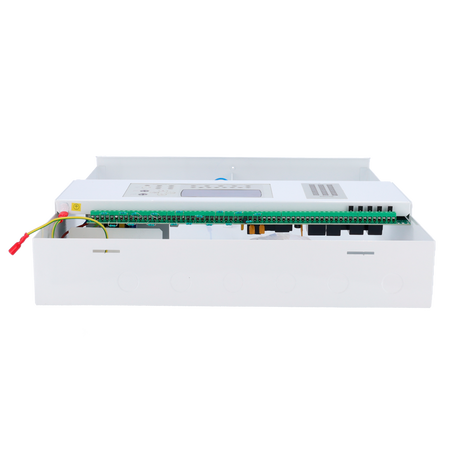

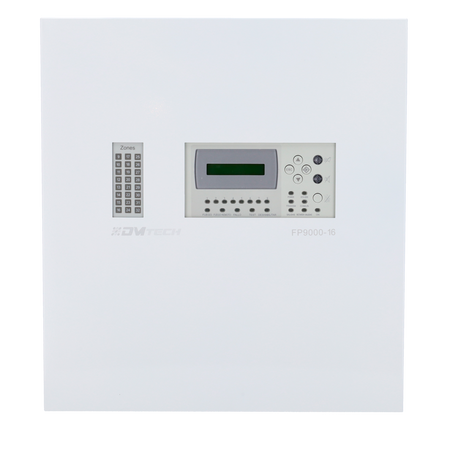

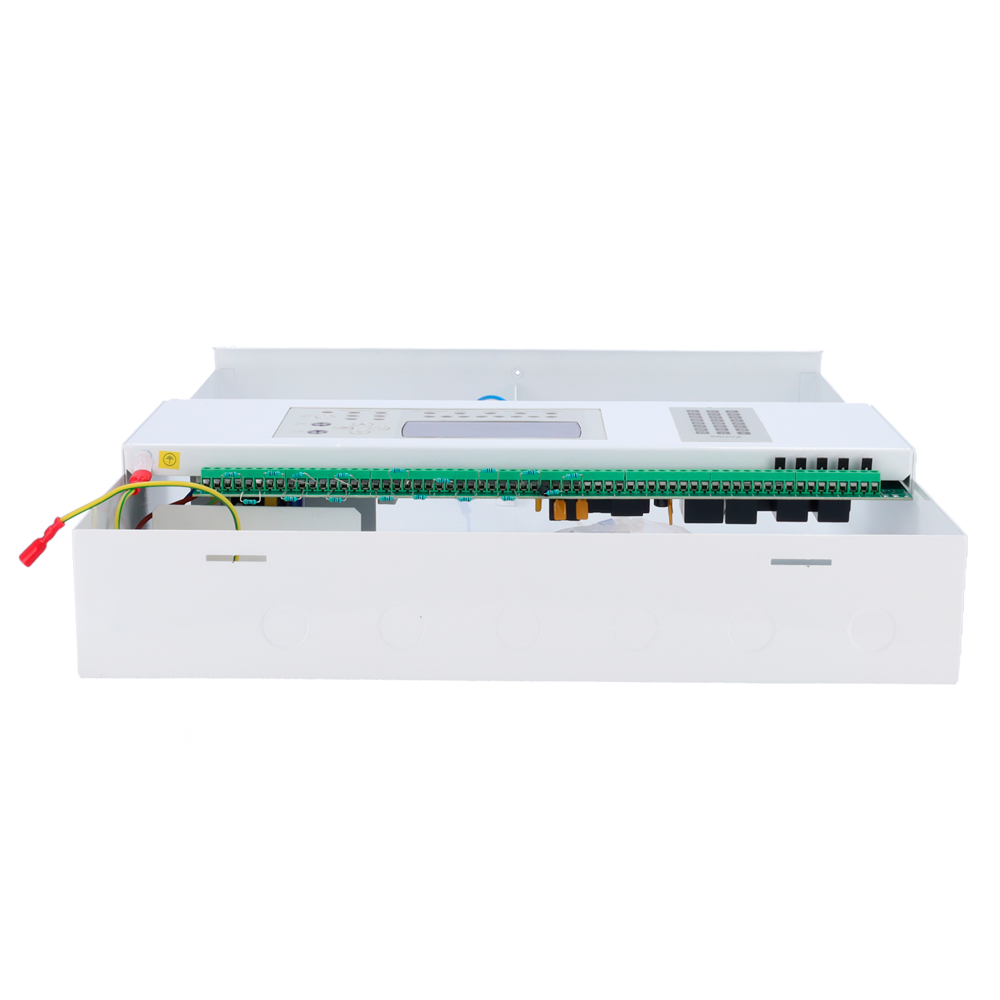

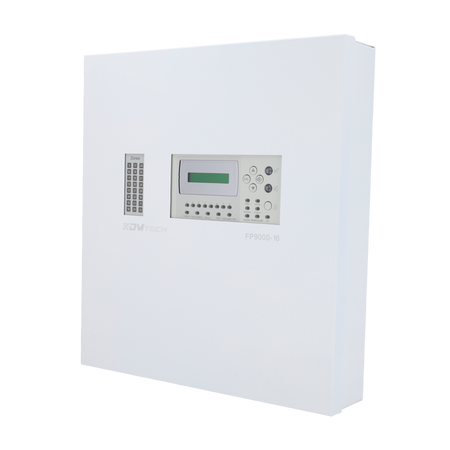

DMTech 16-zone conventional control panel with LCD screen

SKU: DMT-FP9000-16-IT
(0)
In stock
Usually shipped within 24 hours
€507,28 Final price
-8% €550,00 €507,28 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

16-zone conventional control panel with LCD screen - 2 siren outputs - 2 alarm and fault outputs and 6 configurable relay outputs - Repeater output - Up to 30 detectors per zone - Automatic end-of-line resistor detection

📋 SPECIFICATIONS:
• Primary power supply: Switching power supply 187-252V AC 50-60 Hz 65W max.
• Secondary power supply: 2 x 12VDC batteries (up to 18 Ah). Guarantees a minimum duration of 72 hours.
• Available languages: Spanish, English, Portuguese, Italian, French, and German.
• Number of zones: 16 zones, up to 30 detectors per area.
• Siren outputs: 2 x 24VDC siren outputs. Independent and monitored collector outputs.
• Relay outputs: 8 relay outputs: 1 alarm output, 1 fault output, and 6 configurable relay outputs. All accept 30VDC 3A max.
• End-of-line resistor: Areas fully monitored by end-of-line resistor (4.7K)
• Auxiliary output voltage: 24VDC. Protected by a 1.85A resettable electronic fuse.
• Protection rating: IP30
• Temperature: -5ºC~+45ºC
• Material and color: ABS, color: white
• Dimensions: 370 x 410 x 80 mm
• Weight: 2.5 kg
• Recommended cable: Fire cable with a minimum cross-section of 1.0mm (18AWG).

📦 INCLUDED:
• Control panel• Battery cables• Fuse• End-of-line resistor
Primary power supply Switching power supply 187-252V AC 50-60 Hz 65W max.
Secondary power supply 2 x 12VDC batteries (up to 18 Ah). Ensures a minimum of 72 hours duration.
Available languages Spanish, English, Portuguese, Italian, French and German.
Number of zones 16 zones, up to 30 detectors per area.
Siren outputs 2 x 24VDC siren outputs. Independent and monitored collector outputs.
Relay outputs 8 Relay outputs: 1 Alarm output, 1 Fault output and 6 configurable relay outputs. All support 30VDC 3A max.
End-of-line resistor Areas fully monitored by end-of-line resistor (4.7K).
Auxiliary output voltage 24VDC. Protected by 1.85A resettable electronic fuse.
Protection rating IP30
Temperature -5ºC~+45ºC
Material and color ABS, Color: White
Dimensions 370 x 410 x 80 mm
Weight 2.5kg
Recommended cable Fire cable with a minimum cross-section of 1.0mm (18AWG).
