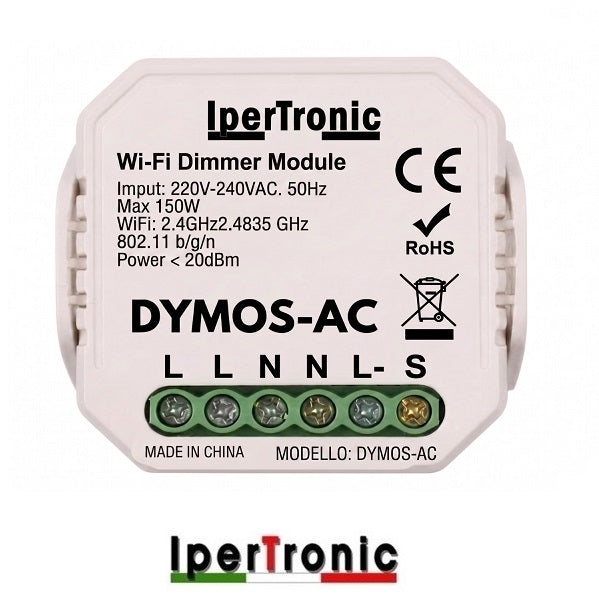

Ipertronic WIFI smart dimmer 220-240 VAC 200W for lighting systems

The Ipertronic DYMOS-AC smart Wi-Fi dimmer allows you to control and adjust the light intensity of your system directly from your smartphone, via voice commands, or using the traditional wall-mounted push-button. It integrates with your existing system without needing to replace it, making home or office lighting smart in a simple and compact way.

What you can do

• Adjust brightness and switch LED lights (up to 200W), incandescent, and halogen lamps on or off.
• Manage lighting remotely via the Tuya Smart smartphone app.
• Control lights with voice commands thanks to compatibility with Amazon Alexa and Google Assistant (Google Home).
• Maintain manual control via push-button switch: short press to turn on/off, long press to adjust light intensity (the last setting remains in memory).
• Set timers and schedules for switching lights on and off.
• Share device management with other users or family members via the app.
• Continue to operate the light point via the physical button even in the event of a temporary loss of Wi-Fi connection.

Technical specifications

• Model: DYMOS-AC
• Product type: 1-channel Wi-Fi dimmer module
• Supply voltage: 100-240V AC (220-240 VAC)
• Maximum load: 200W (LED)
• Compatible load types: Triac LED lamps, incandescent, halogen
• Wi-Fi frequency: 2.4 GHz - 2.4835 GHz
• Bluetooth: Supported for easy pairing
• Protection rating: IP20
• Operating temperature: -10°C to +40°C
• Maximum case temperature (Tc): +80°C
• Maximum range: ≤ 200 m
• Dimensions (WxDxH): 39 x 39 x 18 mm
• Warranty: 2 years
• Compliance standards: EMC (EN 300 328, EN 301489-1/-17, EN 62311, EN 61000-6-1/-3), LVD (IEC 60669-2-1, IEC 60669-1, EN 60669-2-1, EN 60669-1), RoHS (2011/65/EU, 2015/863), RED (ETSI EN 300 328)

Installation

Installation must be performed by a qualified electrician in accordance with local regulations, always disconnecting the power supply before starting. The module is designed to be housed inside the junction box; the "S" control terminals can be connected to a push-button or left disconnected if manual control is not required.
