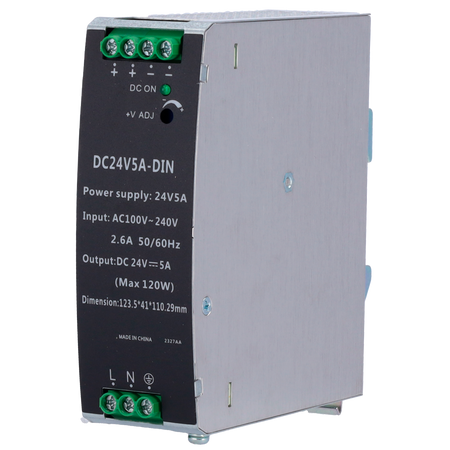

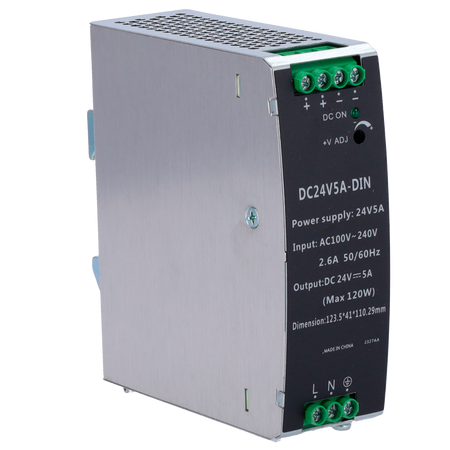

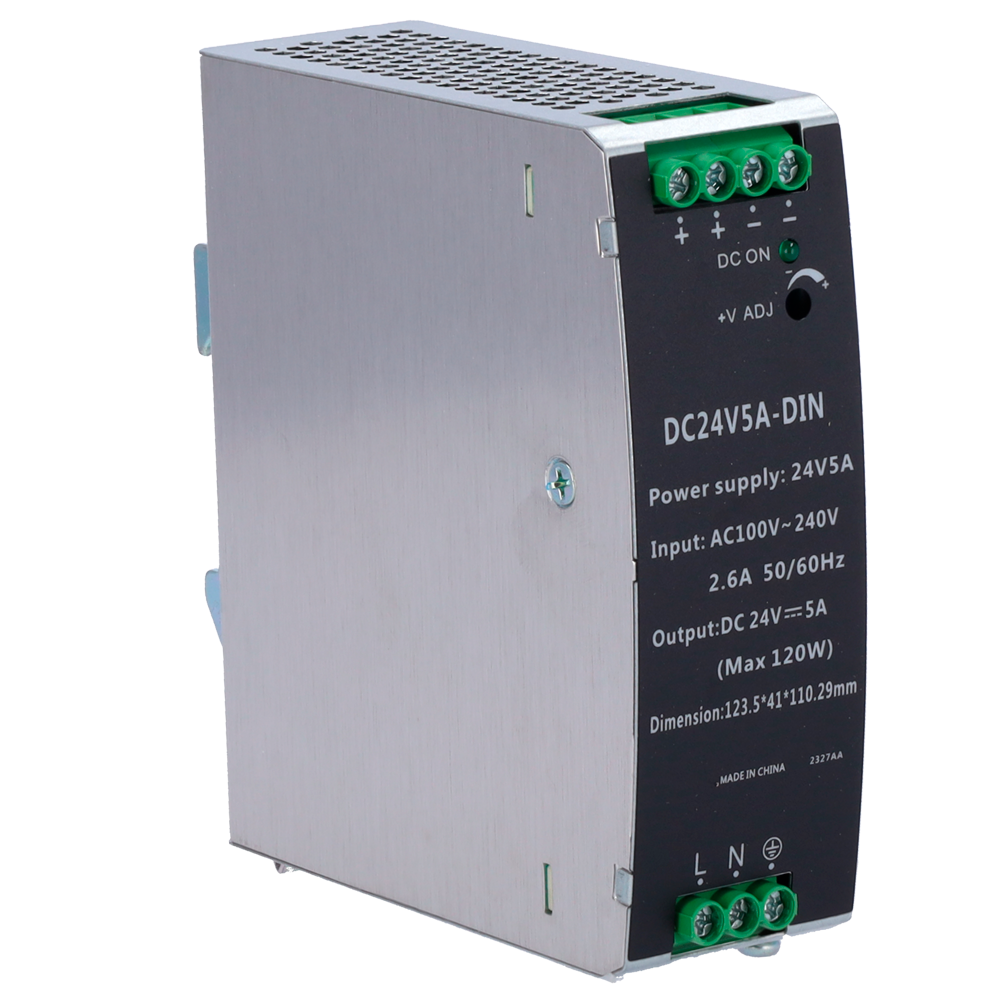

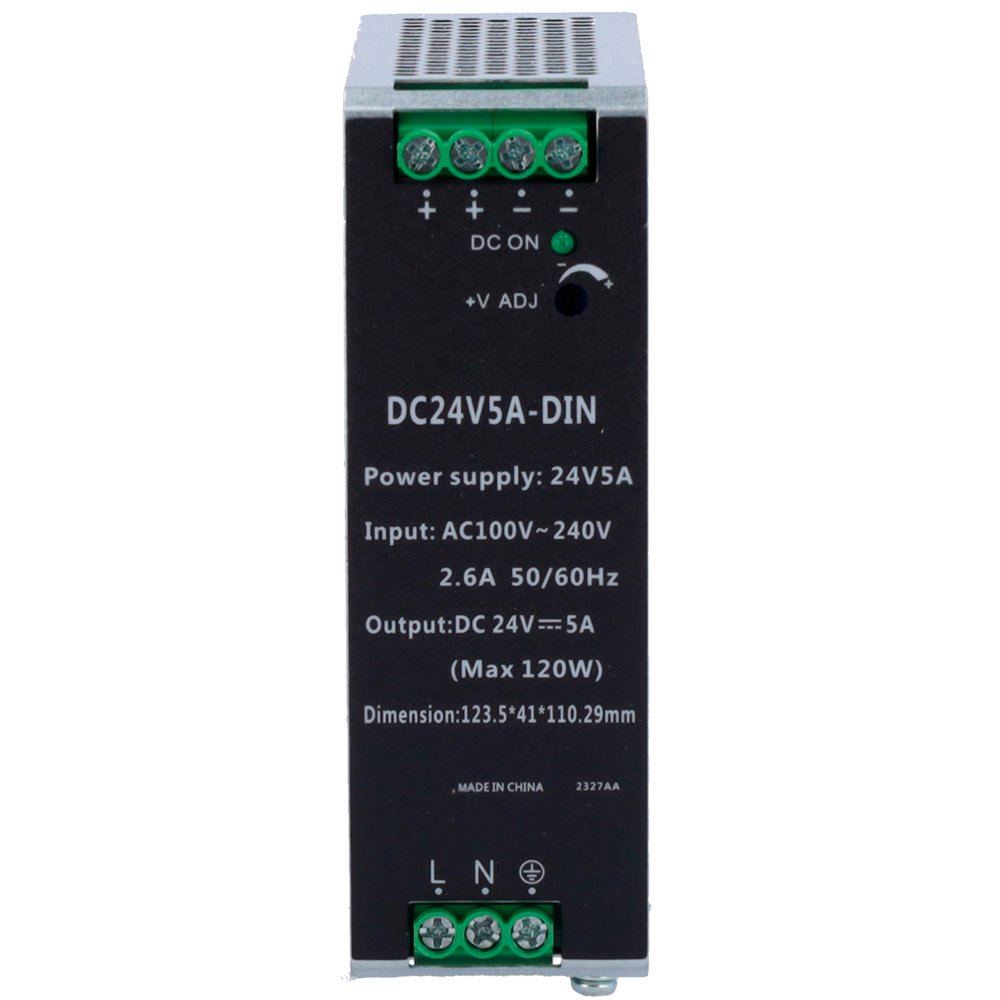

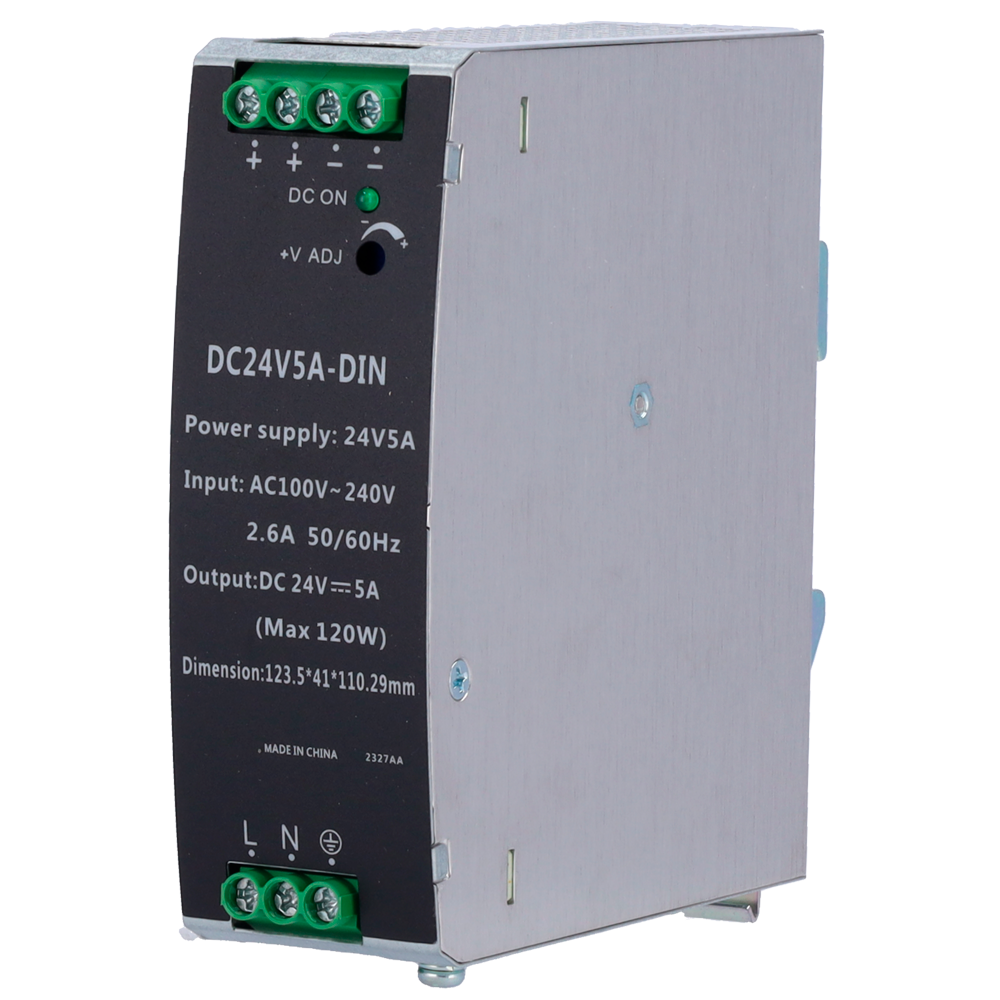

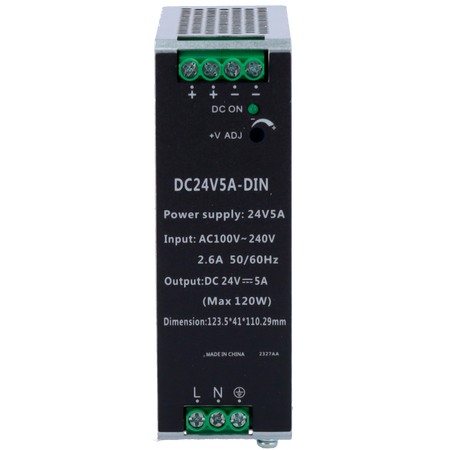

Industrial power supply - 120W actual output power (24V / 5A)
Industrial power supply - 120W actual output power (24V / 5A)
Regular price
€33,44
Final price
Regular price
-20%
€42,00
Sale price
€33,44
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Industrial power supply - 120W effective output power (24V / 5A) - Supports peak loads up to 180W for 10s - Wide output voltage range of 22.5-28V - Extreme thermal performance from -40°C to 70°C - Compact form factor optimized for DIN rail
📋 SPECIFICATIONS:
• Component type: Industrial power supply
• Mounting format: DIN rail
• Number of outputs: 1
• Rated output power: 120 W
• Maximum peak power: 180 W (sustainable for 10 seconds at 220 VAC)
• Continuous output voltage: DC 24 V
• Adjustable voltage range: 22.5 V to 28 V DC
• Factory voltage setting: 24.00 V to 24.2 V DC (Vin: 220 VAC / Load: 0 A)
• Rated output current: 5 A
• Maximum peak current: 7.5 A (sustainable for 10 seconds at 220 VAC)
• Ripple and noise (max.): ≤ 100 mVp-p (20 MHz bandwidth)
• Line / Load regulation: ±0.5% | ±1% (@ 90-264 VAC input)
• AC input range: 90 V AC to 264 V AC (Nominal: 100-240 V AC)
• Input frequency: 47 Hz to 63 Hz (nominal frequency: 50/60 Hz)
• Energy efficiency: > 90.0% @ 115 VAC | > 91.0% @ 230 VAC
• Input current: < 2.20 A @ 115 VAC | < 1.10 A @ 230 VAC
• Inrush current: < 35 A @ 115 VAC and 230 VAC
• Power factor (PF): > 0.99 @ 115 VAC | > 0.93 @ 230 VAC
• Overpower protection: 144 W to 180 W (Type: Swing mode, auto-resetting)
• Overcurrent protection: 6 A to 7.5 A (Type: Swing mode, auto-resetting)
• Overvoltage protection: 30 V to 36 V (Type: Swing mode, auto-resetting)
• Short circuit protection: Supports prolonged direct short circuits with automatic recovery
• Dielectric isolation: Input-Output: 3 KVAC | Input-Chassis: 1.5 KVAC | Output-Chassis: 0.5 KVDC
• Operating temperature: -40 °C to 70 °C
• Operating humidity: 20 to 95% RH non-condensing
• Maximum operating altitude: 2000 meters
• Physical dimensions: 131 x 121 x 40 mm
📦 INCLUDED:
• 1x Industrial power supply for DIN rail DC24V5A-DIN
| Component type | Industrial power supply |
|---|---|
| Mounting format | DIN rail |
| Number of outputs | 1 |
| Rated output power | 120 W |
| Maximum peak power | 180 W (sustainable for 10 seconds at 220 VAC) |
| Continuous output voltage | 24 V DC |
| Adjustable voltage range | 22.5 V to 28 V DC |
| Factory voltage setting | 24.00 V to 24.2 V DC (Vin: 220 VAC / Load: 0 A) |
| Rated output current | 5 A |
| Maximum peak current | 7.5 A (sustainable for 10 seconds at 220 VAC) |
| Ripple and noise (max.) | ≤ 100 mVp-p (20 MHz bandwidth) |
| Line / Load regulation | ±0.5% | ±1% (@ 90-264 VAC input) |
| AC input range | 90 V AC to 264 V AC (Nominal: 100-240 V AC) |
| Input frequency | 47 Hz to 63 Hz (nominal frequency: 50/60 Hz) |
| Energy efficiency | > 90.0% @ 115 VAC | > 91.0% @ 230 VAC |
| Input current | < 2.20 A @ 115 VAC | < 1.10 A @ 230 VAC |
| Inrush current | < 35 A @ 115 VAC and 230 VAC |
| Power factor (PF) | > 0.99 @ 115 VAC | > 0.93 @ 230 VAC |
| Overpower protection | 144 W to 180 W (Type: Swing mode, auto-recovery) |
| Overcurrent protection | 6 A to 7.5 A (Type: Swing mode, auto-recovery) |
| Overvoltage protection | 30 V to 36 V (Type: Swing mode, auto-recovery) |
| Short-circuit protection | Supports prolonged direct short circuits with automatic recovery |
| Dielectric isolation | Input-Output: 3 KVAC | Input-Chassis: 1.5 KVAC | Output-Chassis: 0.5 KVDC |
| Operating temperature | -40 °C to 70 °C |
| Operating humidity | 20 to 95% RH non-condensing |
| Maximum operating altitude | 2000 meters |
| Physical dimensions | 131 x 121 x 40 mm |
