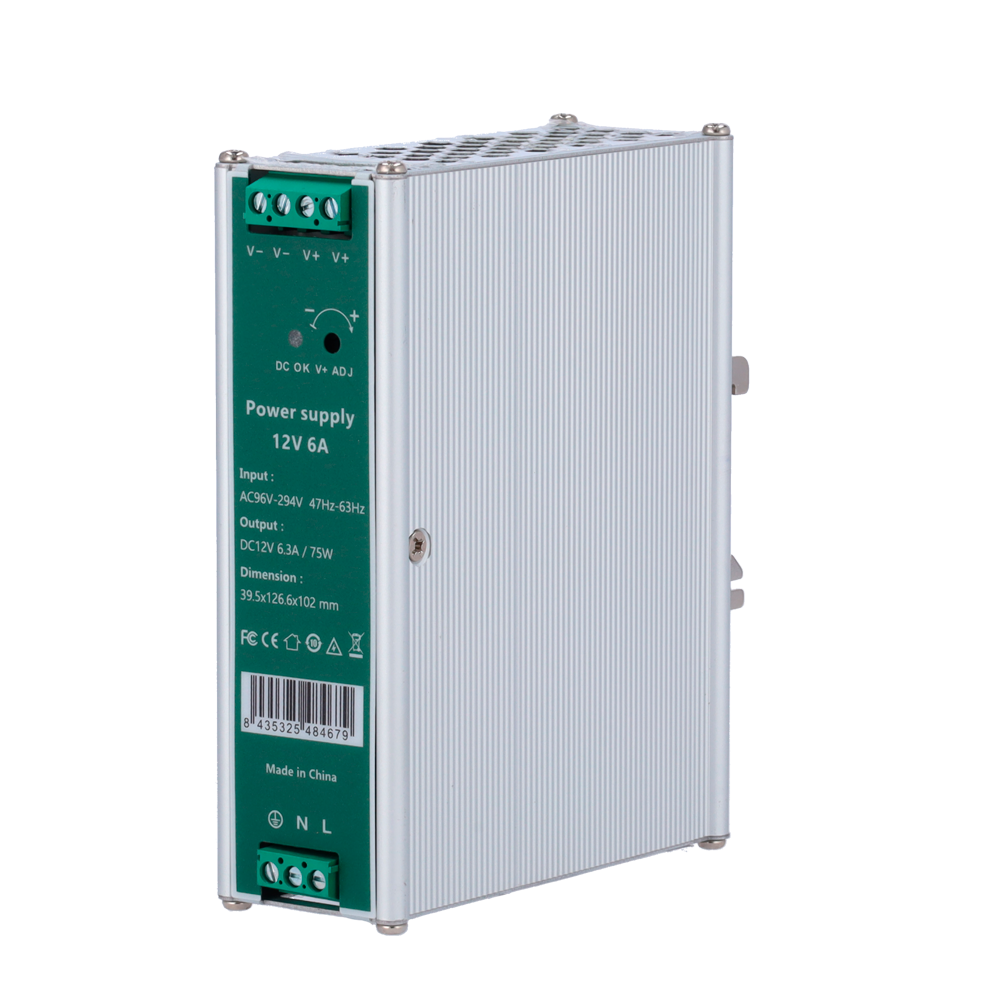

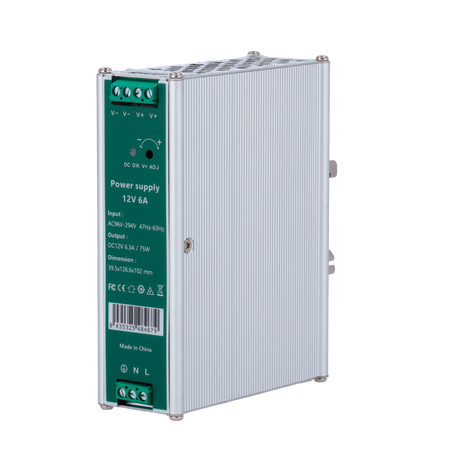

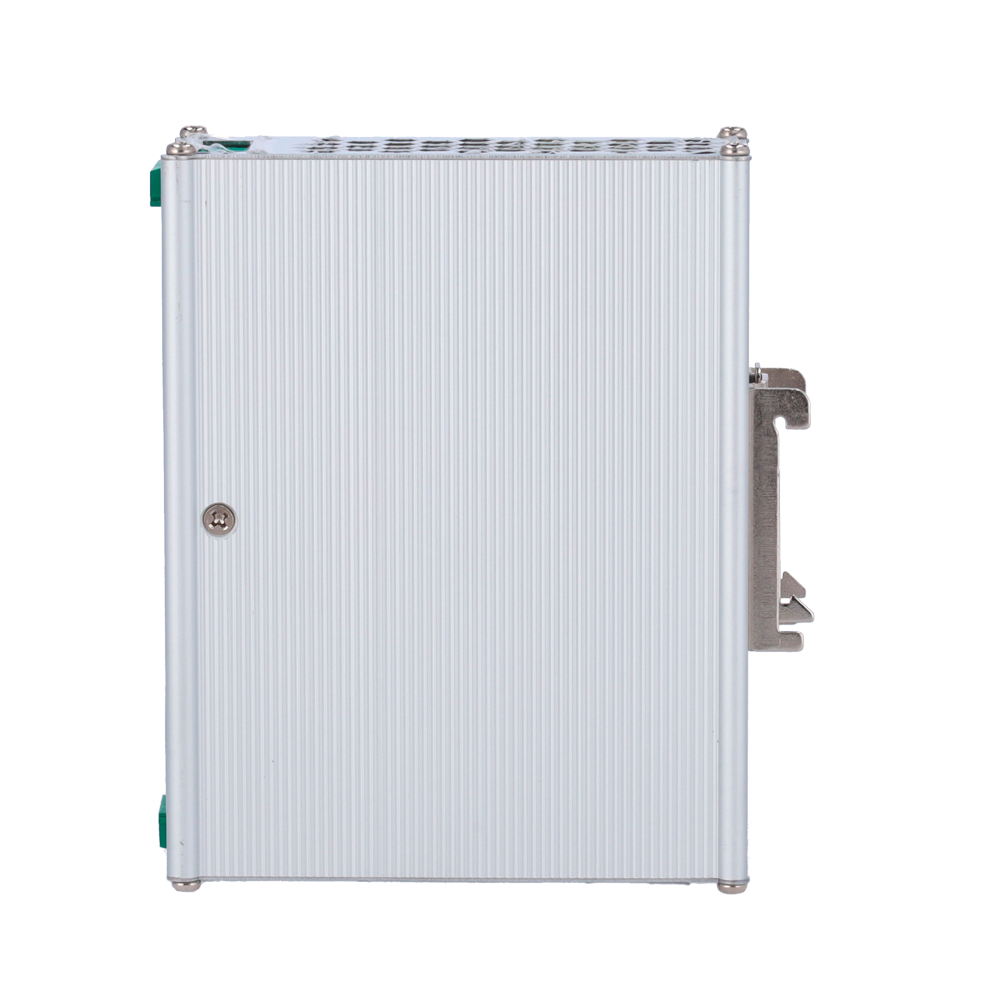

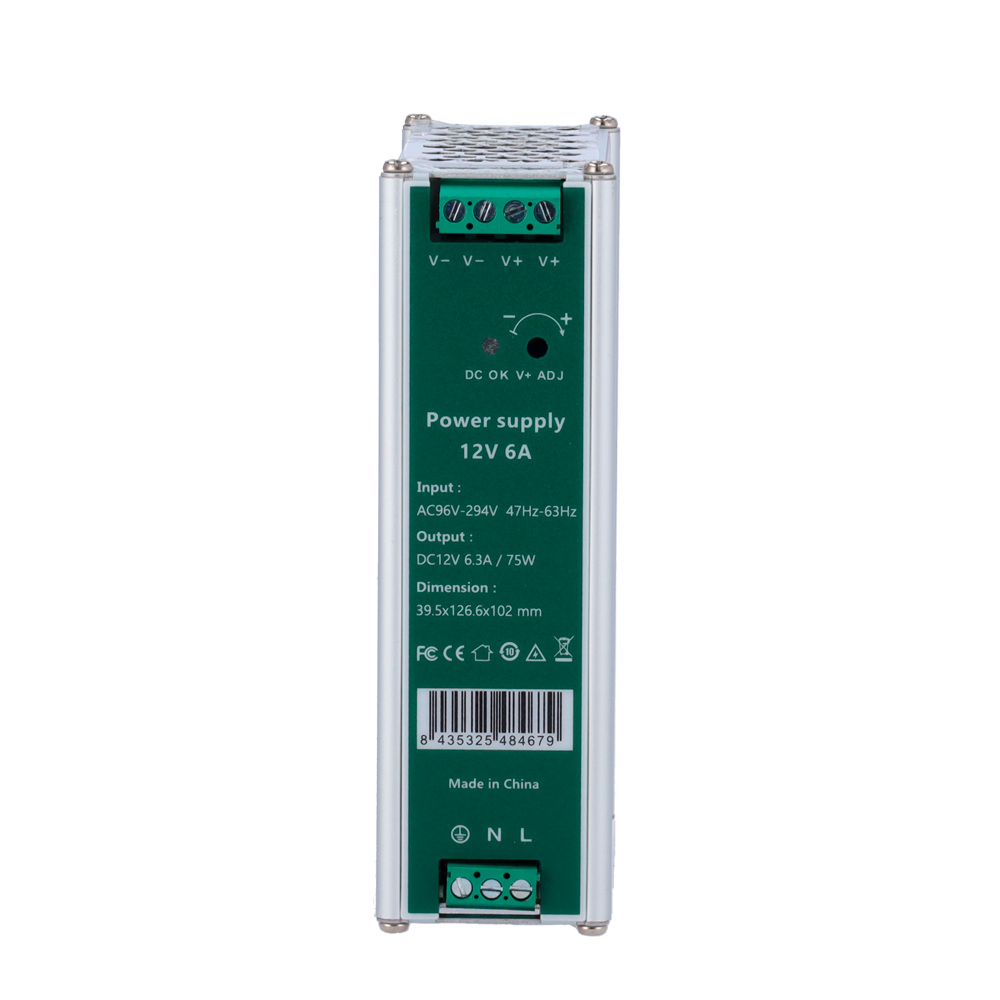

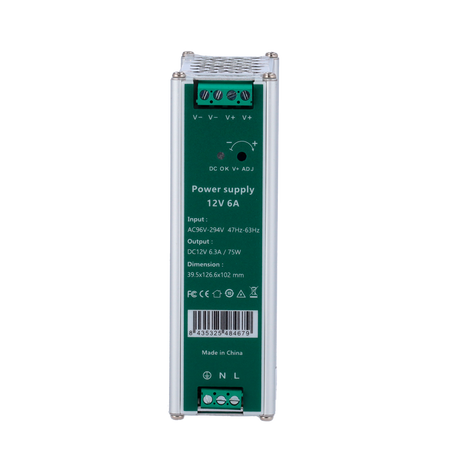

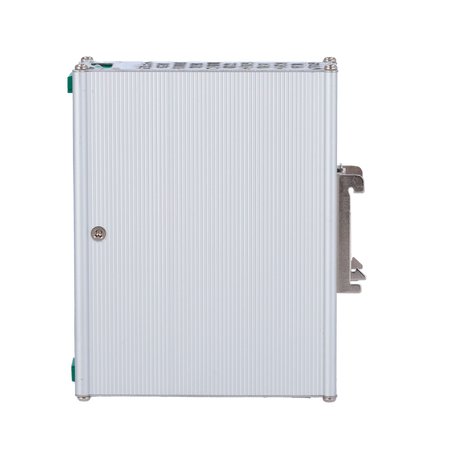

Industrial power supply - Maximum effective output power of 75W

Industrial power supply - 75W maximum effective output power - 12V / 6.3A regulated continuous power supply - Universal AC input range from 90V to 264V - Active PFC power factor correction - Robust structure optimized for DIN rail mounting

📋 SPECIFICATIONS:
• Operating Temp.: -20ºC ~ 60ºC
• Protection: Overload/Overvoltage/Short circuit
• Component type: Industrial power supply

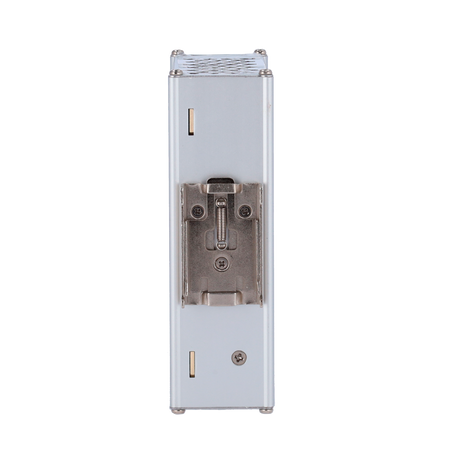

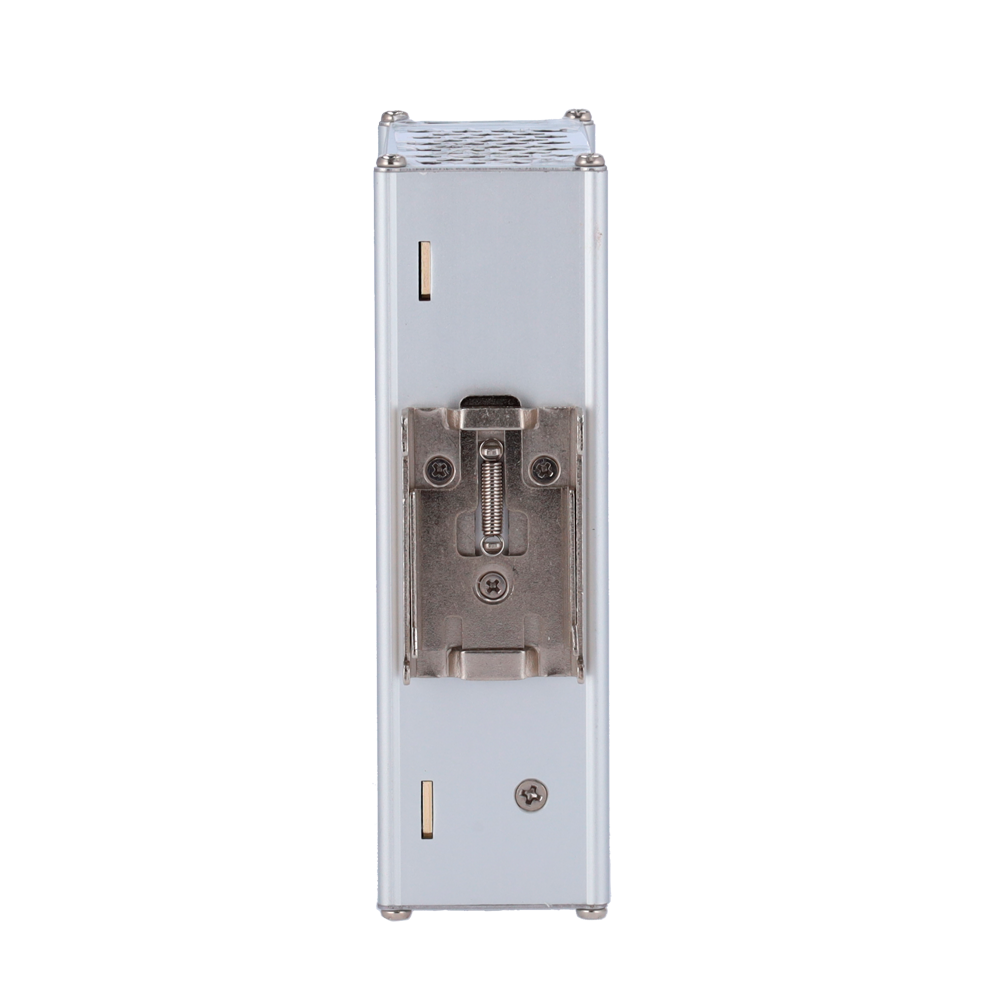

• Mounting format: DIN rail (Compatible with TS-35/7.5 or 15)
• Chassis material: Metal case
• Rated output power: 75 W
• Rated output voltage: DC 12 V
• Maximum output current: 6.3 A
• Voltage regulation: Manually adjustable
• Ripple and noise (max.): 150 mVp-p
• Voltage tolerance: ±2.0%
• Line regulation: ±0.5%
• Load regulation: ±1.0%
• AC input range: 90 V AC to 264 V AC
• DC input range: 127 V DC to 370 V DC
• Input frequency: 47 Hz to 63 Hz
• Energy efficiency (typical): 87%
• Power factor correction: Built-in active PFC function
• Overload protection: 105% to 130% of rated power (Hiccup mode, auto-recovery)
• Integrated protections: Short circuit, overload, overvoltage, and overtemperature
• Thermal cooling: Free Air Convection Design
• Operating temperature: -20 °C to 70 °C (subject to derating curve)
• Operating humidity: 20 to 95% RH non-condensing
• Storage temperature: -40 °C to 85 °C
• Storage humidity: 10 to 95% RH
• Dimensions: 125 x 33 x 103 mm
• Weight: 510 g

📦 INCLUDED:
• 1x DC12V6A-DIN Industrial DIN rail power supply
