Industrial DC/DC power supply
Regular price
€24,21
Final price
Regular price
-7%
€26,00
Sale price
€24,21
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

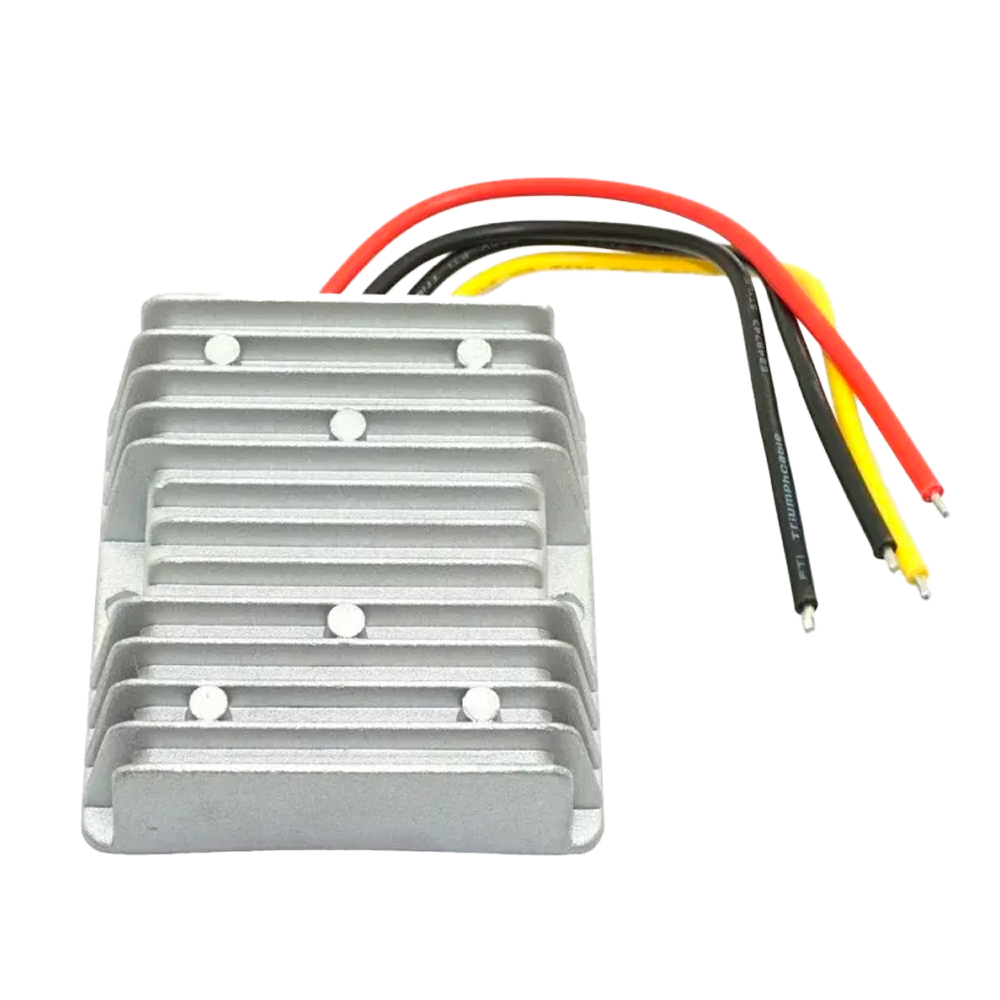

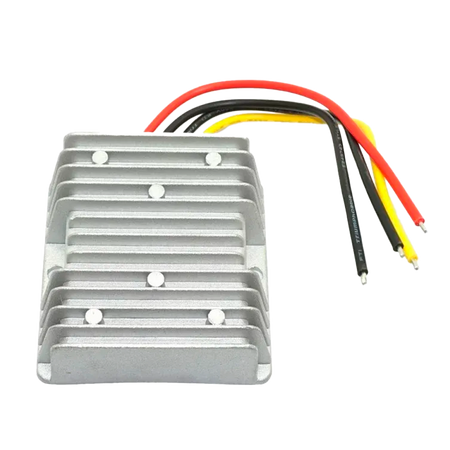

Industrial DC/DC power supply - Input voltage 10 - 30V DC - Output voltage 52V DC - Maximum output 3A / 156W - Lightweight and compact - IP68
📋 SPECIFICATIONS:
• Type: Industrial DC/DC power supply
• Nominal input voltage: 12 VDC
• Input voltage range: 10 - 30 VDC
• Efficiency: 94% at half load; 93% at full load
• Output voltage: 52 VDC
• Output current: 3A
• Maximum output power: 156W 125%
• Number of outputs: 1
• Voltage regulation: <1%
• Load regulation: <2%
• Ripple at full load: <170mV
• No-load current: <40mA
• Operating temperature: -40 - 80ºC
• Protections: Overvoltage, overcurrent, and overtemperature
• Dimensions: 74 x 74 x 32 mm
• Packaging dimensions: 100 x 100 x 32 mm
• Weight: 300 g
• Packaging weight: 320 g
• Protection rating: IP68
• Cooling: Natural convection
• Certifications: CE, RoHS
📦 INCLUDED:
• DC/DC converter
| Type | Industrial DC/DC power supply |
|---|---|
| Nominal input voltage | 12 VDC |
| Input voltage range | 10 - 30 VDC |
| Efficiency | 94% at medium load, 93% at full load |
| Output voltage | 52 VDC |
| Output current | 3A |
| Maximum output power | 156W 125% |
| Number of outputs | 1 |
| Voltage regulation | <1% |
| Load regulation | <2% |
| Ripple at full load | <170mV |
| No-load current | <40mA |
| Operating temperature | -40 - 80ºC |
| Protections | Overvoltage, overcurrent and overtemperature |
| Dimensions | 74 x 74 x 32 mm |
| Packaging dimensions | 100 x 100 x 32 mm |
| Weight | 300 g |
| Packaging weight | 320 g |
| Protection rating | IP68 |
| Cooling | Natural convection |
| Certifications | CE, RoHS |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
