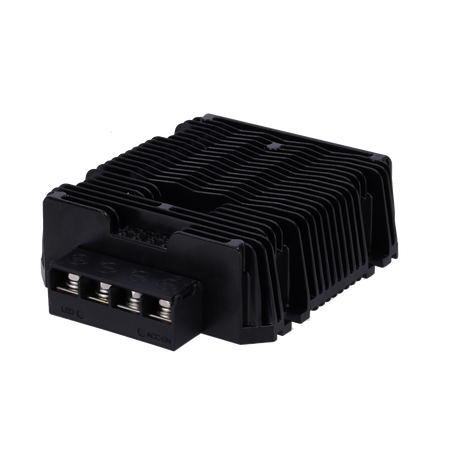

Industrial DC/DC power supply - Maximum output 10A / 600W
Regular price
€112,98
Final price
Regular price
-6%
€120,00
Sale price
€112,98
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

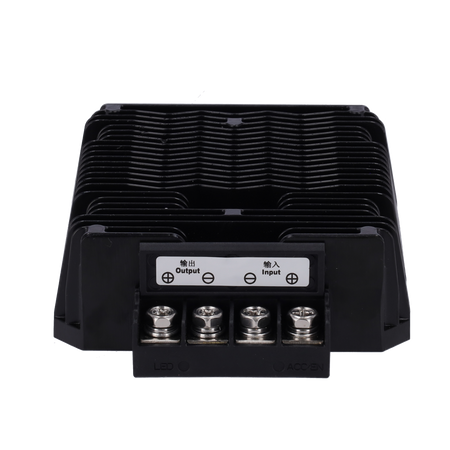

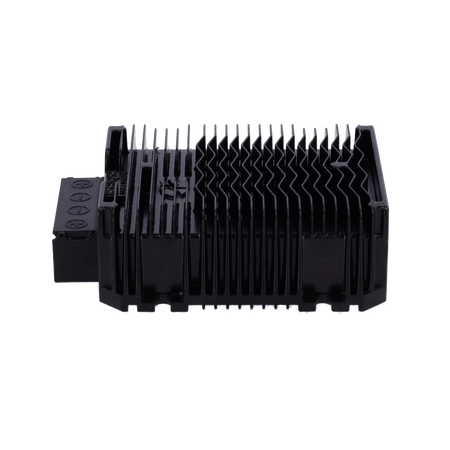

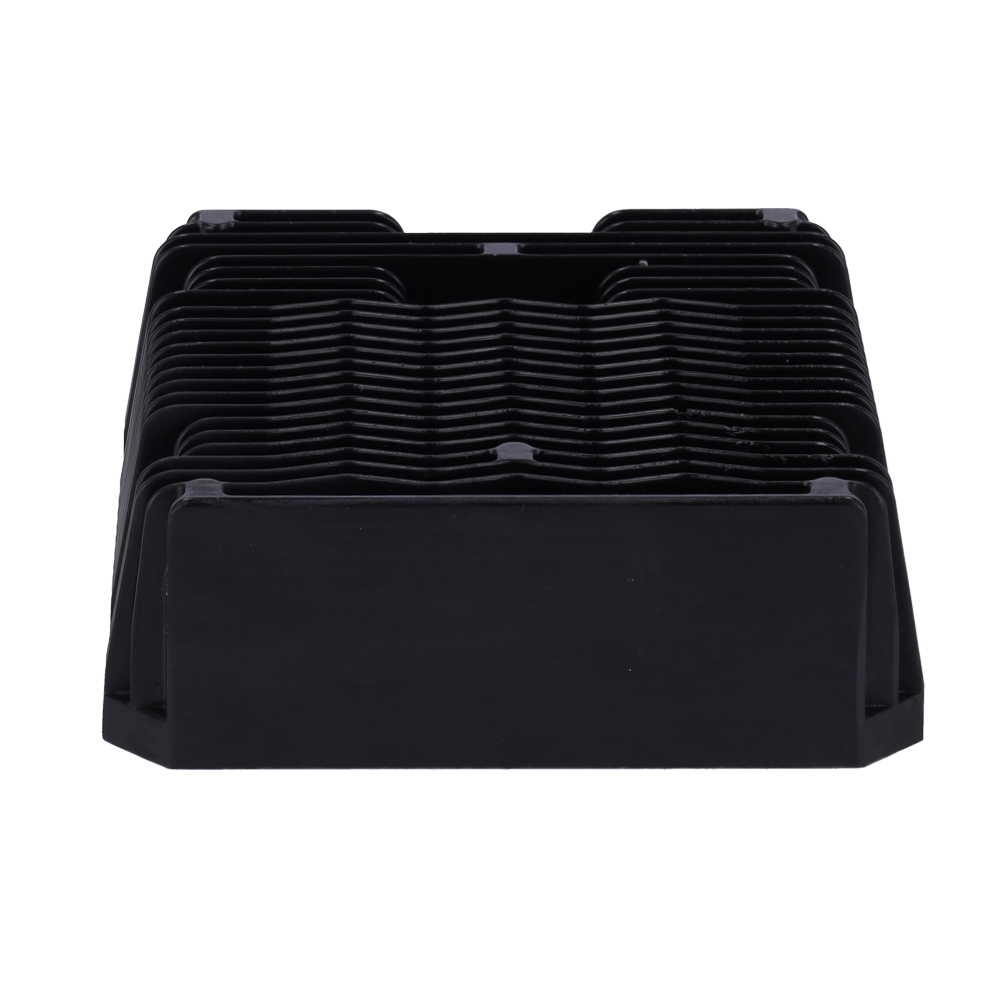

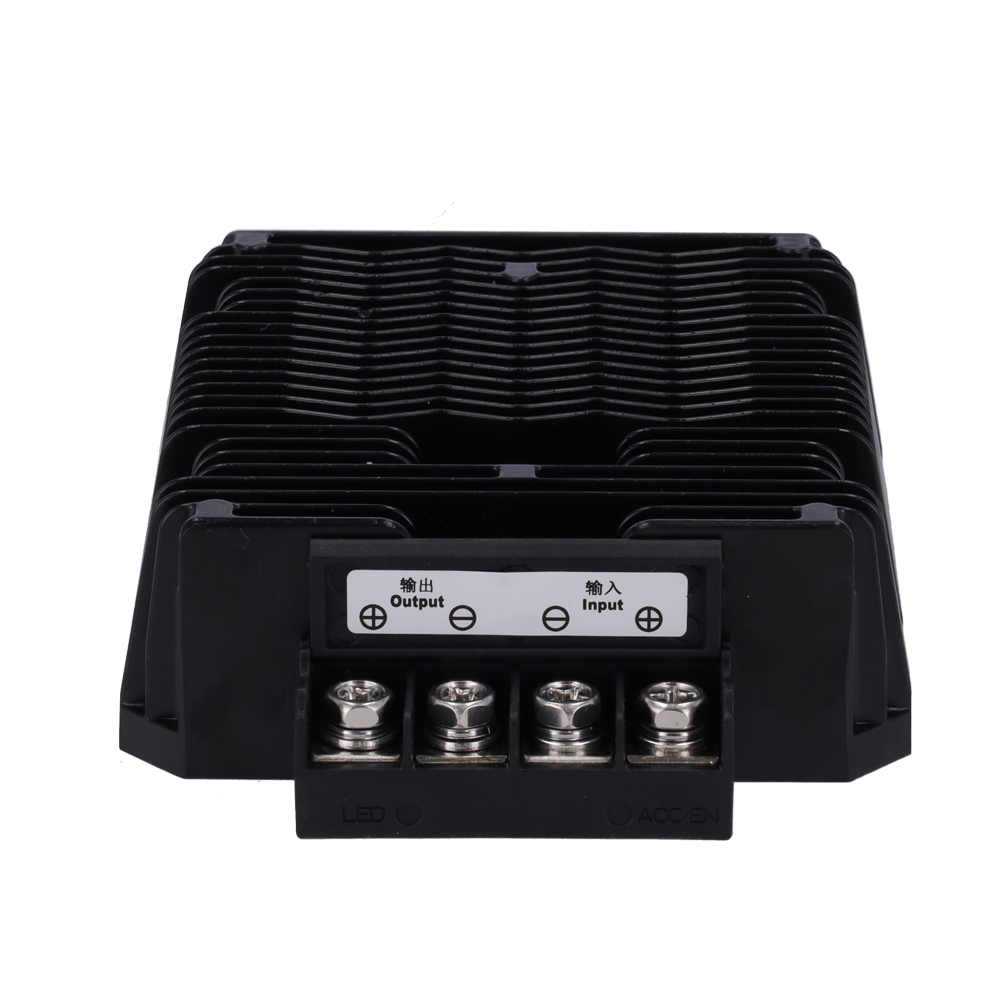

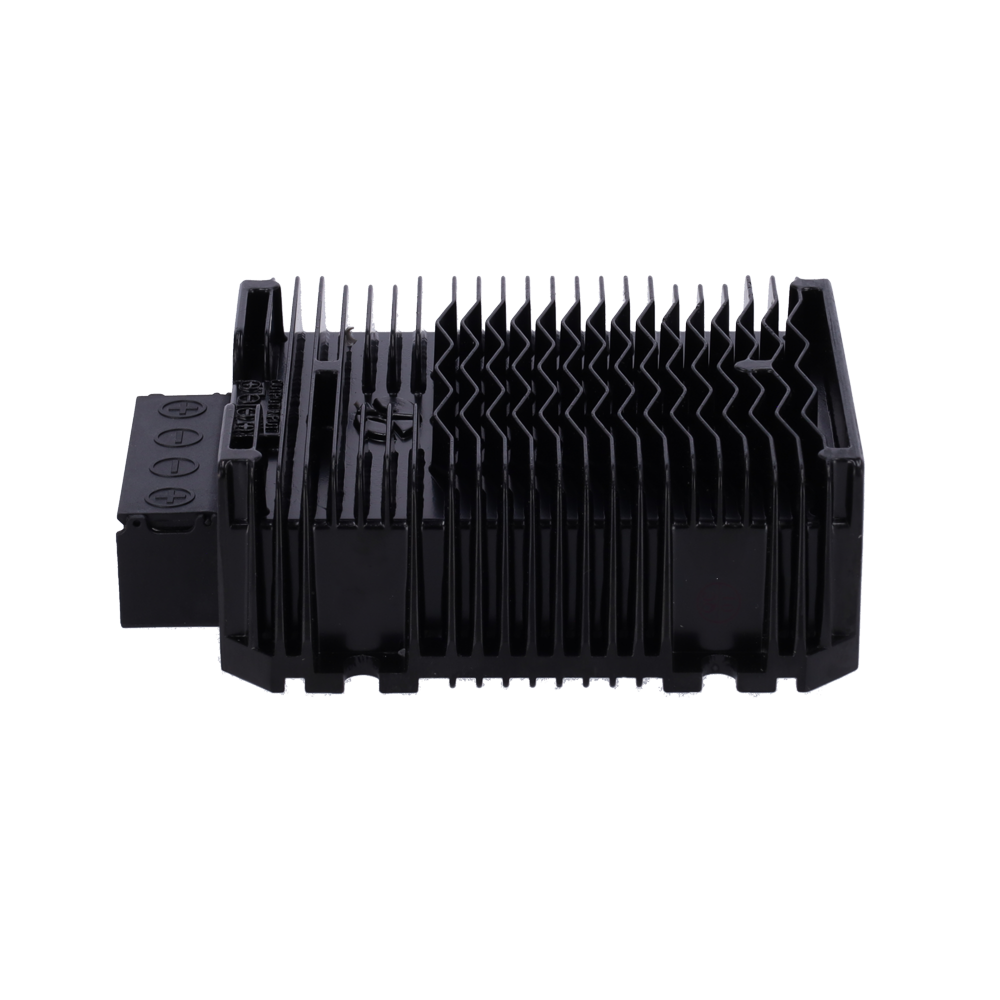

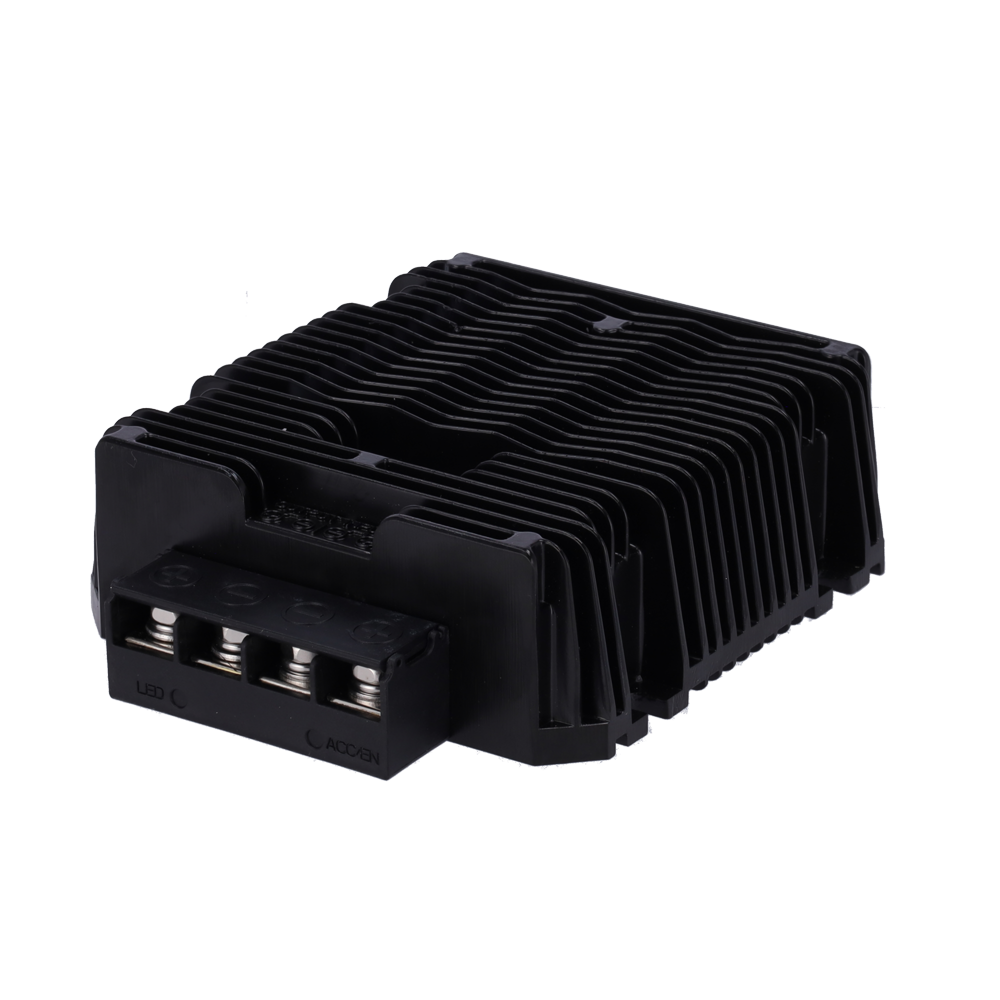

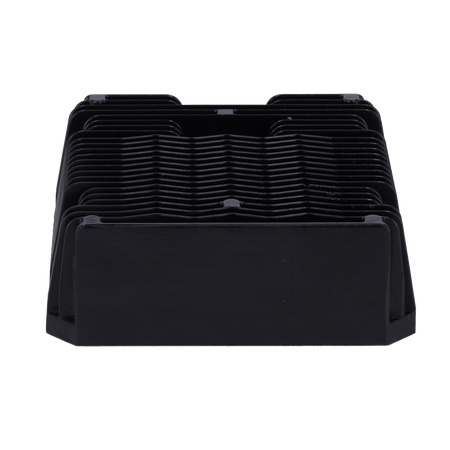

Industrial DC/DC Power Supply - Input Voltage DC 10 - 20V - Output Voltage DC 52V - Max Output 10A / 600W - Lightweight and compact - IP68
📋 SPECIFICATIONS:
• Type: Industrial DC/DC Power Supply
• Nominal input voltage: DC 12V
• Input voltage range: DC 10-20V
• Efficiency: 94.8%
• Output voltage: DC 52V
• Output current: 10A
• Max output power: 600W
• Number of outputs: 1
• Voltage regulation: <1%
• Load regulation: <2%
• Full load ripple: <170mV
• No-load current: <40mA
• Operating temperature: -40 - 80ºC
• Protections: Overvoltage, overcurrent, and overtemperature
• Dimensions: 140 x 120 x 42.5mm
• Weight: 1200g
• Protection rating: IP68
• Cooling: Natural convection
• Certifications: CE, RoHS
• Operating temperature range: -40 - 55ºC
• Storage temperature range: -55 - 100ºC

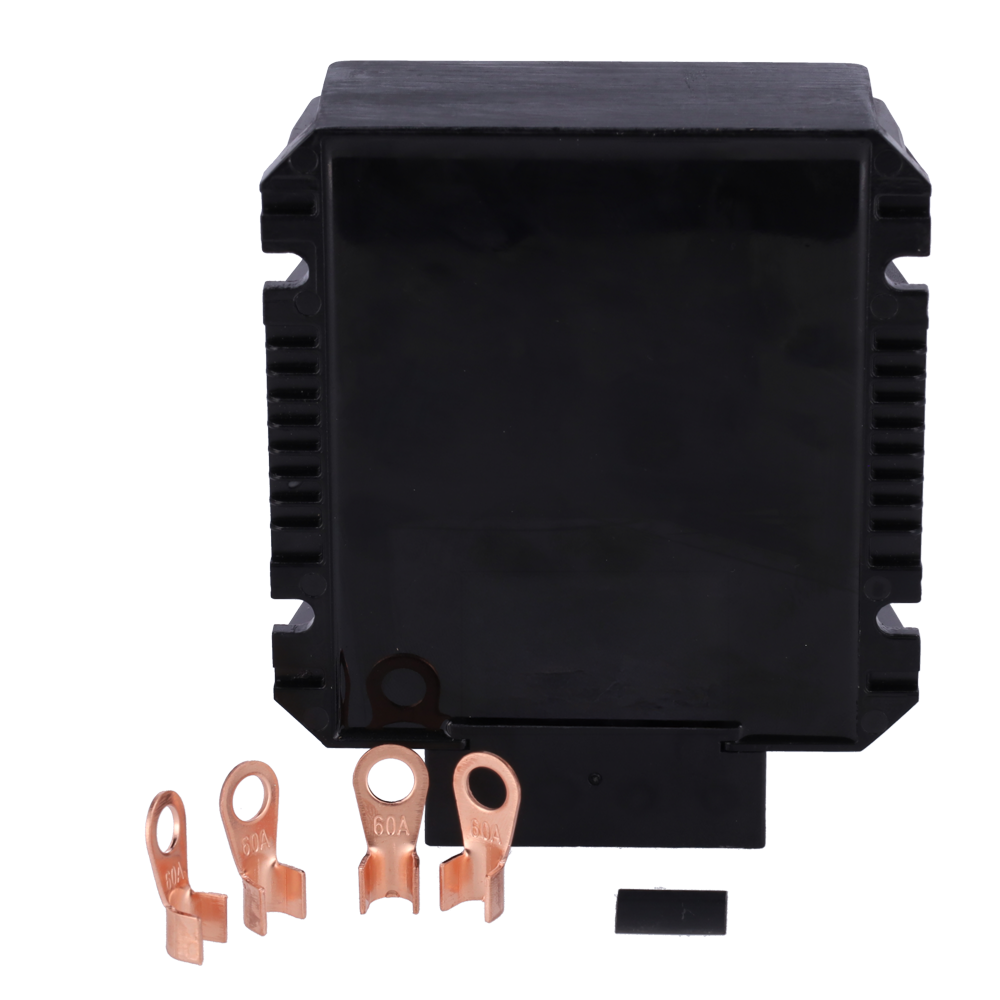

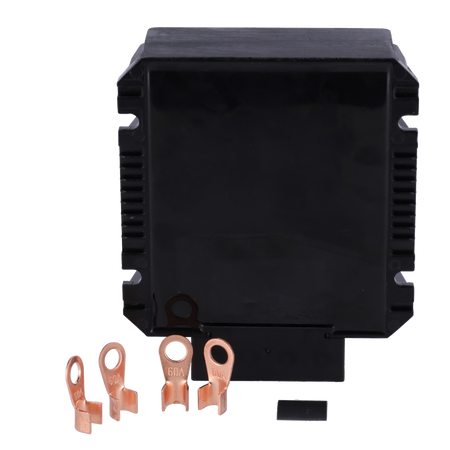

📦 INCLUDED:
• 1x DC/DC Converter
• 1x Mounting accessories
| Type | Industrial DC/DC power supply |
|---|---|
| Nominal input voltage | DC 12V |
| Input voltage range | DC 10-20V |
| Efficiency | 94.8% |
| Output voltage | DC 52V |
| Output current | 10A |
| Maximum output power | 600W |
| Number of outputs | 1 |
| Voltage regulation | <1% |
| Load regulation | <2% |
| Ripple at full load | <170mV |
| No-load current | <40mA |
| Working temperature | -40 - 80ºC |
| Protections | Overvoltage, overcurrent, and overtemperature |
| Dimensions | 140 x 120 x 42.5mm |
| Weight | 1200g |
| Protection rating | IP68 |
| Cooling | Natural convection |
| Certifications | CE, RoHS |
| Operating temperature range | -40 - 55ºC |
| Storage temperature range | -55 - 100ºC |
- User manual Link
