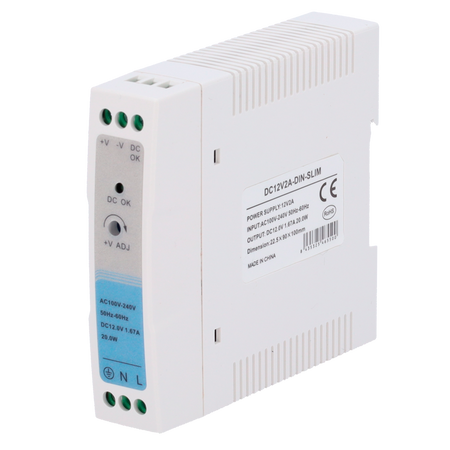

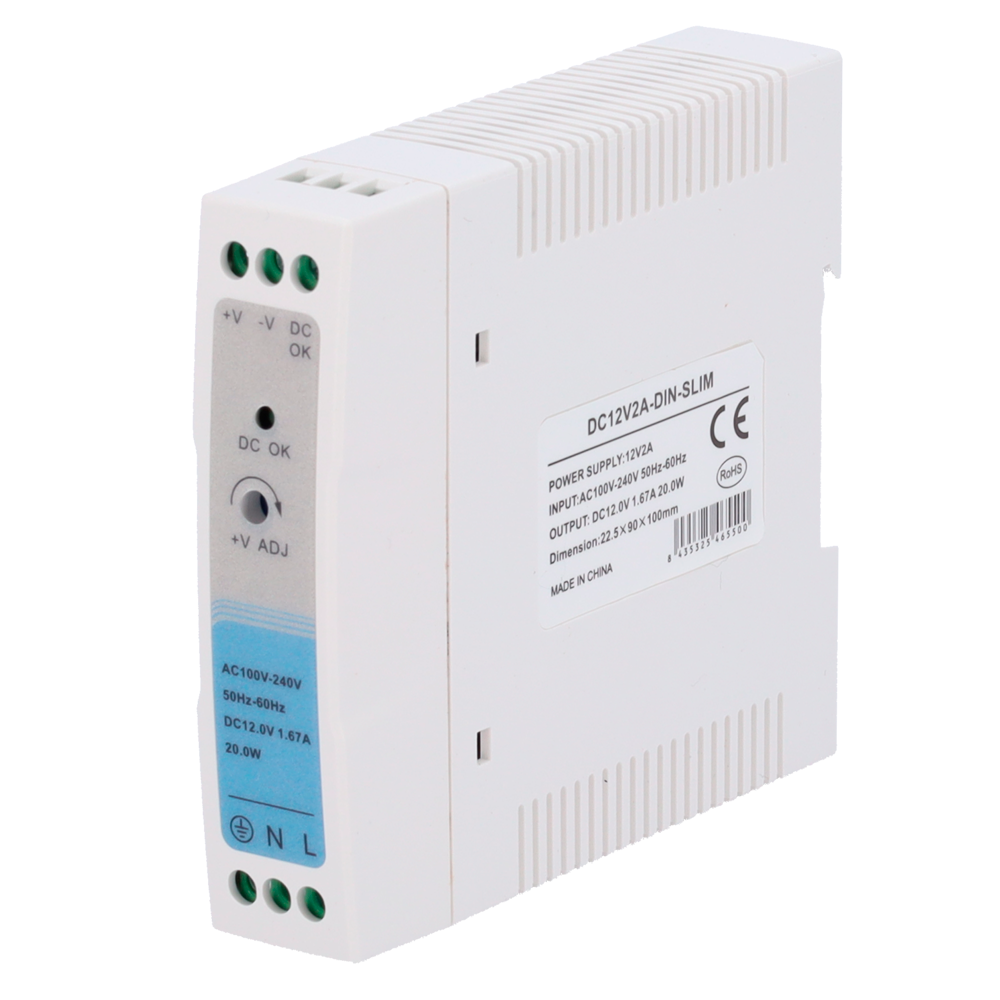

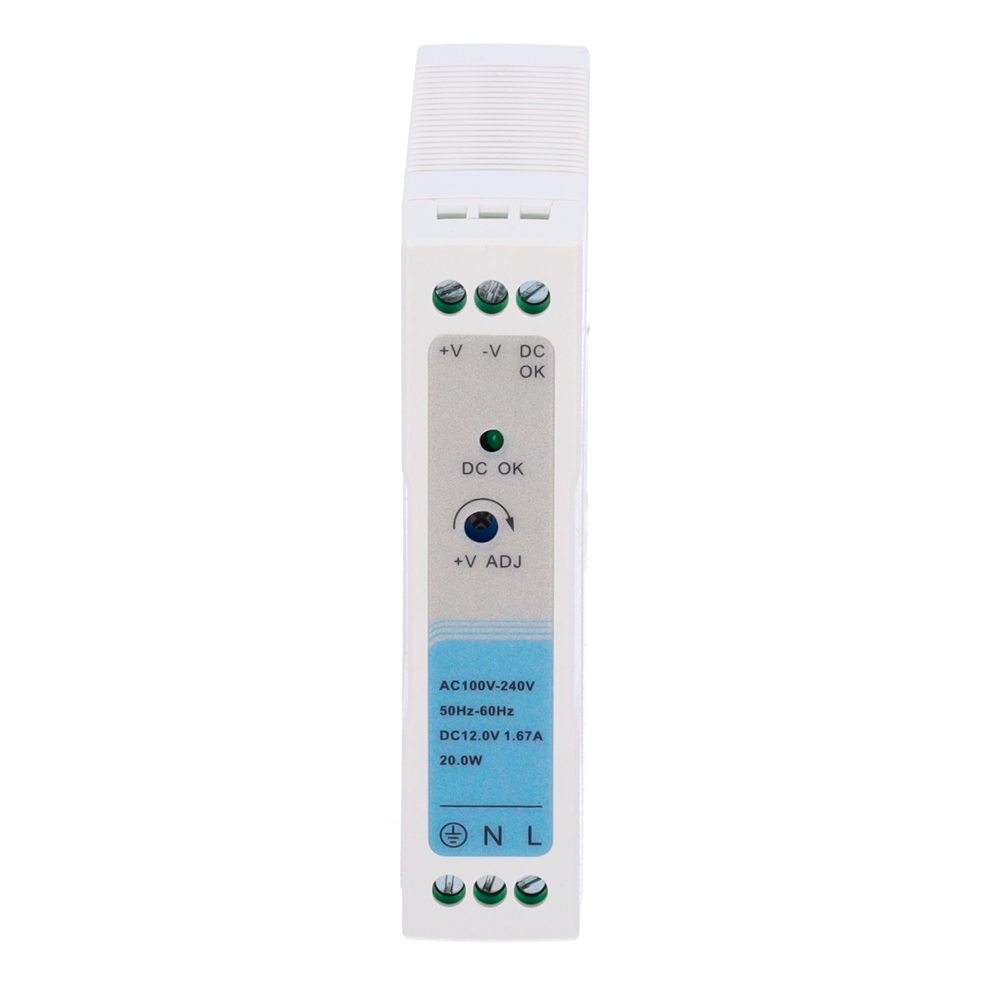

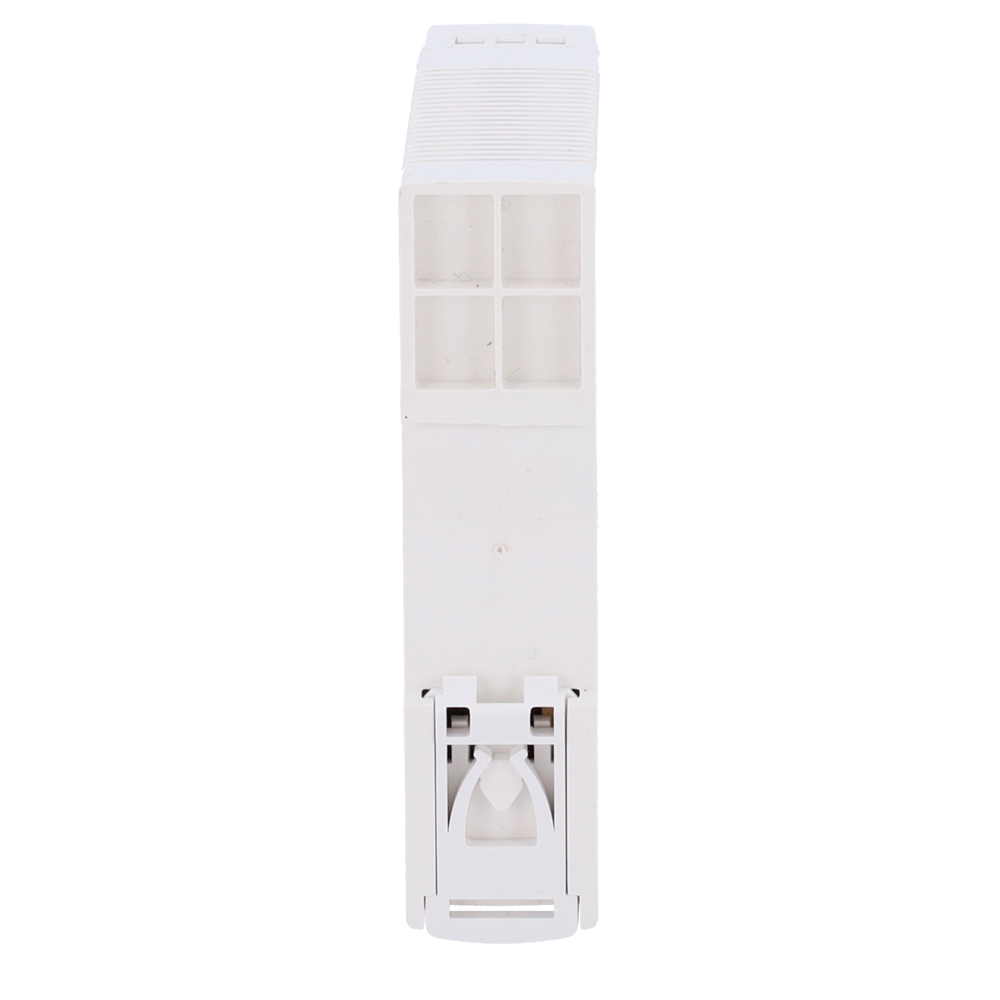

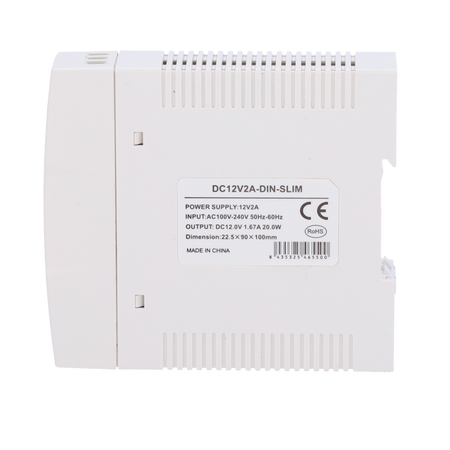

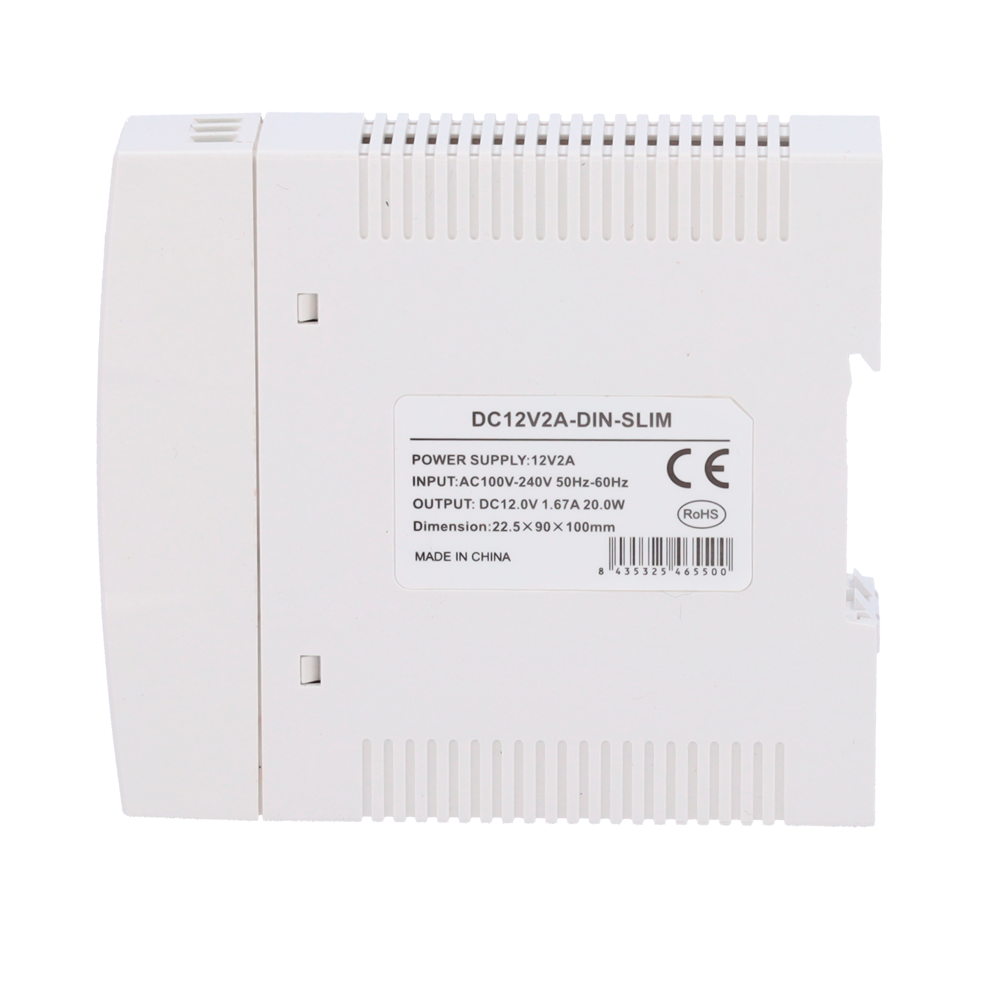

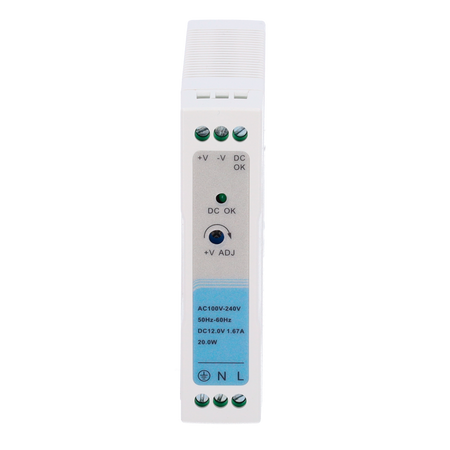

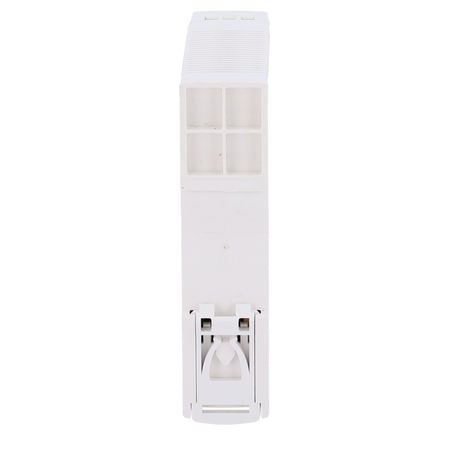

Industrial power supply - Maximum output power of 20W (12V / 1.37A)
Industrial power supply - Maximum output power of 20W (12V / 1.37A)
Regular price
€20,75
Final price
Regular price
-14%
€24,00
Sale price
€20,75
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Industrial power supply - 20W maximum output power (12V / 1.37A) - Slim design with thin plastic housing - Full-range AC input from 90V to 264V - Dedicated DC OK relay contact output - Adjustable continuous output voltage
📋 SPECIFICATIONS:
• Component type: Industrial power supply
• Mounting format: DIN rail
• Housing material: Slimline plastic
• Output power: 20 W
• Continuous output voltage: DC 12 V
• Output current: 1.37 A
• Voltage regulation: Manually adjustable
• Ripple and noise (max.): 120 mVp-p
• Voltage tolerance: ±5.0%
• Line regulation: ±1.0%
• Load regulation: ±5.0%
• Output status signal: Active DC OK relay
• AC input range: 85 V AC to 264 V AC
• DC input range: 120 V DC to 370 V DC
• Input frequency: 50 / 60 Hz
• Leakage current: <0.25 mA / 240 VAC
• Energy efficiency: 80%
• Overload protection: 105% to 150% of rated power (Hiccup mode, auto-recovery)
• Overvoltage protection: 13.8 V to 16.2 V (Type: voltage shutdown, power on to recover)
• Integrated protections: Short circuit, overload, overvoltage and overtemperature
• Dielectric isolation: I/P-O/P: 3 KVAC | I/P-FG: 2 KVAC | O/P-FG: 0.5 KVAC
• Operating temperature: -20 °C to 60 °C (At full load)
• Physical dimensions: 23 x 100 x 92 mm
• Net weight: 150 g
📦 INCLUDED:
• 1x DC12V2A-DIN-SLIM DIN rail industrial power supply
| Component type | Industrial power supply |
|---|---|
| Mounting style | DIN rail |
| Housing material | Slimline plastic |
| Output power | 20 W |
| Continuous output voltage | DC 12 V |
| Output current | 1.37 A |
| Voltage adjustment | Manually adjustable |
| Ripple and noise (max.) | 120 mVp-p |
| Voltage tolerance | ±5.0% |
| Line regulation | ±1.0% |
| Load regulation | ±5.0% |
| Output status signal | DC OK active relay |
| AC input range | 85 V AC to 264 V AC |
| DC input range | 120 V DC to 370 V DC |
| Input frequency | 50 / 60 Hz |
| Leakage current | <0.25 mA / 240 VAC |
| Energy efficiency | 80% |
| Overload protection | 105% to 150% of rated power (Hiccup mode, auto-recovery) |
| Overvoltage protection | 13.8 V to 16.2 V (Type: Voltage shut down, re-power on to recover) |
| Built-in protections | Short circuit, overload, overvoltage, and overtemperature |
| Dielectric isolation | I/P-O/P: 3 KVAC | I/P-FG: 2 KVAC | O/P-FG: 0.5 KVAC |
| Operating temperature | -20 °C to 60 °C (At full load) |
| Physical dimensions | 23 x 100 x 92 mm |
| Net weight | 150 g |
