CONTATTO SIGARETTA INCASSO 22MM A VITE
CONTATTO SIGARETTA INCASSO 22MM A VITE

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

Ipertronic

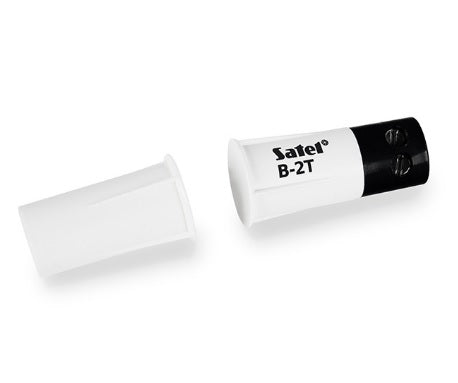

Magnetic contact - Suitable for installation on wood

SKU: MC-EWPS
(0)
In stock
Usually shipped within 24 hours
€4,62 Final price

Venduto a confezioni da 10 pezzi.

Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Magnetic contact - Suitable for installation in wood - Reed technology - Terminal connection system - Resistance to mechanical and electrical shocks

  • Flush-mount magnetic detector
  • Reed technology
  • Suitable for installation on wood
  • Resistance to mechanical and electrical shocks
  • Terminal connection system

Technical data sheet

Technology Reed
Power Medium power
Contact type Normally closed
Maximum detection distance Up to 15mm depending on the material it is installed on
Material Plastic
Cable Connector for 2 wires
Magnet Neodymium
Resistance to mechanical shock Up to 12KgS
Electrical parameters 100 VDC/VAC max, 500mA, 10W
Dimensions Detector: 30 x Ø10.5 x Ø9.5 mm Magnet: 22 x Ø10.5 x Ø9 mm

Technical specifications

  • Normally closed magnetic contact
  • Cylindrical flush-mount, made of ABS
  • Max operating distance 22mm
  • IMQ certified. Screw connection.
Technology Reed
Power Medium power
Contact type Normally closed
Maximum sensing distance Up to 15mm depending on the material it is installed on
Material Plastic
Cable Connector for 2 wires
Magnet Neodymium
Mechanical shock resistance Up to 12KgS
Electrical parameters 100 VDC/VAC max, 500mA, 10W
Dimensions Detector: 30 x Ø10.5 x Ø9.5 mm Magnet: 22 x Ø10.5 x Ø9 mm
