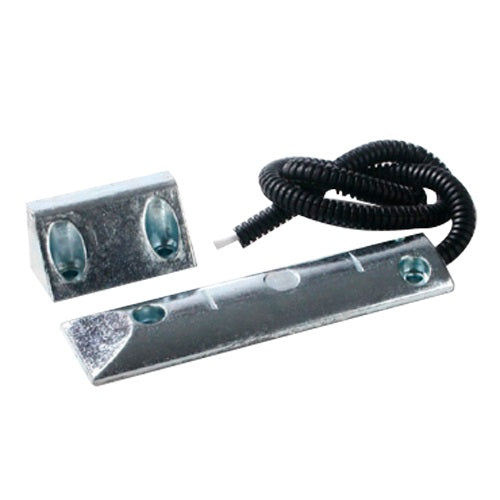

FDP magnetic contact for shutters - Specific for metal installation - High-power Reed technology - 4-wire armored system - Metal housing - Suitable for outdoor use IP65 - Grade 2 certified
- FDP
- Magnetic detector for shutters and metal doors
- Reed technology
- High power
- Suitable for metal installation
- High resistance to mechanical and electrical shocks
- 4-wire system with metal mesh
- Metal housing
- Suitable for outdoor use IP65
- Grade 2 certified
Technical data sheet
| Security level | Grade 2 (EN50131-2-6) |
| Environmental class | Class 2 / Suitable for outdoor use IP65 |
| Technology | Reed |
| Power | High power |
| Installation type | Shutters and metal doors |
| Cable length | 4 armored wires 60cm |
| Magnet | neodymium |
| Electrical parameters | 100 VDC max, 1A |
| Material | Metal |
| Dimensions (Detector / magnet) | 151 x 41 x 12 mm / 60.5 x 28.5 x 12 mm |
Technical features
- FDP magnetic contact, Specific for installation
- in metal. High-power Reed technology. System
- of 4 armored wires. Metal housing.
- Suitable for outdoor use IP65. Grade 2 certified.
| Security level | Grade 2 (EN50131-2-6) |
|---|---|
| Environmental class | Class 2 / Suitable for outdoor IP65 |
| Technology | Reed |
| Power | High power |
| Installation type | Shutters and metal doors |
| Cable length | 4-wire 60cm armored |
| Magnet | neodymium |
| Electrical parameters | 100 VDC max, 1A |
| Material | Metal |
| Dimensions (Detector / magnet) | 151 x 41 x 12 mm / 60.5 x 28.5 x 12 mm |
- User manual Link
