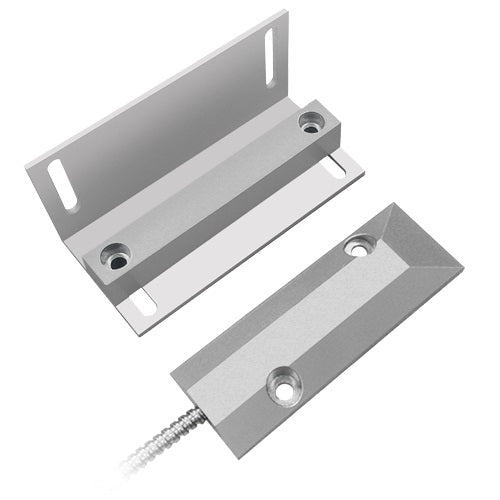

CONTATTO MAGNETICO CORAZZATO A L
CONTATTO MAGNETICO CORAZZATO A L

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

Ipertronic

Magnetic contact - Suitable for installation on metal

SKU: MC-RMMC-L
(0)
In stock
Usually shipped within 24 hours
€10,38 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Magnetic contact - Suitable for metal installation - High-power Reed technology - 2-wire connection system - Resistance to mechanical and electrical shocks - L-bracket for installation

  • Magnetic detector for metal shutters and doors
  • Reed technology
  • High power
  • Suitable for metal installation
  • L-bracket for installation
  • Resistance to mechanical and electrical shocks
  • 2-wire system

Technical datasheet

Technology Reed
Contact type NC
Power High power
Maximum detection distance Up to 50 mm depending on the material it is installed on
Material Metal
Cable 2 wires protected by metal mesh
Metal mesh length 38 cm
Cable length 55 cm
Magnet neodymium
Resistance to mechanical shocks Up to 19 KgS
Electrical parameters 100 VDC/VAC max, 500mA, 10W
Dimensions Detector: 106 (H) x 10 (W) x 38 (D) mm Magnet: 106 (H) x 16 (W) x 16 (D) mm

Technical features

  • Reed detection technology. 2-wire connection system
  • Resistance to mechanical and electrical shocks
  • L-bracket for installation

Download user manual (PDF)
Technology Reed
Contact type NC
Power High power
Maximum sensing distance Up to 50mm depending on the material it is installed on
Material Metal
Cable 2 wires protected by metal mesh
Metal mesh length 38 cm
Cable length 55 cm
Magnet Neodymium
Mechanical shock resistance Up to 19KgS
Electrical ratings 100 VDC/VAC max, 500mA, 10W
Dimensions Detector: 106 (H) x 10 (W) x 38 (D) mm Magnet: 106 (H) x 16 (W) x 16 (D) mm
