CONTATTO MAGNETICO 4FILI GRADO 2 IP65
Contatto magnetico FDP - Specifico per superfici metalliche
Contatto magnetico FDP - Specifico per superfici metalliche
Contatto magnetico FDP - Specifico per superfici metalliche
Contatto magnetico FDP - Specifico per superfici metalliche
CONTATTO MAGNETICO 4FILI GRADO 2 IP65
Contatto magnetico FDP - Specifico per superfici metalliche
Contatto magnetico FDP - Specifico per superfici metalliche
Contatto magnetico FDP - Specifico per superfici metalliche
Contatto magnetico FDP - Specifico per superfici metalliche

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

Ipertronic

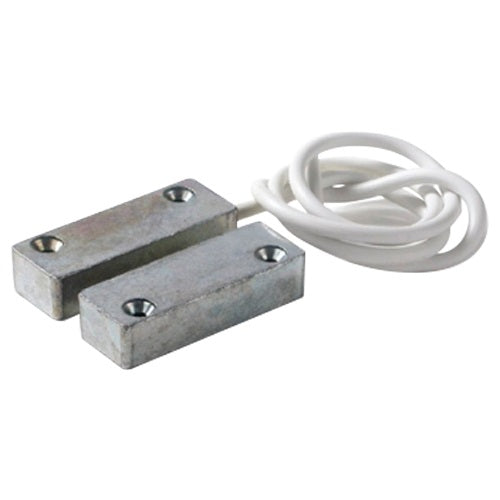

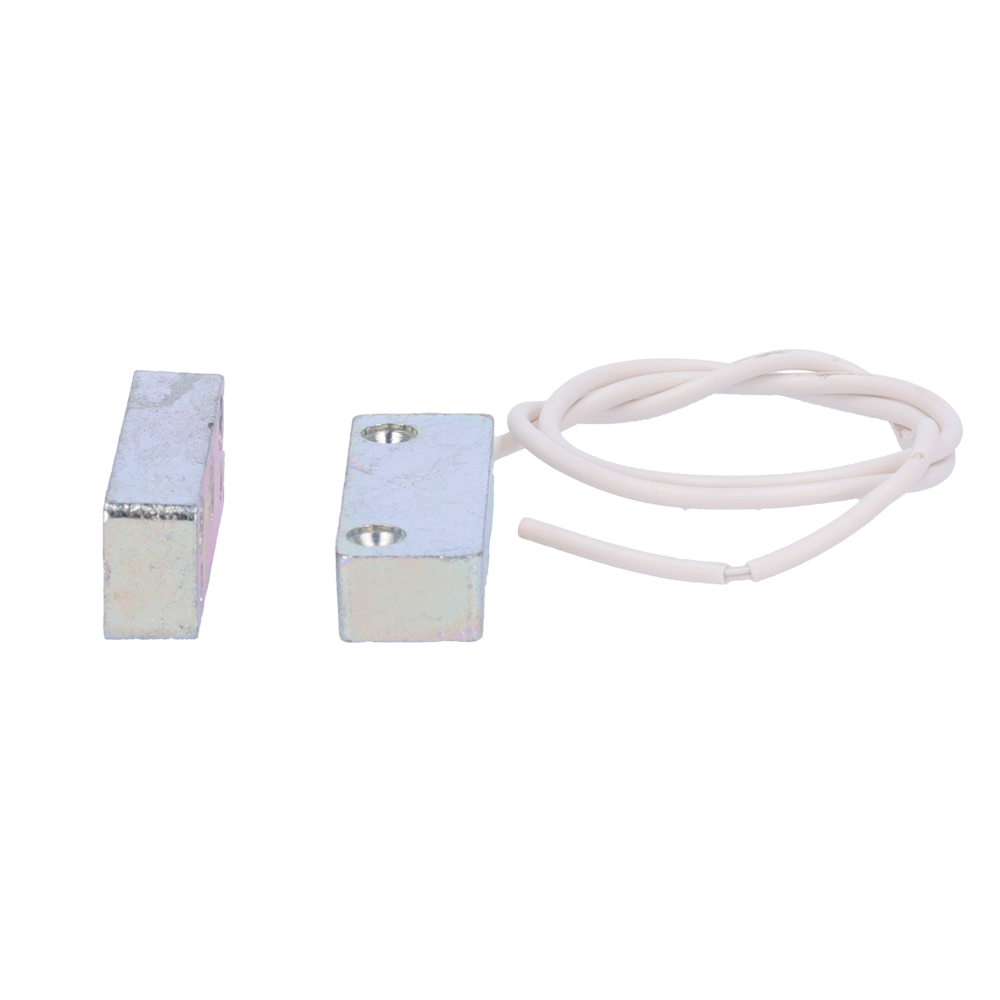

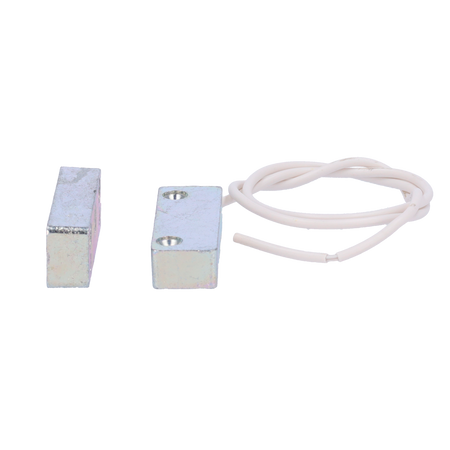

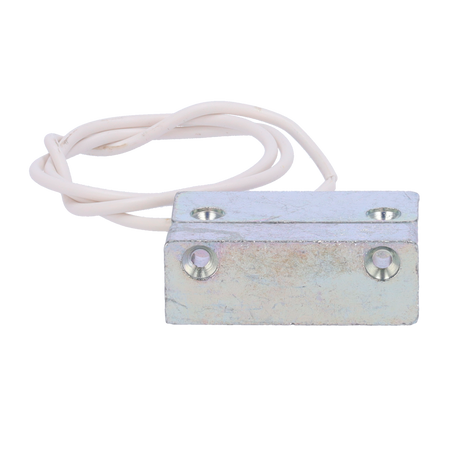

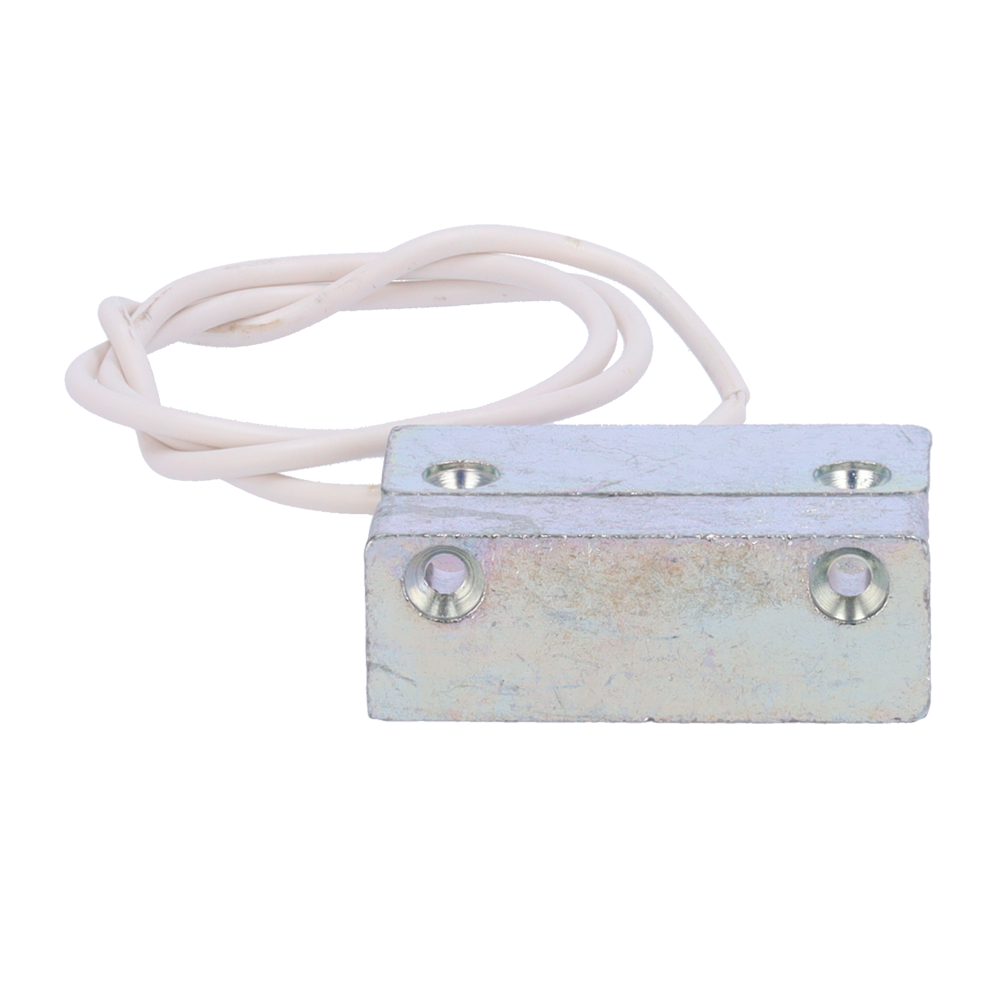

FDP magnetic contact - Specific for metal surfaces

SKU: A-C3
(0)
In stock
Usually shipped within 24 hours
€7,84 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

FDP magnetic contact - Specific for metal surfaces - High-power Reed technology - 4-wire system - Metal housing - Suitable for outdoor use IP65 - Grade 2 certified

  • FDP
  • Magnetic surface detector
  • Reed technology
  • High power
  • Suitable for installation on metal
  • High resistance to mechanical and electrical shocks
  • 4-wire system
  • Metal housing
  • Suitable for outdoor use IP65
  • Grade 2 certified

Technical data sheet

Security level Grade 2 (EN50131-2-6)
Environmental class Class 4 / Suitable for outdoor use IP65
Technology Reed
Power High power
Maximum detection distance In wood 20 mm In ferrous materials 10 mm In aluminium 20 mm
Installation type Surface
Cable length 4 wires of 60cm (2 alarm / 2 tamper)
Magnet neodymium
Electrical parameters 200 VDC max, 0.5A, 10W
Material Metal
Dimensions 52 x 19 x 13 mm

Technical features

  • Magnetic contact Reed technology
  • Suitable for installation on metal, High resistance
  • to mechanical and electrical shocks. 4-wire system
  • Metal housing. IP65 outdoor Grade 2 certified.

Download user manual (PDF)
Security level Grade 2 (EN50131-2-6)
Environmental class Class 4 / Suitable for outdoor IP65
Technology Reed
Power High power
Maximum detection distance In wood 20 mm In ferrous materials 10 mm In aluminium 20 mm
Installation type Surface
Cable length 4 wires of 60cm (2 alarm / 2 tamper)
Magnet neodymium
Electrical parameters 200 VDC max, 0.5A, 10W
Material Metal
Dimensions 52 x 19 x 13 mm

Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.

For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.

The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
