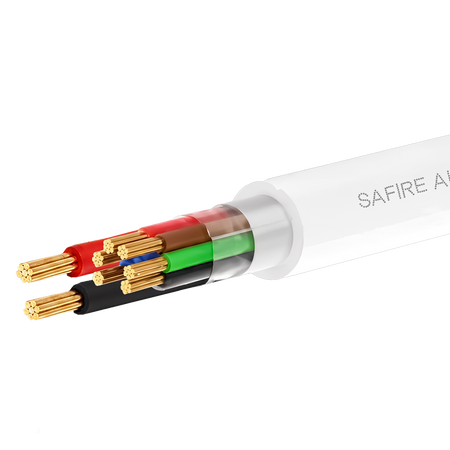

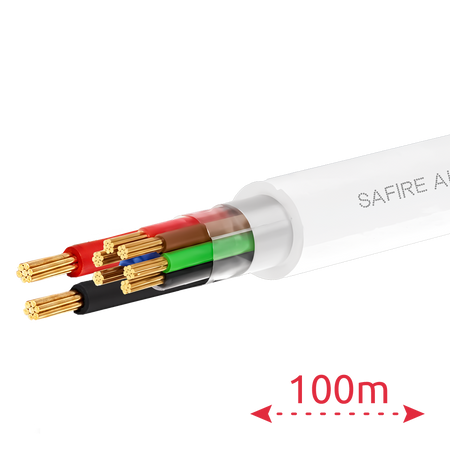

6 signal conductors + 2 power conductors Safire - 100-meter reel
6 signal conductors + 2 power conductors Safire - 100-meter reel
Regular price
€44,97
Final price
Regular price
-6%
€48,00
Sale price
€44,97
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
6 signal conductors + 2 power conductors - Copper-clad aluminum conductor - Aluminum and polyester shielding - 100-meter spool - CPR Eca certified - Low loss
📋 SPECIFICATIONS:
• Length: 100 m
• Conductor material: Copper-clad aluminum
• Signal conductors (6x): 0.22 mm² (42*0.185 ± 0.01 mm)
• Power conductors (2x): 0.75 mm² (32*0.185 ± 0.01 mm)
• Insulation material: LSZH (Low Smoke Zero Halogen)
• Insulation thickness: >0.20 mm (signal conductor)
• Insulation thickness: >0.35 mm (power conductor)
• Shielding (Shield): Aluminum and polyester foil
• Drain wire: CCA (7*0.18 ± 0.01 mm)
• Rip cord: Included
• Jacket material: LSZH
• Jacket diameter: 5.2 ± 0.30 mm
• Jacket thickness: 0.50 mm
• DC resistance 20° (0.22 mm²): ≤ 265 Ω/100 m
• DC resistance 20° (0.75 mm²): ≤ 76 Ω/1000 m
• Insulation resistance 20°: 200 MΩ.km
• Voltage test (1 min. / 50 Hz): 1200 V (0.22 mm² section) 2000 V (0.22 mm² section)
• Certification: CPR Eca / RoHS 2.0 / Reach
• Jacket color: White
• Weight: 55 kg/km
• Operating temperature: From -10° C to 70° C
• Compliant with standards: EC 60332-1 & IEC 60332-3-24; IEC 60754-1 /-2 –IEC 61034-1 /-2; EN 50575
📦 INCLUDED:
• 1x Spool of Safire CA6P2-100-H-Cca-WHITE cable
| Length | 100 m |
|---|---|
| Conductor material | Copper-clad aluminum |
| Signal cores (6x) | 0.22 mm² (42*0.185 ± 0.01 mm) |
| Power cores (2x) | 0.75 mm² (32*0.185 ± 0.01 mm) |
| Insulation material | LSZH (Low Smoke Zero Halogen) |
| Insulation thickness | >0.20 mm (signal conductor) |
| Insulation thickness | >0.35 mm (power conductor) |
| Shield | Aluminum foil and polyester |
| Drain wire | CCA (7*0.18 ± 0.01 mm) |
| Rip cord | Present |
| Jacket material | LSZH |
| Jacket diameter | 5.2 ± 0.30 mm |
| Jacket thickness | 0.50 mm |
| DC resistance 20° (0.22 mm²) | ≤ 265 Ω/100 m |
| DC resistance 20° (0.75 mm²) | ≤ 76 Ω/1000 m |
| Insulation resistance 20° | 200 MΩ.km |
| Voltage test (1 min. / 50 Hz) | 1200 V (0.22 mm² section) 2000 V (0.75 mm² section) |
| Certification | CPR Eca / RoHS 2.0 / Reach |
| Jacket color | White |
| Weight | 55 kg/km |
| Operating temperature | -10° C to 70° C |
| Complies with standards | IEC 60332-1 & IEC 60332-3-24 IEC 60754-1 /-2 –IEC 61034-1 /-2 EN 50575 |
